Manufacturer part number
UAP-XG
Warranty
?
12 months
EAN
0817882024273
UniFi XG
This item has been discontinued
We recommend to use the product presented below
Ubiquiti UniFi U6 Enterprise
U6-Enterprise
Available alternatives
Detailed description

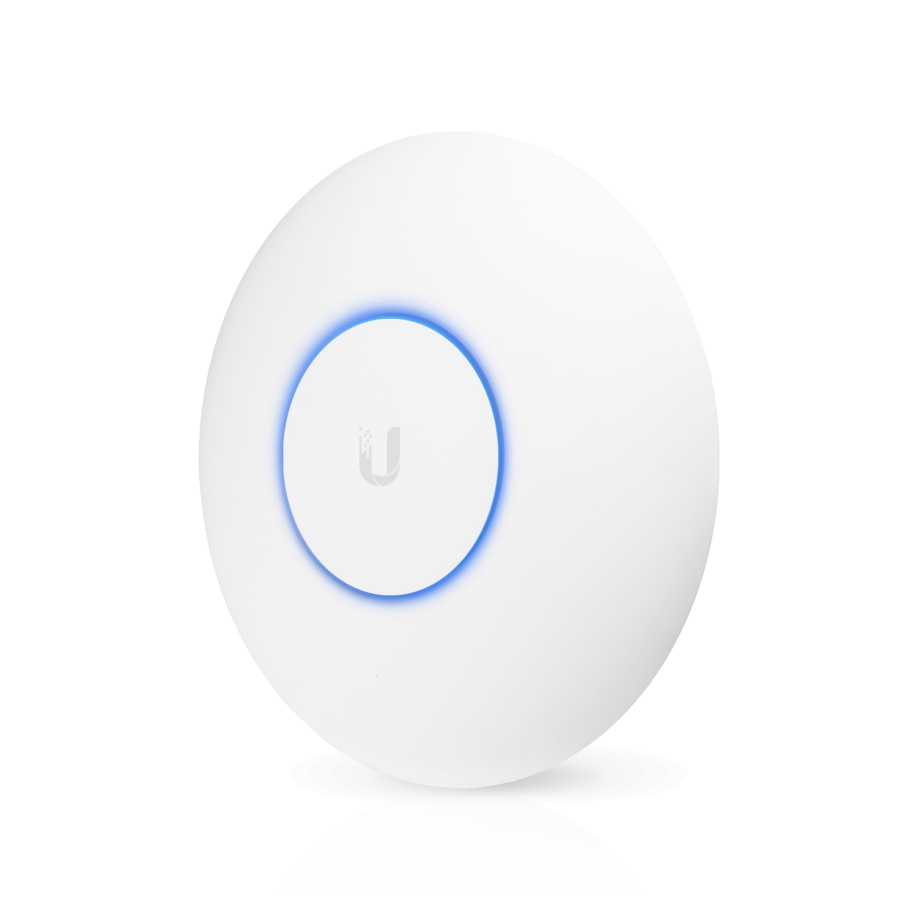

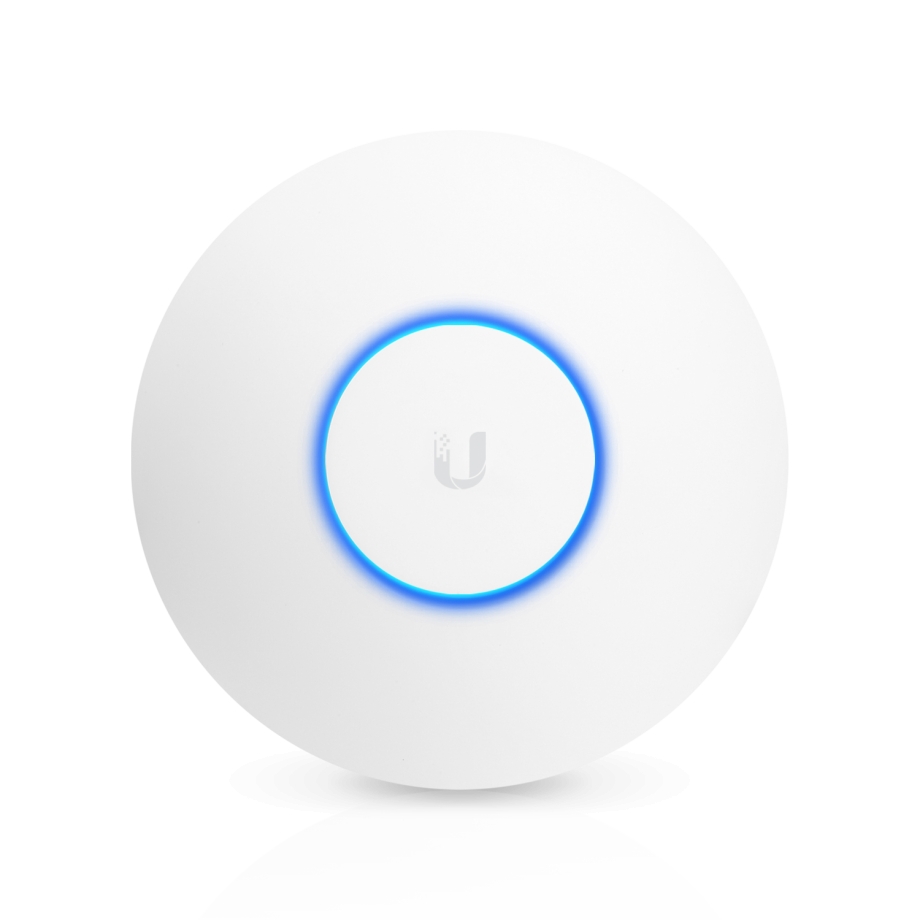

UniFi XG Access Point
Expand your 10-Gigabit network with the UniFi XG Access Point, part of the Ubiquiti UniFi Enterprise Wi-Fi System.
Features:
- 10Gigabit Ethernet Support
- 4x4 MU-MIMO Quad-Radio: (3) client, 1 Security
- Dual 5 GHz 802.11ac Wave 2 Radios
- 3.466 Gbps Combined Radio Rate in 5 GHz
- 800 Mbps Radio Rate in 2.4 GHz
- Dedicated Security Radio with Persistent Threat Management
- 1,500 Client Association Limit
- 802.3bt Power Injector Included

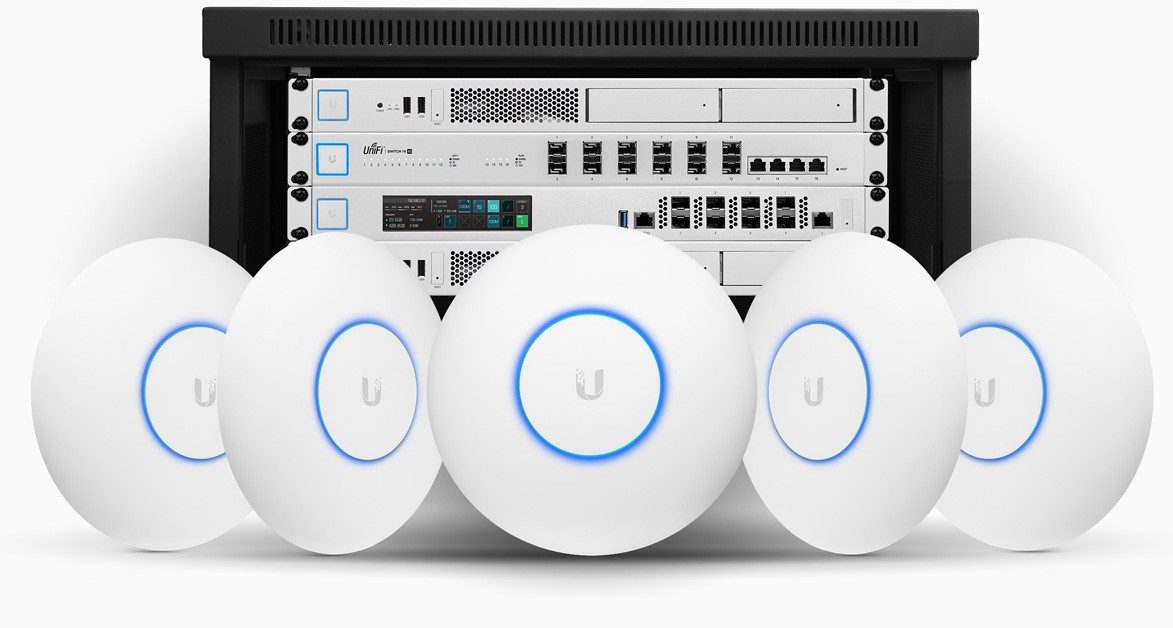

Create a Future-Proof 10 Gigabit End-to-End UniFi Network
The Highest Performing WiFi AP in the World

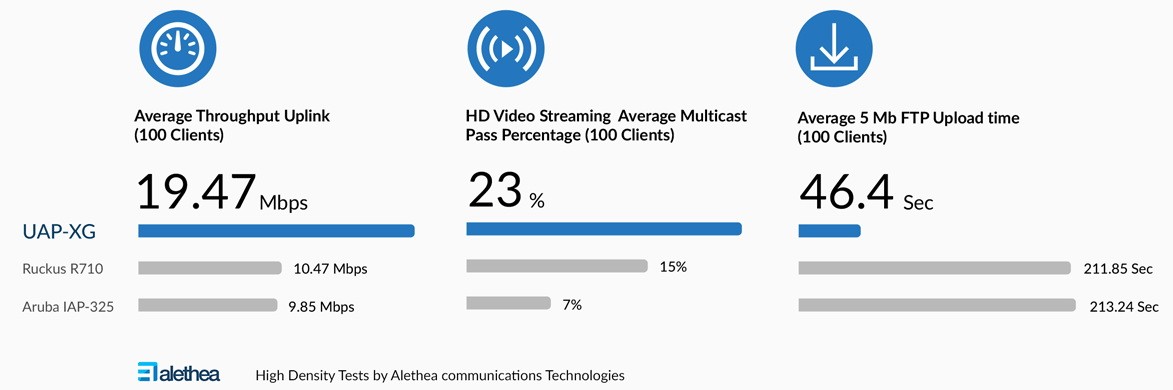

High Density Tests conducted on Access Points where done in a high density environment with 100 WiFi clients running the test concurrently

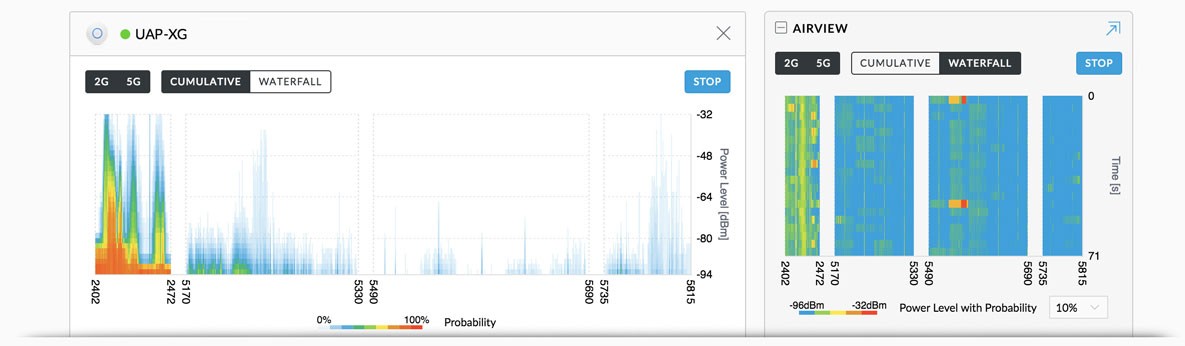

Spectral Security
The UniFi WiFi AP delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilization analytics, and intrusion detection/prevention. Using a persistent spectral scan, the AP constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance.

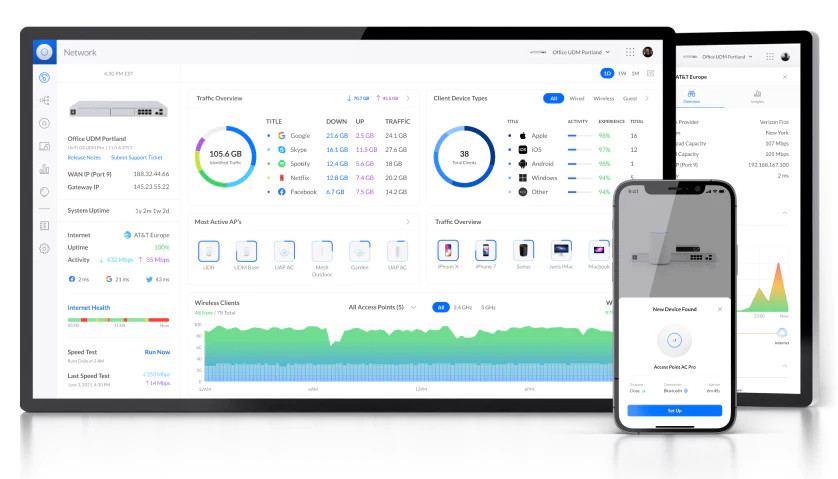

Advanced Features in UniFi Network Application
Featuring an intuitive user interface, the UniFi Network Application conducts device discovery, provisioning, monitoring, and configuration for centralized control of UniFi devices.
Technical Specs / Datasheet
Specifications
Wireless Network
Standards
802.11a/b/g/n/ac, 802.11ac Wave2, 802.11r/k/v
MIMO
2.4GHz 4x4, 5GHz 4x4
2.4GHz Radio Rate
800 Mbps
5GHz Radio Rate
1.7 Gbps
Antenna
Wireless Antenna Frequency Range & Gain
2.4 - 2.4 (GHz) 6 (dBi), 5 - 5 (GHz) 8 (dBi)
Interfaces
RJ45 Ports
(1) 1 Gbps, (1) 10 Gbps
Power
Power Method
802.3bt PoE++
Power Supply
External PoE Adapter
Supported Input Voltage
44 - 57 V DC
Max Power Consumption
31 W
Physical Parameters
Dimensions
Ø228 x 50 mm
Weight
1.35 kg
Operating Temperature
-10 °C to 60 °C
Environment
Indoor, Outdoor
Mounting Method
Wall Mount, Ceilling Mount
Package Contains
External Power Supply
Included
