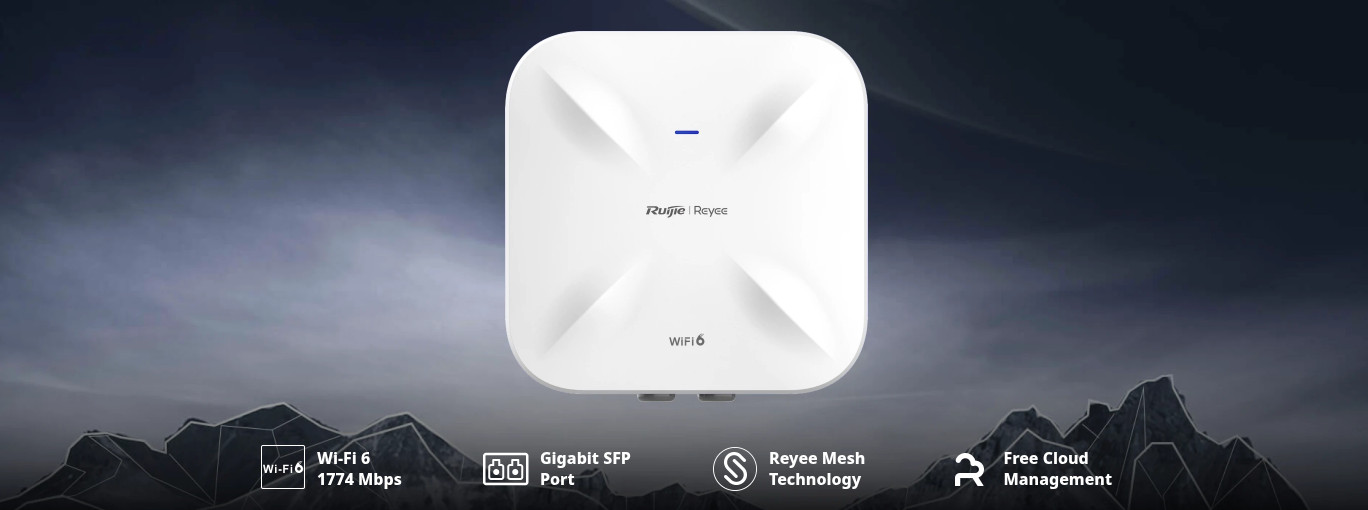

Reyee Wi-Fi 6 Dual Band Gigabit Outdoor Access Point

RG-RAP6260(G) is a Wi-Fi 6 dual-band outdoor access point designed to provide wireless connectivity in open and demanding environments. It supports concurrent 2.4 GHz and 5 GHz operation with dual-stream MIMO technology, allowing the access point to deliver up to 574 Mbps on 2.4 GHz and up to 1201 Mbps on 5 GHz, with a total wireless throughput of 1775 Mbps per AP. This makes it suitable for outdoor wireless deployments where both wider 2.4 GHz coverage and higher-speed 5 GHz access are required. The device supports modern 802.11ax connectivity while remaining compatible with earlier Wi-Fi standards, helping it serve mixed client environments without requiring all devices to use the latest wireless generation.

The access point uses internal antennas with 2.4 GHz and 5 GHz gain values specified at 4 dBi and 6 dBi, respectively. It also includes FBAR filters, which help filter interference from sources such as operator cell sites, microwave ovens, and Bluetooth devices. For network uplink flexibility, RG-RAP6260(G) provides one 10/100/1000 Base-T Ethernet port with PoE input support and one 100/1000 Base-X SFP port. This allows the device to fit both copper and fiber-based outdoor network layouts. It can operate in both AP mode and routing mode, making it adaptable for different deployment structures.

RG-RAP6260(G) is built for outdoor deployment with an IP68-rated enclosure designed to resist water, dust, moisture, and harsh weather conditions. It operates from -40 °C to 65 °C and supports 0% to 100% non-condensing operating humidity, making it suitable for locations exposed to cold, heat, rain, wind, and humid environments. The device supports wall mounting and pole mounting, with horizontal and vertical installation options, allowing installers to adapt the placement to the site layout. Its 298 × 298 × 65 mm enclosure, excluding mounting kits, gives the access point a fixed outdoor form factor suitable for building exteriors, poles, and similar installation points.

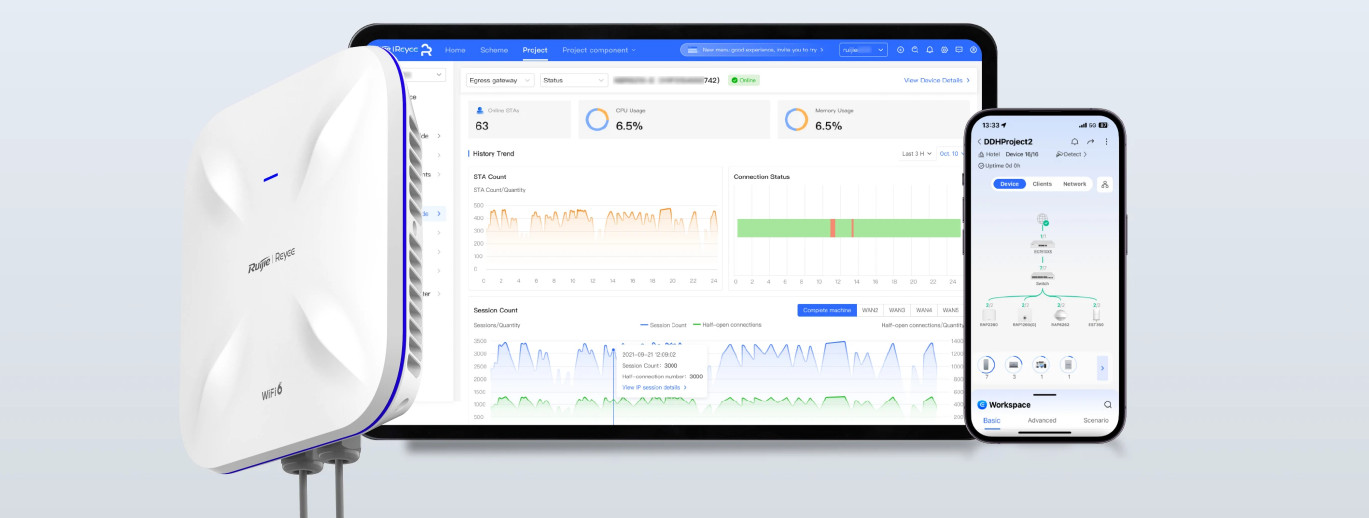

For administration, the access point supports Ruijie Cloud APP, Ruijie Cloud platform, EWeb management, and local or remote management. It also supports unified networking, unified configuration, automatic RF adjustment, and unified monitoring through the platform, helping reduce configuration work in larger deployments. The device supports Reyee Mesh, up to 8 SSIDs, SSID hiding, VLAN attributes for each SSID, Layer 2 user isolation, and Layer 2 and Layer 3 roaming. Security functions include PSK authentication, static blacklist and whitelist, WPA, WPA2, and WPA-PSK data encryption. The access point supports a maximum of 512 clients, with 100 recommended clients for practical network planning.
