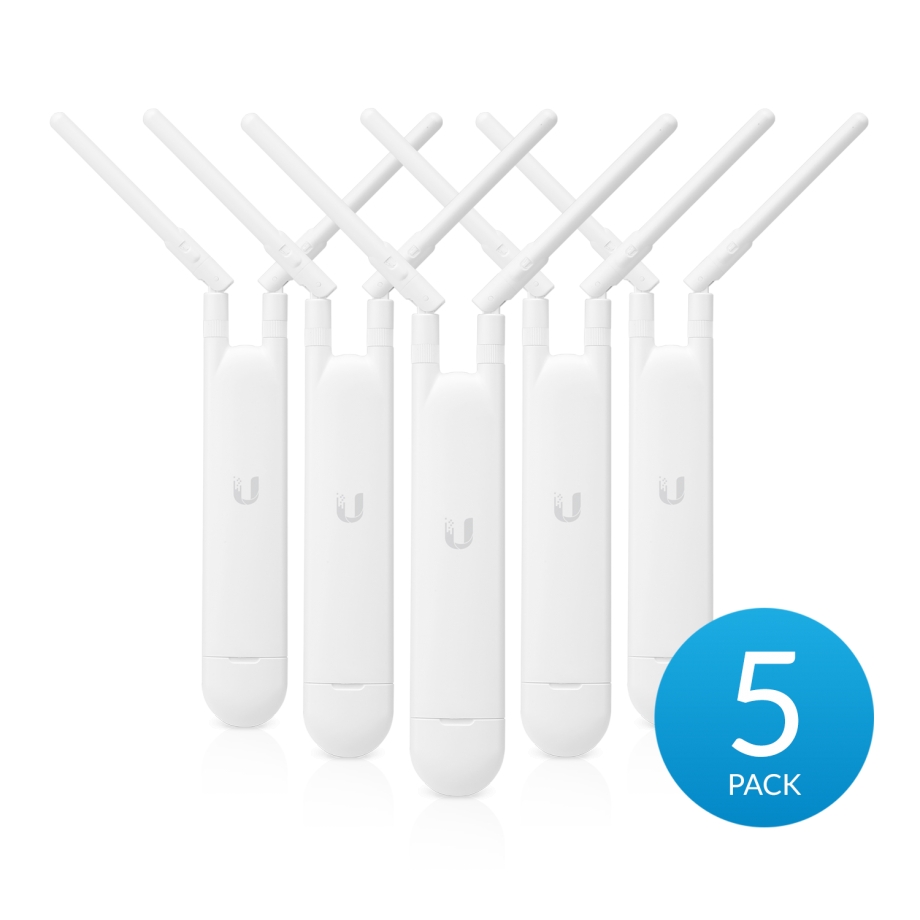

Ubiquiti UniFi AC Mesh 5-pack
This item has been discontinued
We recommend to use the product presented below
Available alternatives
Detailed description

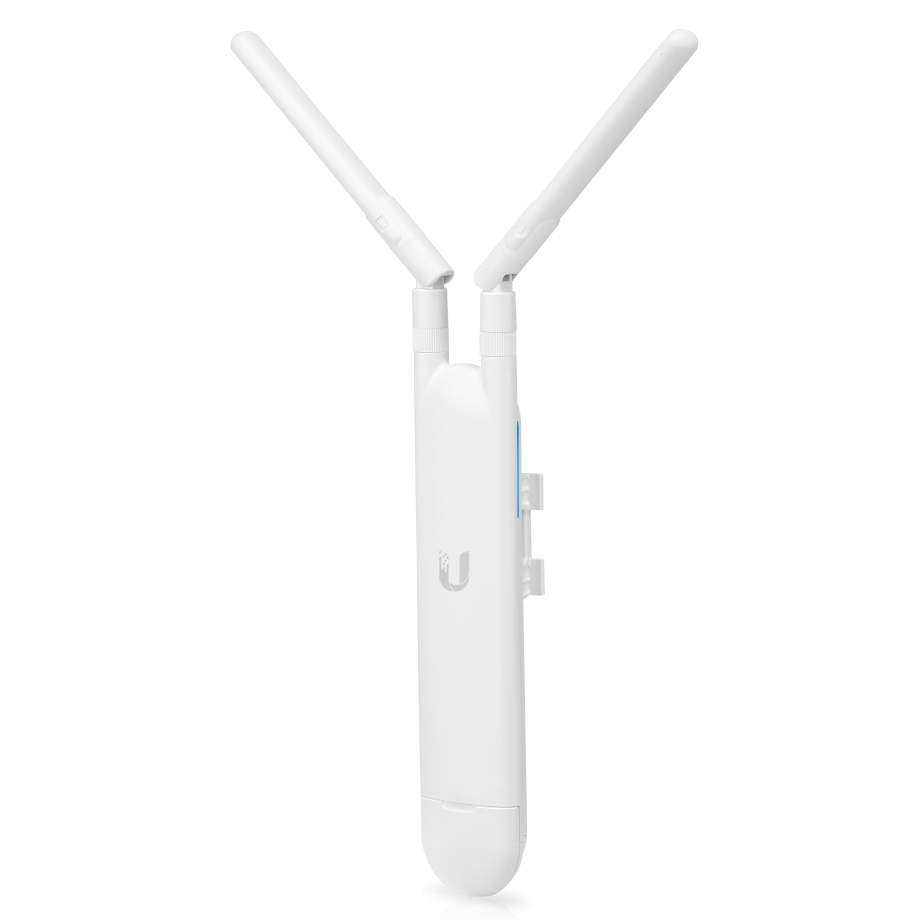

UniFi AC Mesh is a modern all-weather, omnidirectional WiFi access point with support for both 2.4 GHz and 5 GHz bands. The specific model is designed to meet weather resistance requirements as much as possible. In particular, the sealed housing made of UV-resistant plastic protects the internal electronics from any negative natural influences, which allows the access point to be placed outside of protective boxes.
Built-in radio module UniFi AC Mesh has an output power equal to 20 dBm, which in combination with omnidirectional antennas with a gain of 4 dBi allows you to create high-quality coverage in a radius of more than 180 meters. Due to the use of MIMO 2x2, WiFi access point can withstand not only more than 150 simultaneous connections, but is also able to exchange data at speeds up to 300 Mbps at 2.4 GHz and up to 867 Mbps - in the range of 5 GHz.
Main Features:
- WiFi 5 (2x2 MIMO)
- 250+ connected devices
- 140 m² (1,500 ft²) coverage
- Powered using PoE+
- Versatile wall or pole mounting

Placement Scheme

Indoor/Outdoor Access Point with Plug & Play and Mesh Technology
This line of UniFi is built on Mesh technology. This means high fault tolerance of the network, as well as increased efficiency of its work. This is especially important for busy summer sites, city parks and other similar facilities. In addition to the modern 802.11ac standard, its earlier 802.11b/g/n revisions are also supported, which allows seamless integration of the access point into existing networks.

Optimal Performance
Dual-Band performance with aggregate speeds of up to 1167 Mbps.

Multiple Power Options
Power the UniFi AC Mesh with an 802.3af compatible switch, a UniFi PoE Switch, or the included Gigabit PoE adapter.The model has only one Ethernet port with a bandwidth of up to 1000 Mbps, which in addition to switching with the rest of the LAN also allows you to get power under the scheme Passive PoE 24V or 802.3af.

Works with the UniFi Network Application
The UniFi Network Application is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. UniFi Network Application allows to centrally manage multiple networks from an intuitive interface, upgrade device firmware remotely, and also manage network users and guests with ease. You can personalize the design, architecture, and privacy of guest hotspots. The mobile app allows setting up devices quickly and manage them on the go

Technical Specs / Datasheet
Compatible products
Specifications
Wireless Network
Standards
802.11a/b/g/n/ac, 802.11r/k/v
MIMO
2.4GHz 2x2, 5GHz 2x2
2.4GHz Radio Rate
300 Mbps
5GHz Radio Rate
867 Mbps
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 4 (dBi)
Interfaces
RJ45 Ports
(1) 1 Gbps
Management
Ethernet, Bluetooth
Power
Power Method
24V Passive PoE, 802.3af PoE
Power Supply
External PoE Adapter
Supported Input Voltage
20 - 28 V DC
Max Power Consumption
8.5 W
Physical Parameters
Dimensions
353 x 46 x 34.4 mm
Weight
0.152 kg
Operating Temperature
-30 °C to 70 °C
Environment
Outdoor
Mounting Method
Wall Mount, Pole Mount
Package Contains
Units
5 pcs
External Power Supply
Not Included
