EdgeSwitch 12F

This item has been discontinued

Manufacturer part number

ES-12F

Warranty

?
12 months

EAN

0810354023606

We recommend to use the product presented below

Detailed description

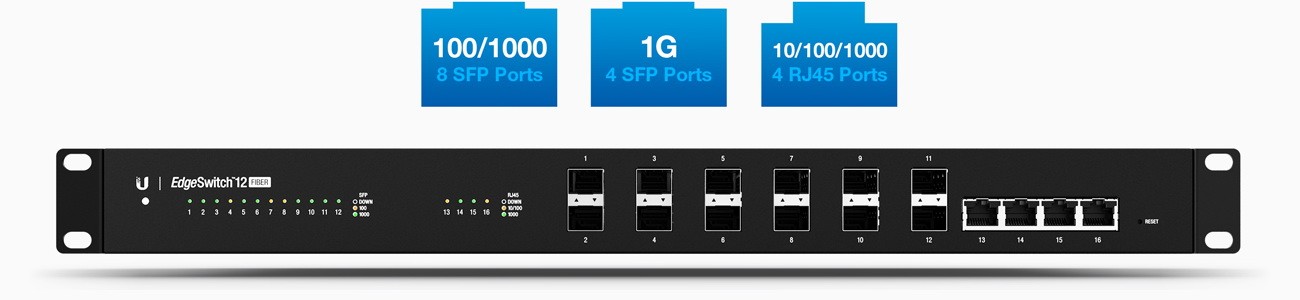

Gigabit Connectivity

For fiber connectivity, the EdgeSwitch Fiber features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.
/images/catalogue/description/673/es12fsfprj45-60780ea25dd70-1300x300.jpg

Powerful Switching Performance

The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‑blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps.

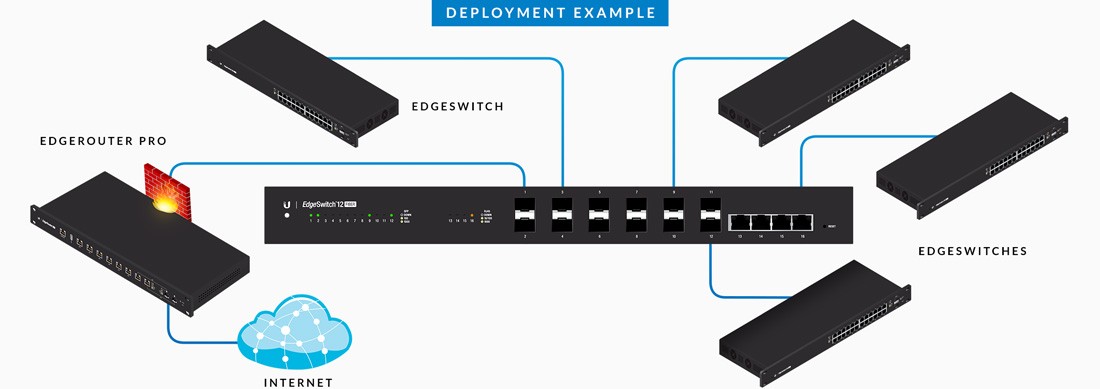

/images/catalogue/description/673/es12fdeploymentexample-6076d45b78787-1100x389.jpg

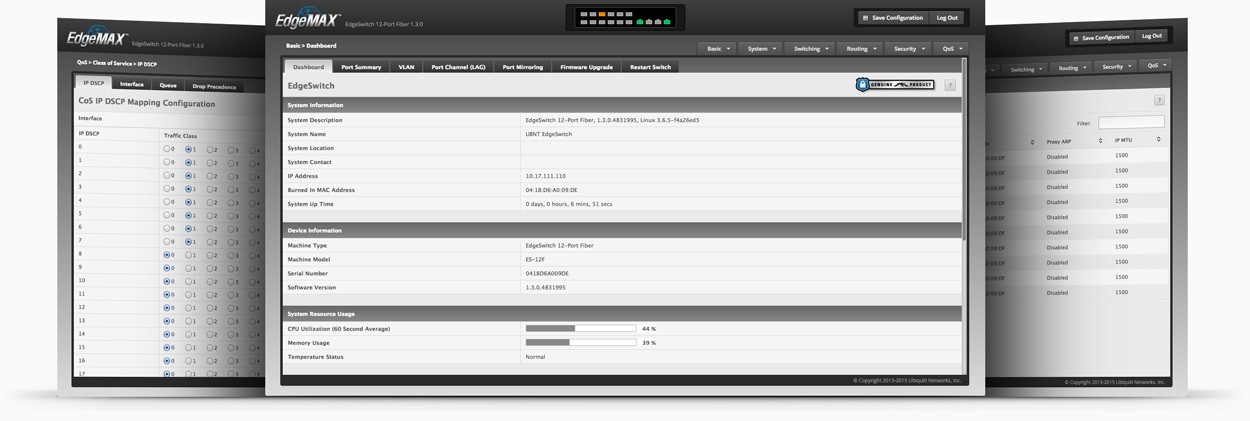

Advanced Enterprise Switching

The EdgeSwitch Fiber uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.
/images/catalogue/description/673/es12fadvancedswitching-6076d4bbc8832-1250x421.jpg

Specifications

Interfaces

RJ45 Ports

(4) 1 Gbps
PoE Out Standards

w/o PoE
SFP Ports

(12) 1G SFP
Communication Interface

RJ45
Management

Ethernet

Power

Power Method

AC/DC Adapter
Power Supply

Internal PSU
Supported Input Voltage

100 - 240 V AC
Max Power Consumption

56 W
Power Connector

DC Plug 2.1 x 5.5 mm

Physical Parameters

Color

Black
Dimensions

443 x 221 x 43 mm
Weight

2.68 kg
Operating Temperature

-5 °C to 40 °C
Environment

Indoor
Form Factor

Rack-mounted 19"
Number of Rack Units

1U
Mounting Method

RackMount
