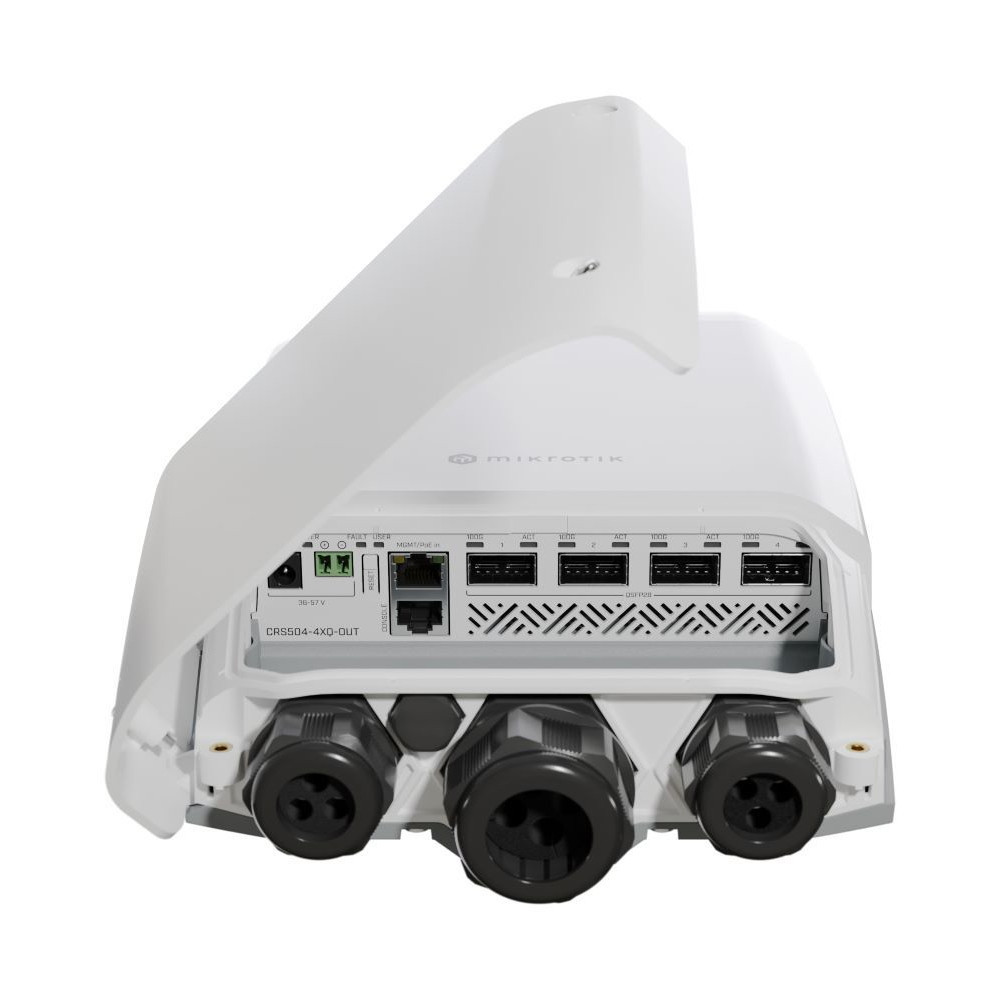

MikroTik CRS504-4XQ-OUT

MikroTik MTCNA Certificate
MikroTik Value Added Distributor
In stock
?
671.56
In stock
?
671.56
profile
Get Special Price
Order amount
price

Brand

MikroTik

Manufacturer part number

CRS504-4XQ-OUT

Warranty
?

12 months

EAN

4752224007391
MikroTik MTCNA Certificate
MikroTik Value Added Distributor

Detailed description

Superior Outdoor Networking

The MikroTik CRS504-4XQ-OUT switch provides 100 Gigabit connectivity for outdoor settings, including both remote locations and urban areas. Such high-speed connectivity is crucial for industries needing rapid data transfers for real-time monitoring and video conferencing. The switch's design considers the challenges of outdoor conditions, from changing weather patterns to potential interferences. As technological demands grow, especially in urban centres with high-resolution surveillance, real-time data analytics, or expanding IoT devices, a 100 Gigabit connection ensures the network remains reliable and efficient, catering to the needs of today and preparing for future innovations.

Advanced Connection Capabilities

For those aiming for a more diversified setup, the switch provides the option to split each of these ports into four separate 25 Gigabit connections using a breakout cable. This means that from a single outdoor unit, users can facilitate up to 16 ultra-fast fiber connections, optimizing network topology and ensuring efficient data distribution across multiple nodes. One of its standout features is its adaptability to varying bandwidth needs. Whether your operations require the sheer power of 100G for data-intensive tasks or the versatility of multiple 1G connections for standard communications, this switch ensures you're always equipped to handle current demands while being prepared for future network expansions.

Peak Performance Mechanism

The CRS504-4XQ-OUT is powered by the Marvell Prestera switch chip, ensuring reliable performance at a modest power consumption of 25W. It efficiently handles VLANs (Virtual Local Area Networks), ACL (Access Control Lists) and MLAG (Multi-Chassis Link Aggregation), which aids in network organization, enhances security, and facilitates advanced configurations. The switch also supports Jumbo frames, optimizing the transmission of large data packets. Additionally, its L3 hardware offloading capability offloads routing tasks to specific hardware, enhancing data processing speed and conserving CPU resources. This feature proves vital for timely data processes essential in cloud platforms and real-time communications.

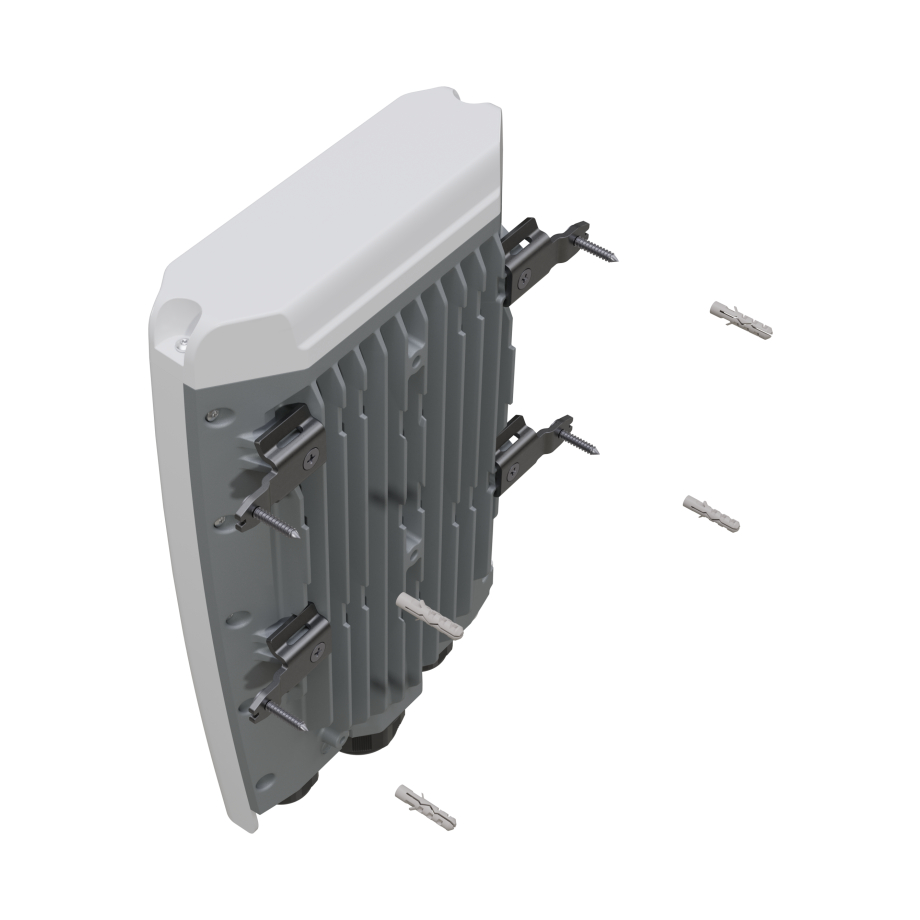

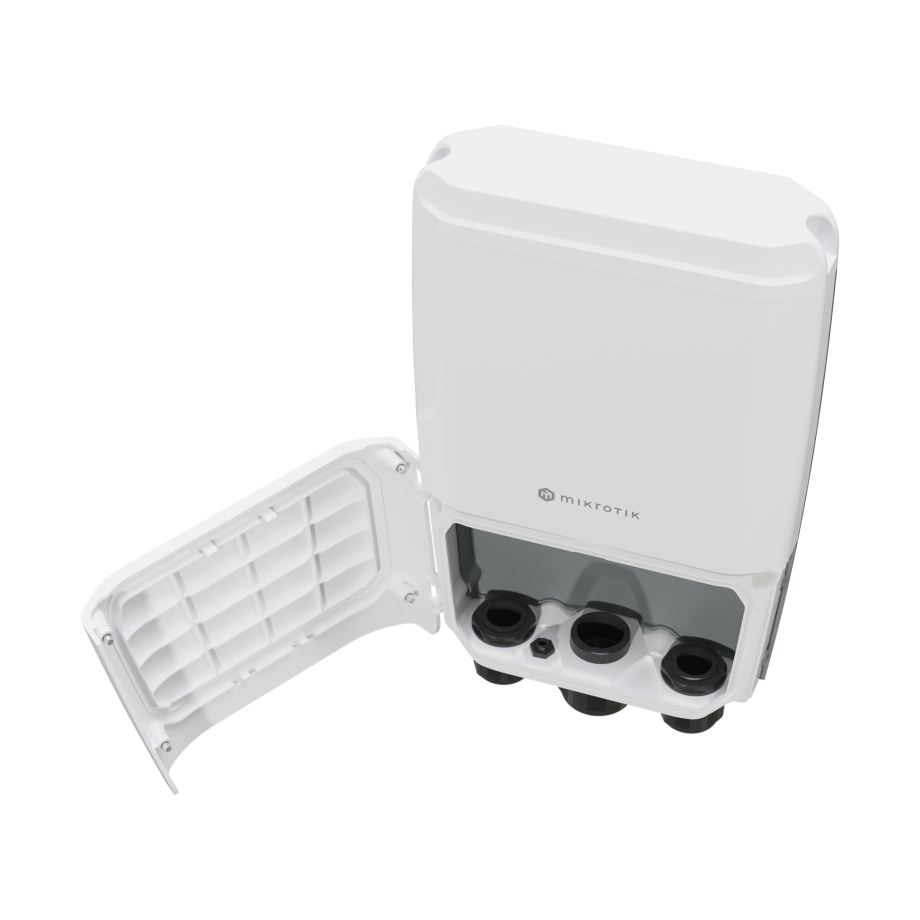

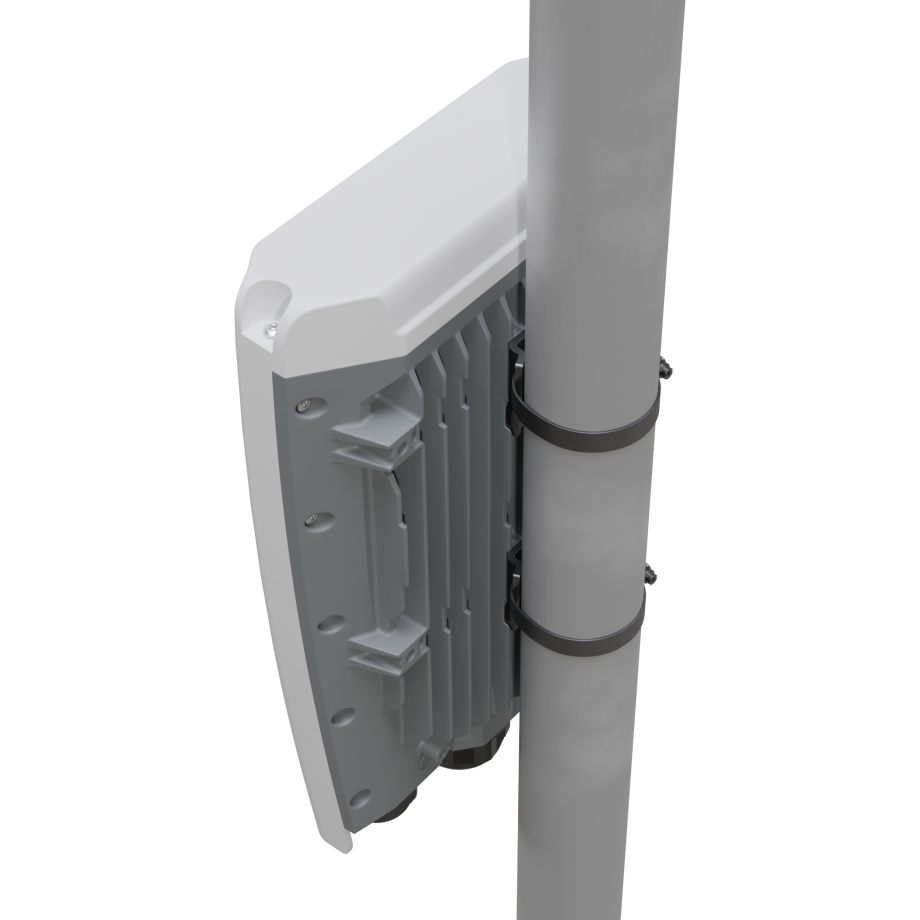

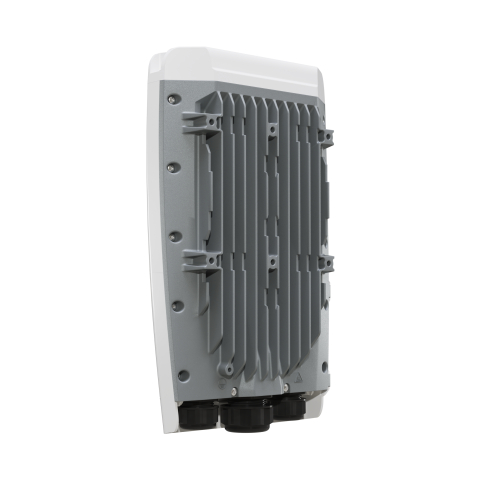

Robust Design & Versatile Powering Options

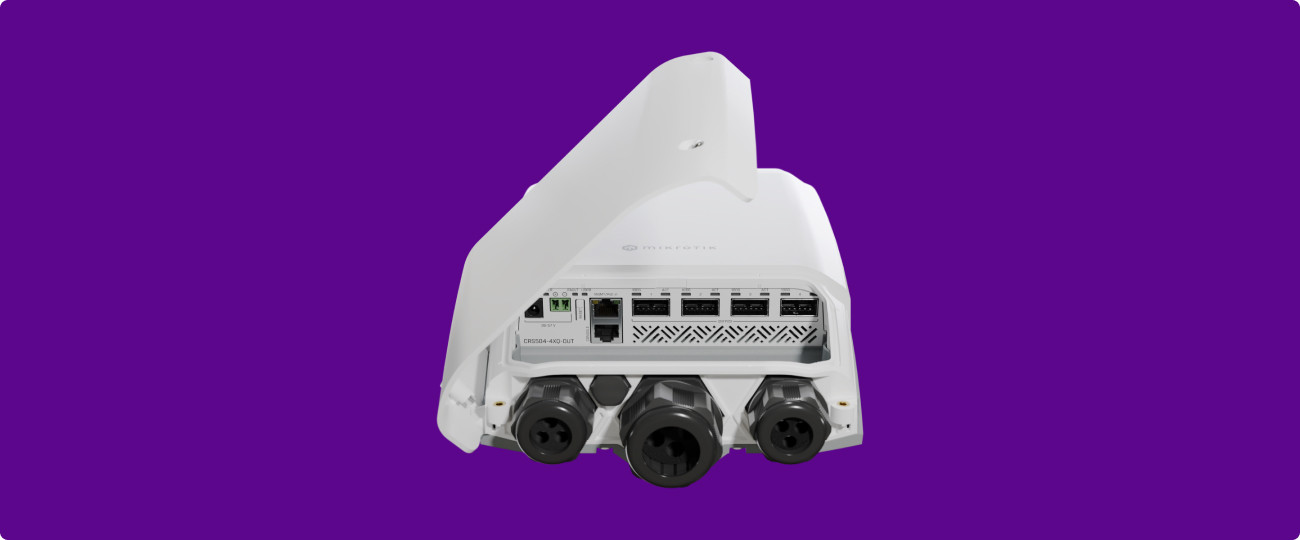

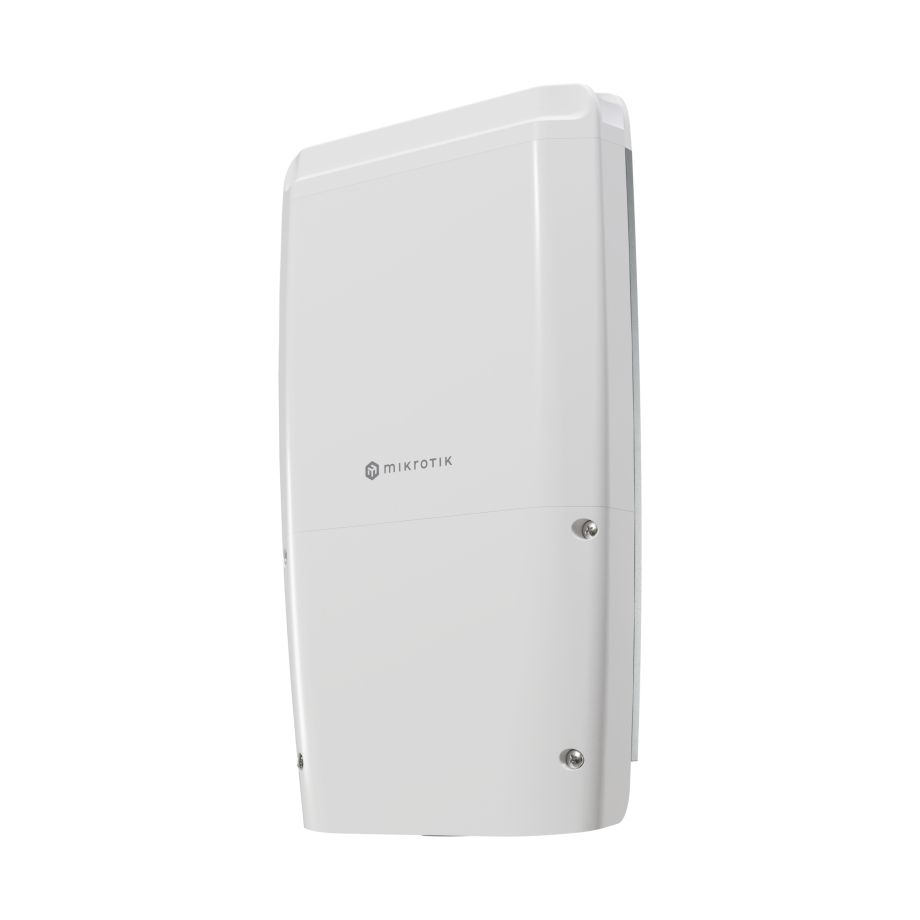

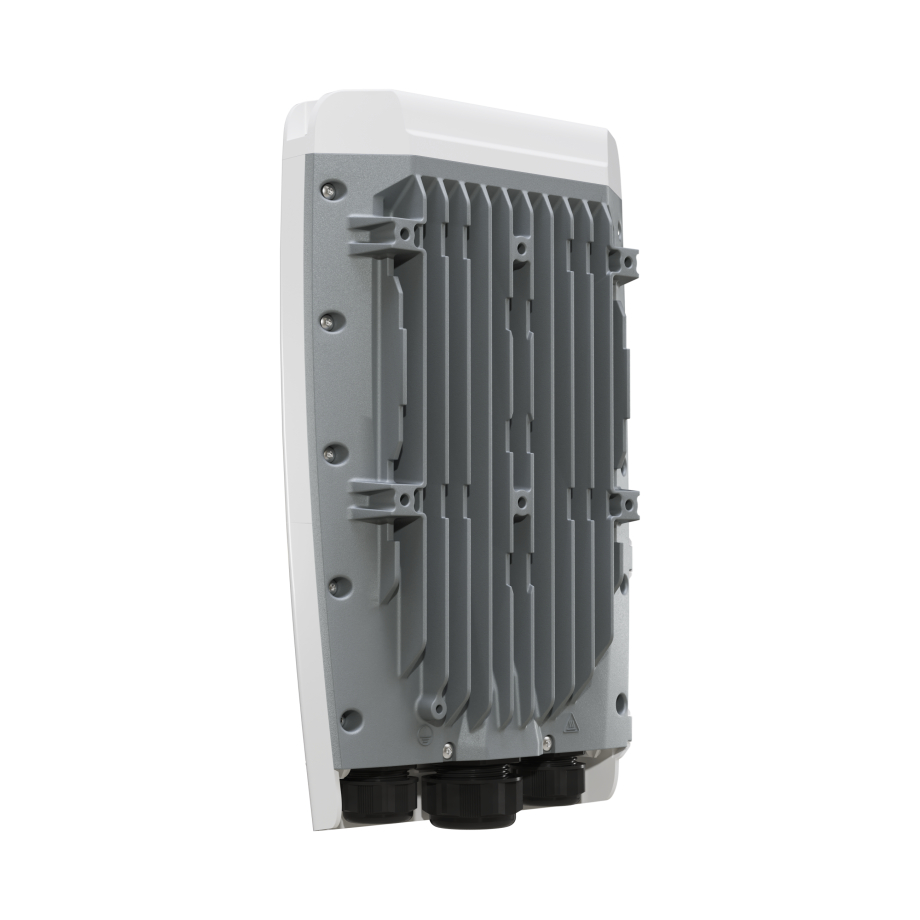

This switch comes encased in a resilient IP66-rated weatherproof enclosure, meaning it is dust-tight and can withstand strong jets of water from any direction. The CRS504-4XQ-OUT works well in extreme heat or heavy rain, keeping your connection stable.
The switch introduces versatile power options tailored to different scenarios. The conventional DC jack provides a familiar power interface for many. In contrast, the 2-pin terminal offers a more direct and often robust connection, ideal for locations where ensuring stability is paramount. The advanced 802.3bt PoE-in stands out for its dual benefits: it not only powers the switch but also allows data transmission over a single cable, simplifying installations and reducing cable clutter. Such flexibility in power options ensures the switch can maintain continuous operation whether it's deployed in remote outdoor stations, temporary event setups, or critical infrastructure locations.

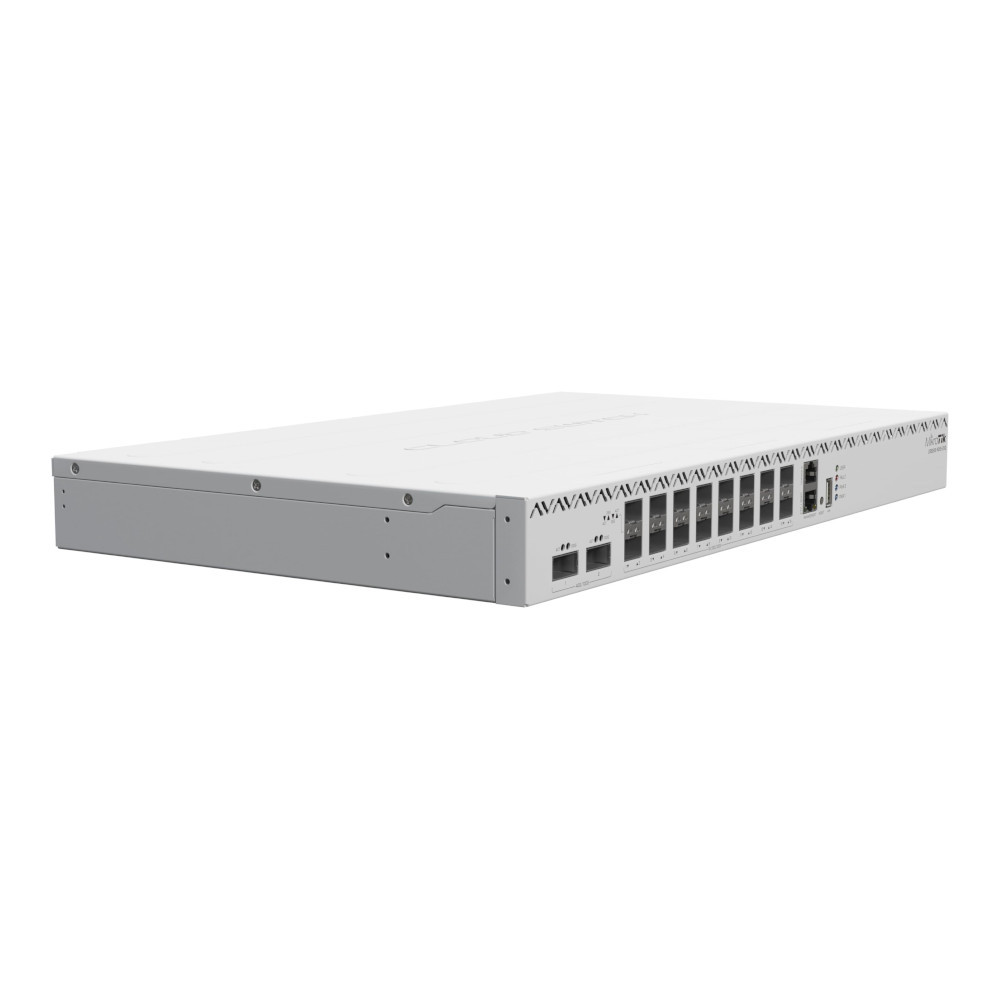

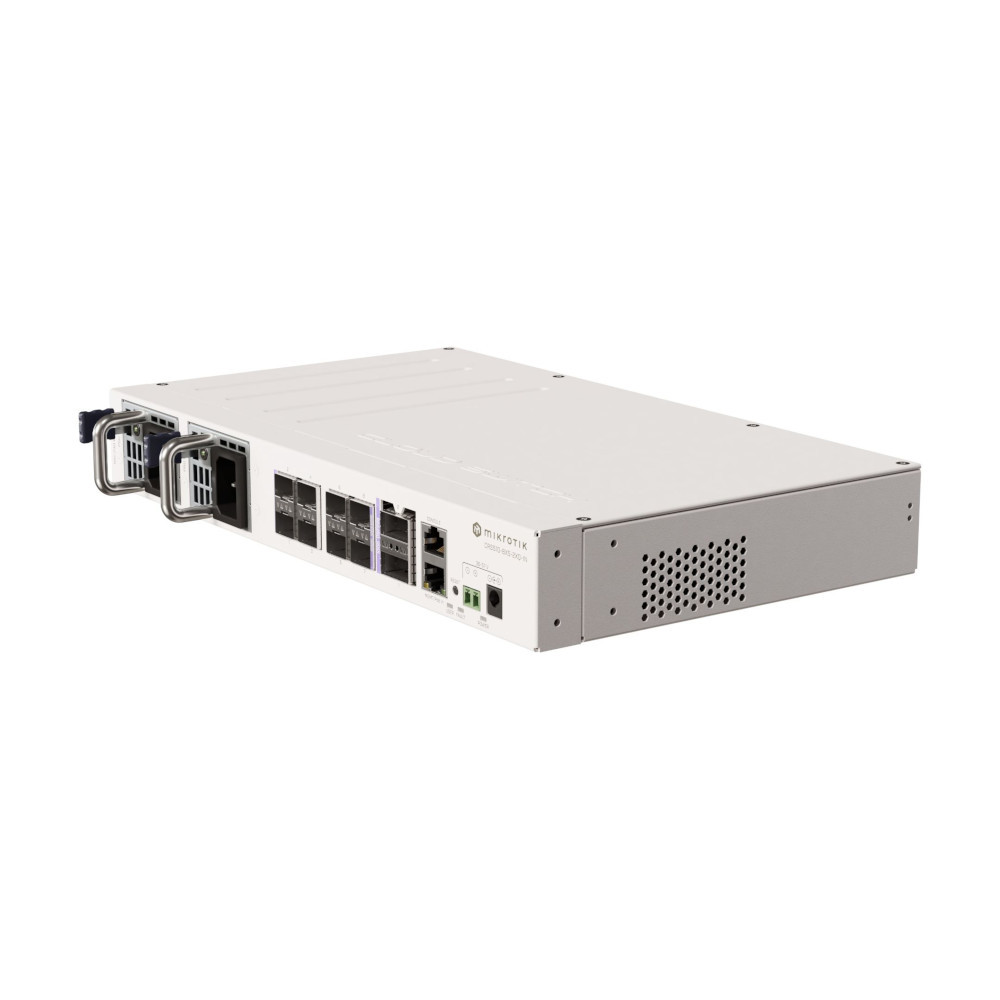

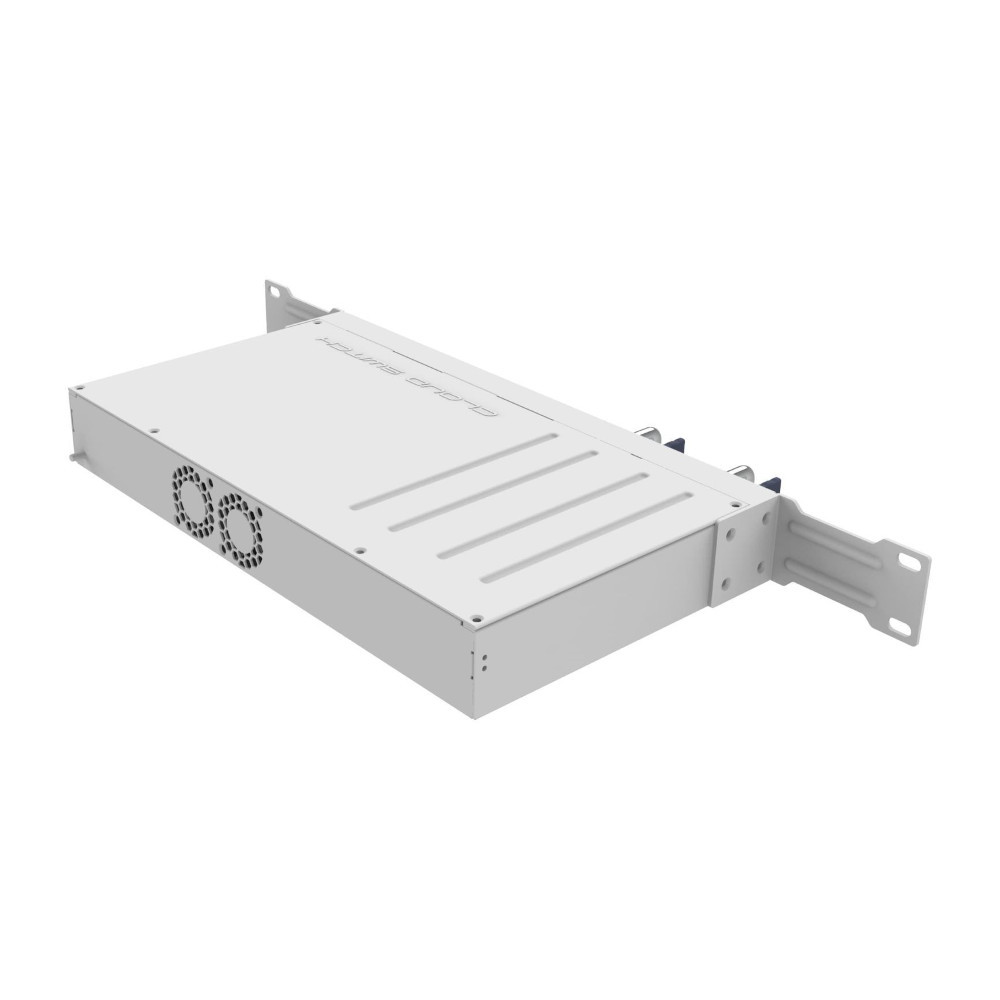

Compare with similar products


Ethernet Ports
1 x 100 Mbps
1 x 100 Mbps
1 x 100 Mbps
1 x 100 Mbps
SFP Ports
4 x 100G QSFP28
4 x 100G QSFP28
8 x 25G SFP28, 2 x 100G QSFP28
16 x 25G SFP28, 2 x 100G QSFP28
Chipset
QCA9531, 1 core, 650 MHz
QCA9531, 1 core, 650 MHz
QCA9531, 1 core, 650 MHz
QCA9531, 1 core, 650 MHz
RAM
128 MB
64 MB
128 MB
64 MB
Storage Memory
32 MB
16 MB
32 MB
16 MB
Software
RouterOS Level 5
RouterOS Level 5
RouterOS Level 5
RouterOS Level 6
Environment
Outdoor
Indoor
Indoor
Indoor
Mounting Method
Wall Mount, Pole Mount
RackMount, Wall Mount, Tabletop
RackMount
RackMount
Max Power Consumption
38 W
41 W
45 W
45 W

Ethernet Ports 1 x 100 Mbps
1 x 100 Mbps
1 x 100 Mbps
1 x 100 Mbps
SFP Ports4 x 100G QSFP28
4 x 100G QSFP28
8 x 25G SFP28, 2 x 100G QSFP28
16 x 25G SFP28, 2 x 100G QSFP28
ChipsetQCA9531, 1 core, 650 MHz
QCA9531, 1 core, 650 MHz
QCA9531, 1 core, 650 MHz
QCA9531, 1 core, 650 MHz
RAM 128 MB
64 MB
128 MB
64 MB
Storage Memory32 MB
16 MB
32 MB
16 MB
SoftwareRouterOS Level 5
RouterOS Level 5
RouterOS Level 5
RouterOS Level 6
EnvironmentOutdoor
Indoor
Indoor
Indoor
Mounting MethodWall Mount, Pole Mount
RackMount, Wall Mount, Tabletop
RackMount
RackMount
Max Power Consumption 38 W
41 W
45 W
45 W
