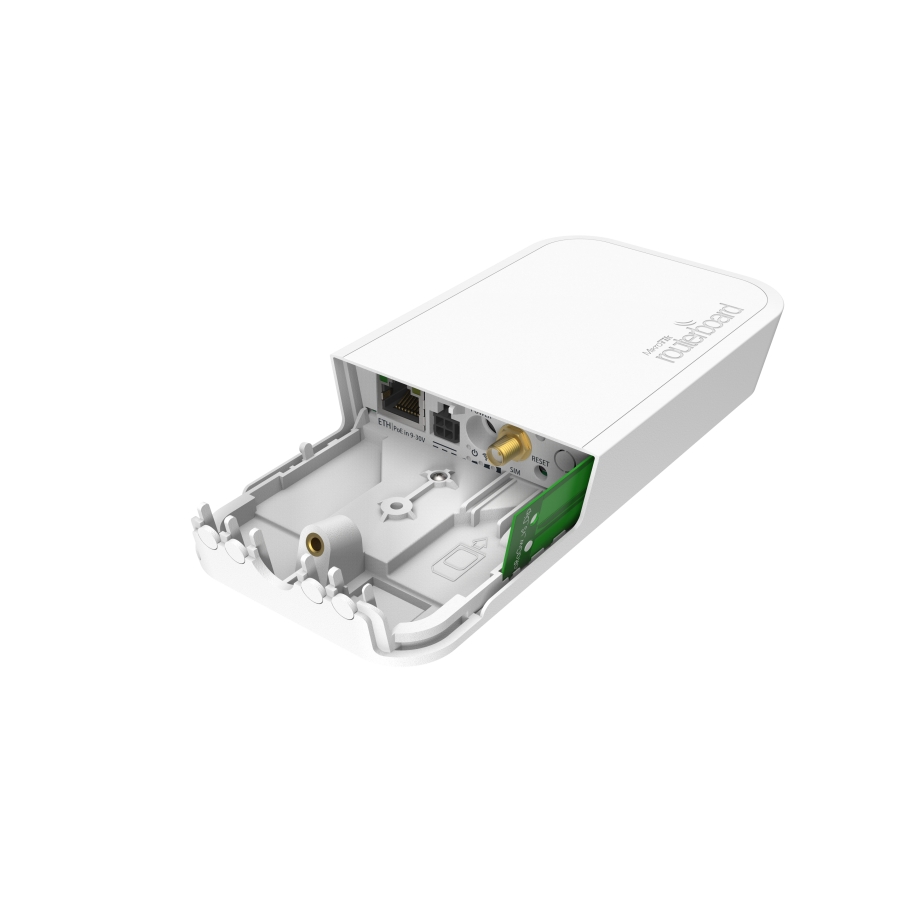

MikroTik wAP LoRa8 kit

The MikroTik wAP LR8 Kit is a comprehensive, robust, and versatile outdoor weatherproof wireless access point designed to seamlessly integrate LoRa® technology into various network environments. This kit serves as an ideal solution for extending wireless coverage while enabling advanced IoT applications through LoRa® connectivity. With its robust feature set, this device is ideal for IoT applications, remote monitoring, and providing Wi-Fi in expansive settings like campuses, parks, and industrial areas. The kit supports the 863-870 MHz frequency band, suitable for use within the European Union and other regions.

The wAP LR8 Kit is powered by the QCA9531 CPU with a core frequency of 650 MHz and includes 64 MB of RAM along with 16 MB of FLASH storage. The architecture is MIPSBE, ensuring a stable and reliable performance under RouterOS, an advanced operating system with a license level 4.The device comes with RouterOS preinstalled and licensed, requiring no separate purchase for operation. MikroTik provides free software updates for the life of the product or a minimum of five years from the date of purchase, ensuring that the device remains up to date with the latest features and security enhancements.

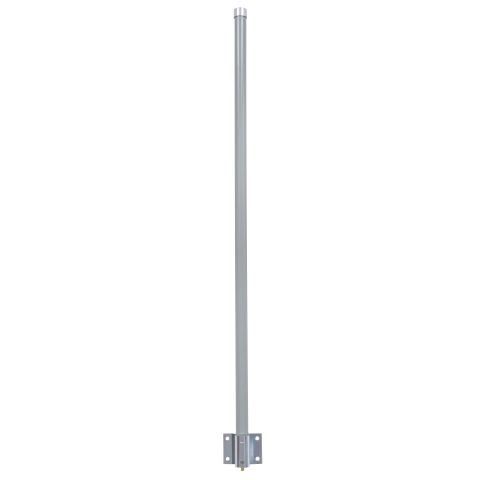

This out-of-the-box solution comes with a pre-installed UDP packet forwarder that can connect to any public or private LoRa® servers, making it a plug-and-play solution for rapid deployment. The kit supports the 863-870 MHz frequency band, suitable for use within the European Union and other regions. The integrated 2.4 GHz WLAN interface provides up to 300 Mbit/s data rate under the 802.11b/g/n Wi-Fi standards and includes a dual-chain setup with a 2 dBi internal antenna.Users have the flexibility to enhance the range and signal quality up to 15 km in rural environment and up to 2 km in urban environment by attaching an MikroTik LoRa® 6.5 dBi external antenna. For extended LoRa® network coverage, the addition of the MikroTik Antenna kit for LoRa® is recommended.

The wAP LR8 Kit is designed with a weatherproof enclosure that has been tested across many other MikroTik products, ensuring excellent and stable performance under almost any weather conditions. The device includes a 10/100 Ethernet port that can serve as a robust backend connection. It also offers various power options, including a DC jack, automotive input, and Passive PoE, all supporting 9-30 V input voltage. The system's Mean Time Between Failures (MTBF) is approximately 100,000 hours, indicating a resilient design suited for long-term deployment. The device operates seamlessly within a temperature range of -40°C to 60°C.

The device features a PCB temperature monitor and voltage monitor to ensure operational integrity. It meets stringent regulatory standards, holding CE, FCC, IC, EAC, and ROHS certifications. The IP54-rated enclosure protects against dust and water splashes, making it suitable for outdoor installations. The non-intrusive design and astonishing durability make the wAP LR8 Kit a valuable and long-lasting solution for anyone looking to explore or expand their use of LoRa® technology.

The kit comes fully equipped with a 24V 0.8A power adapter, PoE injector, 0.35m 4pin automotive adapter cable, wAP desktop stand, ceiling mount bracket, metal ring, and a K-52 fastening set. These accessories ensure versatile mounting and installation options, whether mounted on a wall, pole, or placed on a flat surface.

LoRa® devices are fully compatible with "The Things Network" – a renowned open-source infrastructure that offers free LoRa® network coverage and hosts a plethora of applications tailored to various needs. Utilizing "The Things Network," users can jumpstart their journey into the Internet of Things within just a day. Additionally, this system is easily upgradable to the enterprise-grade service "The Things Industries," providing a scalable solution for growing businesses.

The applications for this technology are limitless, ranging from cattle tracking and smart irrigation systems to liquid level monitoring, smart pulse sensors, thermostats, and smart parking solutions. The setup process is straightforward, ensuring that anyone can get started quickly and efficiently. Furthermore, the vast global community of developers and IoT enthusiasts offers robust support, ensuring that you always have access to help and new ideas for utilizing the LoRa® network. This network not only fosters innovation but also saves time and energy by leveraging established, smart solutions.
