Brand
Manufacturer part number
ER-X-SFP
Warranty
?
12 months
EAN
0810354022203

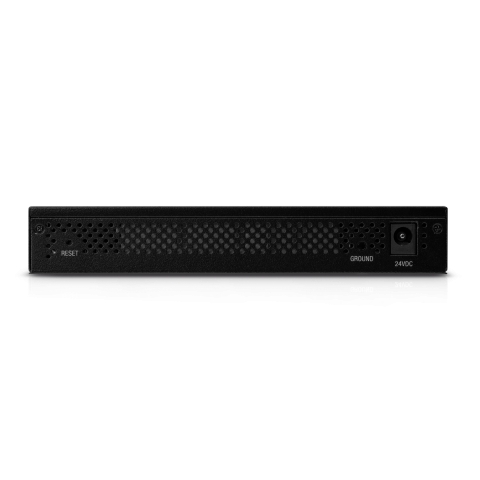

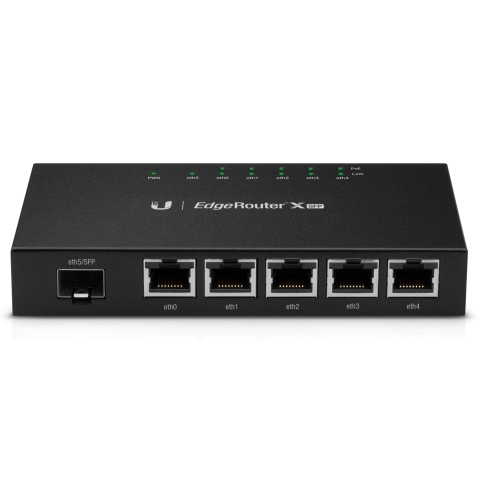

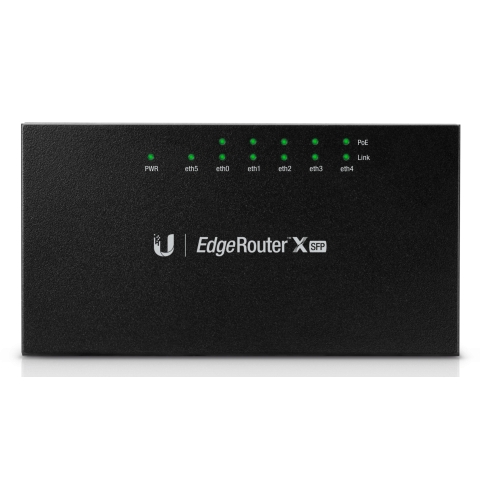

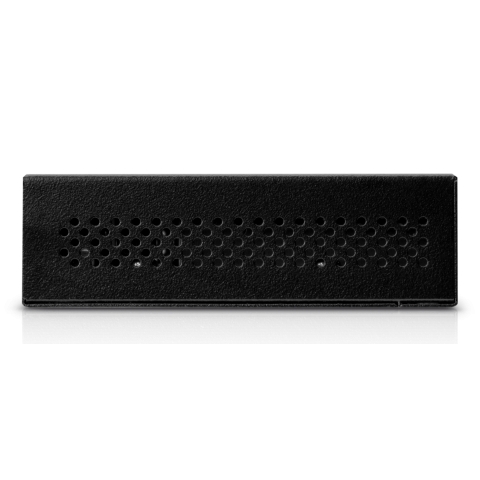

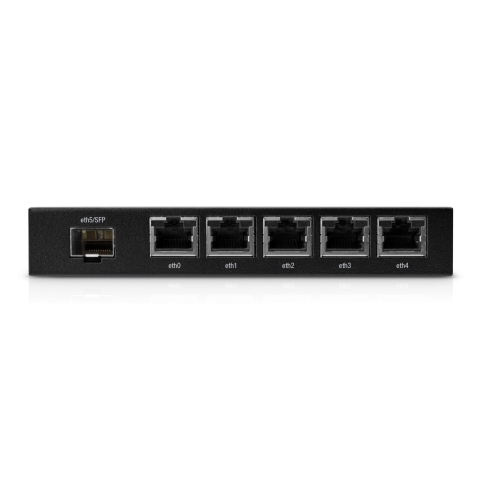

Ubiquiti EdgeRouter X SFP
Ubiquiti Elite Distributor
out of stock
?
62.86 €
62.86 €
Ubiquiti Elite Distributor
Available alternatives
Detailed description
For organizing a small local area network in the office or home.
Physical network interface EdgeRouter X SFP consists of 5 Gigabit Ethernet ports, as well as one slot for SFP-module. This allows the router to be integrated into any network structure, including fiber optic. It is important to note that this model supports Passive PoE 24V - it allows you to power up to 5 connected clients. At the same time, the router itself can be powered from 220V through the 24VDC connector using the included adapter.
EdgeRouter X SFP has efficient hardware for its class, including a dual-core processor with a clock speed of 880 mHz and 256 MB RAM. All this allowed to provide bandwidth up to 1 Gbit / s, which is enough for normal operation of the network even at times of peak load.
Gigabit Connectivity
The EdgeRouter™ X SFP features five independent, Gigabit RJ45 ports and one Gigabit SFP port – all six are configurable for switching.
Optical SFP for Backhaul
The Gigabit SFP port provides fiber connectivity to support backhaul applications for carrier-class networks.
Centralized Management
The EdgeRouter™ X SFP is supported and managed by UNMS™, a comprehensive application with an intuitive UI. A single management system controls registered EdgeMAX® devices across multiple sites.
Compare with similar products
| Ethernet Ports | ||||||
| 5 x 1 Gbps | 3 x 1 Gbps | 10 x 1 Gbps | 6 x 1 Gbps | 1 x 1 Gbps | 5 x 1 Gbps | |
| PoE Out Ports | ||||||
| 5 x Passive PoE | 1 x Passive PoE | 5 x Passive PoE | 1 x Passive PoE | |||
| SFP Ports | ||||||
| 1 x 1G SFP | 1 x 1G SFP | 2 x 1G SFP | 1 x 1G SFP | 8 x 10G SFP+ | ||
| USB Ports | ||||||
| 1 x USB-A 3.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | |||
| Chipset | ||||||
| Dual-Core 880 MHz, MIPS1004Kc | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | MIPS64 16 Core 1.8 GHz | Dual-Core 880 MHz, MIPS1004Kc | |
| RAM | ||||||
| 256 MB | 1 GB | 1 GB | 1 GB | 16 GB | 256 MB | |
| Storage Memory | ||||||
| 256 MB | 4 GB | 4 GB | 4 GB | 8 GB | 256 MB | |
| Max Power Consumption | ||||||
| 55 W | 13 W | 24 W | 90 W | 100 W | 5 W | |
| Mounting Method | ||||||
| Tabletop | Tabletop | Tabletop | RackMount, Wall Mount, Tabletop | RackMount | Tabletop | |
| Ethernet Ports | 5 x 1 Gbps | 3 x 1 Gbps | 10 x 1 Gbps | 6 x 1 Gbps | 1 x 1 Gbps | 5 x 1 Gbps |
| PoE Out Ports | 5 x Passive PoE | 1 x Passive PoE | 5 x Passive PoE | 1 x Passive PoE | ||
| SFP Ports | 1 x 1G SFP | 1 x 1G SFP | 2 x 1G SFP | 1 x 1G SFP | 8 x 10G SFP+ | |
| USB Ports | 1 x USB-A 3.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | ||
| Chipset | Dual-Core 880 MHz, MIPS1004Kc | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | MIPS64 16 Core 1.8 GHz | Dual-Core 880 MHz, MIPS1004Kc |
| RAM | 256 MB | 1 GB | 1 GB | 1 GB | 16 GB | 256 MB |
| Storage Memory | 256 MB | 4 GB | 4 GB | 4 GB | 8 GB | 256 MB |
| Max Power Consumption | 55 W | 13 W | 24 W | 90 W | 100 W | 5 W |
| Mounting Method | Tabletop | Tabletop | Tabletop | RackMount, Wall Mount, Tabletop | RackMount | Tabletop |
Technical Specs / Datasheet
Specifications
Interfaces
RJ45 Ports
Number of PoE Ports
5 pcs
PoE Out Standards
Passive PoE
SFP Ports
(1) 1G SFP
Management
Ethernet
System Specification
Chipset
Dual-Core 880 MHz, MIPS1004Kc
RAM
256 MB
Storage Memory
256 MB
Power
Power Method
AC/DC Adapter
Power Supply
External AC/DC Adapter
Supported Input Voltage
9 - 26 V DC
Max Power Consumption
55 W
Power Connector
DC Plug 2.1 x 5.5 mm
PSU / POE adapter
24 V DC 2.4 A
Physical Parameters
Color
Black
Dimensions
142 x 75 x 23 mm
Weight
0.215 kg
Operating Temperature
-10 °C to 45 °C
Environment
Indoor
Mounting Method
Tabletop
Form Factor
Desktop
Package Contains
External Power Supply
Included
