Ubiquiti airMAX NanoStation 5AC

Ubiquiti Elite Distributor
in stock
?
104.73
in stock
in stock
?
104.73

plug

Manufacturer part number

NS-5AC

Warranty

?
12 months

EAN

0817882021371
Ubiquiti Elite Distributor

Detailed description

UISP-supported WiFi radio designed for point-to-point with approximately 15+ km link range and customer premises applications

The Ubiquiti airMAX NanoStation 5AC, bearing the model manufacture part number NS-5AC, represents a significant leap forward in the realm of wireless broadband technology. Crafted by Ubiquiti Networks, a company renowned for its innovative solutions in network technology, the NanoStation 5AC is engineered to provide a superior wireless performance for Point-to-MultiPoint (PtMP) applications. This device is a culmination of technological advancements designed to enhance connectivity, providing users with an efficient and reliable wireless network experience.
/images/catalogue/description/1970/5acnanostation-6613d6a426b10-690x755.jpg
In a PtP setup, two NanoStation 5AC devices are configured to connect two points directly. For instance, linking a remote building to a primary network location. In this scenario, one NS-5AC unit acts as a 'Station' (receiver) while the other operates in 'Access Point' (AP) mode (transmitter). This setup effectively creates a wireless bridge, allowing data to flow between the two points over the air. For wider coverage, the NanoStation 5AC can be deployed as part of a PtMP network. Here, one NS-5AC device, configured as an AP, communicates with multiple 'Station' units distributed across different locations. This arrangement is ideal for serving multiple clients or buildings from a single source, such as an internet service provider distributing connectivity to various customers.
Central to the NanoStation 5AC's design is its use of Ubiquiti's proprietary airMAX ac technology. This advanced technology incorporates a patented Time Division Multiple Access (TDMA) protocol, which significantly improves network scalability, throughput, and latency performance. The protocol enables each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This method reduces the chance of collisions and maximizes airtime efficiency, essential for delivering high-speed internet services to multiple users in a network.
The device operates in the 5 GHz frequency band, which is less congested than the more commonly used 2.4 GHz band, offering cleaner signal channels for wireless communication. This choice of frequency band allows the NanoStation 5AC to achieve impressive throughput speeds of up to 450+ Mbps in real-world conditions, making it well-suited for transmitting high-definition video streams, VoIP, and other bandwidth-intensive applications over wireless networks.
/images/catalogue/description/1970/image217-6544c0504a324-1400x1218.jpg

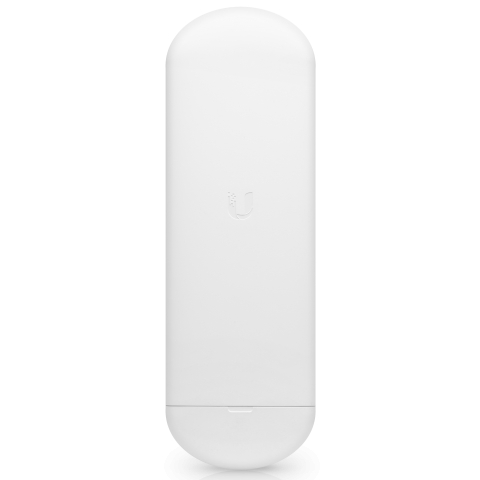

From a hardware perspective, the NanoStation 5AC features an integrated directional antenna with a dual-polarity performance. This design enables the device to transmit and receive signals in both horizontal and vertical polarizations, effectively doubling the potential bandwidth and increasing link robustness against interference. The antenna offers a gain of 16 dBi, which, when combined with the device's powerful radio architecture, allows for long-range connectivity that can span distances of several kilometers, depending on environmental conditions.

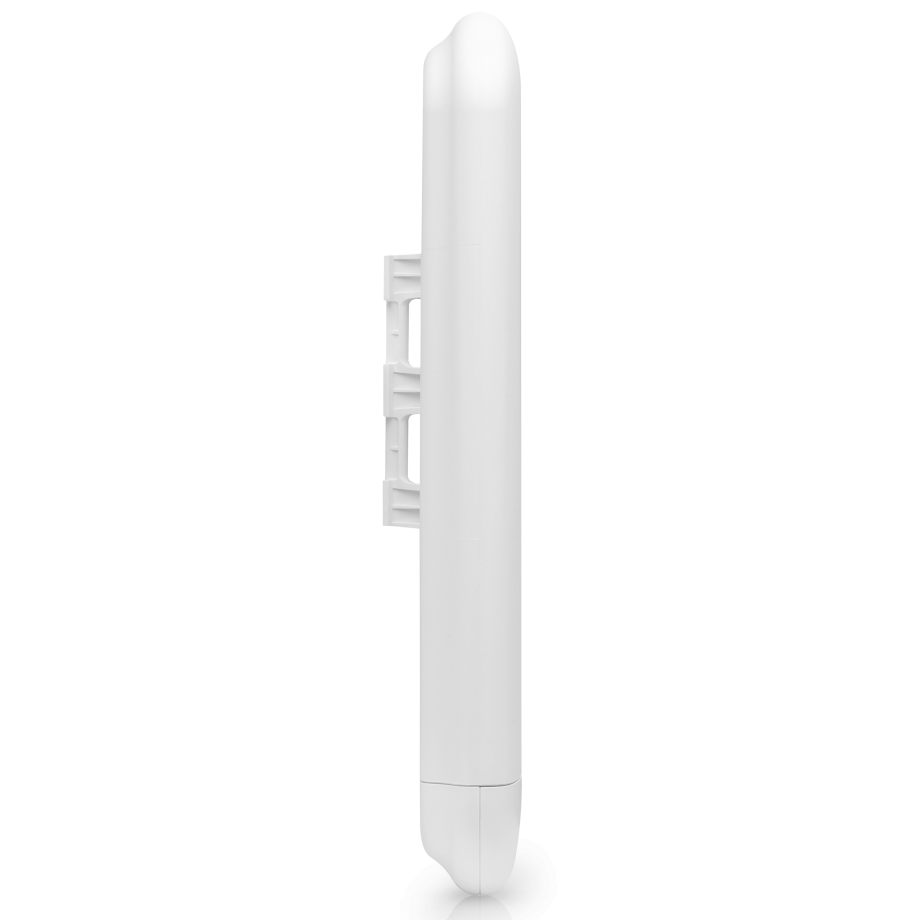

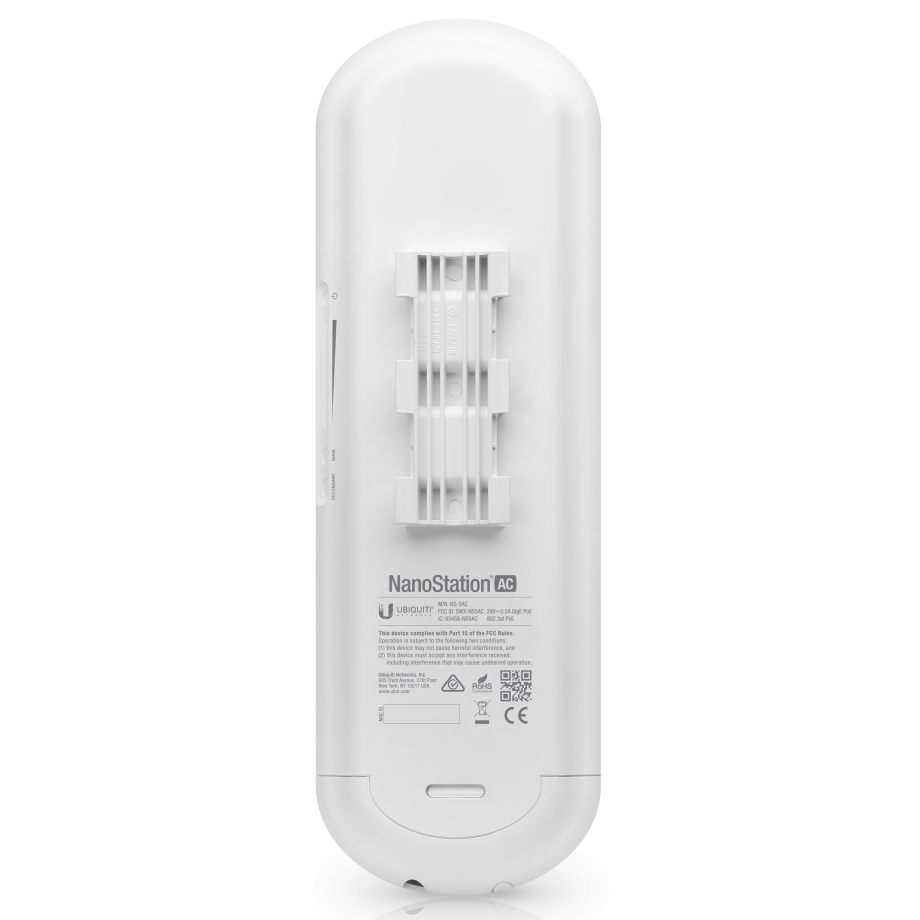

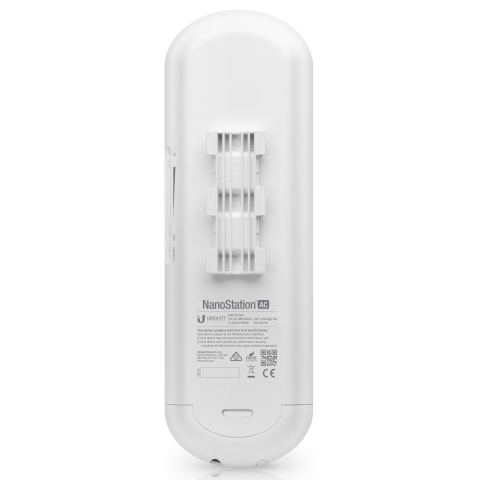

The NanoStation 5AC's physical design is both elegant and functional. Its compact form factor allows for easy mounting on a variety of surfaces, making it versatile for deployment in various settings, from urban rooftops to rural locations. Additionally, the device is housed in a weather-resistant enclosure, ensuring it can withstand harsh environmental conditions, including rain, wind, and extreme temperatures, thus maintaining operational integrity over time.

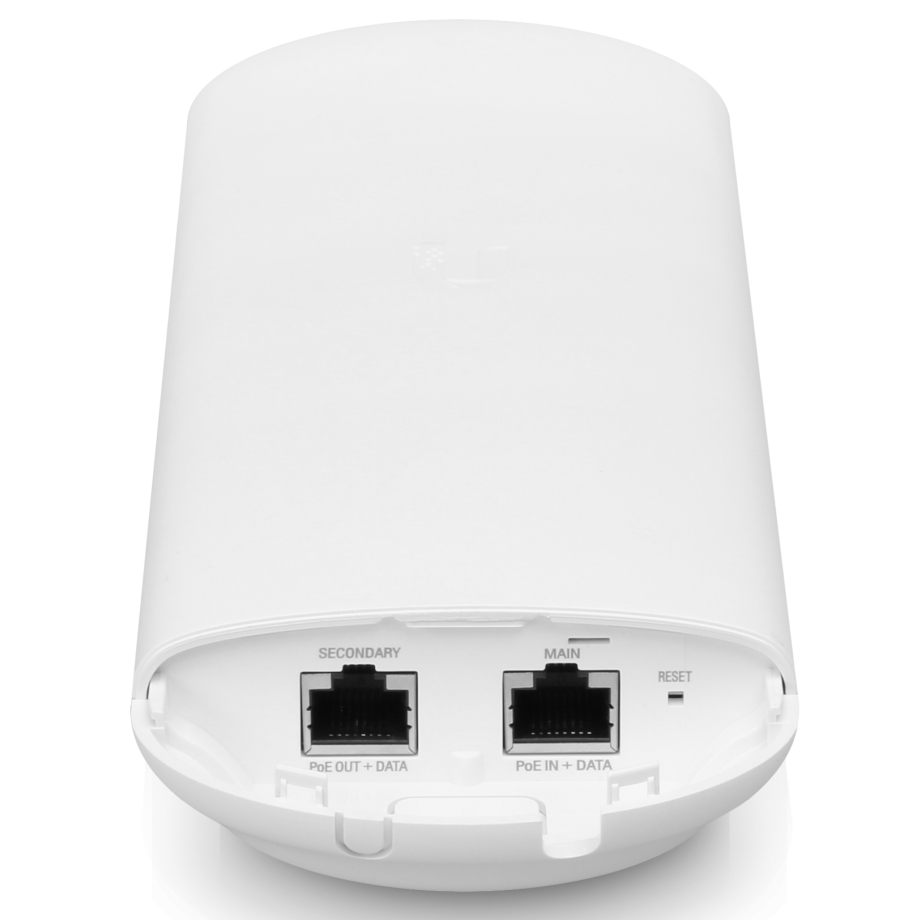

On the connectivity front, the NanoStation 5AC is equipped with a secondary Ethernet port with software-enabled Power over Ethernet (PoE) capability. This feature allows the device to power an additional PoE-compatible device, such as an IP camera or a secondary access point, through the same cable that connects it to the network, simplifying deployment and reducing cable clutter.
For network administrators, the NanoStation 5AC offers comprehensive management features through Ubiquiti's intuitive airOS interface. This web-based configuration interface provides advanced settings for managing network parameters, adjusting radio frequencies, and optimizing antenna gain, among other functionalities. It also includes powerful tools for network monitoring, including signal strength indicators, throughput statistics, and device status information, enabling effective management and troubleshooting of the wireless network.
/images/catalogue/description/1970/ns5acprismairos8-6041e952baca3-938x390.jpg

Application scenarios

The Ubiquiti airMAX NanoStation 5AC is an ideal solution for creating efficient and high-speed Point-to-Point (PtP) connections between two locations that are several kilometers apart but require a robust and reliable data link. Imagine a scenario where a business campus is spread across a wide geographic area, with buildings separated by considerable distances, perhaps even obstructed by natural features like rivers or valleys. Traditional cabling is not only impractical but also prohibitively expensive in such settings. By deploying a pair of NanoStation 5AC units, one at each site, organizations can establish a direct wireless bridge that facilitates seamless communication between the main office and remote buildings. This setup supports a variety of applications, from sharing high-speed internet access across the entire campus to enabling secure and efficient file sharing and inter-office communications, all while maintaining high throughput and low latency.
Furthermore, the NanoStation 5AC shines in Point-to-Multipoint (PtMP) deployments, serving as a backbone for connecting multiple locations to a central hub. This application is particularly beneficial for internet service providers looking to distribute internet access to residential customers in rural or underserved areas where laying physical infrastructure is challenging. By installing a NanoStation 5AC as the central access point on a high vantage point, such as a tower or a tall building, and configuring additional units as client stations at customer premises, ISPs can offer high-speed broadband services over wide areas. This approach not only expands the reach of internet services but also ensures customers enjoy reliable connectivity suitable for streaming, online gaming, and telecommuting, dramatically bridging the digital divide in remote communities.

Compare with similar products


Wireless Standard
802.11ac
802.11b/g/n
802.11a/n
2.4GHz Radio Rate
150 Mbps
5GHz Radio Rate
450 Mbps
150 Mbps
Wireless Antenna Frequency Range & Gain
5.150 - 5.875 (GHz) 16 (dBi)
2.412 - 2.462 (GHz) 11 (dBi)
5.170 - 5.875 (GHz) 16 (dBi)
Antenna beamwidth
45 °
55 °
43 °
Ethernet Ports
2 x 1 Gbps
2 x 100 Mbps
2 x 100 Mbps
Chipset
Atheros MIPS 74Kc, 560 MHz
Atheros MIPS 24Kc, 400 MHz
Atheros MIPS 74Kc, 560 MHz
RAM
64 MB
32 MB
64 MB
Storage Memory
8 MB
8 MB
Operating Temperature
-40 °C to 70 °C
-30 °C to 75 °C
-30 °C to 75 °C
Max Power Consumption
9 W
8 W
8 W
Weight
0.233 kg
0.40 kg
0.50 kg

Wireless Standard 802.11ac
802.11b/g/n
802.11a/n
2.4GHz Radio Rate
150 Mbps
5GHz Radio Rate 450 Mbps
150 Mbps
Wireless Antenna Frequency Range & Gain5.150 - 5.875 (GHz) 16 (dBi)
2.412 - 2.462 (GHz) 11 (dBi)
5.170 - 5.875 (GHz) 16 (dBi)
Antenna beamwidth 45 °
55 °
43 °
Ethernet Ports 2 x 1 Gbps
2 x 100 Mbps
2 x 100 Mbps
ChipsetAtheros MIPS 74Kc, 560 MHz
Atheros MIPS 24Kc, 400 MHz
Atheros MIPS 74Kc, 560 MHz
RAM64 MB
32 MB
64 MB
Storage Memory
8 MB
8 MB
Operating Temperature -40 °C to 70 °C
-30 °C to 75 °C
-30 °C to 75 °C
Max Power Consumption 9 W
8 W
8 W
Weight0.233 kg
0.40 kg
0.50 kg
