Brand
Manufacturer part number
LBE-M5-23
Warranty
?
12 months
EAN
0810354022326
Ubiquiti airMAX LiteBeam M5
Ubiquiti Elite Distributor
in stock
?
38.36 €
38.36 €
Ubiquiti Elite Distributor
Detailed description
The airMAX LiteBeam M5 is a compact, lightweight, and cost-effective wireless broadband solution developed by Ubiquiti Networks. This device is specifically designed to make high-speed, long-distance (15+ km) wireless communication accessible and reliable, fitting perfectly into the lineup of Ubiquiti's innovative airMAX technology products. Aimed at providing a solution for point-to-point (PtP) and point-to-multipoint (PtMP) applications, the LiteBeam M5 stands out for its simplicity, performance, and versatility.
The LiteBeam M5 is fully compatible with other devices in the airMAX series, including both base stations and client devices that operate on the same 5 GHz frequency band. This compatibility is crucial for creating cohesive and high-performing wireless networks, whether for internet service provision, video surveillance backhaul, or connecting remote sites. Its compatibility focuses on ensuring efficient and effective wireless network deployments, particularly for point-to-point (PtP) and point-to-multipoint (PtMP) configurations. In addition, utilizing Ubiquiti's airOS, the LiteBeam M5 benefits from seamless integration with network management and monitoring tools such as Ubiquiti's airControl. This allows network operators to efficiently manage and optimize their entire airMAX network, including LiteBeam M5 devices, from a centralized platform.
Please note, that LiteBeam M5 does not natively integrate with Ubiquiti's UniFi series. While both airMAX and UniFi products are part of Ubiquiti Networks' portfolio, they serve different purposes and operate on separate management platforms. The LiteBeam M5, being an airMAX device, is managed through airOS and is not directly compatible with the UniFi Controller software, which is designed for managing UniFi devices.
At the core of the LiteBeam M5's design is its utilization of Ubiquiti's proprietary airMAX technology, which operates within the 5 GHz frequency band. This technology enables the device to deliver up to 100 Mbps throughput and low latency across wireless links, making it an ideal solution for a wide range of applications, including internet service provision, video surveillance transmission, and data communication between remote locations.
The LBE-M5-23 model features a 23dBi directional antenna, which focuses the signal to enhance its range and reduce interference, allowing for clearer and more reliable connections over 15+ km distances. This high-gain antenna, combined with Ubiquiti's InnerFeed technology, integrates the radio and antenna into a single compact unit, eliminating the need for cables and reducing signal loss. This integration not only streamlines the device's design but also simplifies its installation and deployment, making it an attractive option for network operators of all sizes.
Constructed with durability in mind, the LiteBeam M5 is housed in a weather-resistant enclosure, ensuring it can withstand harsh environmental conditions such as rain, wind, and extreme temperatures from -40 °C to 70 °C. This durability makes the LiteBeam M5 suitable for outdoor deployment in a variety of settings, from rural areas to urban environments, without compromising its performance or longevity.
The LiteBeam M5's support for Power over Ethernet (PoE) simplifies its power supply, allowing both power and data to be transmitted over a single Ethernet cable. This feature facilitates flexible deployment options and reduces the complexity of the device's installation, making it easier to extend networks to locations where power access is limited or unavailable.
The device is powered by Ubiquiti's airOS, a versatile and powerful operating system that provides advanced features for device configuration, network management, and system diagnostics. airOS includes tools for adjusting channel bandwidth, signal strength, and other critical parameters, giving network administrators the flexibility to optimize the network for specific deployment scenarios. Additionally, airOS supports Ubiquiti's airView spectrum analyzer and airControl network management application, tools that further enhance the device's performance and manageability.
The airMAX LiteBeam M5 is ideal for rural internet provision, connecting remote areas with high-speed access. It facilitates seamless corporate and campus connectivity over wide areas, supports high-definition video surveillance networks, and provides essential infrastructure for event broadcasting with its long-range, high-speed capabilities. Additionally, it's invaluable for establishing emergency communication networks in disaster-stricken or remote areas, ensuring reliable, quick-setup connectivity. Its versatility across various environments underscores its utility in bridging connectivity gaps and enhancing network performance. Also, during large outdoor events like concerts or sports competitions, organizers can rely on the LiteBeam M5 to provide temporary internet access or to stream live video content.
In summary, the airMAX LiteBeam M5 (LBE-M5-23) from Ubiquiti Networks is a highly efficient, robust, and user-friendly wireless broadband device that offers exceptional performance for long-distance communication. Its integration of advanced airMAX technology, high-gain directional antenna, and durable design, combined with the power and flexibility of airOS, makes the LiteBeam M5 a versatile solution for a wide range of wireless networking applications, delivering reliable, high-speed connectivity where it's needed most. Moreover, a lightweight form factor contained within a ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.
Compare with similar products
| Wireless Standard | ||||
| 802.11a/n | 802.11ac | 802.11ac | 802.11ac | |
| 5GHz Radio Rate | ||||
| 150 Mbps | 450 Mbps | 450 Mbps | 450 Mbps | |
| Wireless Antenna Frequency Range & Gain | ||||
| 5.150 - 5.875 (GHz) 23 (dBi) | 5.150 - 5.875 (GHz) 23 (dBi) | 5.150 - 5.875 (GHz) 26 (dBi) | 5.15 - 5.85 (GHz) 29 (dBi) | |
| Antenna range | ||||
| 15km | 15km | 25km | 30km | |
| Ethernet Ports | ||||
| 1 x 100 Mbps | 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | |
| Chipset | ||||
| Atheros MIPS 74Kc, 533 MHz | Atheros MIPS 74Kc | Atheros MIPS 74Kc | ||
| RAM | ||||
| 64 MB | 64 MB | 64 MB | ||
| Max Power Consumption | ||||
| 4 W | 7 W | 7 W | 7 W | |
| Weight | ||||
| 0.75 kg | 0.98 kg | 1.74 kg | 3.2 kg | |
| Wireless Standard | 802.11a/n | 802.11ac | 802.11ac | 802.11ac |
| 5GHz Radio Rate | 150 Mbps | 450 Mbps | 450 Mbps | 450 Mbps |
| Wireless Antenna Frequency Range & Gain | 5.150 - 5.875 (GHz) 23 (dBi) | 5.150 - 5.875 (GHz) 23 (dBi) | 5.150 - 5.875 (GHz) 26 (dBi) | 5.15 - 5.85 (GHz) 29 (dBi) |
| Antenna range | 15km | 15km | 25km | 30km |
| Ethernet Ports | 1 x 100 Mbps | 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps |
| Chipset | Atheros MIPS 74Kc, 533 MHz | Atheros MIPS 74Kc | Atheros MIPS 74Kc | |
| RAM | 64 MB | 64 MB | 64 MB | |
| Max Power Consumption | 4 W | 7 W | 7 W | 7 W |
| Weight | 0.75 kg | 0.98 kg | 1.74 kg | 3.2 kg |
Technical Specs / Datasheet
Compatible products
Specifications
Wireless Network
Standards
802.11a/n
MIMO
5GHz 1x1
5GHz Radio Rate
150 Mbps
Antenna
Antenna Design
Grid
Wireless Antenna Frequency Range & Gain
5.150 - 5.875 (GHz) 23 (dBi)
Polarization
Vertical
Interfaces
RJ45 Ports
System Specification
Chipset
Atheros MIPS 74Kc, 533 MHz
Power
Power Method
24V Passive PoE
Power Supply
External PoE Adapter
Supported Input Voltage
22 - 26 V DC
Max Power Consumption
4 W
PSU / POE adapter
24 V DC 0.2 A
Physical Parameters
Color
White

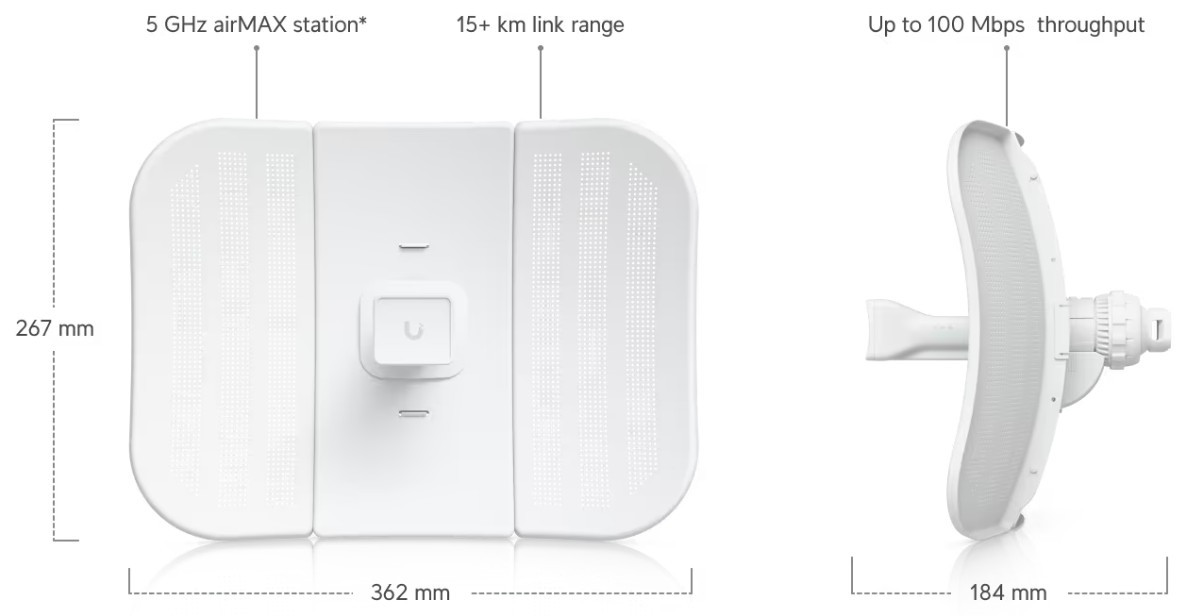

Dimensions
362 x 267 x 184 mm
Weight
0.75 kg
Operating Temperature
-40 °C to 70 °C
Environment
Outdoor
Mounting Method
Pole Mount
Package Contains
External Power Supply
Included
