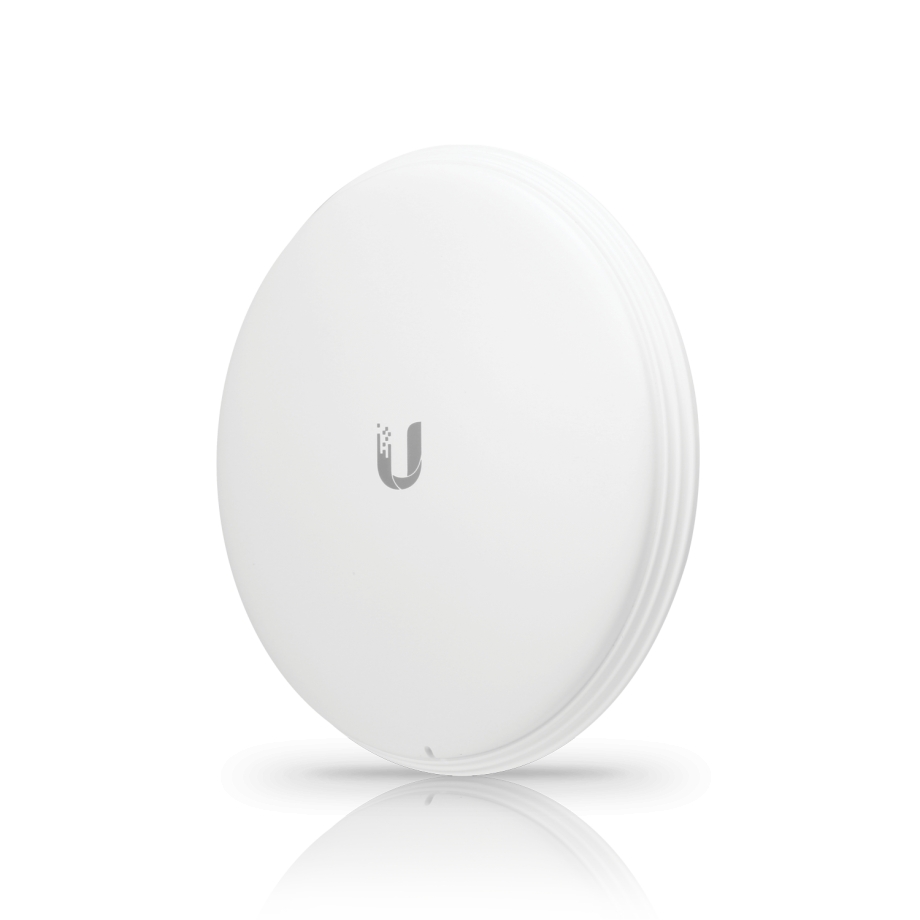

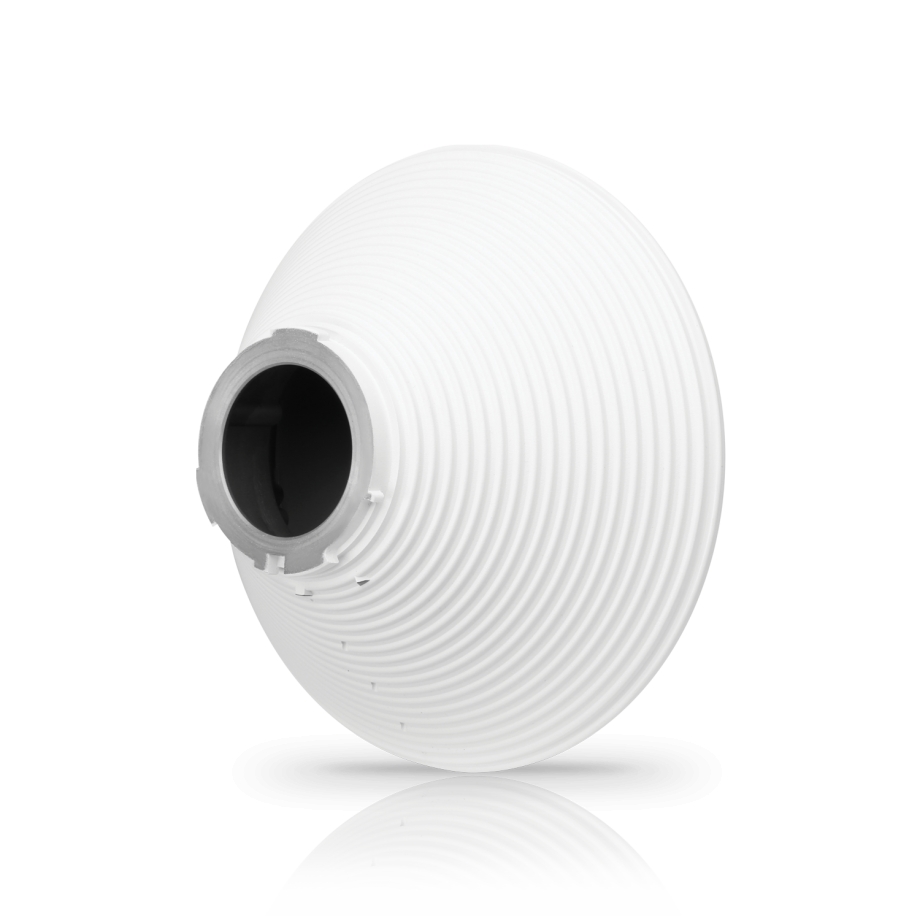

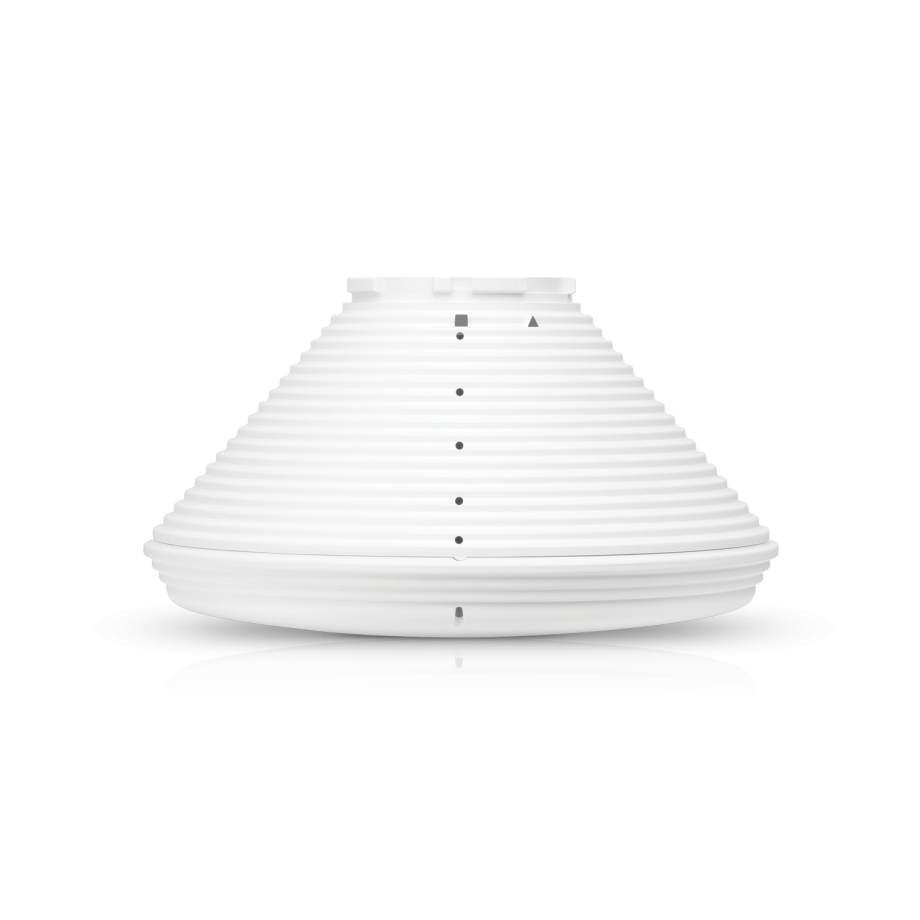

Horn 5 45°

Ubiquiti Elite Distributor

7 pcs in stock

60.89 €

7 pcs in stock

60.89 €

Volume price

Order amount

price

from 467.68 €

60.33 €

from 935.37 €

59.78 €

from 4676.83 €

59.22 €

from 9353.66 €

58.61 €

Brand

Ubiquiti

Manufacturer part number

Horn-5-45

Warranty
?

12 months

EAN

0817882022712

Ubiquiti Elite Distributor

Available product variations

Horn 5 30°

Horn 5 60°

Horn 5 90°

Detailed description

Modular Design

The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

Symmetrical horn antenna

30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co‐location characteristics allow for a higher density of sectors than traditional sector technology.

Asymmetrical horn antennas

60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Compare with similar products

	Horn 5 45°	Horn 5 30°	Horn 5 60°	Horn 5 90°
Wireless Antenna Frequency Range & Gain

5.15 - 5.85 (GHz) 15.5 (dBi)	5.15 - 5.85 (GHz) 19 (dBi)	5.15 - 5.85 (GHz) 16 (dBi)	5.15 - 5.85 (GHz) 13 (dBi)	5.15 - 6.875 (GHz) 19.5 (dBi)
Antenna beamwidth

45 ° Vertical, 45 ° Horizontal	30 ° Vertical, 30 ° Horizontal	60 ° Vertical, 60 ° Horizontal	90 ° Vertical, 90 ° Horizontal	30°
Polarization

Dual Linear	Dual Linear	Dual Linear	Dual Linear	Dual Linear
Dimensions

Ø175 x 96 mm	Ø221.4 x 184.2 mm	161.6 x 173.3 x 170.9 mm	152.1 x 186.8 x 113.2 mm	282 x 224 x 380 mm
Weight

1.34 kg	1.1 kg	0.72 kg	0.92 kg	3.93 kg

	Horn 5 45°	Horn 5 30°	Horn 5 60°	Horn 5 90°	UISP Horn
Wireless Antenna Frequency Range & Gain	5.15 - 5.85 (GHz) 15.5 (dBi)	5.15 - 5.85 (GHz) 19 (dBi)	5.15 - 5.85 (GHz) 16 (dBi)	5.15 - 5.85 (GHz) 13 (dBi)	5.15 - 6.875 (GHz) 19.5 (dBi)
Antenna beamwidth	45 ° Vertical, 45 ° Horizontal	30 ° Vertical, 30 ° Horizontal	60 ° Vertical, 60 ° Horizontal	90 ° Vertical, 90 ° Horizontal	30°
Polarization	Dual Linear	Dual Linear	Dual Linear	Dual Linear	Dual Linear
Dimensions	Ø175 x 96 mm	Ø221.4 x 184.2 mm	161.6 x 173.3 x 170.9 mm	152.1 x 186.8 x 113.2 mm	282 x 224 x 380 mm
Weight	1.34 kg	1.1 kg	0.72 kg	0.92 kg	3.93 kg
