Product name
UltraDish Directional Antenna 24dBi, TwistPort, 2-pack
Warranty
?
12 months
Manufacturer part number
UD-TP-24
EAN
0708747439977
UltraDish 24dBi Directional Antenna, TwistPort, 2-Pack | High-Gain Wideband Parabolic Dish
- 24dBi high-gain parabolic dish antenna delivers strong directional performance and suppressed side lobes for cleaner links in noisy RF environments.
- Wideband 5.18-6.4 GHz operation keeps antenna gain stable across UNII-1 to UNII-5, helping maintain reliable wireless performance on any supported channel.
- TwistPort quick-lock waveguide connector is practically lossless and removes coaxial cable losses for efficient signal transfer from radio to antenna.
- Easy twist-and-lock installation combines mounting and RF connection in one step, making setup and aiming fast, simple, and single-handed.
- Compatible with radios featuring a TwistPort interface and select third-party radios via TwistPort Adaptor; 2-pack for flexible deployment.
222.20 €
out of stock
?
222.20 €
out of stock
?
Expected arrival?
?
arrival date unknown
Available alternatives
Detailed description
High Gain Directional Antennas

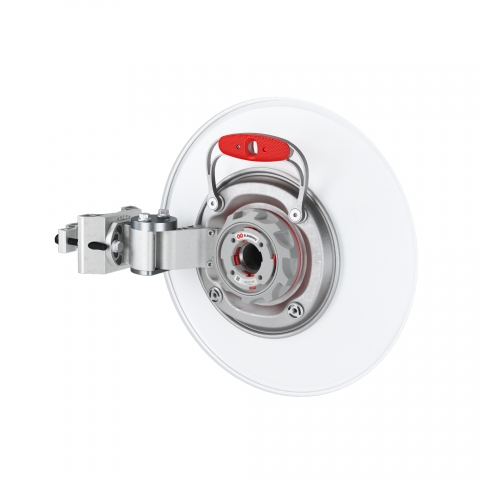

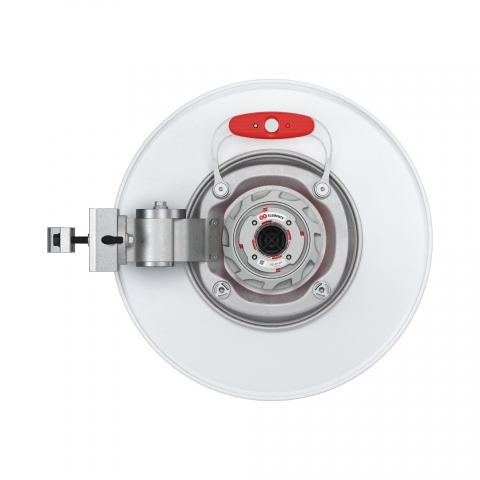

UltraDish™ TP Antennas are parabolic dish antennas with a wide gain range and lossless TwistPort™ connector. The UltraDish TP Antennas have high directivity and suppressed side lobes for the ultimate performance.
Beam Performance
The radiation pattern of UltraDish™ TP Antennas with suppressed side lobes minimizes the collected and transmitted interference in high-noise areas. The flexible gain of UltraDish™ TP Antennas is achieved by adjusting the size of the main reflector size that focuses the signal fed via the TwistPort™ connector.
Wideband 5.18 - 6.4 GHz
Stable antenna gain is important for reliable link performance. The gain of all three UltraDish™ TP Antennas is stable in the whole useful bandwidth - from 5.18 up to 6.4 GHz, letting you leverage the whole spectrum between UNII-1 and UNII-5 bands with stable performance regardless of the channel used.
TwistPort Connector
TwistPort™ is RF Elements patent-pending quick-locking waveguide connector with practically zero loss. It connects antennas to an RF radio and embodies the new standard for scalable, high-performance, and easy-to-use wireless equipment.
Easy Connection
TwistPort™ operation is extremely easy. The mounting and RF connection of the radio is combined into a single, elegant, and highly functional "twist and lock" design. A single-handed radio installation is now a real option!
Lossless
TwistPort™ connector is practically lossless. With no coaxial connectors or cables, there is no loss introduced during the delivery of the signal from the radio to an antenna. The ultra-low loss of waveguide makes TwistPort™ losses practically unmeasurable.
Cross-Platform Compatibility
UltraDish™ TP Antennas can be used with any radio with a TwistPort™ interface and a variety of third-party radios connected through a TwistPort™ Adaptor.
Innovative Mount
UltraDish™ TP Antennas feature an innovative mounting system design optimized for simplicity and durability. The installation and aiming adjustment is quick, easy, and can be done within minutes.
Specifications
Antenna
Antenna Design
Parabolic Dish
Wireless Antenna Frequency Range & Gain
5.180 - 6.400 (GHz) 24.4 (dBi)
Beamwidth
12 ° Vertical, 12 ° Horizontal
F/B ratio
> 35 dB
Connectors
RF Connectors
(1) Twist-on
Physical Parameters
Material
Stainless steel, Aluminium, ABS Plastic, Polycarbonate
Ingress Protection Code
IP65
Dimensions
Ø420 x 263 mm
Weight
2.7 kg
Operating Temperature
-40 °C to 60 °C
Environment
Outdoor
Mounting Method
Rated Wind Velocity
160 km/h
Package Contains
Units
2 pcs
