TwistPort Aluminium Adapter for RouterBoard | 5180-6100 MHz | RBM11G Compatible

Product name

TwistPort Aluminium Adapter for RouterBoard

Warranty

?
12 months

Manufacturer part number

TPA-RBC

EAN

8588006459241
  • Turns 3rd-party radios into TwistPort™-ready devices for use with any RF elements® TwistPort™ antenna; tool-free integration helps simplify deployment and improve network scalability.
  • Wideband 5180-6100 MHz support delivers excellent performance for 5 GHz wireless links, helping maintain strong signal quality and reliable outdoor connectivity.
  • Compatible with MikroTik™ RouterBOARD™ 9XX, 7XX and 4XX series, plus recent M11 Series; made for RBM11G for a precise fit and easy installation.
  • Cast aluminium enclosure provides durable outdoor protection, while the robust housing supports added external connectors for flexible network builds.
  • TwistPort™ waveguide connector transition is terminated with two MMCX pigtails, enabling smooth radio integration and dependable RF connection.
-25% 59.05 €
44.50 €
out of stock
?
-25% 59.05 €
44.50 €
out of stock
?

Available alternatives

TwistPort Adaptor for Mimosa A5x

TwistPort Adaptor for Mimosa A5x

45.19 €33.95 €
-25%
TwistPort Adaptor for Mimosa C5x

TwistPort Adaptor for Mimosa C5x

23.53 €18.32 €
-22%

Detailed description

TwistPort Adapter for RouterBoard

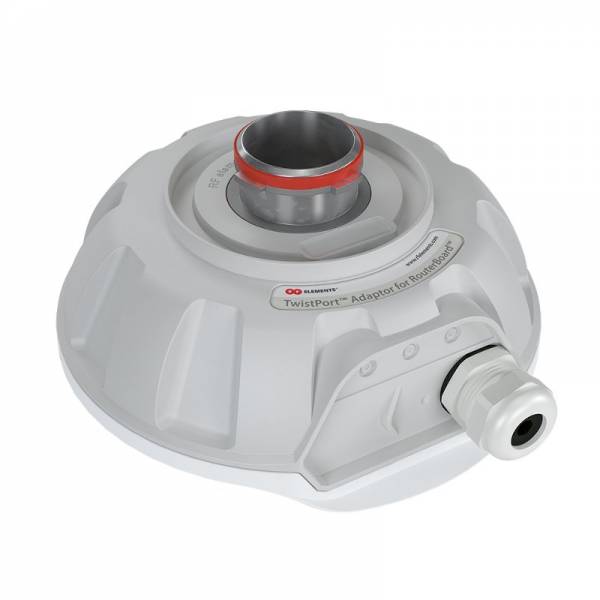

The RF elements TwistPort Adapter TPA-RBC connects compatible MikroTik RouterBoard devices to RF elements antennas equipped with the TwistPort interface. It is designed for RouterBoard models from the M11, 9, 7, and 4 series, with specific compatibility covering RB91x, RB71x, RB411L, and RBM11G. The adapter uses a proprietary quick-locking waveguide port to establish the antenna connection, while two right-angle MMCX connectors provide the interface to the RouterBoard. This configuration brings the compatible radio board and TwistPort antenna together through a dedicated adapter, allowing RouterBoard hardware to be used with any RF elements TwistPort antenna. Operating across the 5180–6400 MHz frequency range, the TPA-RBC uses dual linear horizontal and vertical polarization.
/images/catalogue/description/959/1-6af6ce82dcce8-1463x461.jpg
The TPA-RBC is manufactured from cast aluminium, with both its body and internal insert made from aluminium alloy. Its construction provides protection for the MikroTik RouterBoard housed inside, combining the radio enclosure and antenna connection in a single adapter assembly. Designed to withstand outdoor operating conditions, it has a specified temperature range of -40°C to +60°C and a wind survival rating of 160 km/h. The TwistPort quick-locking interface simplifies the connection between the adapter and a compatible antenna, while the MMCX connectors establish the radio-side connection. For installations based on compatible MikroTik RouterBoard models, the TPA-RBC combines physical protection with direct access to the RF elements TwistPort antenna system.

Compatible products

Specifications

Physical Parameters

Material

Aluminium
Dimensions

19.2 × 17.7 × 90.0 cm
Weight

0.55 kg
Operating Temperature

-40 °C to 60 °C
Environment

Outdoor
Rated Wind Velocity

160 km/h
