Product name
TwistPort Adaptor for Mimosa A5x
Warranty
?
12 months
Manufacturer part number
TPA-A5x
EAN
0708747439946
TwistPort Adaptor for Mimosa A5x | Tool-Free RF Elements Connector
- Tool-free TwistPort™ adaptor converts the Mimosa A5x with RP-SMA connectors to RF elements® Male TwistPort™ for seamless radio-to-antenna integration.
- Ultra-wide 5180–6400 MHz operating band supports 5 GHz wireless deployments and helps deliver maximum power from radio to antenna with extremely low waveguide loss.
- Compatible with every TwistPort™ antenna, this adaptor helps improve noise immunity and supports scalable network designs for reliable point-to-point or point-to-multipoint setups.
- Designed for the Mimosa A5x radio, the adaptor enables fast installation without tools while keeping the connection clean, secure, and efficient.
- A practical TwistPort™ accessory for wireless ISP and outdoor network builds, offering high-performance antenna compatibility and simple integration of third-party radios.
-25% 45.19 €
33.95 €
In stock
?
-25% 45.19 €
33.95 €
In stock
?
Detailed description

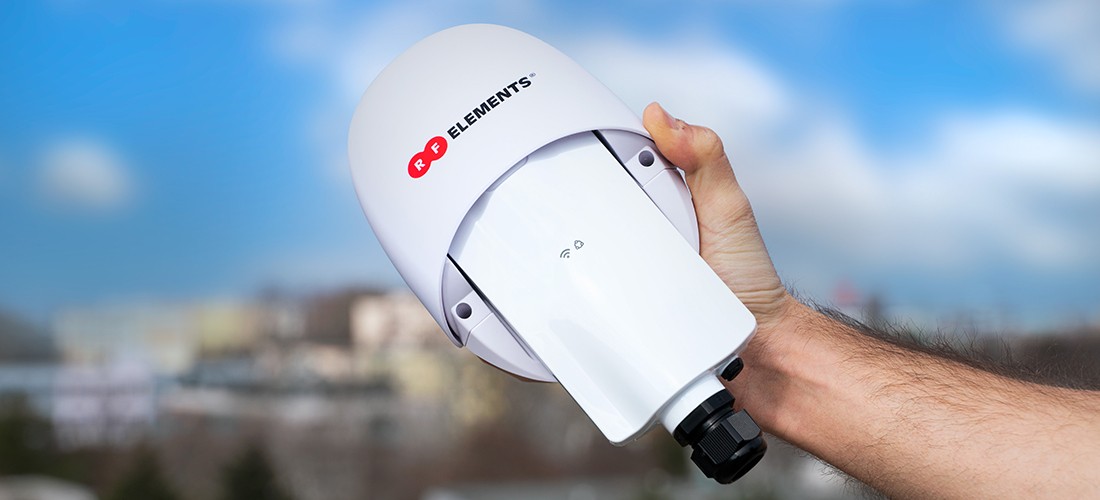

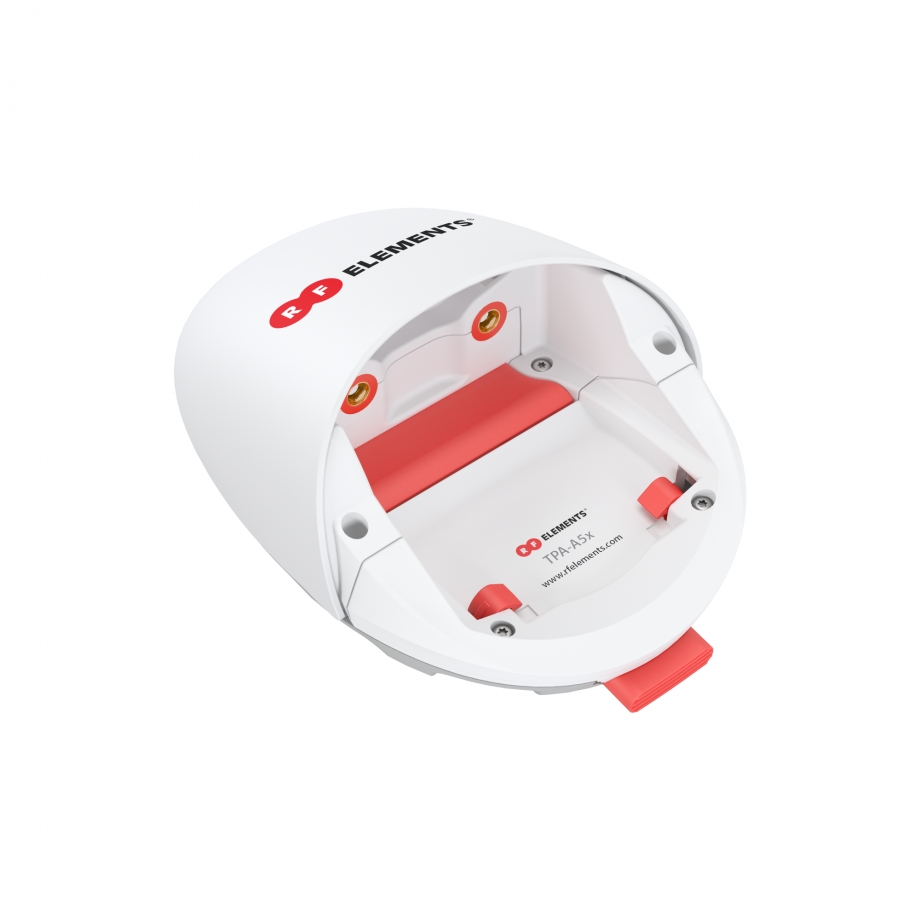

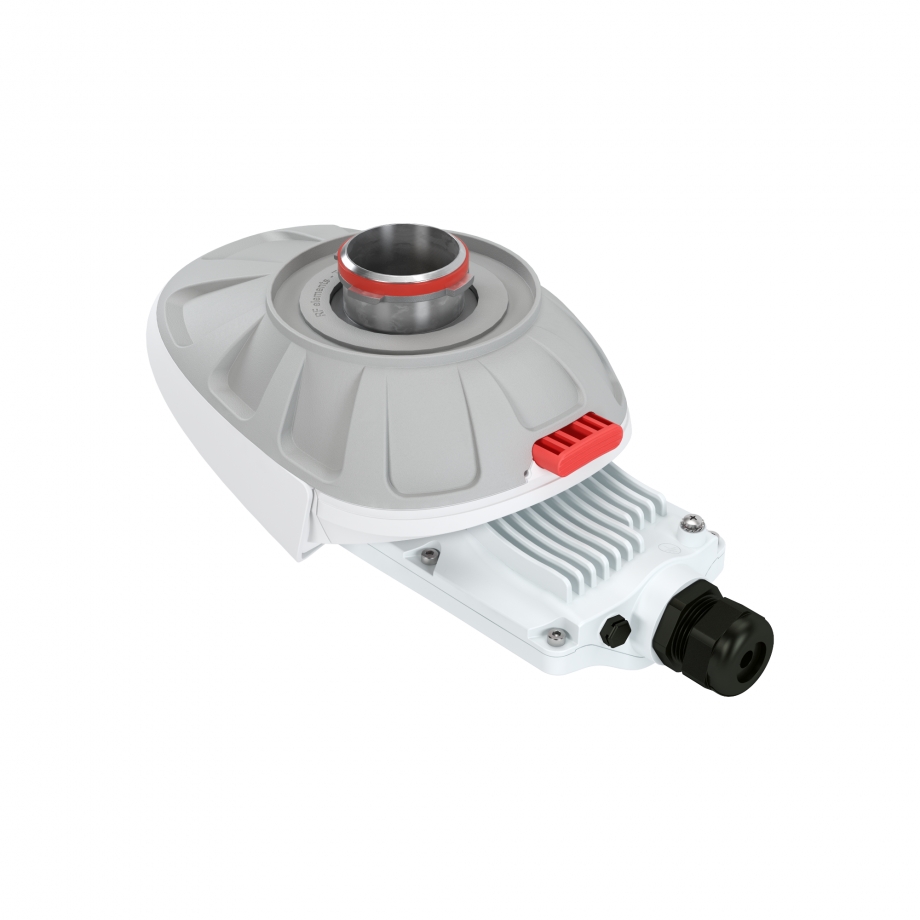

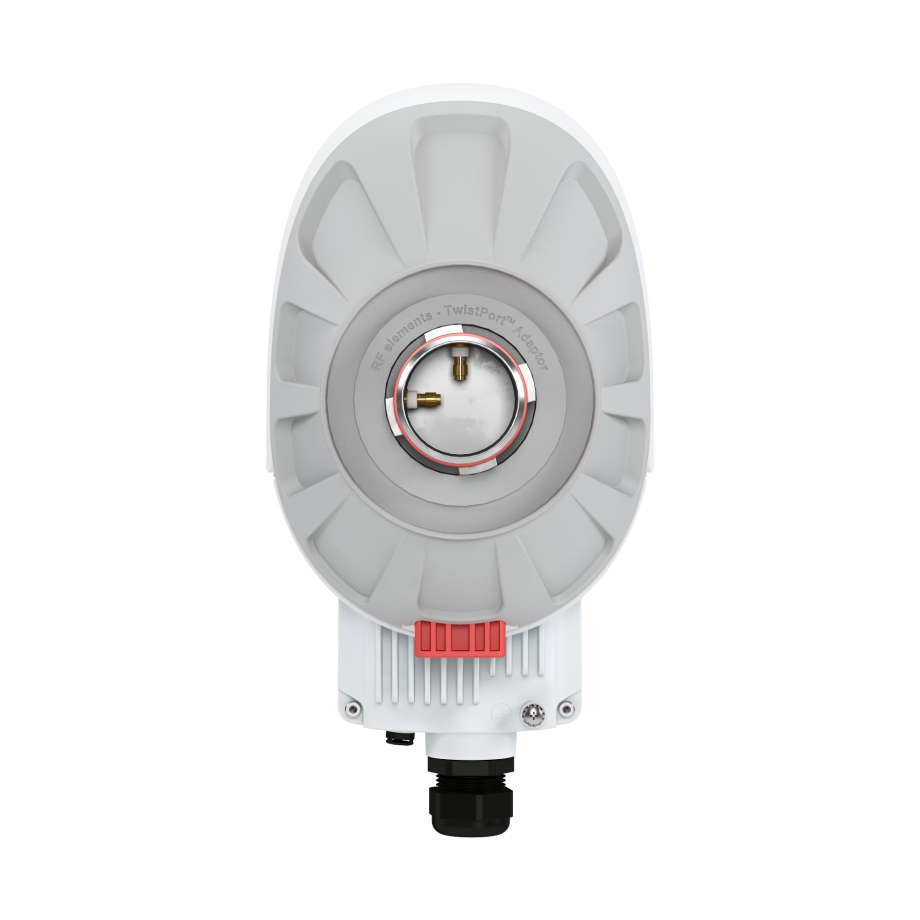

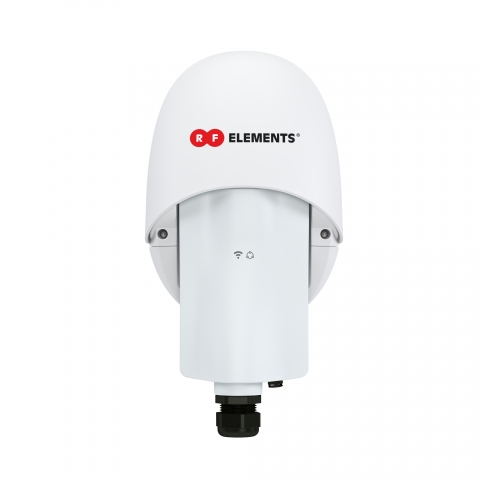

TwistPort™ Adaptor converts 3rd party radio interface into RF elements® Male TwistPort™ interface. The radio installation is seamless and requires no tools. The adaptor makes the 3rd party radios compatible with every TwistPort™ antenna with superior performance, noise immunity, and network scalability.
TwistPort™ Adaptor for A5x is compatible with Mimosa A5x radio with a pair of RP-SMA connectors.
The frequency band of TwistPort™ Adaptors operation is ultra-wide: 5180 - 6400 MHz. Thanks to the extremely low loss of waveguide the maximum power is delivered from the radio to the antenna.
Technical Specs / Datasheet
Compatible products
Specifications
Physical Parameters
Material
Aluminium, ABS Plastic, UV Plastic
Dimensions
19.8 × 13.7 × 11.4 cm
Weight
0.35 kg
Operating Temperature
-40 °C to 60 °C
Environment
Outdoor
Rated Wind Velocity
160 km/h
