Ubiquiti Fail-Secure Strike Lock 8mm

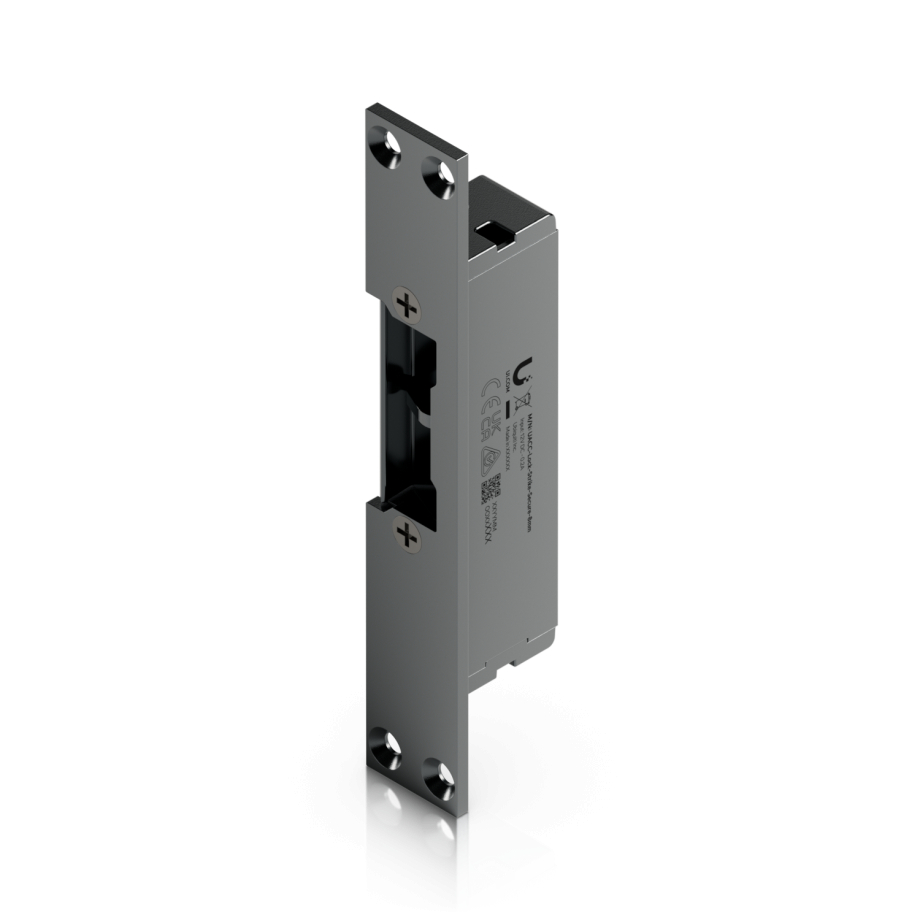

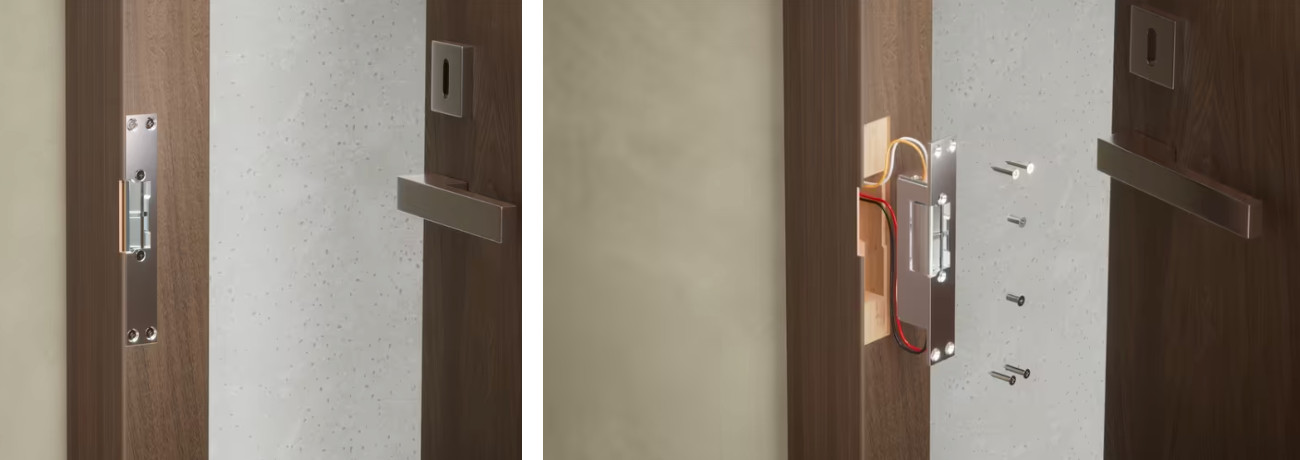

The Ubiquiti Fail-Secure Strike Lock 8mm is a professional electronic locking solution designed for secure access control in commercial, industrial, and office environments. Engineered with a fail-secure locking mechanism, the lock remains securely locked during power loss, helping maintain building security in critical situations. With a holding force of 227 kg (500 lb), it delivers dependable door retention for high-traffic entry points and controlled access areas. The strike lock is compatible with both wooden and metal single doors, making it a flexible option for various installation scenarios. Constructed using a durable zinc alloy lock body combined with stainless steel front plates and latches, the device is designed for long-term reliability and resistance to daily wear.

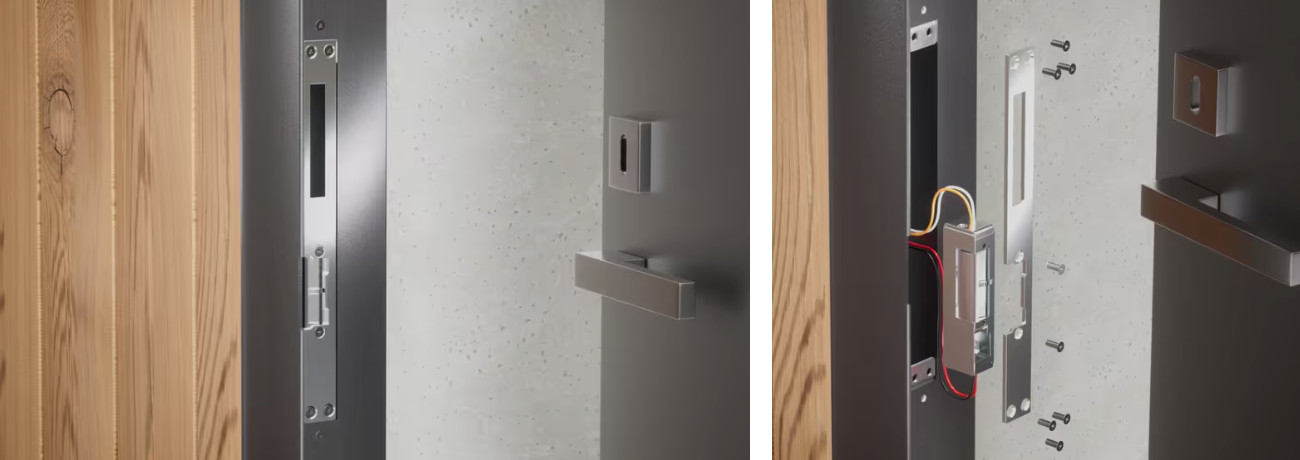

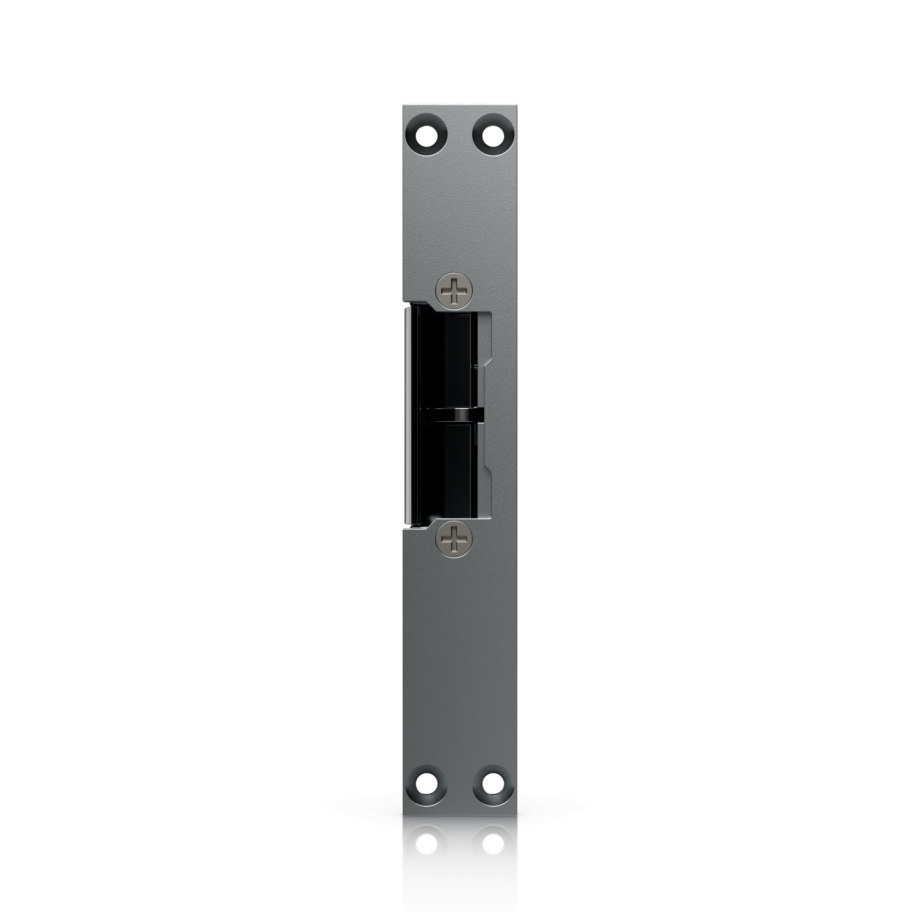

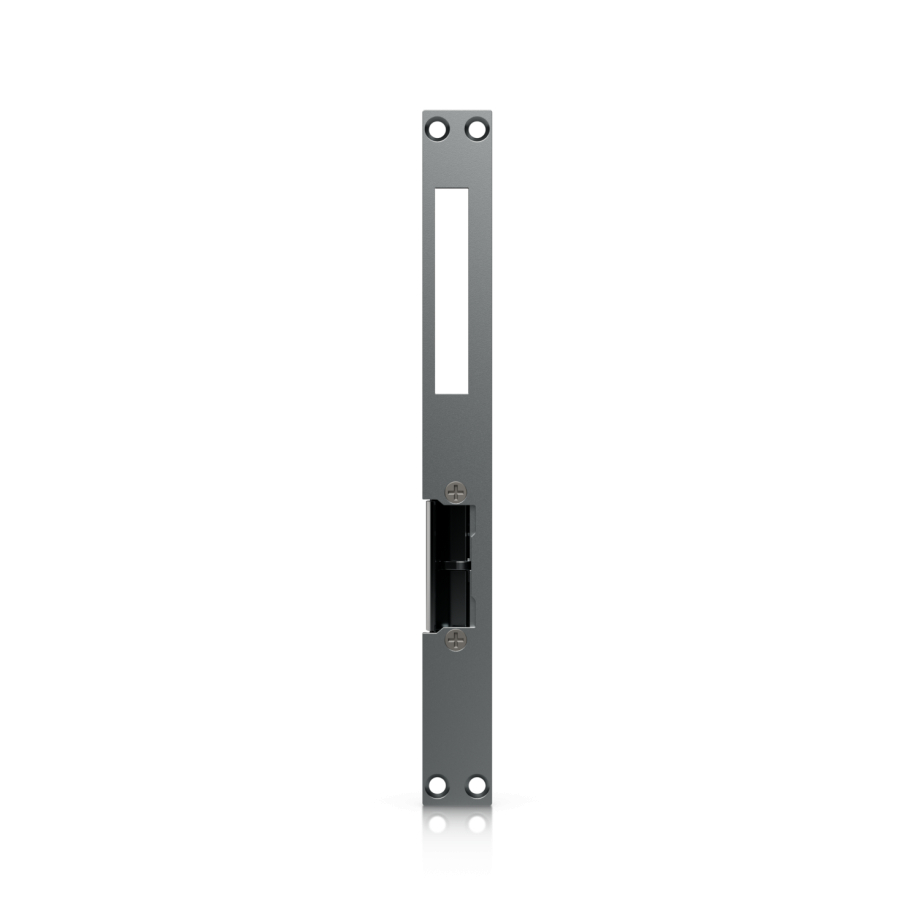

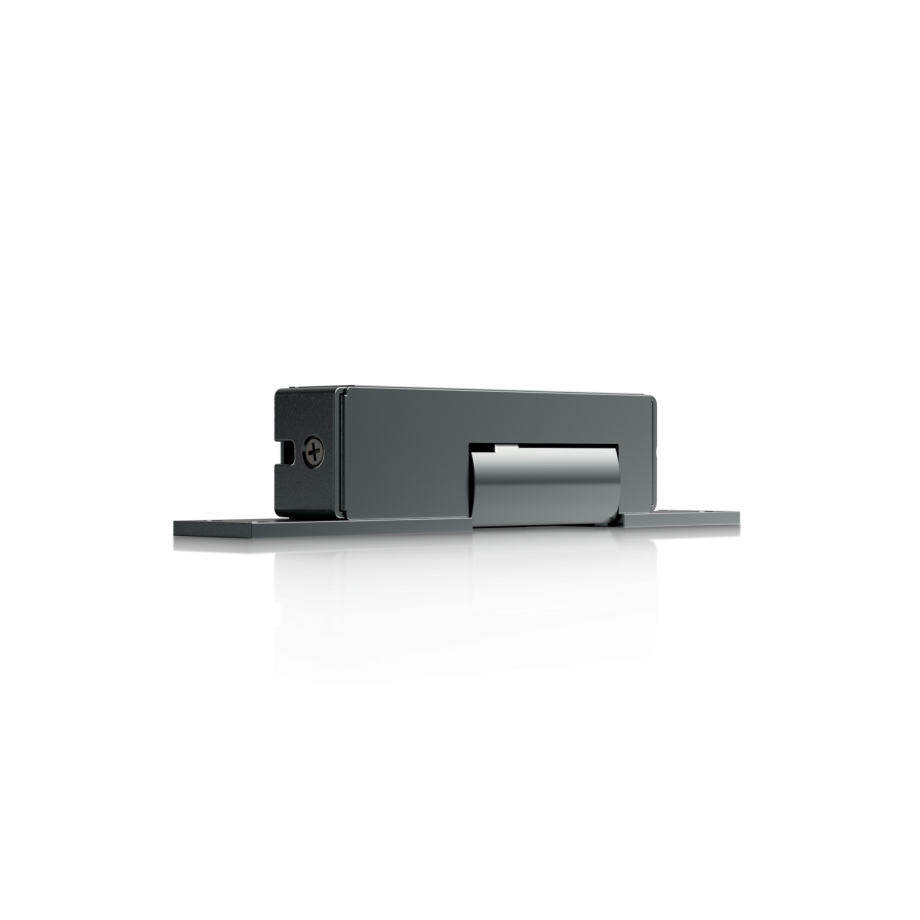

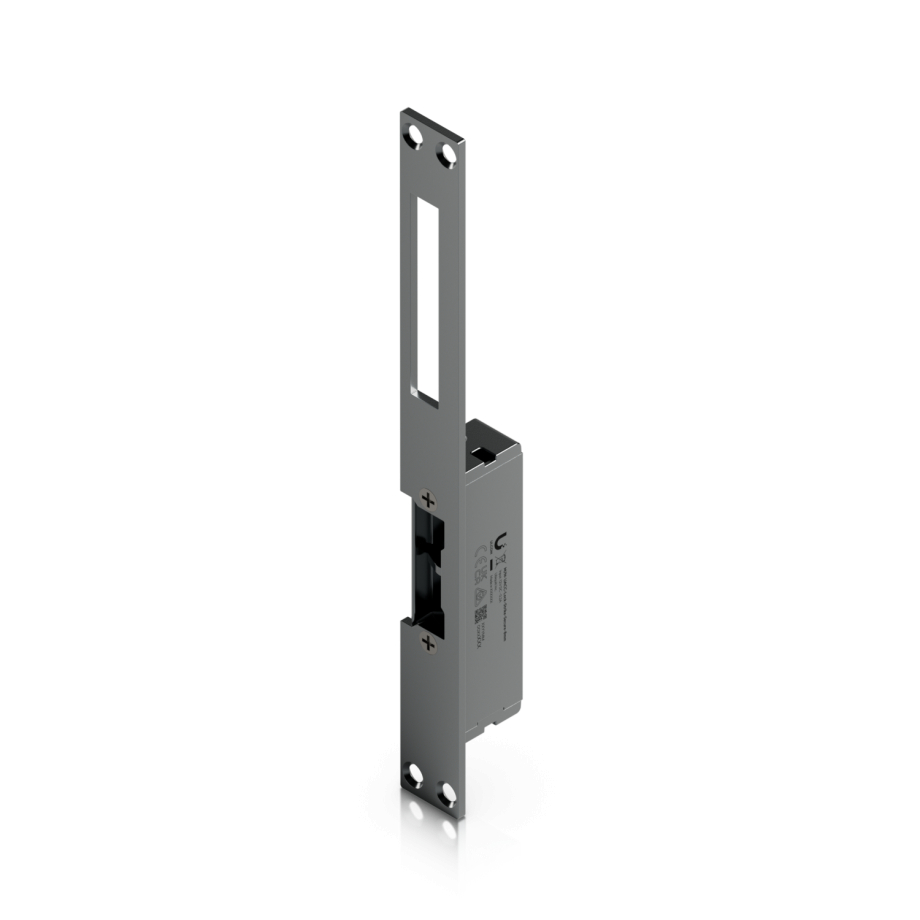

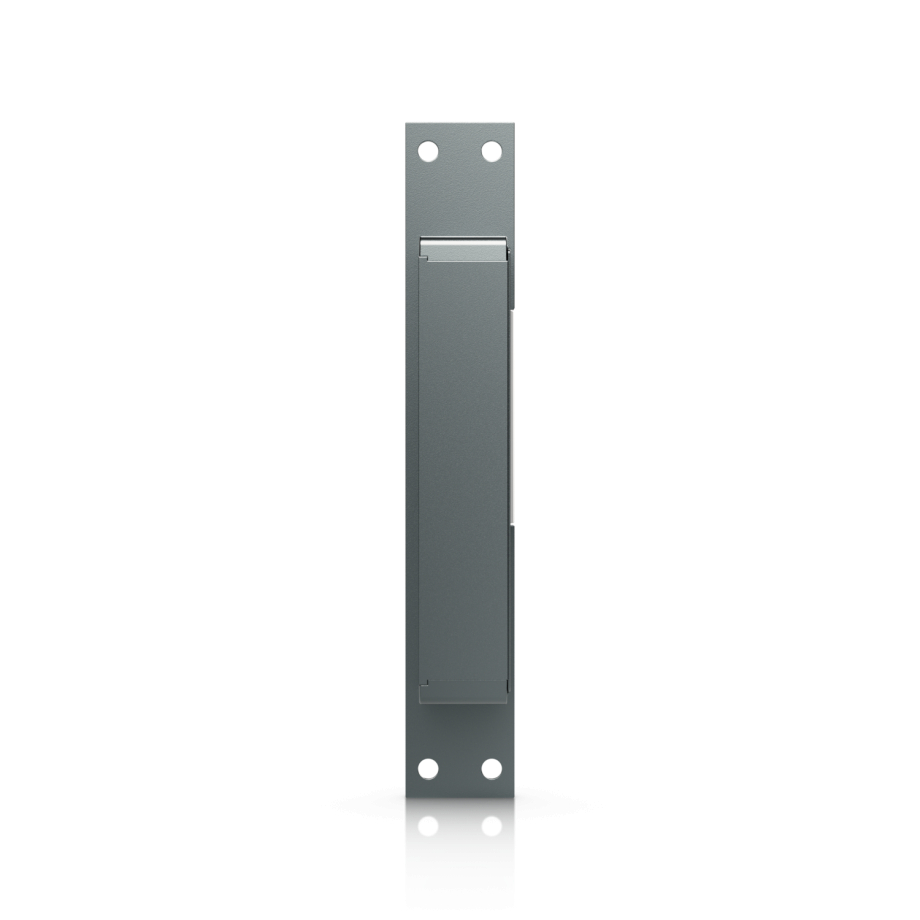

The compact lock body dimensions of 112 x 21 x 28 mm allow discreet installation within recessed door frames, while the included short and long stainless steel front plates provide additional mounting flexibility for different door types. The fail-secure strike lock operates using a 12V DC power supply with a current draw of 200mA ±10%, ensuring efficient and stable operation with compatible access control systems. Designed for professional integration, the lock supports recess mounting for a clean and secure installation appearance suitable for modern access control deployments.

The Ubiquiti Fail-Secure Strike Lock 8mm is designed not only for physical security but also for seamless integration into modern electronic access control systems. Equipped with dedicated wiring connections for lock control and door position monitoring, the device supports reliable communication with compatible controllers and automation platforms. The wiring configuration includes Lock 12V/NO, Lock 12V/COM, DPS/-, and DPS/+ connections, simplifying installation and system integration for professional deployments. The built-in Door Position Sensor (DPS) uses dry contact logic to provide real-time door status monitoring. When the door is open, the DPS/+ and DPS/- contacts remain open, while closed door status creates a short connection between the terminals.

This functionality enables accurate monitoring of entry points and improves overall access management efficiency. The door status contact supports ratings up to 30V DC and 0.1A, allowing compatibility with a broad range of access control equipment and monitoring systems. The strike lock is engineered for stable electrical operation with support for 12V DC ±10% input voltage, helping maintain consistent locking performance. Its fail-secure design ensures that doors remain locked when power is interrupted, adding an additional layer of protection for sensitive or restricted areas. Combined with professional-grade wiring and monitoring support, the UACC Lock Strike Secure 8mm is suitable for advanced security installations where reliability and integration capabilities are essential.

Built for demanding environments, the Ubiquiti Fail-Secure Strike Lock 8mm combines compact construction with reliable environmental durability. The lock body weighs 197 g, while the included stainless steel front plates weigh 62 g for the short version and 97 g for the long version, providing a strong yet manageable installation solution for professional access control systems. The compact dimensions and low-profile design allow the lock to fit discreetly into door frame recesses without affecting the appearance of the installation area. Designed for consistent operation across varying environmental conditions, the strike lock supports operating temperatures from -10 to 60 °C and storage temperatures from -20 to 70 °C. It also operates in humidity levels ranging from 5% to 90% non-condensing, making it suitable for both indoor commercial environments and challenging industrial locations.

The durable stainless steel and zinc alloy construction helps maintain long-term performance even in frequently used access points. For compliance and deployment flexibility, the device meets FCC, IC, and CE certification standards while also being NDAA compliant. These certifications support use in professional security infrastructure projects that require regulatory compliance and trusted hardware standards. Combining compact dimensions, durable materials, environmental resilience, and certified performance, the Ubiquiti Fail-Secure Strike Lock 8mm is a dependable solution for secure and controlled door access applications.
