MikroTik hEX PoE

Short description

CPU 800MHz, 128MB RAM, 1x SFP Cage, 5x GLAN, 1x USB 2.0, Power Output On ports 2-5, Ourput: 1A max per port; 2A max total, RouterOS L4

Brand

MikroTik

Manufacturer part number

RB960PGS

Warranty
?

12 month

EAN

4752224003294

plug

Stock availability

out of stock

arrival date unknown

67.83 €

Available product variations

/images/catalogue/1191/rb960pgs_1-5fda035e38a65-small.jpg

MikroTik hEX PoE

/images/catalogue/1595/rb760igs_2-5fda009e1a40b-small.jpg

MikroTik hEX S

/images/catalogue/145/rb750r2_1-5fd9fd6fe388a-small.jpg

MikroTik hEX lite

/images/catalogue/950/rb750upr2_1-5fda022516629-small.jpg

MikroTik hEX PoE lite

/images/catalogue/951/rb750gr3_2-5fd9ff0b634d9-small.jpg

MikroTik hEX

Detailed description

5x Gigabit Ethernet with PoE Output for Four Ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4

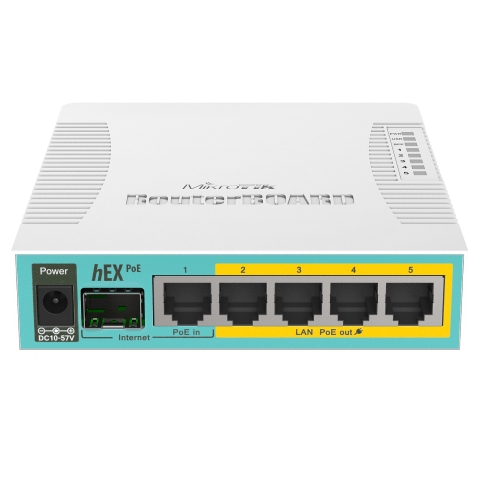

hEX PoE is a five port gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and an SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port if input voltage is 12-30V, 450mA if 31-57V, Ethernet ports are shielded.

RB960PGS can power 802.3af/at devices if 48V DC input is used (unit comes with 24v power supply, so you would have to purchase 48v power supply separately to support this). Unit provides max current 450mA for each port regardless of device power class (doesn’t support PoE powered device classification).
