Teltonika TRB501 Industrial 5G Gateway with 2.5G Ethernet and VPN

Official Teltonika Distributor
Certified Teltonika Engineers

Product name

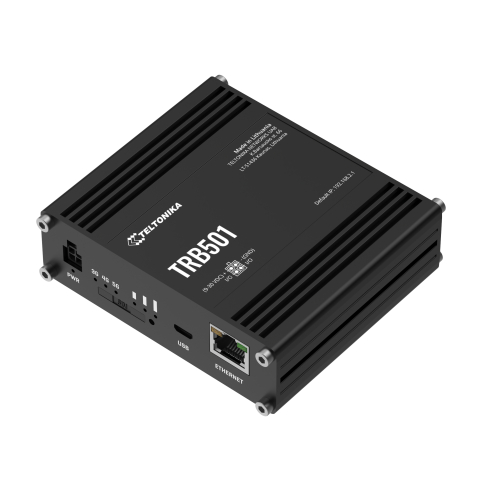

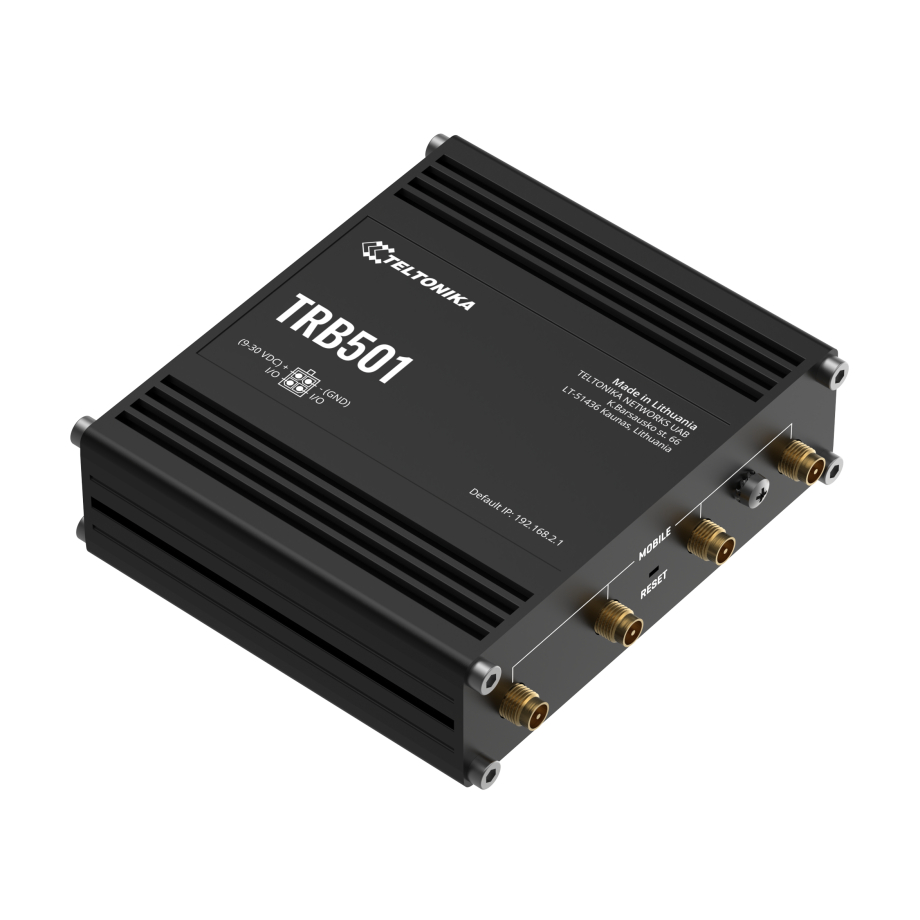

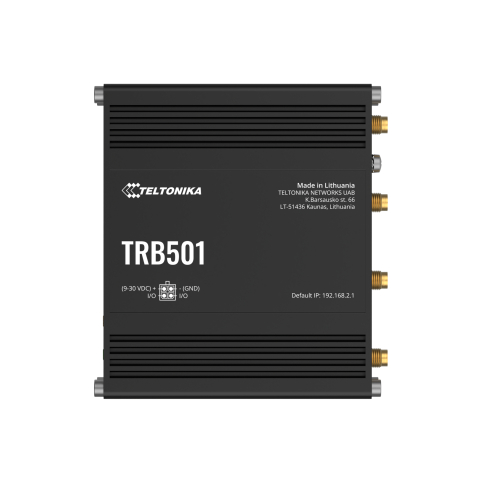

Teltonika TRB501 Industrial 5G Gateway

Warranty

?
12 months

Manufacturer part number

TRB501

Category

  • Industrial 5G gateway with Sub-6 GHz SA/NSA support, 5G carrier aggregation and 4x4 MIMO delivers up to 3.4 Gbps download in NSA mode and 2.4 Gbps in SA mode for fast industrial connectivity.
  • 2.5 Gigabit Ethernet port with RJ45 speeds up to 2500 Mbps bridges mobile and wired networks, while bridge and passthrough modes simplify integration with LAN devices and industrial equipment.
  • Built for automation and SCADA, TRB501 supports Modbus TCP, DNP3, DLMS/COSEM, BACnet/IP and OPC UA, plus Modbus MQTT Gateway and Data to Server for multi-protocol data collection.
  • Flexible deployment with 9–30 V DC input, passive PoE, four SMA antenna connectors and two configurable digital inputs/outputs; overvoltage, reverse polarity and surge protection help improve reliability.
  • Rugged IP30 anodized aluminium enclosure operates from −40 °C to +75 °C and supports DIN rail, wall or flat-surface mounting with an additional kit, ideal for energy, utilities, retail and smart city use.
Official Teltonika Distributor
Certified Teltonika Engineers
350.89 €
out of stock
?
350.89 €
out of stock
?
Plug
Official Teltonika Distributor
Certified Teltonika Engineers

Detailed description

Industrial 5G Gateway

The Teltonika TRB501 is an industrial 5G gateway designed to provide high-speed cellular connectivity for industrial automation, energy and utilities, enterprise networks, retail, and smart city applications. Supporting 5G Sub-6 GHz in both standalone (SA) and non-standalone (NSA) modes, it combines modern mobile network technology with a wired Ethernet connection. The gateway supports 5G carrier aggregation and 4×4 MIMO for downloading data, with download speeds of up to 3.4 Gbps in 5G NSA mode and 2.4 Gbps in SA mode. It also supports 4G LTE Cat 19 and 3G connectivity, allowing operation across different generations of mobile networks.

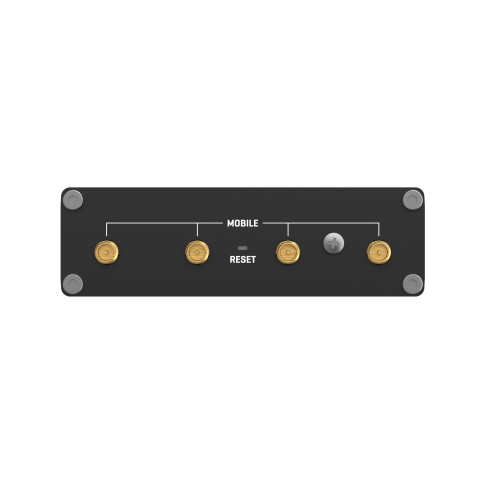

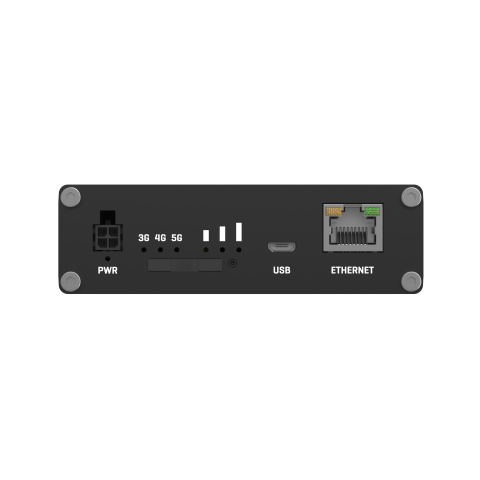

The TRB501 features a 2.5 Gigabit Ethernet port that connects the mobile network to wired equipment. Its RJ45 interface supports connection speeds of 10/100/1000/2500 Mbps, making it suitable for devices requiring high-speed Ethernet connectivity. Four SMA connectors accommodate external cellular antennas, while a micro USB port provides a virtual network interface. The gateway also offers bridge and passthrough modes for connecting other network devices to the mobile connection. Bridge mode establishes a direct connection between the mobile service provider and a device on the LAN, while passthrough mode assigns the gateway's mobile WAN IP address to another connected device.
/images/catalogue/description/3213/picture1-6ae0b10d9908d-1210x453.jpg

Industrial Network Integration

The TRB501 combines cellular connectivity with networking and industrial communication functions. It supports Modbus TCP, DNP3, DLMS/COSEM, BACnet/IP, and OPC UA, making it suitable for SCADA, smart grid, and telemetry applications. Its Modbus MQTT Gateway enables communication with a Modbus server through an MQTT broker, while the Data to Server function collects parameters from different sources and protocols and forwards them to a single server. Network configuration includes static and dynamic routing, firewall rules, VLAN segmentation, and VPN technologies such as OpenVPN, IPsec, and WireGuard. For remote administration, the gateway supports Teltonika RMS, WebUI, FOTA updates, SNMP, and MQTT.
The gateway operates on a 9–30 V DC power supply through a four-pin industrial connector, with protection against overvoltage, reverse polarity, and voltage surges. Alternatively, it can receive power through the Ethernet port using passive PoE, which is not compatible with IEEE 802.3af/at/bt standards. Two configurable digital inputs/outputs on the power connector allow interaction with external equipment, with event notifications available through email, RMS, and SMS. The anodized aluminium enclosure is rated IP30 and operates at temperatures from −40 °C to +75 °C. Installation options include DIN rail, wall, and flat-surface mounting, each requiring an additional mounting kit.
/images/catalogue/description/3213/picture2-6ae0b110e1246-1210x363.jpg

Specifications

Mobile Network

Mobile Network Generation

LTE Category

Cat19 - 1.6Gbps/150Mbps
FDD LTE Frequency Bands

1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz), 32 (1400MHz), 71 (600MHz)
TDD LTE Frequency Bands

38 (2600MHz), 40 (2300MHz), 41 (2500MHz), 42 (3500MHz), 43 (3700MHz)
5G Category

SA / NSA - 2.4 Gbps / 3.4 Gbps
NR SA Frequency Bands

n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78
NR NSA Frequency Bands

n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78
SIM Card Slot

Mini-SIM

Connectors

RF Connectors

(4) SMA Female

Interfaces

RJ45 Ports

USB Ports

(1) Micro USB

System Specification

Chipset

Qualcomm, 1.5 Ghz, ARM Cortex-A7
RAM

512 MB
Storage Memory

512 MB

Power

Power Method

AC/DC Adapter, 24V Passive PoE, 48V Passive PoE
Power Supply

External AC/DC Adapter
Supported Input Voltage

9 - 30 V DC
Max Power Consumption

5 W
Power Connector

4-pin, 3 mm

Physical Parameters

Material

Aluminium
Ingress Protection Code

IP30
Dimensions

100 x 30 x 93.4 mm
Weight

0.241 kg
Operating Temperature

-40 °C to 75 °C
Environment

Indoor

Package Contains

External Power Supply

Included
