Asymmetrical Horn Antenna

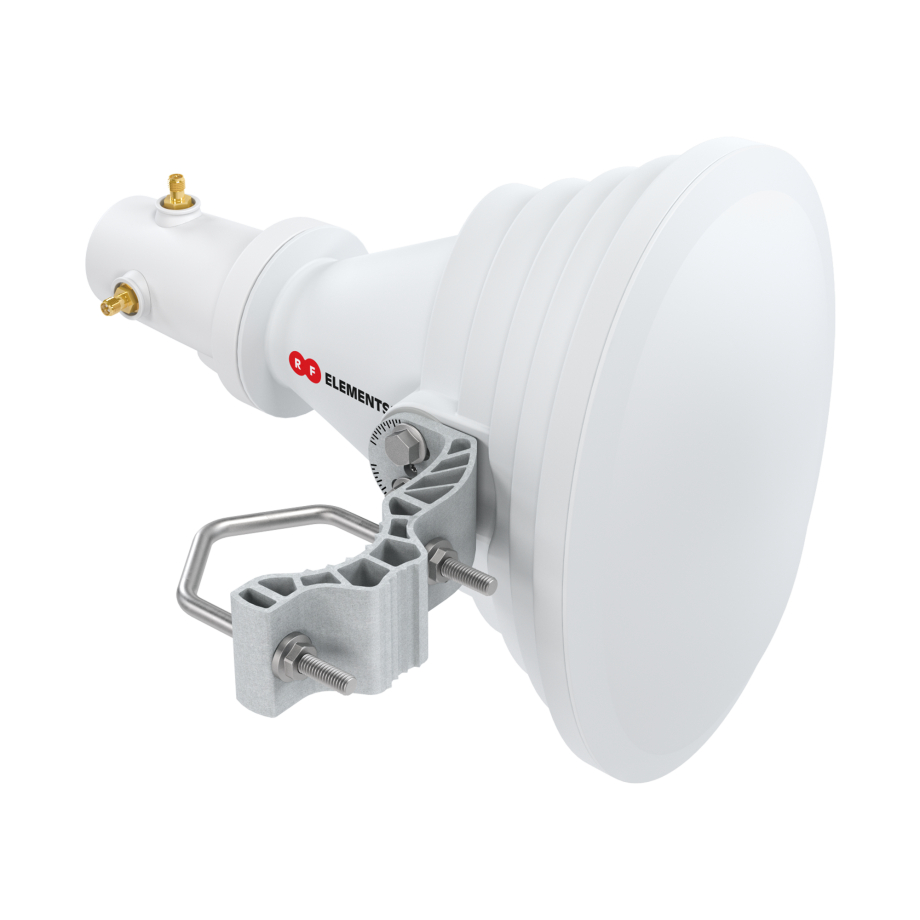

The RF elements StarterHorn™ A45° USMA is an asymmetrical horn antenna designed for wireless installations with high-density access point clusters and closely positioned radio equipment. Operating across the 5150–6400 MHz frequency range, it combines 17 dBi gain with an asymmetrical main beam and a radiation pattern without side lobes. This design provides strong noise rejection in environments where multiple radios operate in close proximity. Unlike a symmetrical radiation pattern, the antenna's main beam has different horizontal and vertical characteristics, allowing coverage to follow its asymmetrical shape. The beam width at -6 dB is approximately 45° in the azimuth plane and 30° in the elevation plane, defining a wider horizontal sector and a narrower vertical coverage area.
The absence of side lobes helps limit radiation outside the main beam, while the antenna's 90% beam efficiency indicates how effectively its radiation is concentrated within the main lobe. A front-to-back ratio of 30 dB further characterizes the difference between forward and rearward radiation. Together, these properties make the StarterHorn™ A45° USMA particularly relevant for dense co-location and high-density access point installations, where the shape of the radiation pattern and rejection of unwanted signals are important considerations. Its asymmetrical beam provides a distinct coverage pattern for installations requiring different horizontal and vertical beam widths, without introducing the side lobes associated with conventional antenna radiation patterns.
Connectivity and Mounting

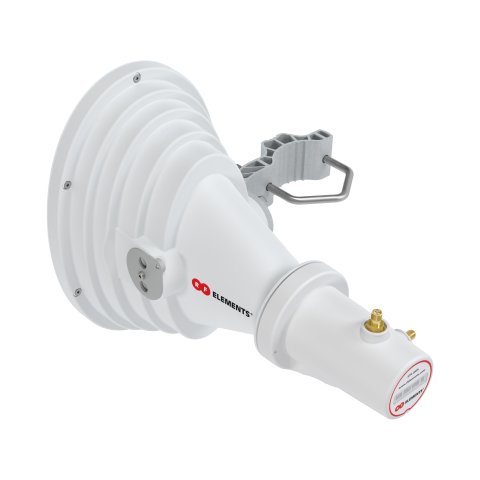

The StarterHorn™ A45° USMA combines RP-SMA Female connectors with a waveguide interface, allowing it to connect to different wireless radio platforms. The RP-SMA connections accommodate third-party radios with coaxial outputs, while the waveguide interface enables direct connection to compatible Ubiquiti equipment. Supported models include PrismStation 5AC, IsoStation 5AC, and IsoStation M5. These two connection methods make it possible to use the same horn antenna model with radios that have different antenna interfaces. For installations involving multiple types of wireless equipment, the choice between coaxial and waveguide connectivity can be made according to the radio being connected rather than requiring a different antenna design.

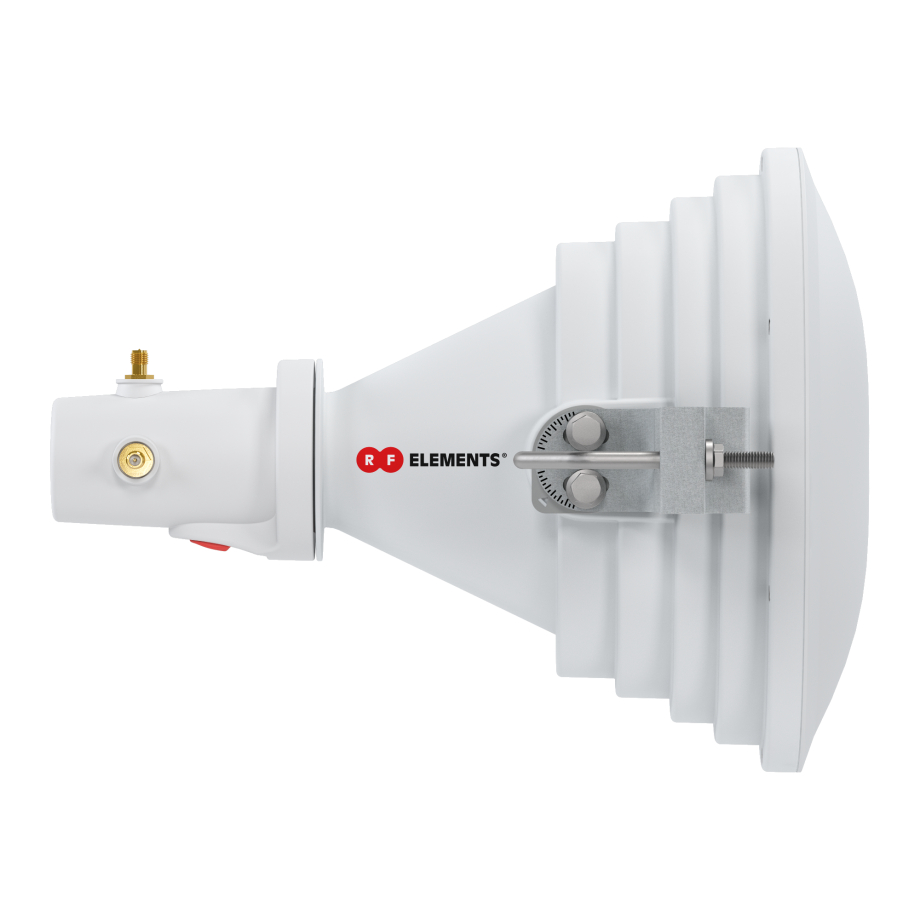

The antenna is intended for pole mounting on supports with diameters from 20 to 55 mm, with a diameter as close to 55 mm as possible recommended. Its mounting hardware permits mechanical tilt adjustment of ±30°, allowing the vertical orientation to be set during installation. The enclosure combines UV-resistant ABS plastic, polyethylene, aluminium, and stainless steel, and carries an IP55 environmental rating. With an operating temperature range of -30°C to +55°C and wind resistance up to 160 km/h, the StarterHorn™ A45° USMA is equipped for outdoor installation. These mounting and environmental characteristics complement its directional radiation pattern, allowing the antenna to be positioned according to the required coverage direction while accommodating the specified pole dimensions.
