Detailed description
GPON customer-premises equipment (CPE) that pairs high performance with extremely low power consumption.
The UFiber Loco, designated by its manufacturer part number UF-LOCO, is a compact and highly efficient optical network unit (ONU) developed by Ubiquiti and designed for high-speed broadband access via fiber optics. This device is part of Ubiquiti’s UFiber line, which is designed to bring reliable, high-speed fiber connectivity to homes and businesses, supporting a wide range of broadband applications.

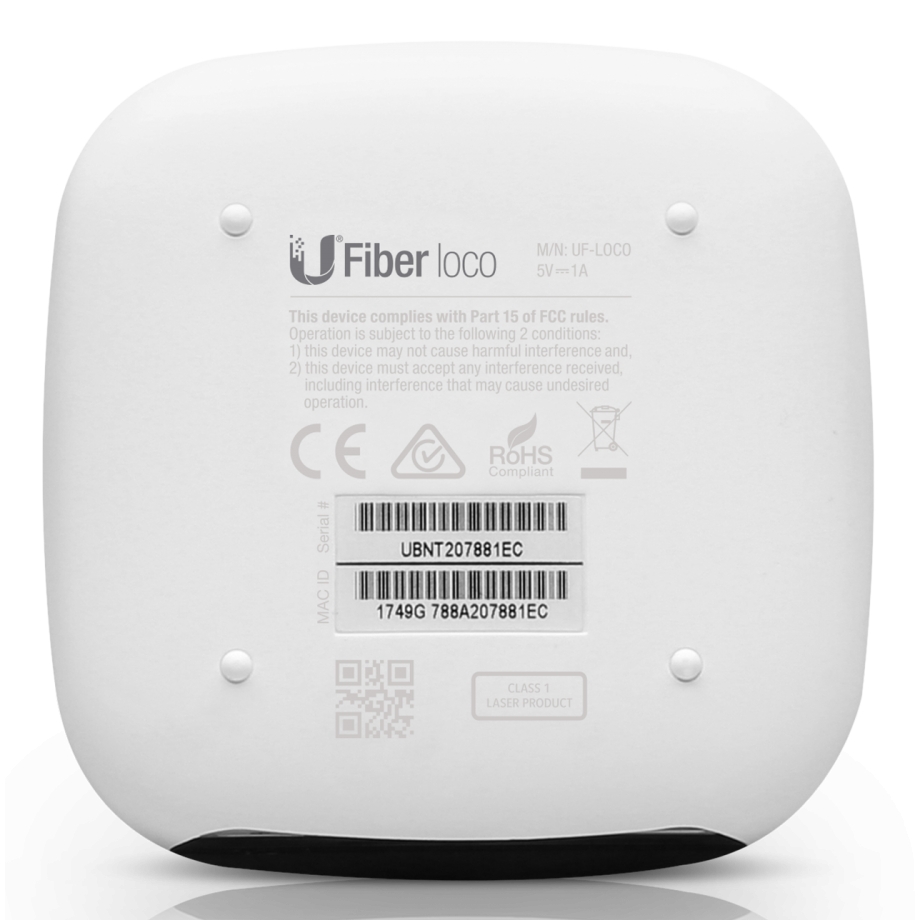

This device is designed to be used with the UFiber OLT. Third-party OLTs may not be compatible or are unable to reliably connect to the ONU.Physically, the UFiber Loco is designed with a sleek, polycarbonate casing that allows for unobtrusive placement in a home or office environment. The unit features one GPON port and one Gigabit Ethernet port. The GPON port connects to the optical network interface, while the Ethernet port provides a simple connection to a single client device or network router. This setup facilitates a straightforward integration into existing network architectures without the need for extensive rewiring or complex configuration processes.
High-Performance GPON
Sporting a sleek industrial design, the U Fiber loco is a robust, high‑performance GPON CPE that features extremely low power consumption and two power options. UFiber offers internet and telecom service providers a cost‑effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream. The UFiber loco can be powered by a Micro-USB Power Adapter or 24V passive PoE. This high capacity makes the UF-LOCO an ideal solution for applications requiring substantial data throughput such as HD video streaming, online gaming, and large file transfers.
Low-Cost Optical Network Unit

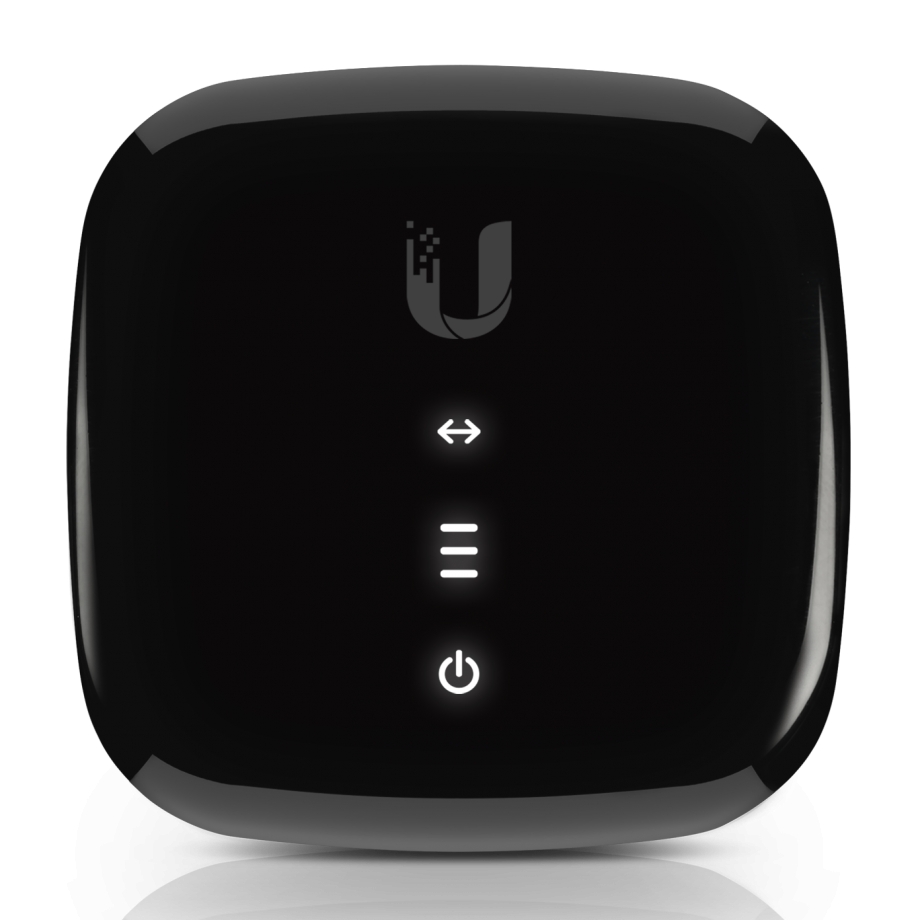

UFiber Loco is the ONU (Optical Network Unit), which is deployed at the customer's location. Ubiquiti offers a variety of GPON ONU models to suit any application. Each can be easily mounted on an indoor wall. UFiber Loco features easy-to-read LEDs to provide status information about Ethernet connection, signal strength, and power status, making it easy for users to monitor the operational status..
Designed for Integration
Up to 128 UFiber loco devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber loco integrates with the UFiber OLT, UFiber OLT 4 and third-party OLT devices. UFiber networks are intelligently managed using UNMS™ application, a comprehensive management controller. It features a graphical UI that is easy to learn and navigate. UNMS manages all the registered UFiber OLTs and their ONU clients and supports advanced functionalities such as device provisioning, account binding, and bandwidth allocation, which are critical for managing large-scale fiber networks.
Technical Specs / Datasheet
Compatible products
Specifications
Fiber Equipment
Connector Type
(1) SC/APC
Data Rate
2.5/1.25 Gbps DL/UL
Power
Power Method
AC/DC Adapter, 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
4.7 - 5.3 V DC
Max Power Consumption
3.5 W
PSU / POE adapter
5 V DC 1 A
Physical Parameters
Dimensions
76.5 x 76.5 x 26.4 mm
Weight
0.077 kg
Operating Temperature
-10 °C to 45 °C
Package Contains
Units
1 pcs
External Power Supply
Included
