Ubiquiti Fiber WiFi 6

Ubiquiti Elite Distributor
in stock
?
93.03
in stock
?
93.03

Manufacturer part number

UF-WIFI6

Warranty

?
12 months

EAN

0810010078384

Category

Ubiquiti Elite Distributor

Available product variations

Detailed description

High-performance GPON CPE with WiFi6 support

The Ubiquiti UFiber WiFi 6, with the model manufacture part number UF-WIFI6, represents a significant advancement in fiber-to-home gateway technology, combining the latest developments in Wi-Fi 6 wireless communication and Gigabit Passive Optical Network (GPON) technology. This sophisticated device is designed to meet the demands of modern residential and small business environments, providing high-speed internet connectivity along with advanced wireless network capabilities.
/images/catalogue/description/1300/importantmini-6645e55ea9e6d-40x40.jpg
This device is only compatible with the Fiber OLT. It cannot be used with third-party OLTs.
Features:
  • 2x2, high-efficiency WiFi 6
  • 2.4 GHz band (2x2 MIMO) with a 300 Mbps radio rate
  • 5 GHz band (2x2 MU-MIMO and OFDMA) with a 1.2 Gbps radio rate
  • Establishes GPON links up to 20 km
  • Powerful Layer 2/3 management features
  • Internal WiFi 6 (802.11ax) antennas
/images/catalogue/description/1300/ufwifi6-6645e8b4c79b5-1400x1318.jpg
At its core, the UFiber WiFi 6 operates as an Optical Network Unit (ONU) within a GPON setup, conforming to the ITU-T G.984 standard, delivering high-speed downstream (2.488 Gbps) and upstream (1.244 Gbps) data rates. It uses standard SC/APC connectors for fiber connectivity, ensuring reliable and high-quality optical networking. This device is equipped with Wi-Fi 6 (802.11ax) technology, the latest standard that significantly improves the efficiency, speed, and scale of wireless networking. Wi-Fi 6 provides several enhancements over its predecessors, including Orthogonal Frequency-Division Multiple Access (OFDMA), higher-order QAM (1024-QAM), and improved MIMO (Multiple Input Multiple Output) configurations. These features enable more efficient data encoding, increased throughput in dense environments, and better power efficiency. The UFiber WiFi 6 supports increased data rates, reduced latency, and the ability to handle more simultaneously connected devices. The maximum Wi-Fi transmission power is 20 dBm for both 2.4 GHz and 5 GHz, facilitating robust wireless coverage.

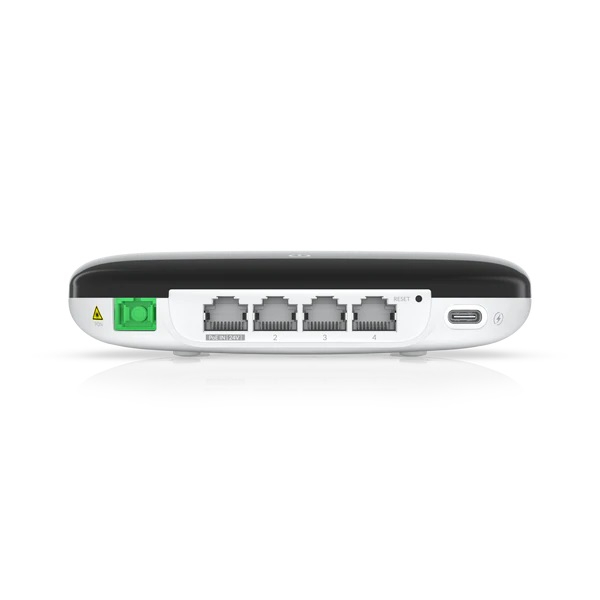

Enclosed in a UV-stabilized polycarbonate (PC110U) casing, the UFiber WiFi 6 is equipped to withstand various environmental conditions without compromising its integrity. The device features one GPON WAN port and four Gigabit Ethernet RJ45 LAN ports, providing ample connectivity options for wired devices and enabling high-speed network configurations. The UFiber WiFi 6 model is powered by a 5V DC, 3A USB-C power adapter with a 1.5m cord, included in the package. It also supports 24V passive PoE with supported voltage range from 10 to 30V DC, making it versatile in terms of installation and power options. The device's maximum power consumption is rated at 11W.
/images/catalogue/description/1300/ufiberlocofeaturesintegration5fc8dc6815f23643x344-6645e862461df-643x344.jpg
It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build a customer base. The device meets key regulatory standards, including FCC, IC, and CE, affirming its compliance with international safety and operational guidelines. The model can be managed via an Ethernet In-Band interface. Integration with the UISP Mobile App enhances the user experience, providing mobile management capabilities that allow for efficient setup, monitoring, and adjustment of network settings on-the-go.
