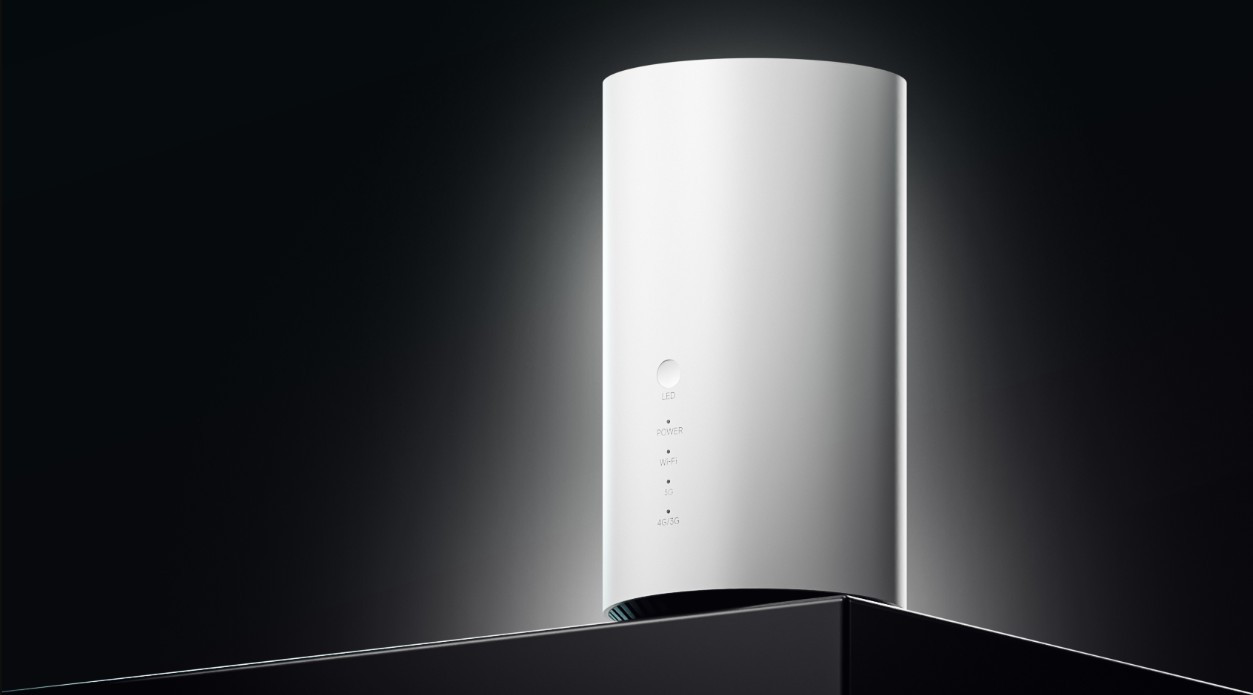

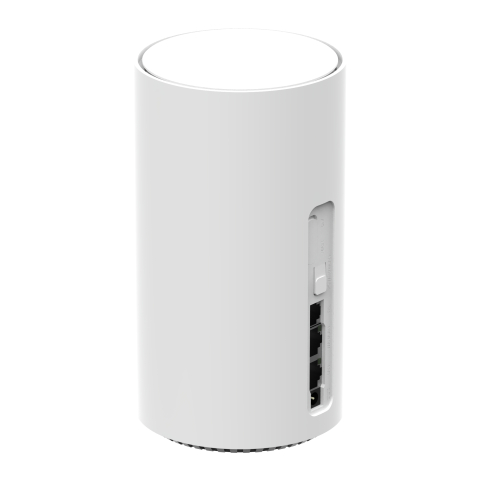

Teltonika CAP700 5G Wi-Fi 7 Router

The Teltonika CAP700 5G Wi-Fi 7 Router delivers cutting-edge connectivity with support for 5G NR networks, achieving up to 4.0 Gbps download and 900 Mbps upload speeds. It also supports 4G LTE (CAT 19) with up to 1.6 Gbps DL and 200 Mbps UL, as well as 3G networks with speeds of up to 42 Mbps DL and 5.76 Mbps UL, providing seamless mobile broadband even in areas where 5G is unavailable. Equipped with dual-band Wi-Fi 7 (802.11a/b/g/n/ac/ax/be) and 2x2 MIMO, the router functions as a high-performance access point supporting up to 128 simultaneous connections. Wi-Fi security is robust, including WPA-PSK, WPA2-PSK, WPA3-SAE, and enterprise-level authentication such as WPA-EAP, WPA2-EAP, WPA3-EAP, and OWE. Encryption protocols like CCMP and TKIP ensure data protection across all connected devices.

The router’s high-speed wireless and mobile performance make it ideal for bandwidth-intensive applications such as 4K/8K video streaming, cloud collaboration, and multi-user gaming. Multiple devices can connect simultaneously without sacrificing speed or stability, making it suitable for offices, remote work environments, smart homes, and mobile network setups. Compact and versatile, the CAP700 combines next-generation Wi-Fi 7 capabilities with 5G cellular connectivity, delivering fast, reliable, and secure internet access in a single device. This makes it a future-ready solution for businesses and individuals who demand ultra-fast and uninterrupted connectivity.

The Teltonika CAP700 5G Wi-Fi 7 Router offers advanced routing and networking capabilities for professional and enterprise environments. It supports both static and dynamic routing protocols, including BGP, OSPF v2, RIP v1/v2, EIGRP, and NHRP, as well as policy-based routing for granular traffic control. Network protocols include TCP, UDP, IPv4/IPv6, ICMP, NTP, DNS, HTTP/HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, and Wake-on-LAN. DHCP functionality includes both static and dynamic IP allocation, DHCP relay, server configuration, status monitoring, and static MAC leases with wildcards. The router also supports DDNS from over 77 providers and manual configuration for others.

VLANs can be implemented with port-based or tag-based separation, while flexible access control allows management of SSH, web interface, CLI, and Telnet connections. Security is a priority, with authentication via pre-shared keys, digital certificates, X.509 certificates, TACACS+, and internal or external RADIUS users. Login attempts can be blocked by IP, account, or time, and a built-in random password generator adds an extra layer of protection. Integrated firewall capabilities allow port forwarding, custom traffic rules, and TTL target configuration, ensuring safe and reliable operation in complex network environments. This block positions the CAP700 as a powerful network hub, capable of managing enterprise-grade traffic, advanced routing, and secure connectivity for offices, remote sites, and IoT deployments.

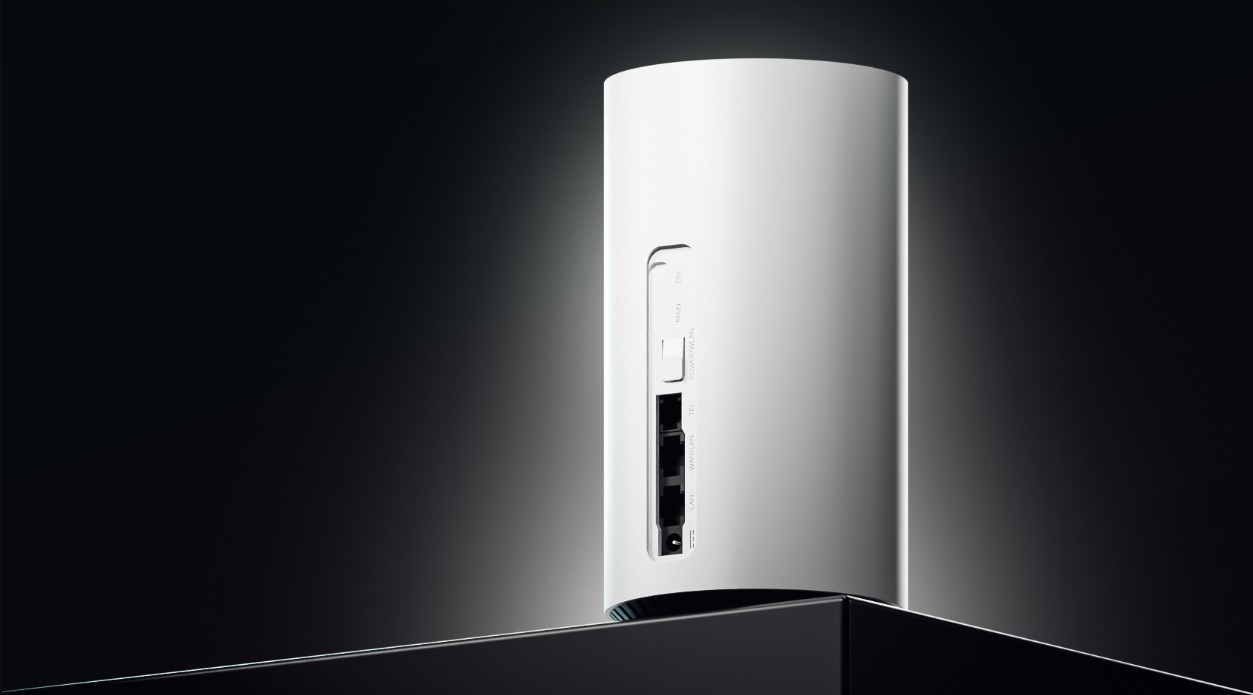

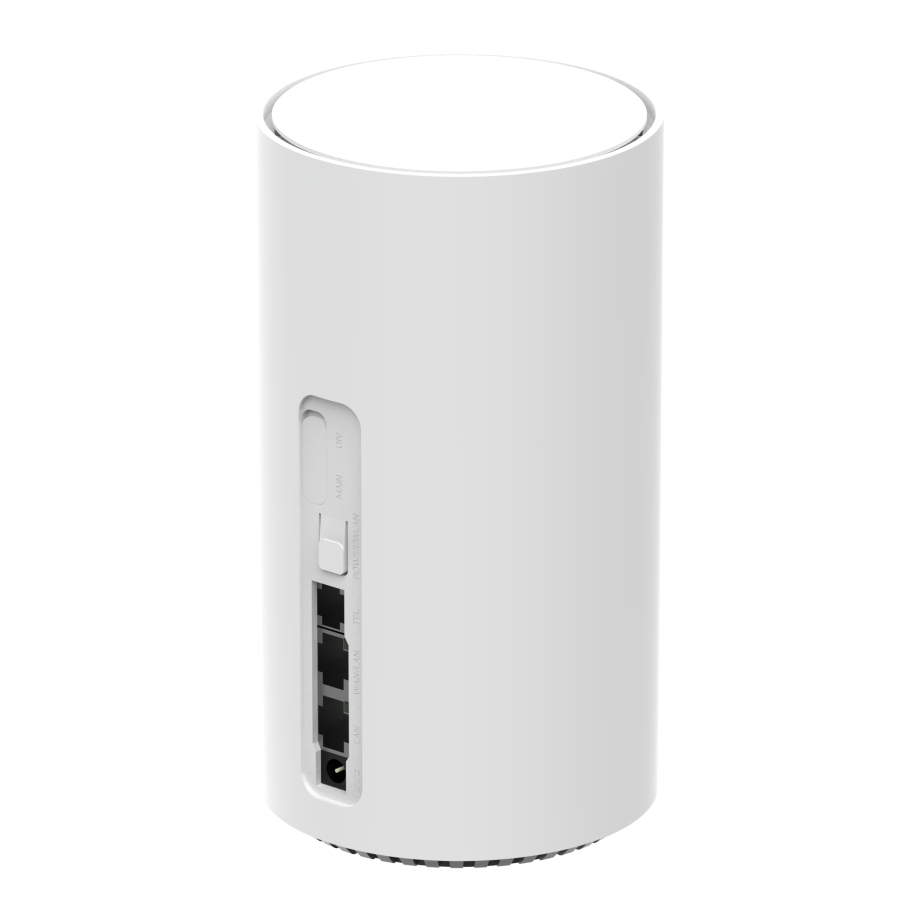

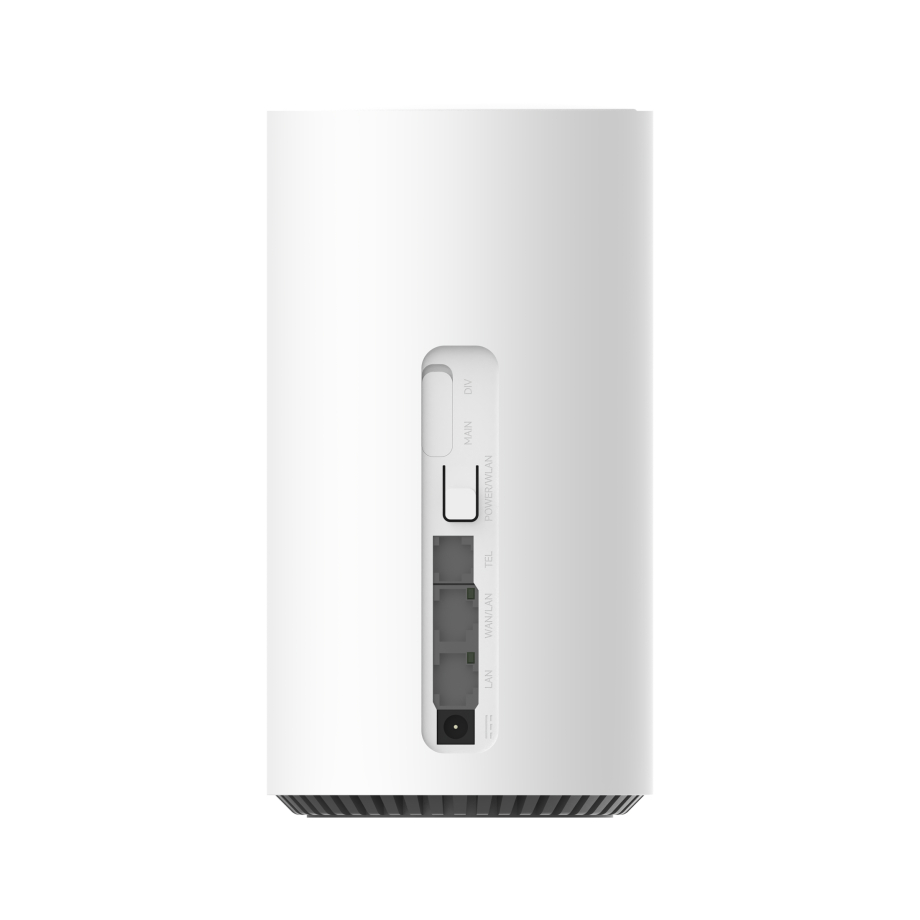

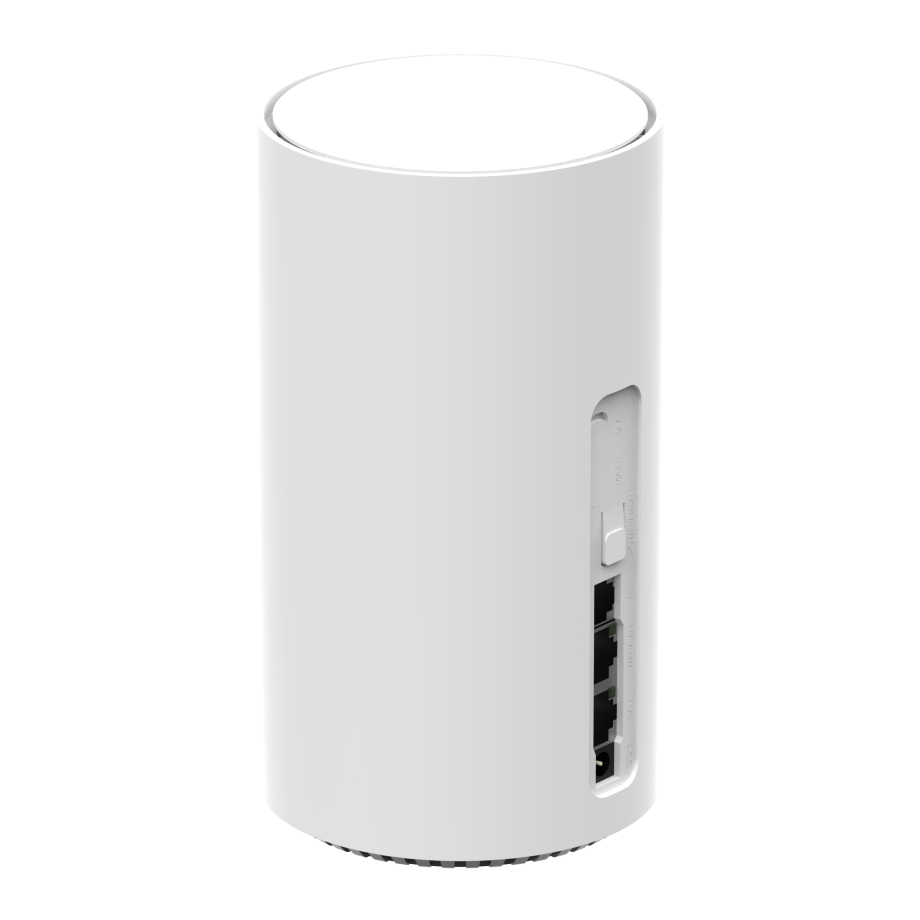

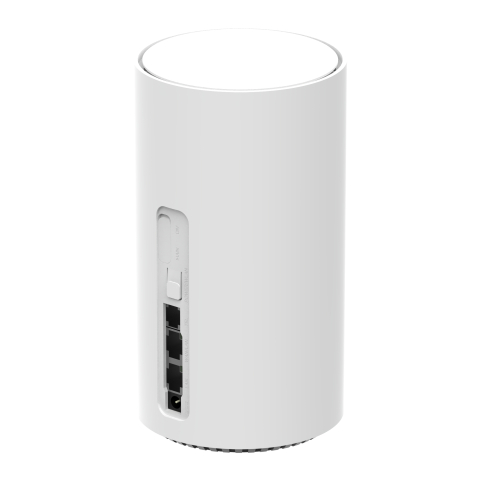

The Teltonika CAP700 5G Wi-Fi 7 Router is engineered for versatile deployment and reliable performance in home, office, and industrial environments. Power is supplied via a standard 12 VDC barrel connector, with power consumption ranging from less than 8 W in idle mode to a maximum of 24 W under peak load, ensuring both energy efficiency and dependable operation even during heavy usage. At its core, the router features a Qualcomm CPU paired with 1 GB of LPDDR4 RAM and 8 GB of eMMC storage, providing smooth performance for simultaneous applications, multiple connected devices, and high-bandwidth services. Wired connectivity includes one RJ45 port supporting 10/100/1000 Mbps and a second RJ45 port supporting 10/100/1000/2500 Mbps, providing versatile options for LAN and high-speed wired connections. Additionally, an RJ11 port allows telephone connectivity, and a micro USB port can be used as a virtual network interface for specialized use cases.

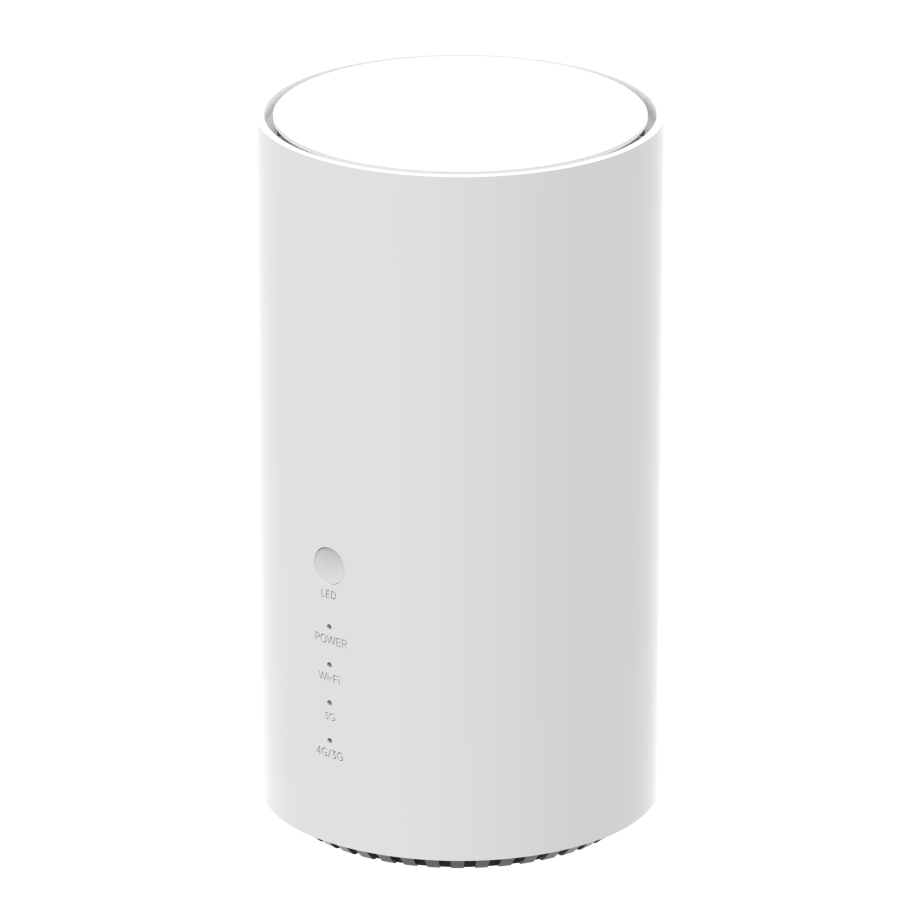

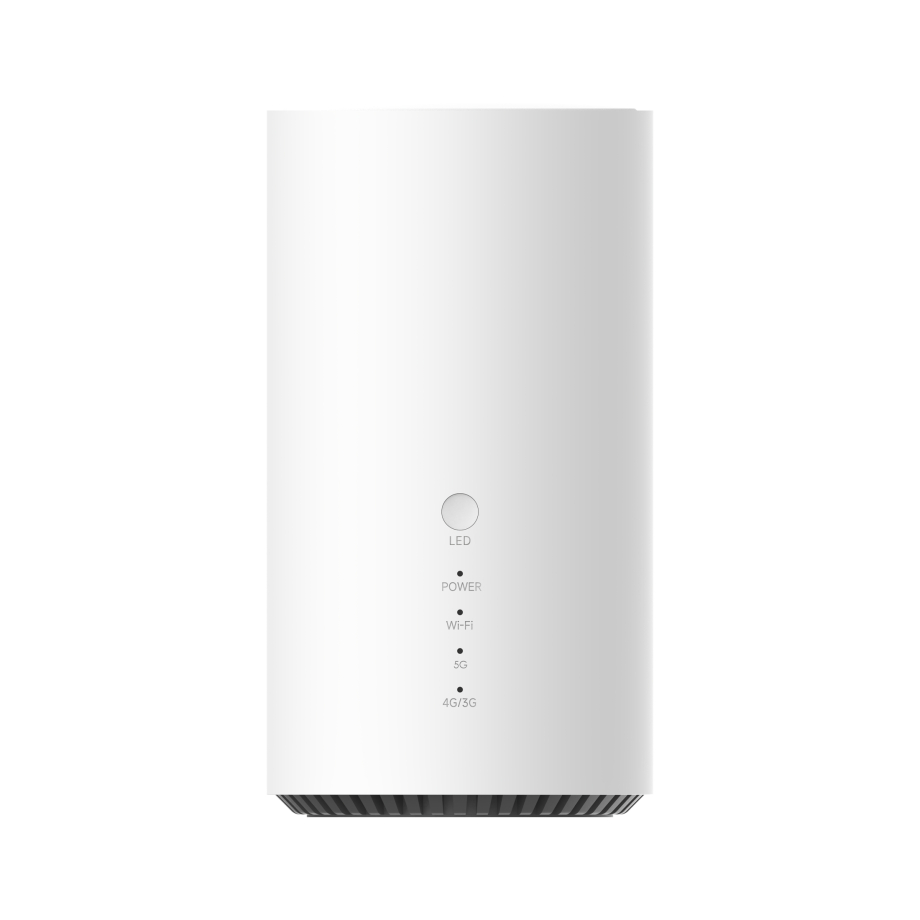

The CAP700 utilizes six internal mobile antennas and two Wi-Fi antennas, ensuring strong signal coverage and reliable connectivity in both urban and remote locations. A single Nano SIM (4FF) slot supports 5G/4G/3G mobile networks, providing a mobile broadband backup or primary connection for locations without fixed-line internet. Status LEDs display real-time information on power, Wi-Fi activity, mobile connection type, and LAN status, simplifying monitoring and troubleshooting. The compact, durable plastic casing allows for flat surface placement while protecting internal components. With an IP30 ingress protection rating, the router is shielded from dust and minor debris, making it suitable for indoor installation. Additionally, the CAP700 complies with multiple international regulatory standards, including CE, UKCA, EAC, UCRF, RCM, CB, and WEEE, ensuring full legal and safety compliance across multiple regions.
