MikroTik ATL 5G R16

MikroTik MTCNA Certificate
MikroTik Value Added Distributor
out of stock
?
254.30
out of stock
?
254.30

Manufacturer part number

ATLGM&RG520F-EU

Warranty

?
12 months

Category

Detailed description

Reliable 5G Connectivity

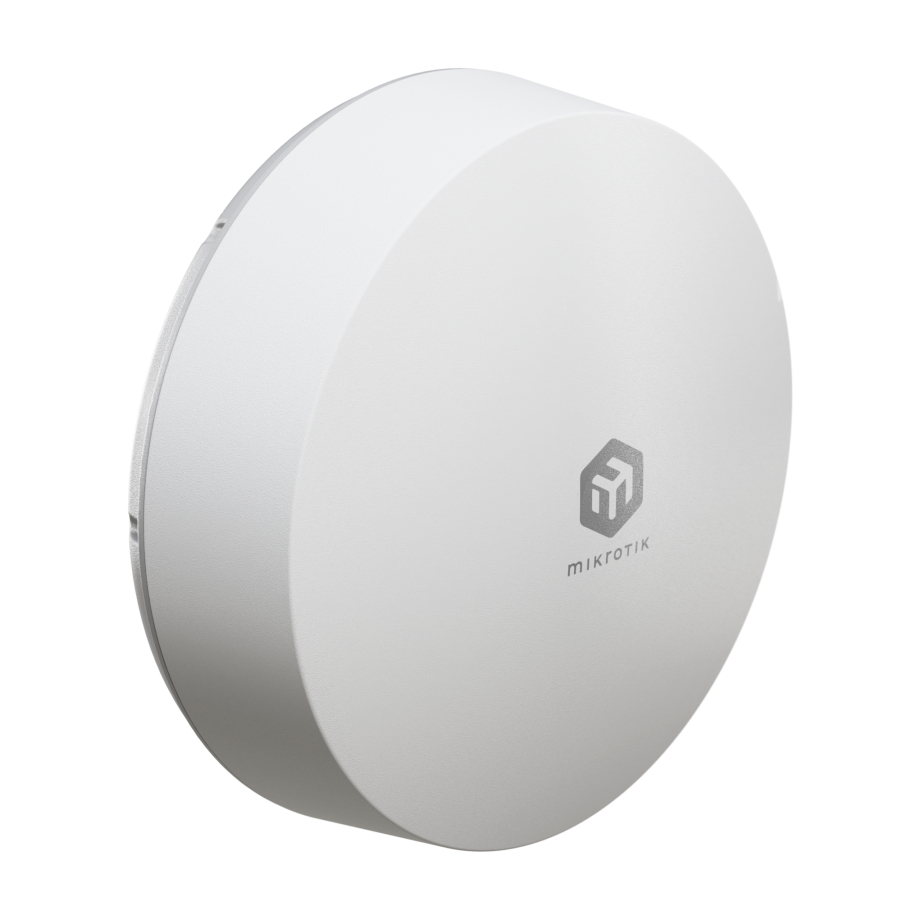

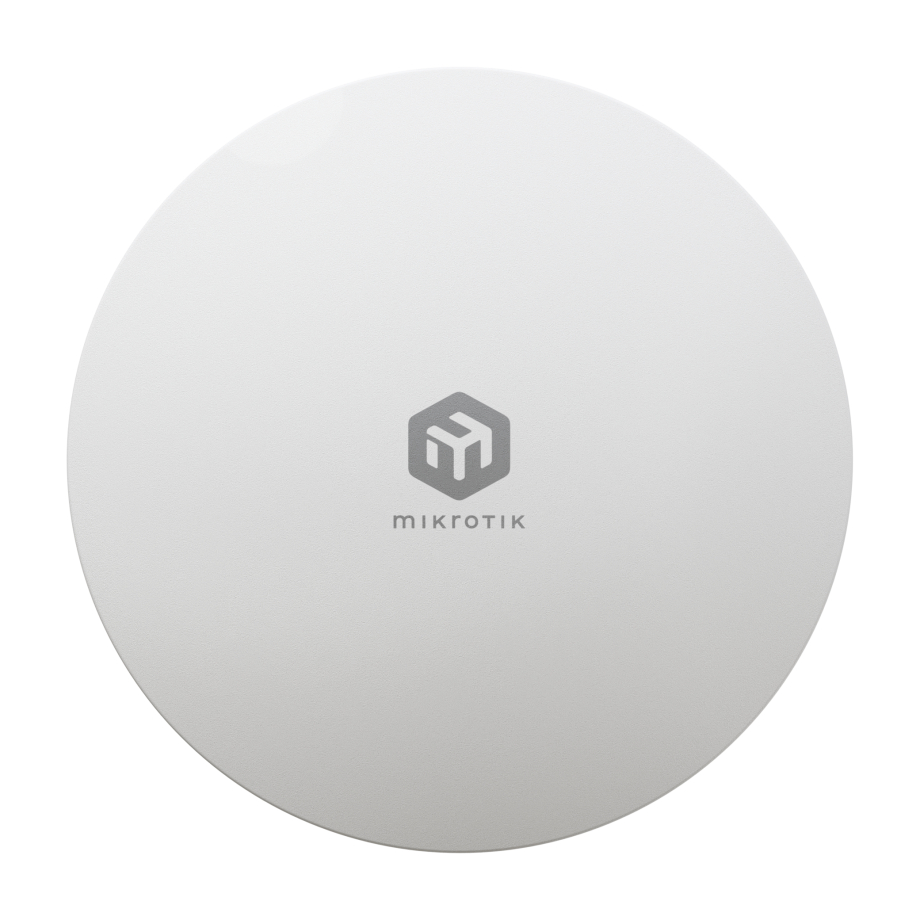

The MikroTik ATL 5G R16 (ATLGM&RG520F-EU) is a powerful outdoor LTE/5G modem designed for fast, stable, and secure wireless internet connectivity in remote and urban environments. It features a built-in Qualcomm SDX55 5G modem (model RG520F-EU) supporting 5G NR, LTE FDD, LTE TDD, and 3G technologies, offering a wide range of band support for flexible deployment across Europe and beyond. With support for Sub-6GHz 5G and LTE Cat 20, it delivers ultra-fast speeds and low latency, making it ideal for streaming, remote work, industrial monitoring, or serving as the backbone of rural internet access. The ATL 5G R16 includes a Gigabit Ethernet port, passive PoE-in support (12–57 V), and a durable outdoor-rated enclosure with IP-rated protection, ensuring consistent performance in harsh weather conditions.

Advanced Antenna Design

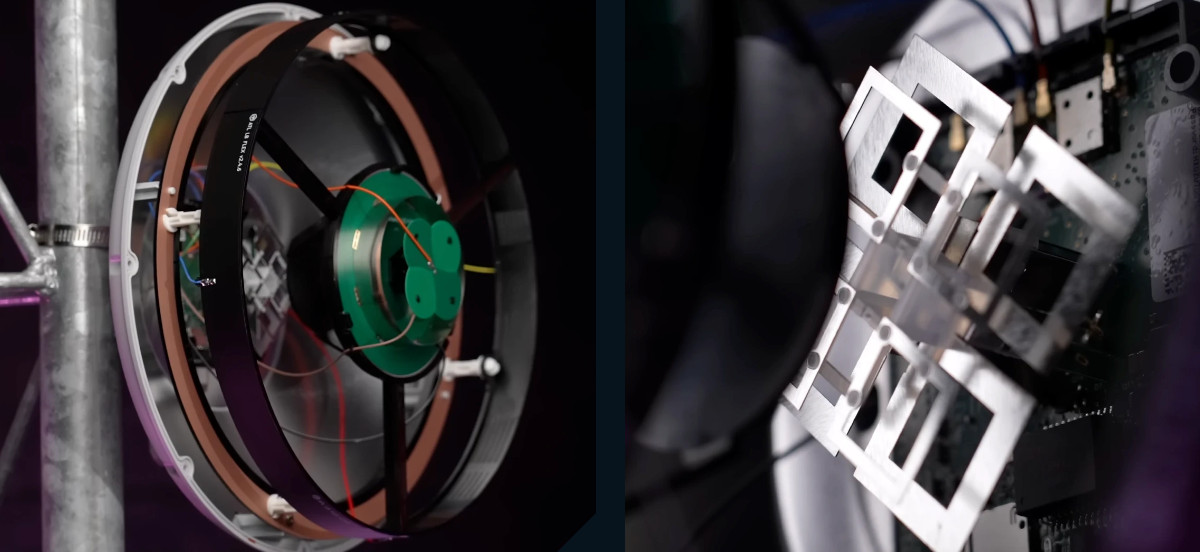

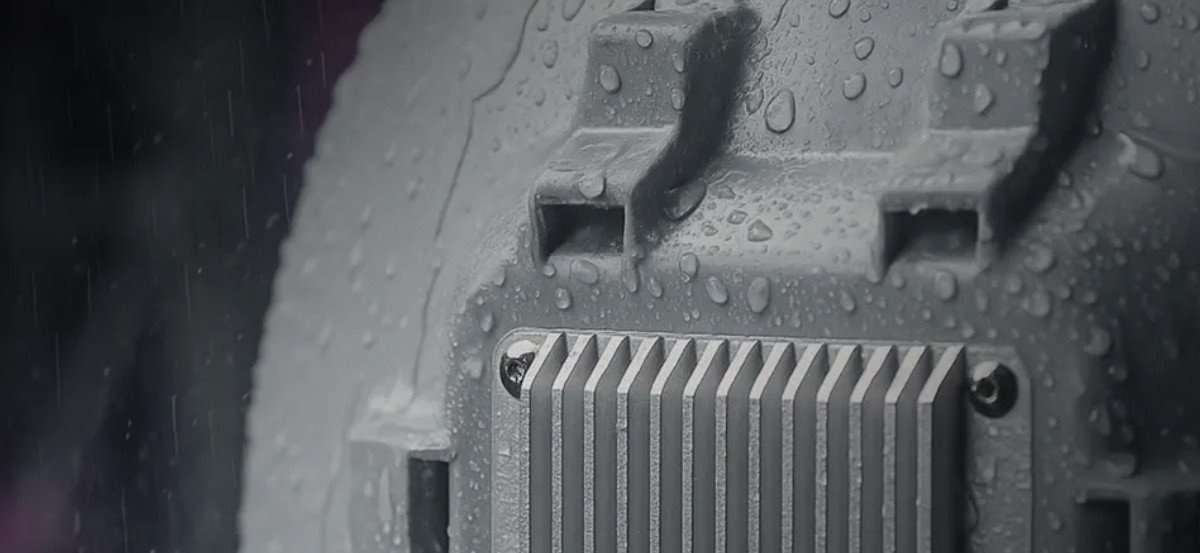

Equipped with an integrated 4x4 MIMO directional antenna, the ATL 5G R16 offers significantly enhanced signal acquisition and throughput. This high-gain antenna design ensures excellent performance even in areas with weak signal coverage, making it ideal for long-distance cellular connectivity. The device supports dual SIM slots for failover or multi-operator configurations, maximizing uptime and reliability. The advanced antenna array provides optimized spatial stream separation, improving download / upload speeds and enhancing link stability. Its directional panel construction minimizes interference from surrounding sources and boosts signal targeting precision. The ATL 5G R16 is particularly suited for use in rural or off-grid locations, where signal optimization is critical. The rugged design includes integrated grounding and surge protection, ensuring a long-lasting and stable installation in challenging outdoor environments.

Scalable and Secure

Built on MikroTik’s robust RouterOS v7 platform, the ATL 5G R16 offers a full suite of networking features, including firewall, NAT, VPN, DHCP, routing, and wireless management tools. Its powerful system resources including 256 MB RAM and 16 MB NOR flash ensure smooth performance for both basic and advanced configurations. The Gigabit Ethernet port provides seamless integration into existing wired infrastructure, while the PoE support simplifies remote installations. Security is prioritized with customizable firewall rules, access control, and VPN support for secure remote access. Whether used as a primary internet gateway or as a backup WAN connection, the ATL 5G R16 is an excellent solution for ISPs, enterprises, farms, or remote installations requiring reliable high-speed wireless access. With global certifications and future-proof 5G technology, it's designed for scalable and secure deployments.

Specifications

Mobile Network

Mobile Network Generation

LTE Category

Cat20 - 2.0Gbps/300Mbps
FDD LTE Frequency Bands

1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz), 32 (1400MHz)
TDD LTE Frequency Bands

38 (2600MHz), 40 (2300MHz), 41 (2500MHz), 42 (3500MHz), 43 (3700MHz)
5G Category

SA - 4.2 Gbps / 900 Mbps, NSA - 5.0 Gbps / 650 Mbps
NR SA Frequency Bands

n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78
NR NSA Frequency Bands

n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78
SIM Card Slot

Micro-SIM, eSIM

Interfaces

RJ45 Ports

PCI Express

(1) M.2 PCIe Slot

System Specification

Chipset

Dual-Core 88F3720 800 MHz
RAM

512 MB
Storage Memory

32 MB

Power

Power Method

AC/DC Adapter, 802.3af PoE, 802.3at PoE+
Power Supply

External AC/DC Adapter
Supported Input Voltage

12 - 56 V DC
Max Power Consumption

10 W
Power Connector

DC Plug 2.1 x 5.5 mm
PSU / POE adapter

24 V DC 0.8 A

Physical Parameters

Ingress Protection Code

IP66
Dimensions

311 x 311 x 179 mm
Operating Temperature

-40 °C to 70 °C
Environment

Outdoor
Mounting Method

Pole Mount

Package Contains

External Power Supply

Included

Software

MikroTik

RouterOS Level 3
