Teltonika RUTC50 5G & Wi-Fi 6 Router

The Teltonika RUTC50 is an industrial-grade cellular router designed for high-speed, reliable connectivity in demanding applications. It delivers lightning-fast multi-network wireless performance with 5G Sub-6GHz support under both SA and NSA architectures, offering download speeds up to 3.4 Gbps (4×4 MIMO) and upload speeds up to 900 Mbps (2×2). It is fully backward-compatible with 4G LTE (Cat 20) delivering up to 2.0 Gbps downlink and 210 Mbps uplink, as well as 3G connectivity for broader network coverage. Dual SIM slots ensure automatic failover in scenarios such as weak signal or data limit reach. Additional mobile features include USSD messaging, multiple PDN support, auto APN, bridging/passthrough, and framed routing capabilities. On the wireless side, it offers dual-band Wi-Fi 6 (802.11ax) with MU-MIMO delivering up to 2,402 Mbps on 5 GHz and 576 Mbps on 2.4 GHz. Whether it’s high-throughput edge applications or demanding IoT deployments, this is connectivity at industrial-grade speed.

The RUTC50 is equipped with a 1.3 GHz dual-core ARM Cortex‑A53 processor, 512 MB of DDR3 RAM, and a combined storage of 16 MB serial NOR flash and 512 MB serial NAND flash. It runs on RutOS, an OpenWrt-based operating system, offering full control via Web UI, firmware management via FOTA, configuration profiles, and RMS-based mass updates without losing settings. Robust networking includes a full suite of mobile and network protocols (TCP/UDP, IPv4/IPv6, HTTP/S, FTP/S, SMTP, MQTT, SNMP, Modbus TCP, plus routing and tunneling such as OpenVPN, IPsec, GRE, PPTP, L2TP, ZeroTier, WireGuard, Stunnel, Tailscale). Security and control are enhanced through VLAN support, Web filtering, access control, SMS/Email event triggers, and I/O juggler event automation. The RUTC50 is designed to reliably handle demanding industrial environments, providing the processing power and network capabilities needed for complex edge computing, data routing, and real-time management tasks.

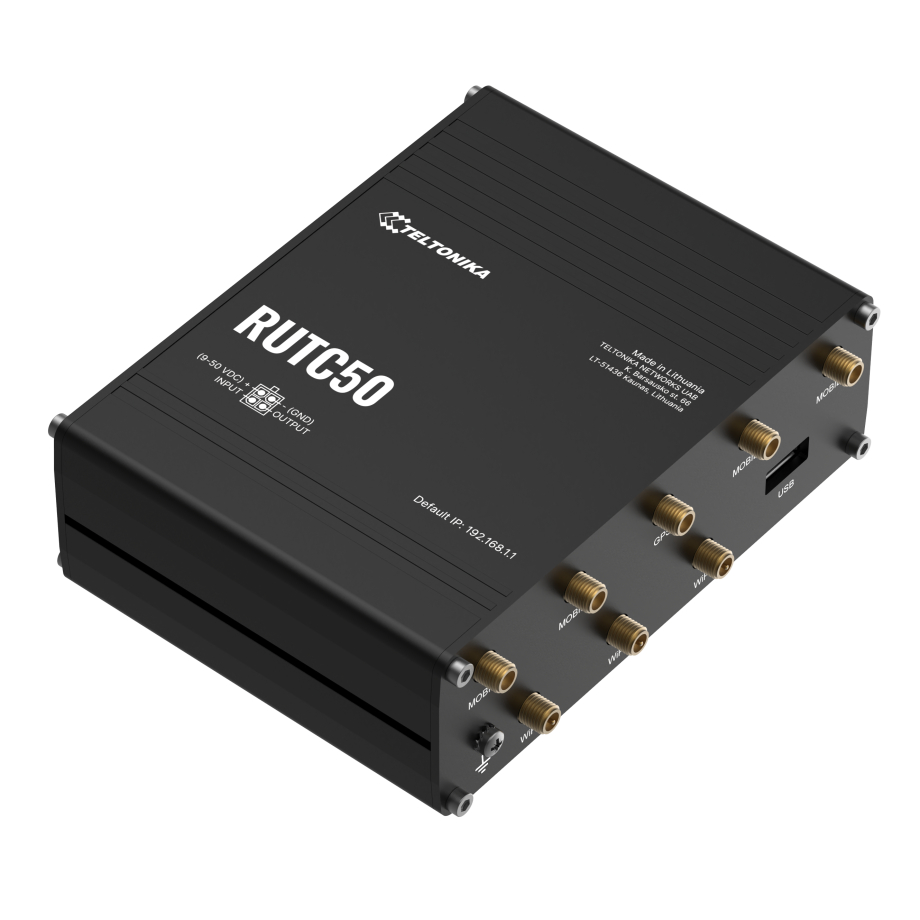

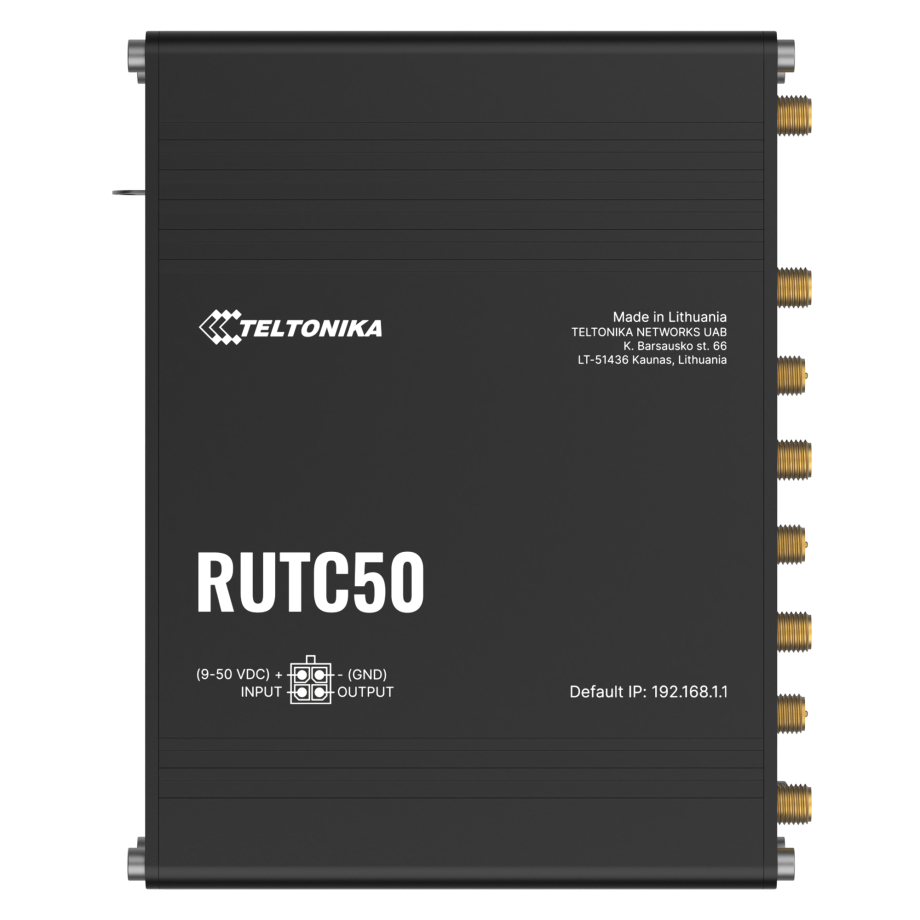

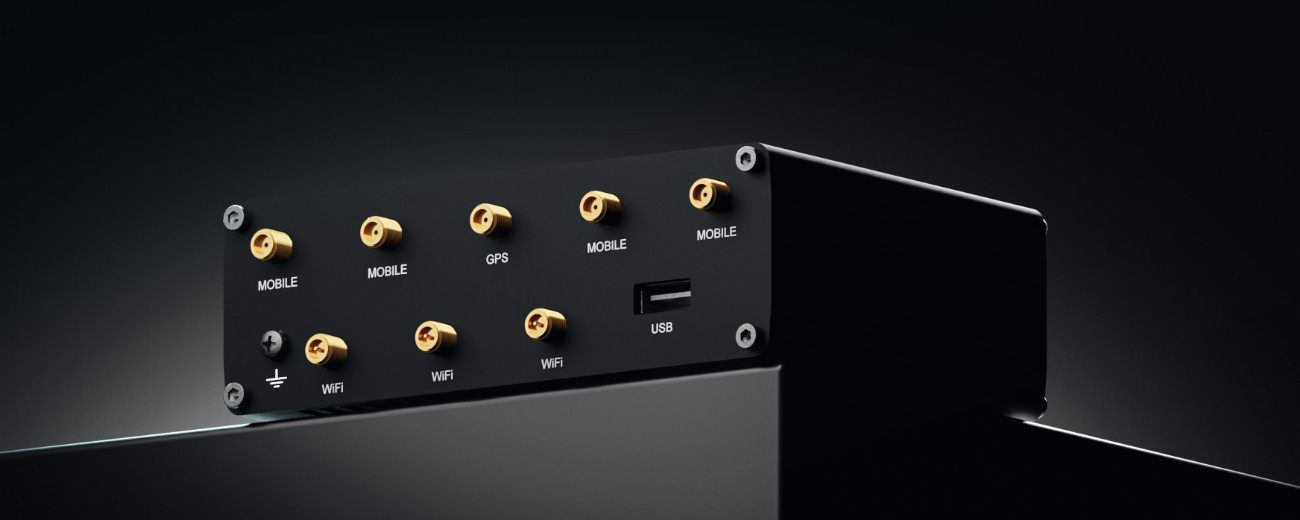

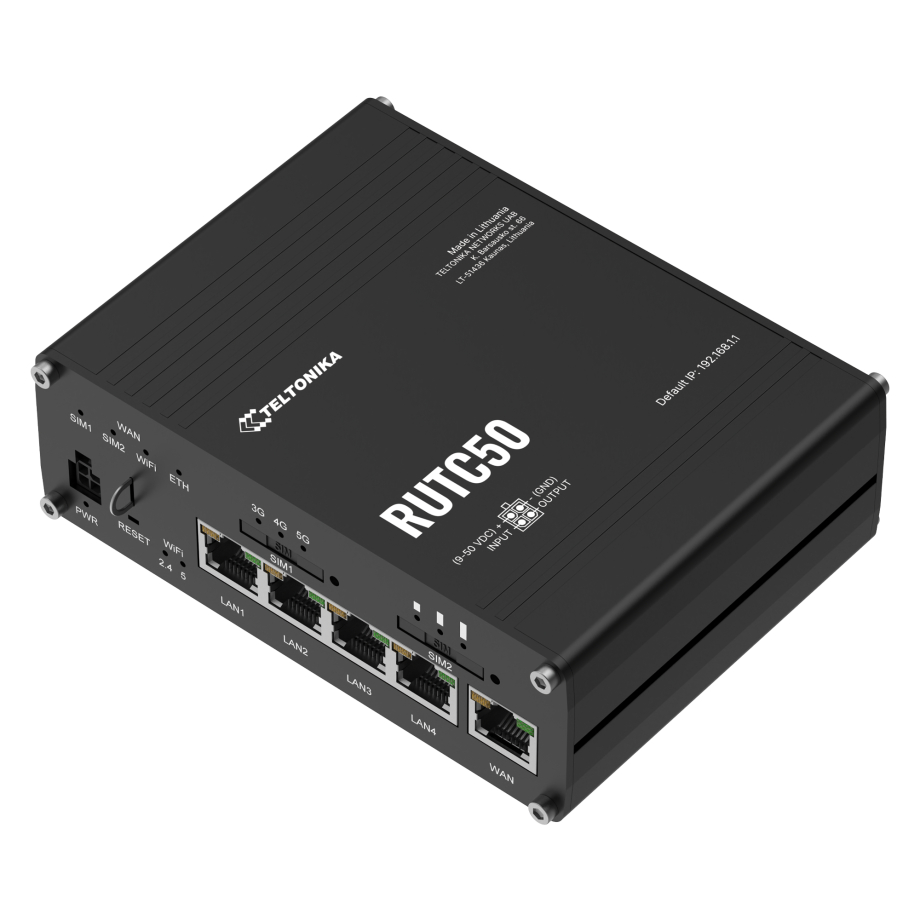

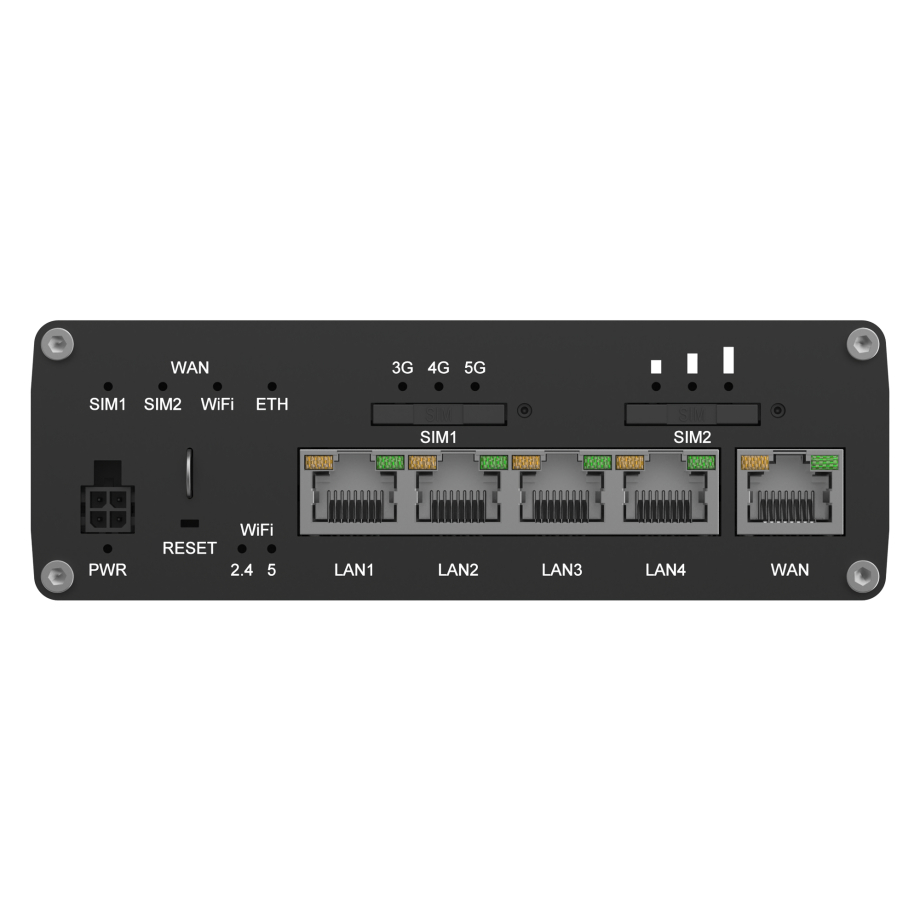

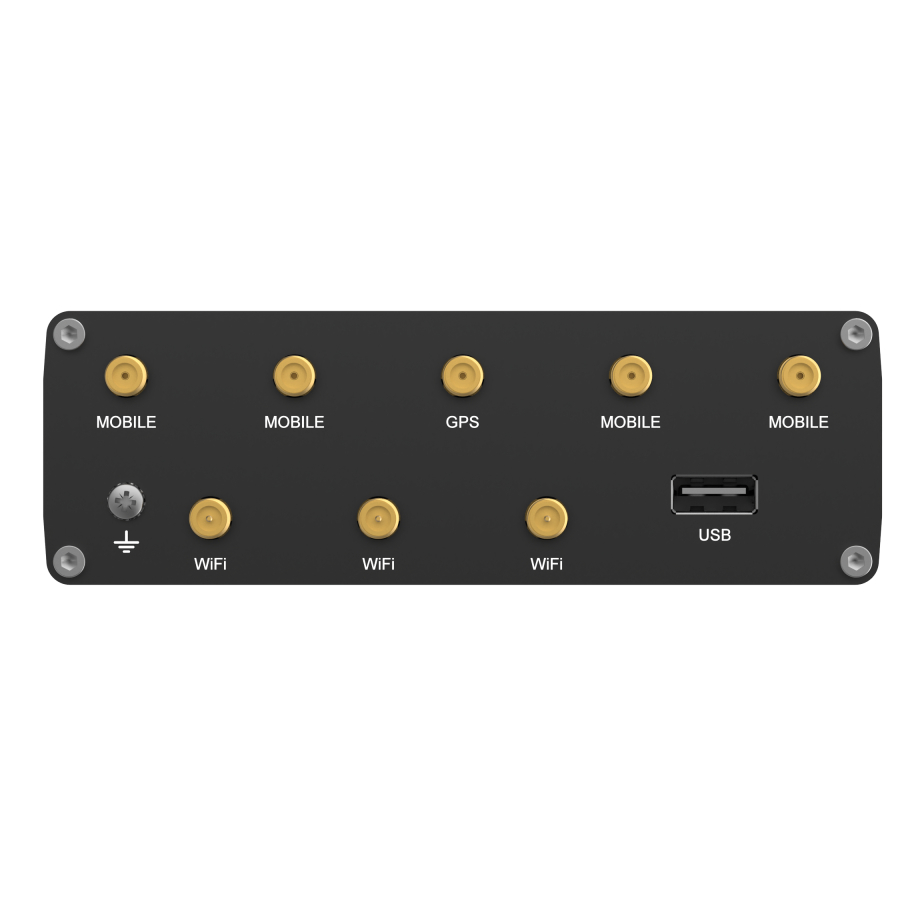

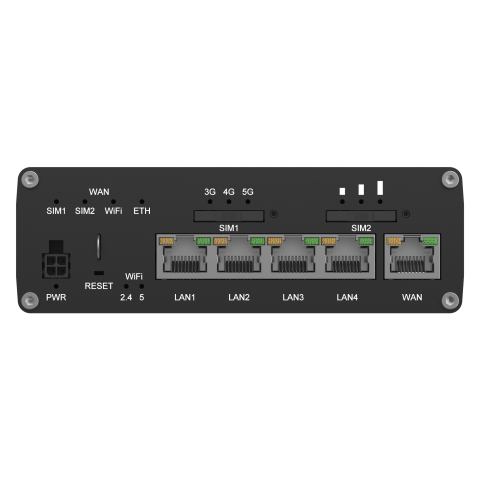

Built for harsh environments, the RUTC50 features anodized aluminum housing with compact dimensions. It supports versatile mounting options including DIN-rail, wall, or flat surface installation. The power input supports 9–50 V DC via a 4-pin industrial connector, with reverse-polarity and surge protection, and even passive PoE (over LAN1, Mode B). Its rugged operation range spans temperatures from –40 °C to 75 °C and humidity from 10–90 % non-condensing, with an IP30 ingress protection rating. Physically, it provides five Gigabit RJ45 Ethernet ports (1 WAN + 4 LAN), a USB-A 2.0 port, SIM slots, reset button, grounding screw, and multiple LEDs for power, WAN, mobile status, and Wi-Fi. The router features four SMA connectors for mobile antennas, three RP-SMA connectors for Wi-Fi antennas, and one SMA connector for a GNSS antenna. Its resilience and feature-rich design make it perfect for demanding industrial and field applications.
