Mimosa FlexiMount XL Heavy-Duty Mounting Bracket for Backhaul, Access Point & Radio Installations

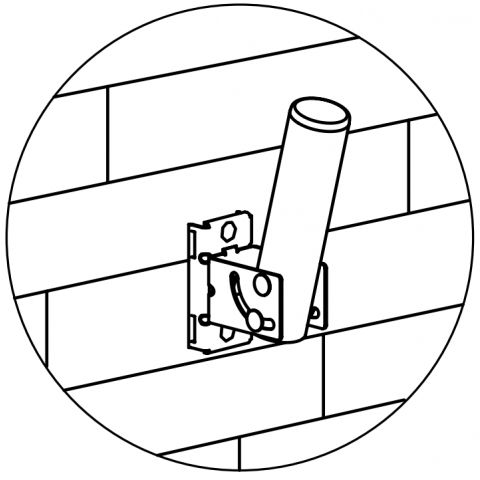

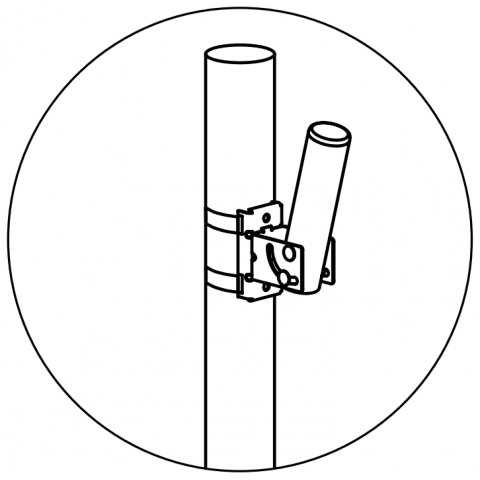

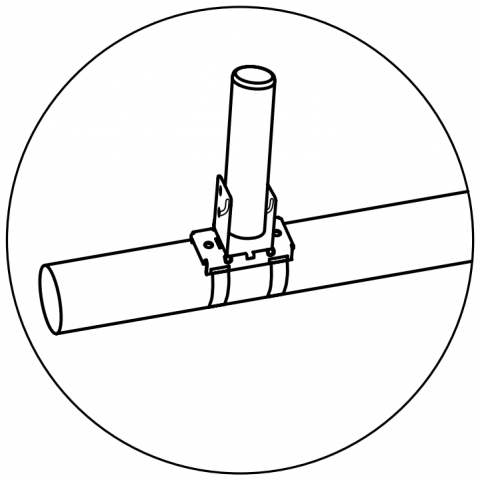

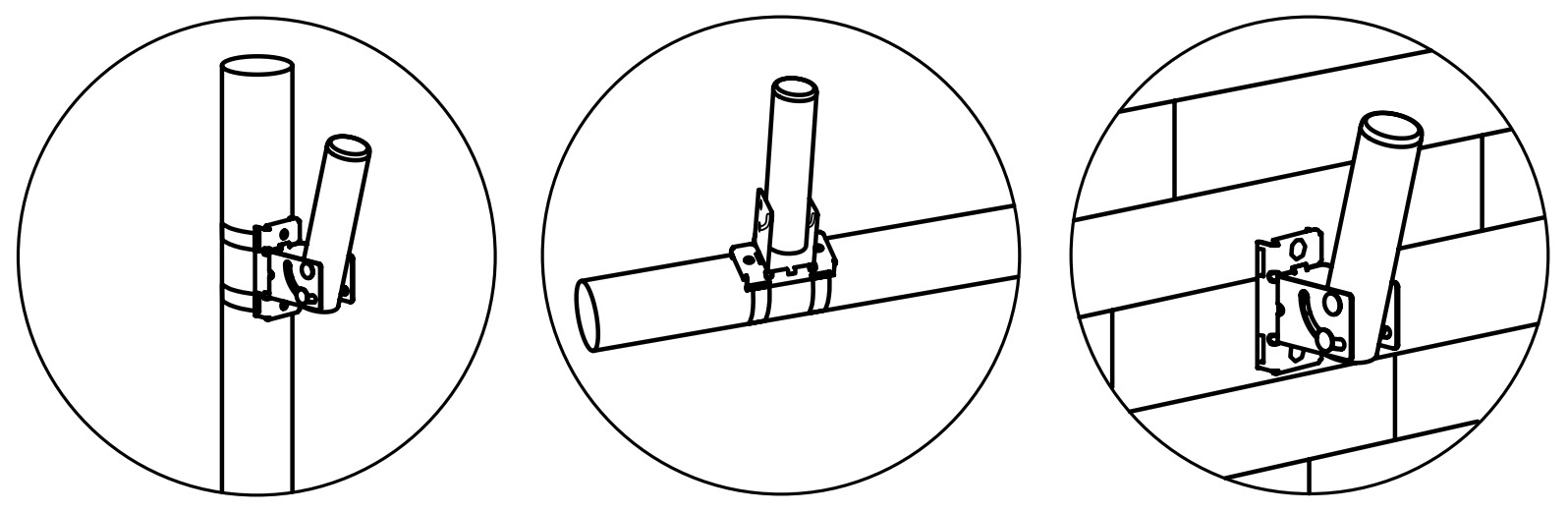

The Mimosa FlexiMount XL is a mounting accessory for attaching radios to vertical, horizontal, and angled poles as well as flat surfaces. Its 180° articulation range allows the mounted radio to be repositioned across a wide adjustment arc, while the mounting base can be rotated to change the direction of articulation when working with angled or horizontal poles. For vertical pole installations, dedicated pipe-clamp slots provide the attachment points. On flat, sloped, or horizontal surfaces, two screw holes in the base enable direct surface mounting. This also makes the bracket suitable for wall installations where keeping the radio close to the mounting surface is important. Compared with the standard FlexiMount, the XL version uses a stronger, more heavy-duty design together with a longer mounting pole and base.

The FlexiMount XL comes pre-assembled, so the bracket itself is ready for installation before the radio is attached. Pole mounting requires two pipe clamps, while surface installation uses mounting screws; mounting screws and pipe or hose clamps are not included. The 190 mm mounting pole has a 38 mm outside diameter, and the base measures 45 × 127 mm, giving installers the key physical dimensions needed when planning placement and clearance. Mimosa recommends the FlexiMount XL specifically for the C5x combined with the N5-X25 antenna.
