Dual Antenna Magnetic Base ARS-AS02T – Magnetic Mount for Two Antennas

ARS-AS02T is a magnetic antenna stand for indoor use with WiFi equipment that uses two antennas. It allows both antennas to be positioned away from the connected device while keeping them together on a single base. Two RP-SMA Female connectors on the magnetic base provide the attachment points for the antennas, while the integrated magnet secures the stand to a suitable mounting surface. This layout makes the product particularly straightforward to understand when checking installation requirements: the stand is intended for two-antenna WiFi equipment, uses a magnetic mounting method, and keeps both antenna connections on the same remote base.

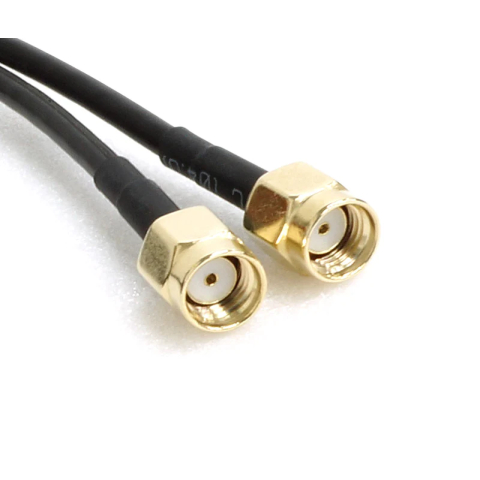

The stand connects back to the WiFi equipment through two integrated RG-174 RF cables, each 2 m long. Both cables terminate in RP-SMA Male connectors, creating a direct connector arrangement from the two RP-SMA Female antenna ports on the base to the connected equipment. The assembly operates across a frequency range of 0–8 GHz with an impedance of 50 Ohm. By combining a magnetic base, two antenna connection points, and two matching RF cables in one assembly, the ARS-AS02T provides a complete arrangement for positioning two compatible antennas at a distance from the associated WiFi device while maintaining the specified RP-SMA connection layout.
