Ubiquiti UniFi U6 In-Wall

Ubiquiti Elite Distributor
In stock
?
172.44
In stock
?
172.44

Brand

Ubiquiti

Manufacturer part number

U6-IW

Warranty
?

12 months

EAN

0810010077493
Ubiquiti Elite Distributor

Detailed description

In-Wall Wi-Fi 6 Access Point

The Ubiquiti U6 In-Wall Access Point is at the forefront of networking technology, designed to seamlessly integrate into your environment while providing exceptional performance. This device supports the latest Wi-Fi 6 standard, operating across both 2.4GHz and 5GHz bands to deliver an impressive aggregate throughput rate of up to 5.3 Gbps. Wi-Fi 6, also known as 802.11ax, introduces significant advancements over previous Wi-Fi generations, including higher data rates, increased capacity, improved performance in dense environments, and better power efficiency. The U6 In-Wall is ideal for modern office spaces, residential buildings, and public areas that require reliable and high-speed internet access. By leveraging the benefits of Wi-Fi 6, this access point can handle multiple high-bandwidth applications simultaneously, such as video conferencing, online gaming, and streaming high-definition content, ensuring a seamless and efficient network experience. The U6 In-Wall can manage over 300 connected devices and provides coverage of up to 115 m², making it a robust solution for environments with high user density and extensive coverage needs.

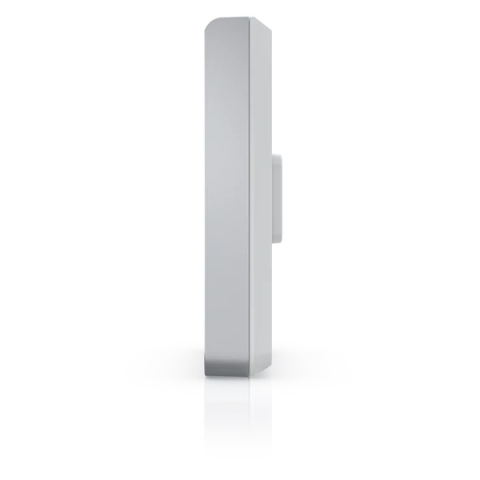

Sophisticated Design with Integrated PoE Switch

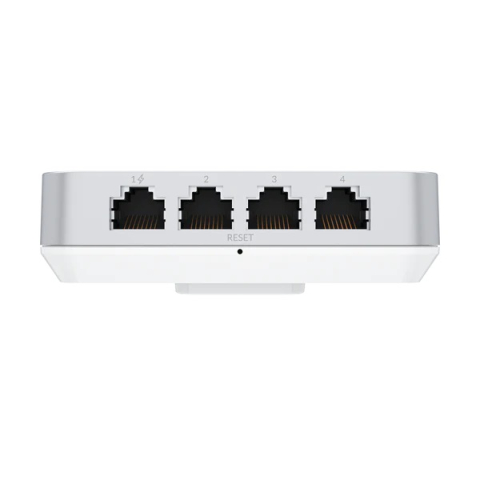

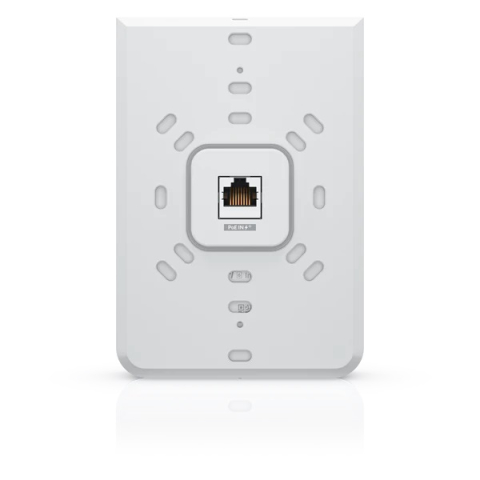

The U6 In-Wall combines a sophisticated, unobtrusive design with powerful networking capabilities. Its sleek wall-mounted form factor ensures it blends seamlessly into any environment without sacrificing functionality. One of the standout features of this device is its integrated PoE (Power over Ethernet) switch, which simplifies installation by eliminating the need for additional power cables and outlets. The U6 In-Wall includes one GbE RJ45 PoE-in port and four GbE RJ45 ports, offering versatile connectivity options for various network devices. The PoE-in port powers the device, while the PoE-out functionality (when powered with PoE+) allows the access point to power other PoE-enabled devices, such as IP cameras, VoIP phones, and other network infrastructure components. This integrated PoE switch reduces cable clutter and installation costs, making it an ideal solution for environments where clean, efficient setups are crucial, such as modern offices and smart homes.

Management with UniFi Network Application

Managing a network of U6 In-Wall access points is streamlined through the UniFi Network application, a powerful tool that offers centralized control and comprehensive network management. This application, compatible with version 6.4.52 and later, provides an intuitive interface that simplifies tasks such as remote firmware upgrades, user and guest management, and real-time network monitoring. For IT administrators and network managers, the UniFi Network application is indispensable, as it allows for efficient management of large-scale deployments, reducing the need for on-site technical support. The centralized management capability means that adjustments and optimizations can be made from a single platform, ensuring the network remains secure, efficient, and up-to-date. This is particularly beneficial in environments like corporate campuses, educational institutions, and hospitality settings, where maintaining consistent and high-performing network service is critical.

Dual-Band Wi-Fi 6 Connectivity

The U6 In-Wall access point’s dual-band Wi-Fi 6 connectivity ensures robust performance and extensive coverage. With throughput rates of 573 Mbps on the 2.4GHz band and an impressive 4.8 Gbps on the 5GHz band, this device can handle a high number of simultaneous connections, making it ideal for dense environments. Wi-Fi 6 introduces technologies such as MU-MIMO (Multi-User, Multiple Input, Multiple Output) and OFDMA (Orthogonal Frequency Division Multiple Access), which allow the access point to serve multiple devices more efficiently, reducing latency and improving overall network performance. These advancements are particularly beneficial in environments where many devices are connected to the network, such as offices with numerous employees, conference centers, and multi-family residential buildings. By ensuring efficient spectrum usage and minimizing interference, the U6 In-Wall provides a reliable and high-speed internet experience, supporting activities that require substantial bandwidth and low latency.

Advanced Antenna Technology

Equipped with advanced dual-band antennas, the U6 In-Wall covers frequency ranges from 2.4 - 2.475 GHz and 5.1 - 5.9 GHz, ensuring comprehensive coverage up to 115 m². This extensive range ensures strong signal strength and consistent connectivity throughout your space, reducing dead zones and ensuring a seamless user experience. The device’s efficient power consumption, with a maximum usage of 13.5 W, underscores its commitment to sustainability. By combining high performance with low energy consumption, the U6 In-Wall not only reduces operational costs but also aligns with green building standards and environmental sustainability goals. This balance of power efficiency and performance is particularly advantageous in large installations where multiple access points are deployed, such as in office buildings, schools, and hospitality venues. The advanced antenna technology ensures that even in challenging environments with physical obstructions, the U6 In-Wall can deliver reliable connectivity.

Placement Scheme

Temperature-Resilient Operation

The U6 In-Wall is designed to perform reliably in a wide range of environmental conditions, with a temperature resilience ranging from -30 °C to 60 °C. This robust construction ensures that the device can operate without interruption in various settings, whether in a climate-controlled office or an industrial warehouse subject to temperature fluctuations. The ability to withstand extreme temperatures makes the U6 In-Wall suitable for installations in diverse geographic locations, providing consistent performance whether in hot desert climates or cold northern regions. This durability extends the device’s lifespan, ensuring long-term reliability and reducing the need for frequent replacements. In environments such as manufacturing plants, logistics centers, and outdoor venues, where temperature control is less predictable, the U6 In-Wall’s robust design ensures that it can continue to provide high-quality wireless connectivity without degradation in performance.

Compare with similar products


Wireless Standard
802.11a/b/g/n/ac/ax, Wi-Fi 6
802.11a/b/g/n/ac/ax, Wi-Fi 6, Wi-Fi 6E
802.11a/b/g/n/ac/ax, Wi-Fi 6
802.11a/b/g/n/ac/ax, Wi-Fi 6
MIMO
2.4GHz 2x2, 5GHz 4x4
2.4GHz 2x2, 5GHz 4x4, 6GHz 4x4
2.4GHz 2x2, 5GHz 4x4
2.4GHz 2x2, 5GHz 4x4
2.4GHz Radio Rate
573 Mbps
573 Mbps
573 Mbps
573 Mbps
5GHz Radio Rate
4.8 Gbps
4.8 Gbps
4.8 Gbps
4.8 Gbps
6GHz Radio Rate
4.8 Gbps
Wireless Antenna Frequency Range & Gain
2.4 - 2.475 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 5.9 (dBi)
2.4 – 2.475 (GHz), 4 (dBi), 5.1 - 5.9 (GHz), 5.8 (dBi), 5.925 - 7.125 (GHz), 5.8 (dBi)
2.4 - 2.475 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 6 (dBi)
2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 5 (dBi)
Antenna range
115 m²
115 m²
115 m²
140 m²
Ethernet Ports
4 x 1 Gbps
4 x 1 Gbps, 1 x 2.5 Gbps
1 x 1 Gbps
Management
Ethernet, Bluetooth
Ethernet, Bluetooth
Bluetooth
Ethernet, Wi-Fi, Bluetooth
Max Power Consumption
13.5 W
21 W
11 W
11.4 W
Operating Temperature
-30 °C to 60 °C
-30 °C to 60 °C
-10 °C to 50 °C
-30 °C to 60 °C
Dimensions
140 x 96 x 32 mm
160 x 157 x 34 mm
170 x 113 x 33 mm
Ø48.5 x 159.5 mm
Weight
0.460 kg
0.884 kg
0.340 kg
0.400 kg
Environment
Indoor
Indoor
Indoor
Indoor, outdoor

Wireless Standard 802.11a/b/g/n/ac/ax, Wi-Fi 6
802.11a/b/g/n/ac/ax, Wi-Fi 6, Wi-Fi 6E
802.11a/b/g/n/ac/ax, Wi-Fi 6
802.11a/b/g/n/ac/ax, Wi-Fi 6
MIMO 2.4GHz 2x2, 5GHz 4x4
2.4GHz 2x2, 5GHz 4x4, 6GHz 4x4
2.4GHz 2x2, 5GHz 4x4
2.4GHz 2x2, 5GHz 4x4
2.4GHz Radio Rate 573 Mbps
573 Mbps
573 Mbps
573 Mbps
5GHz Radio Rate 4.8 Gbps
4.8 Gbps
4.8 Gbps
4.8 Gbps
6GHz Radio Rate
4.8 Gbps
Wireless Antenna Frequency Range & Gain 2.4 - 2.475 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 5.9 (dBi)
2.4 – 2.475 (GHz), 4 (dBi), 5.1 - 5.9 (GHz), 5.8 (dBi), 5.925 - 7.125 (GHz), 5.8 (dBi)
2.4 - 2.475 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 6 (dBi)
2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 5 (dBi)
Antenna range 115 m²
115 m²
115 m²
140 m²
Ethernet Ports4 x 1 Gbps
4 x 1 Gbps, 1 x 2.5 Gbps
1 x 1 Gbps
Management Ethernet, Bluetooth
Ethernet, Bluetooth
Bluetooth
Ethernet, Wi-Fi, Bluetooth
Max Power Consumption 13.5 W
21 W
11 W
11.4 W
Operating Temperature -30 °C to 60 °C
-30 °C to 60 °C
-10 °C to 50 °C
-30 °C to 60 °C
Dimensions 140 x 96 x 32 mm
160 x 157 x 34 mm
170 x 113 x 33 mm
Ø48.5 x 159.5 mm
Weight 0.460 kg
0.884 kg
0.340 kg
0.400 kg
Environment Indoor
Indoor
Indoor
Indoor, outdoor
