Access Point U6 Mesh

Ubiquiti Elite Distributor

In stock

170.73 €

In stock

170.73 €

Expected arrival
?

100 pcs

on 29.04.2024

Get Special Price

Order amount

price

Brand

Ubiquiti

Manufacturer part number

U6-Mesh

Warranty
?

12 months

EAN

0810010078278

Ubiquiti Elite Distributor

Detailed description

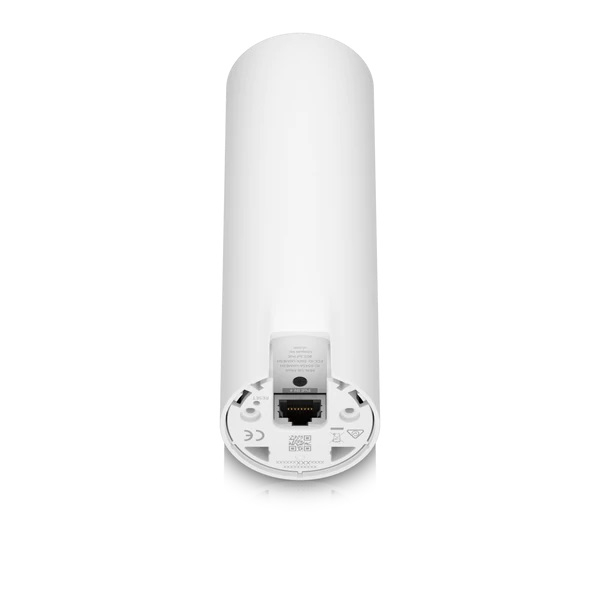

UniFi 6 Mesh Access Point is an indoor / outdoor 4x4 WiFi 6 access point designed for mesh applications. The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks.

The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The device can be mounted on the wall, desktop or pole (necessary mounting is included). You can also mount the access point on the ceiling (the ceiling mount should be ordered separately).

The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality Wi-Fi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

Placement Scheme

Compare with similar products

	Access Point U6 Mesh	Access Point U6 Enterprise In-Wall	Access Point U6 Extender
Wireless Standard

802.11a/b/g/n/ac/ax, Wi-Fi 6	802.11a/b/g/n/ac/ax, Wi-Fi 6, Wi-Fi 6E	802.11a/b/g/n/ac/ax, Wi-Fi 6	802.11a/b/g/n/ac/ax, Wi-Fi 6
MIMO

2.4GHz 2x2, 5GHz 4x4	2.4GHz 2x2, 5GHz 4x4, 6GHz 4x4	2.4GHz 2x2, 5GHz 4x4	2.4GHz 2x2, 5GHz 4x4
2.4GHz Radio Rate

573 Mbps	573 Mbps	573 Mbps	573 Mbps
5GHz Radio Rate

4.8 Gbps	4.8 Gbps	4.8 Gbps	4.8 Gbps
6GHz Radio Rate

	4.8 Gbps
Wireless Antenna Frequency Range & Gain

2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 5 (dBi)	2.4 – 2.475 (GHz), 4 (dBi), 5.1 - 5.9 (GHz), 5.8 (dBi), 5.925 - 7.125 (GHz), 5.8 (dBi)	2.4 - 2.475 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 6 (dBi)	2.4 - 2.475 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 5.9 (dBi)
Antenna range

140 m²	115 m²	115 m²	115 m²
Ethernet Ports

1 x 1 Gbps	4 x 1 Gbps, 1 x 2.5 Gbps		4 x 1 Gbps
Management

Ethernet, Wi-Fi, Bluetooth	Ethernet, Bluetooth	Bluetooth	Ethernet, Bluetooth
Max Power Consumption

11.4 W	21 W	11 W	13.5 W
Operating Temperature

-30 °C to 60 °C	-30 °C to 60 °C	-10 °C to 50 °C	-30 °C to 60 °C
Dimensions

Ø48.5 x 159.5 mm	160 x 157 x 34 mm	170 x 113 x 33 mm	140 x 96 x 32 mm
Weight

0.400 kg	0.884 kg	0.340 kg	0.460 kg
Environment

Indoor, outdoor	Indoor	Indoor	Indoor

	Access Point U6 Mesh	Access Point U6 Enterprise In-Wall	Access Point U6 Extender	Access Point U6 In-Wall
Wireless Standard	802.11a/b/g/n/ac/ax, Wi-Fi 6	802.11a/b/g/n/ac/ax, Wi-Fi 6, Wi-Fi 6E	802.11a/b/g/n/ac/ax, Wi-Fi 6	802.11a/b/g/n/ac/ax, Wi-Fi 6
MIMO	2.4GHz 2x2, 5GHz 4x4	2.4GHz 2x2, 5GHz 4x4, 6GHz 4x4	2.4GHz 2x2, 5GHz 4x4	2.4GHz 2x2, 5GHz 4x4
2.4GHz Radio Rate	573 Mbps	573 Mbps	573 Mbps	573 Mbps
5GHz Radio Rate	4.8 Gbps	4.8 Gbps	4.8 Gbps	4.8 Gbps
6GHz Radio Rate		4.8 Gbps
Wireless Antenna Frequency Range & Gain	2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 5 (dBi)	2.4 – 2.475 (GHz), 4 (dBi), 5.1 - 5.9 (GHz), 5.8 (dBi), 5.925 - 7.125 (GHz), 5.8 (dBi)	2.4 - 2.475 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 6 (dBi)	2.4 - 2.475 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 5.9 (dBi)
Antenna range	140 m²	115 m²	115 m²	115 m²
Ethernet Ports	1 x 1 Gbps	4 x 1 Gbps, 1 x 2.5 Gbps		4 x 1 Gbps
Management	Ethernet, Wi-Fi, Bluetooth	Ethernet, Bluetooth	Bluetooth	Ethernet, Bluetooth
Max Power Consumption	11.4 W	21 W	11 W	13.5 W
Operating Temperature	-30 °C to 60 °C	-30 °C to 60 °C	-10 °C to 50 °C	-30 °C to 60 °C
Dimensions	Ø48.5 x 159.5 mm	160 x 157 x 34 mm	170 x 113 x 33 mm	140 x 96 x 32 mm
Weight	0.400 kg	0.884 kg	0.340 kg	0.460 kg
Environment	Indoor, outdoor	Indoor	Indoor	Indoor
