POE Injector 1 Port Gigabit | Passive Gigabit PoE Injector

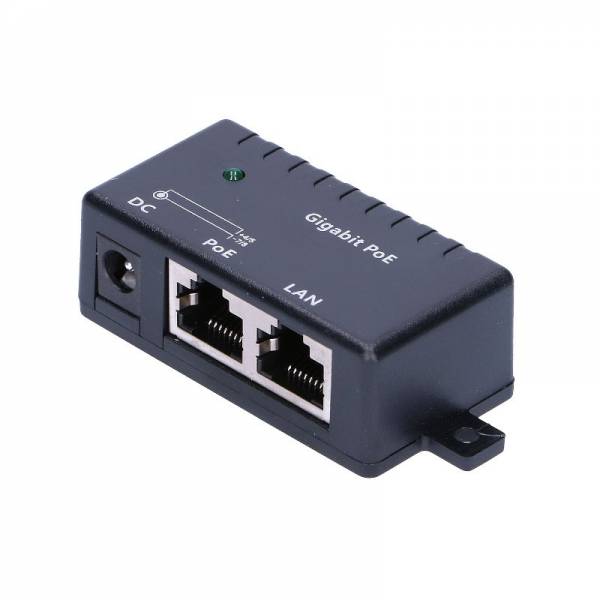

The POE1PG is a compact single-port passive PoE injector designed to transmit Gigabit Ethernet data and DC power through one network cable. It is suitable for installations where a router or network switch does not provide PoE output, but a compatible access point, wireless CPE, IP camera, or other Ethernet device requires remote power. The clearly marked LAN port receives the network connection, while the PoE port carries data and power to the connected device. A separate DC input is provided for an external power adapter, which is not included in the package.

Both RJ45 ports support data rates of up to 1 Gbps when used with compatible Gigabit equipment and cabling. The enclosure includes a status LED, printed markings for power delivery over pin pairs 4/5 and 7/8, and mounting tabs that allow the injector to be fixed to a wall, panel, cabinet, or another flat surface. Because the POE1PG uses passive PoE, the connected device must support the same voltage, polarity, and pin arrangement. These parameters should be verified before installation. Compatibility with IEEE 802.3af, 802.3at, or 802.3bt should not be assumed, and the injector should only be used with equipment specifically designed for the selected passive PoE power source.
