Reyee Gigabit PoE Injector 15.4W

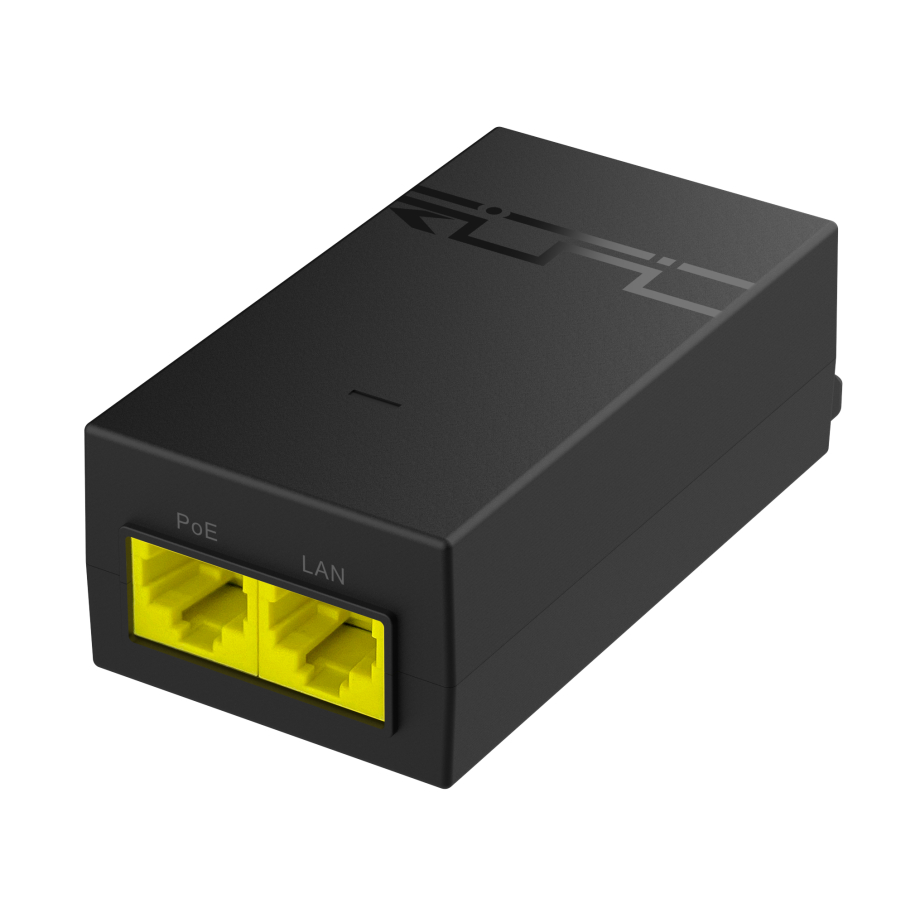

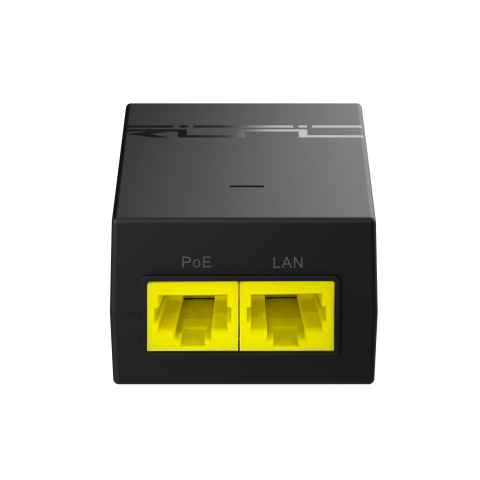

The Ruijie Reyee RG-POE-AF15 is a passive PoE adapter designed to supply power and data to compatible Reyee access points through a single Ethernet connection. It provides 52 V DC output at 0.3 A and supports passive PoE with a 15.6 W power rating, making it suitable for compatible wall, ceiling, and outdoor AP models listed for this adapter. The adapter uses a Gigabit LAN port, so it can be used in deployments where a 1G wired link is required between the network and the powered device. Its compact housing is designed for simple placement near a power outlet or network connection point, with shielded RJ45 sockets for the Data IN and PoE connection. The adapter operates from a 100-240 V AC, 50/60 Hz input, allowing it to be used with standard mains power in different installation environments. The 2-pair powering design uses pins 4 and 5 for positive polarity and pins 7 and 8 for negative polarity, providing a defined passive PoE output arrangement for supported devices.

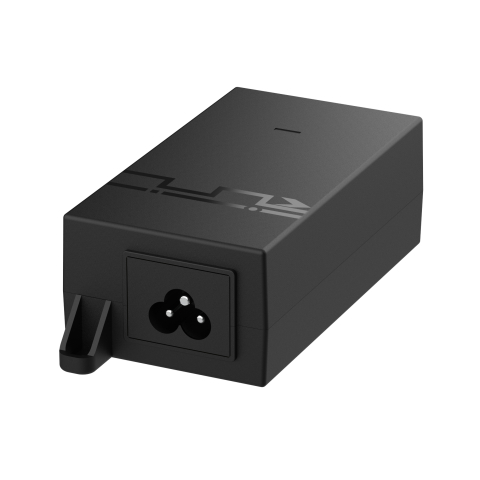

The RG-POE-AF15 is built for stable access point power delivery in everyday network installations. It operates within a -10 °C to 45 °C temperature range, helping the adapter remain suitable for locations where ambient conditions may vary during normal operation. The specified storage temperature range of -40 °C to 70 °C and non-condensing operating humidity from 5% to 95% further support practical handling, storage, and deployment in a range of indoor network environments. For protection, the adapter includes difference and common mode surge protection, with a maximum surge discharge rating of 2000 A on the power side and peak pulse current protection for data lines. These characteristics help improve resilience against surge events affecting connected cabling or power lines. The adapter also lists fast response time and CE and CB certifications.
