MikroTik mANTBox 19s

This item has been discontinued

Manufacturer part number

RB921GS-5HPacD-19S

Warranty

?
12 months

EAN

4752224000873

We recommend to use the product presented below

MikroTik mANTBox ax 15s

MikroTik mANTBox ax 15s

L22UGS-5HaxD2HaxD-15S

Detailed description

mANTBox series

/images/catalogue/description/1959/frame59-65290bde43c7a-1780x540.jpg
The mANTBox is based on the new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720 MHz CPU and has a built-in 802.11 ac/a/n wireless device with up to 31 dBm output power.
Just like our mANT antennas, the mANTBox also comes in two sizes, a 15 dBi sector unit and a 19 dBi sector unit.

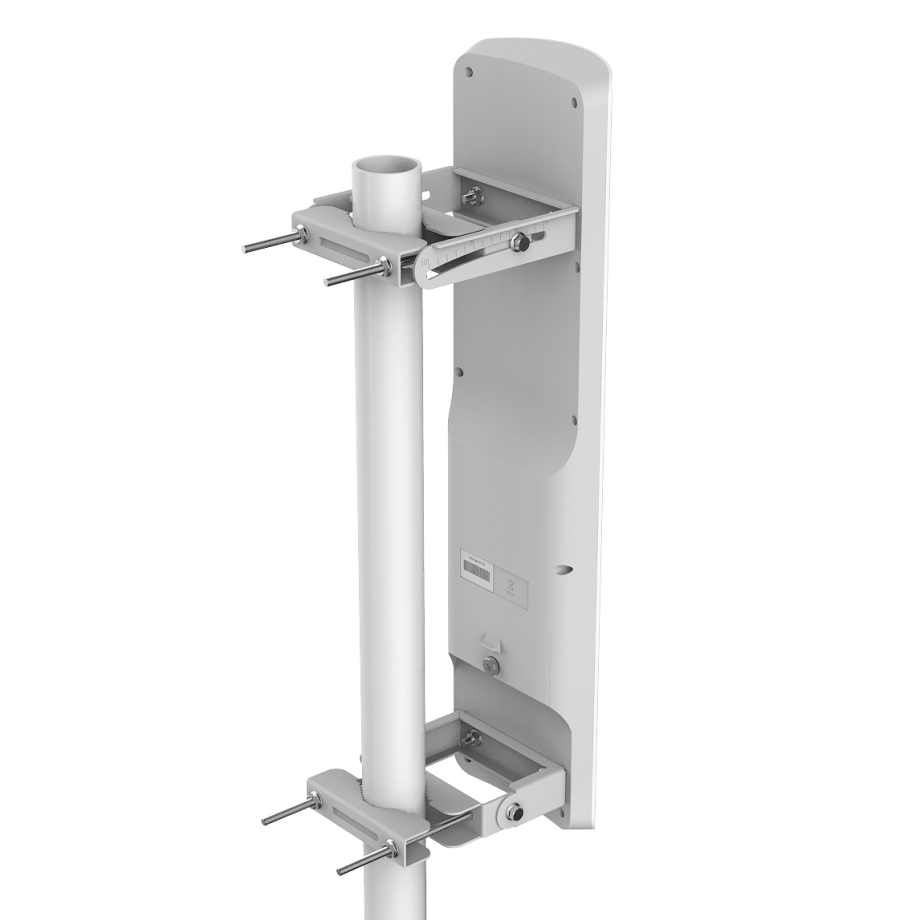

The mANTBox 15s is compatible with the SXT type mount, so you can use it with durable and adjustable QuickMount systems. It comes with quickMOUNT PRO included. The mANTBox 19s comes with metallic U bolt type mounts.
/images/catalogue/description/1959/frame55-65290be3e01ae-1300x540.jpg

Compare with similar products


Wireless Network standards
802.11a/n/ac, Wi-Fi 5
802.11a/n/ac , Wi-Fi 5
802.11b/g/n, Wi-Fi 5
802.11a/b/g/n/ac, Wi-Fi 5
2.4GHz Radio Rate
300 Mbps
300 Mbps
5GHz Radio Rate
867 Mbps
867 Mbps
867 Mbps
Wireless Antenna Frequency Range & Gain
5.170 - 5.835 (GHz) 19 (dBi)
5.170 - 5.875 (GHz) 15 (dBi)
5.170 - 5.825 (GHz) 15 (dBi)
2.312 - 2.732 (GHz) 12 (dBi)
2.412 - 2.484 (GHz) 12 (dBi), 5.150 - 5.875 (GHz) 15 (dBi)
Ethernet Ports
1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
SFP Ports
1 x 1G SFP
1 x 1G SFP
1 x 1G SFP
USB Ports
1 x USB-A 2.0
Chipset
QCA9557, 1 core, 720 MHz
QCA9557, 1 core, 720 MHz
AR9342, 1 core, 600 MHz
4 core IPQ-4019 716 MHz
RAM
128 MB
128 MB
64 MB
256 MB
Storage Memory
128 MB
128 MB
128 MB
16 MB
Max Power Consumption
13 W
13 W
11 W
21 W

Wireless Network standards802.11a/n/ac, Wi-Fi 5
802.11a/n/ac , Wi-Fi 5
802.11b/g/n, Wi-Fi 5
802.11a/b/g/n/ac, Wi-Fi 5
2.4GHz Radio Rate
300 Mbps
300 Mbps
5GHz Radio Rate867 Mbps
867 Mbps
867 Mbps
Wireless Antenna Frequency Range & Gain 5.170 - 5.835 (GHz) 19 (dBi)
5.170 - 5.875 (GHz) 15 (dBi)
5.170 - 5.825 (GHz) 15 (dBi)
2.312 - 2.732 (GHz) 12 (dBi)
2.412 - 2.484 (GHz) 12 (dBi), 5.150 - 5.875 (GHz) 15 (dBi)
Ethernet Ports1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
SFP Ports 1 x 1G SFP
1 x 1G SFP
1 x 1G SFP
USB Ports
1 x USB-A 2.0
ChipsetQCA9557, 1 core, 720 MHz
QCA9557, 1 core, 720 MHz
AR9342, 1 core, 600 MHz
4 core IPQ-4019 716 MHz
RAM128 MB
128 MB
64 MB
256 MB
Storage Memory128 MB
128 MB
128 MB
16 MB
Max Power Consumption 13 W
13 W
11 W
21 W

Compatible products

Specifications

Wireless Network

Standards

802.11a/n/ac
MIMO

5GHz 2x2
5GHz Radio Rate

867 Mbps

Antenna

Antenna Design

Sector
Wireless Antenna Frequency Range & Gain

5.170 - 5.835 (GHz) 19 (dBi)
Beamwidth

120 °
Polarization

Dual Linear

Interfaces

RJ45 Ports

(1) 1 Gbps
SFP Ports

(1) 1G SFP
Management

Ethernet, Wi-Fi

System Specification

Chipset

QCA9557, 1 core, 720 MHz
RAM

128 MB
Storage Memory

128 MB

Power

Power Method

AC/DC Adapter, 24V Passive PoE
Power Supply

External AC/DC Adapter
Supported Input Voltage

8 - 30 V DC
Max Power Consumption

13 W
Power Connector

DC Plug 2.1 x 5.5 mm
PSU / POE adapter

24 V DC 0.8 A

Physical Parameters

Color

White
Dimensions

598 x 152 x 78 mm
Operating Temperature

-40 °C to 70 °C
Environment

Outdoor
Mounting Method

Pole Mount

Package Contains

External Power Supply

Included

Software

MikroTik

RouterOS Level 4
