AirFiber 60 LR

best from Ubiquiti
Ubiquiti Elite Distributor
In stock
?
282.95
In stock
?
282.95

plug

profile
Get Special Price
Order amount
price

Brand

Ubiquiti

Manufacturer part number

AF60-LR

Warranty
?

12 months

EAN

0810010073563
Ubiquiti Elite Distributor

Available product variations

Detailed description

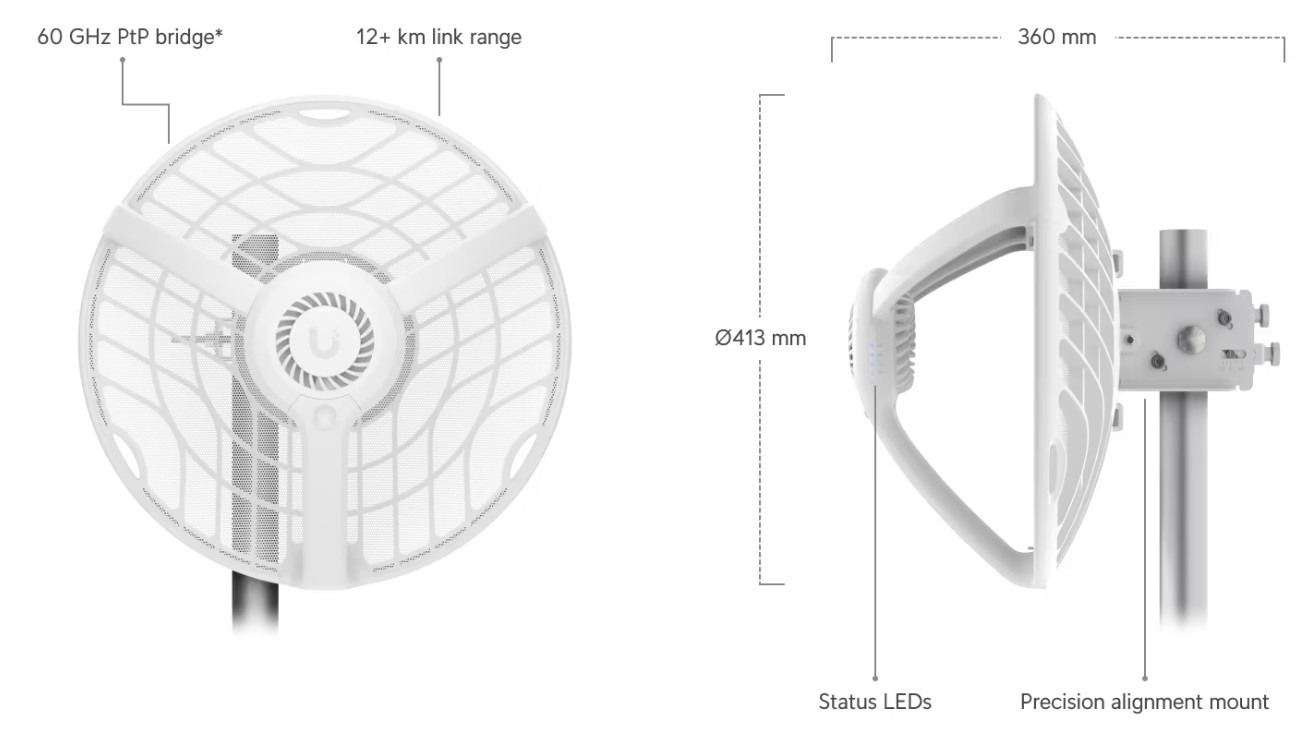

The AirFiber 60 LR is a long-range, high-performance wireless bridge developed by Ubiquiti Networks. This device is a significant addition to Ubiquiti's AirFiber series, designed to deliver gigabit-level throughput over the 60 GHz frequency band. The "LR" in its name stands for "Long Range," indicating its capability to maintain high-speed, point-to-point (PtP) connectivity across extended distances, making it an ideal solution for connecting remote locations or spanning large campuses without the need for physical cabling.
This product should be purchased in pairs in order to form links.
The AirFiber 60 LR embodies Ubiquiti's commitment to innovation in wireless network technology, providing a solution that combines ease of deployment with exceptional performance and reliability. It is specifically engineered to meet the demands of modern networks, offering a cost-effective alternative to traditional wired connections for backhaul, broadband access, or last-mile delivery applications.
Features:
  • Low-Interference 60 GHz Spectrum
  • Integrated GPS
  • Long Range, Up to 12 km
  • Precision Alignment Mount Included
  • Quick Setup Using the *UISP™ App via Bluetooth

Performance and Technology

Equipped with the latest in wireless technology, the AF60-LR is capable of achieving up to 1+ Gbps of real throughput, ensuring fast and efficient data transmission that can support a wide range of applications, from video surveillance systems to data backhaul for internet service providers. The device utilizes the unlicensed 60 GHz spectrum, taking advantage of its low-interference characteristics to deliver clean and stable connections even in areas with dense wireless signals.
One of the key features of the AF60-LR is its integrated high-gain antenna. This precision antenna enables the device to establish long-distance wireless links, significantly exceeding the range of standard Wi-Fi or 60 GHz solutions. Additionally, the AF60-LR employs Ubiquiti's proprietary airFiber technology, which optimizes performance and enhances signal integrity across the PtP link.

Design and Durability

The AirFiber 60 LR boasts a rugged, weather-resistant design, allowing it to withstand the challenges of outdoor deployment. Its durable construction ensures operation in diverse environmental conditions, from scorching heat to freezing temperatures, providing reliable service year-round. The device's compact form factor and integrated antenna simplify installation and alignment, reducing setup time and labor costs.

Easy Installation and Management

Ubiquiti Networks has designed the AF60-LR with simplicity in mind. The device includes a user-friendly mounting kit for quick installation on poles, towers, or building exteriors. Alignment is made easy through visual and software-based tools, enabling precise positioning for optimal performance. For network management, the AF60-LR integrates seamlessly with Ubiquiti's network management software(UISP app), allowing operators to monitor and configure the device remotely, further simplifying the operational workload.

Security and Compliance

Security is a paramount concern for Ubiquiti, and the AirFiber 60 LR incorporates advanced encryption and secure management protocols to protect the network and its data. Compliance with local regulations in the 60 GHz band is also addressed, allowing for peace of mind in deployment and operation.
AirFiber 60 LR from Ubiquiti Networks represents a leap forward in wireless connectivity, offering an efficient, reliable, and cost-effective solution for long-distance, high-speed networking. Its combination of high performance, durability, ease of installation, and security features makes it an excellent choice for a wide range of applications, from enterprise networks to ISP backhaul and beyond.

Compare with similar products


60GHz Radio Rate
1.8Gbps
6.0Gbps
6.0Gbps
5.4Gbps
Wireless Antenna Frequency Range & Gain
57 - 71 (GHz)
57 - 66 (GHz)
57 - 66 (GHz), 5.15 - 5.875 (GHz)
57 - 71 (GHz), 5.15 - 5.875 (GHz)
Antenna range
12 km
2 km
4 km
15 km
Ethernet Ports
1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
SFP Ports
1 x 10G SFP+
1 x 10G SFP+
1 x 10G SFP+
Chipset
Quad-Core ARM® Cortex® A7
Quad-Core ARM® Cortex® A72 at 1.6 GHz
Quad-Core ARM® Cortex® A72 1.6GHz
Quad-core ARM® Cortex®-A53 at 1.4 GHz
RAM
256 MB
2 GB
2 GB
1GB
Max Power Consumption
18 W
29.31 W
31.2 W
24 W

60GHz Radio Rate 1.8Gbps
6.0Gbps
6.0Gbps
5.4Gbps
Wireless Antenna Frequency Range & Gain57 - 71 (GHz)
57 - 66 (GHz)
57 - 66 (GHz), 5.15 - 5.875 (GHz)
57 - 71 (GHz), 5.15 - 5.875 (GHz)
Antenna range 12 km
2 km
4 km
15 km
Ethernet Ports 1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
SFP Ports
1 x 10G SFP+
1 x 10G SFP+
1 x 10G SFP+
Chipset Quad-Core ARM® Cortex® A7
Quad-Core ARM® Cortex® A72 at 1.6 GHz
Quad-Core ARM® Cortex® A72 1.6GHz
Quad-core ARM® Cortex®-A53 at 1.4 GHz
RAM256 MB
2 GB
2 GB
1GB
Max Power Consumption 18 W
29.31 W
31.2 W
24 W
