Brand
Manufacturer part number
APA-M04
Warranty
?
12 months
EAN
4718050300419
Alfa Panel Indoor Antenna APA-M04
in stock
?
5.44 €
5.44 €
Detailed description

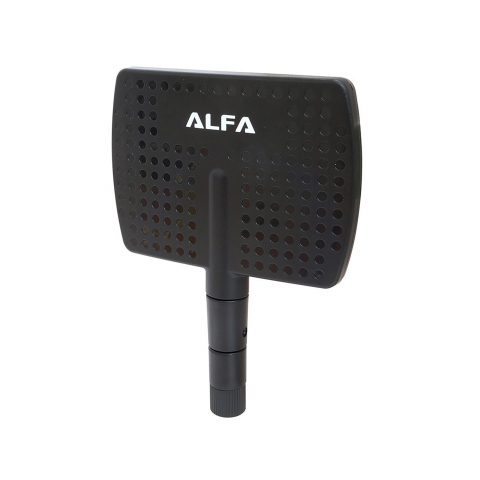

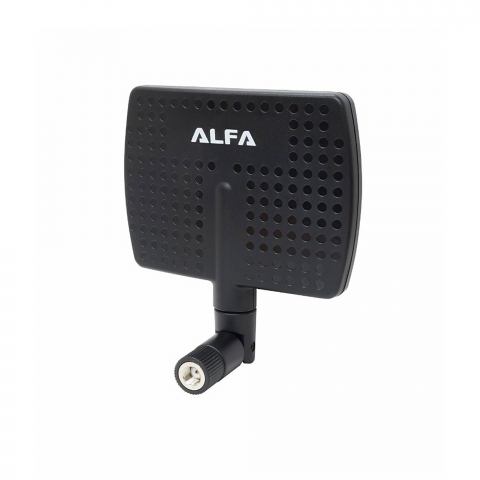

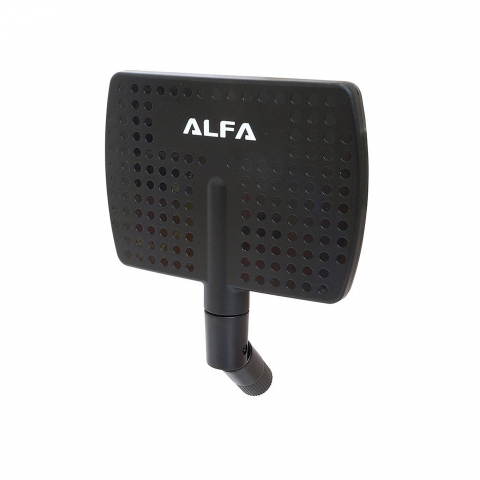

The APA-M04 is a directional panel antenna from ALFA Network for indoor use. It operates in the 2400~2500 MHz SISO 1x1 frequency range and has a 7 dBi gain. Equipped with an antenna connector RP-SMA Male. Antenna improves signal quality and increases the range of the access point or router indoors.
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Panel
Wireless Antenna Frequency Range & Gain
2.4 - 2.5 (GHz) 7 (dBi)
Polarization
Linear
Impedance
50 Ω
Connectors
RF Connectors
(1) RP-SMA Male
Physical Parameters
Color
Black
Material
Plastic
Dimensions
173 x 145 x 61 mm
Weight
0.045 kg
Operating Temperature
-10 °C to 55 °C
Environment
Indoor
