Alfa AWUS036AXM Wi‑Fi 6E USB Adapter with Bluetooth 5.2, Tri‑Band 3000 Mbps, USB 3.2, External Antennas

The Alfa AWUS036AXM is a WiFi 6/6E USB adapter built around the MediaTek MT7921AUN chipset, combining tri-band IEEE 802.11ax wireless networking with Bluetooth 5.2 in one external device. It operates across the 2.4 GHz, 5 GHz, and 6 GHz bands and supports IEEE 802.11 a/b/g/n/ac/ax standards, allowing it to connect with several generations of WiFi networks. With 2x2 operation, the adapter provides access to current WiFi 6/6E capabilities through an external USB device. Bluetooth 5.2 is integrated alongside WiFi, adding connectivity for compatible Bluetooth devices while keeping both wireless functions available through the same adapter for a more consolidated desktop or laptop setup.

Wireless data rates reach up to 600 Mbps on 2.4 GHz and up to 1200 Mbps on both 5 GHz and 6 GHz. The AWUS036AXM can support aggregate speeds of up to 3000 Mbps when used with a compatible WiFi 6E router, while 800–1200 Mbps is identified as a more common speed range with many router stream configurations. This distinction provides useful context when matching the adapter with different WiFi 6E equipment and expected connection performance. Bluetooth 5.2 also supports higher-quality audio for headphones or speakers over Bluetooth, extending the adapter’s role beyond network access. Together, its WiFi 6/6E and Bluetooth capabilities provide a combined wireless connectivity option for compatible computers.

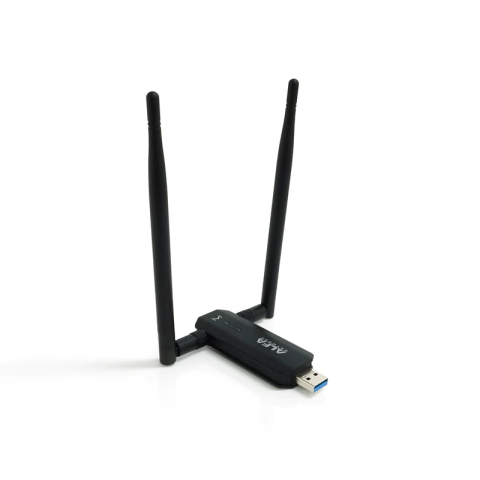

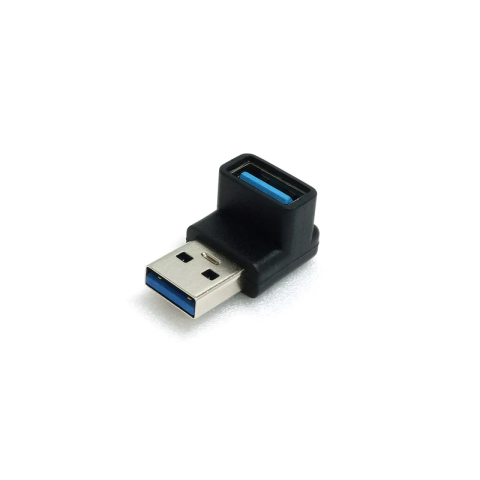

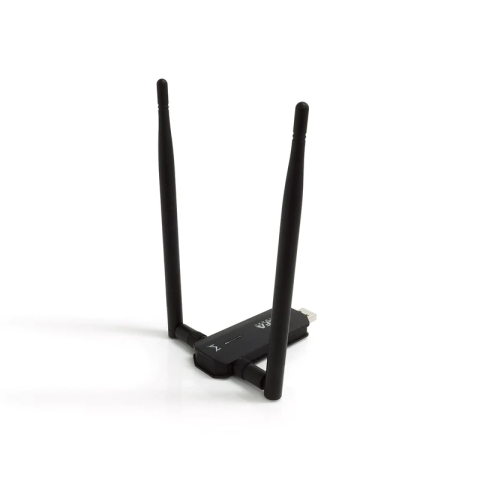

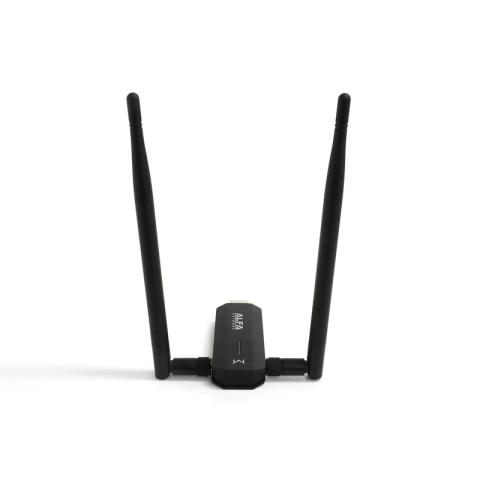

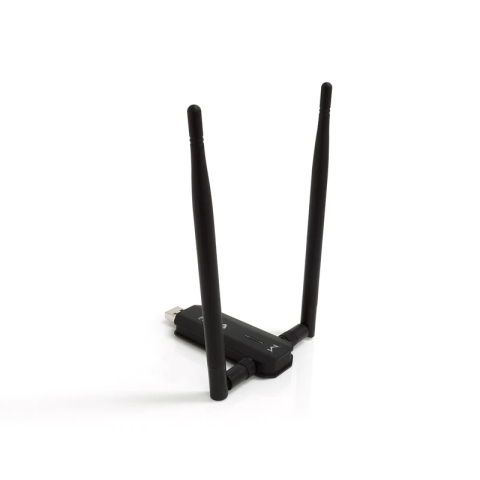

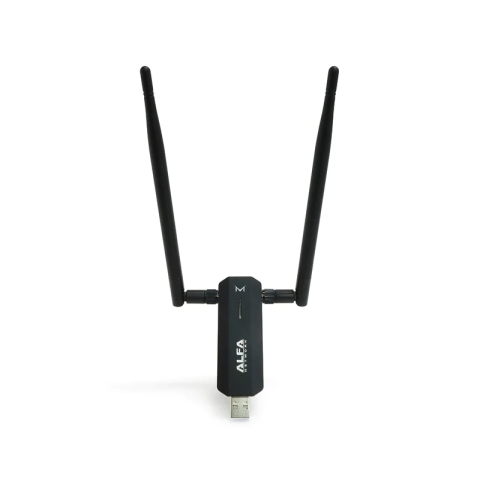

The AWUS036AXM uses a USB 3.2 Gen 1 Type-A connector and includes a USB 3.2 90-degree adapter, giving users an alternative connection angle when attaching the unit to a computer. This angled accessory provides another physical orientation for installations where a straight USB connection is less convenient. Two external RP-SMA antenna connectors are provided for WiFi, together with two detachable high-gain dipole antennas. Because the antennas can be removed, they can be replaced with higher-gain models when a longer connection distance is required. Bluetooth uses a separate integrated antenna, keeping that radio connection built into the adapter. An LED indicator provides a visible status reference directly on the device.

The compact body measures 87.4 × 28.5 × 12 mm, helping keep the adapter unobtrusive when connected to a compatible computer. It operates from 5 V and has a maximum power consumption of 2.7 W, keeping its electrical requirements modest for a USB-connected wireless device. The specified operating temperature range extends from -20°C to 70°C, supporting use across a broad range of ambient conditions. Operating system support includes Windows 10, Windows 11, and Linux, allowing deployment across several supported computer environments. These hardware and platform characteristics give users flexibility when selecting a host system and arranging the adapter around it. The compact enclosure and included angled USB adapter support practical placement while keeping the installation straightforward.
