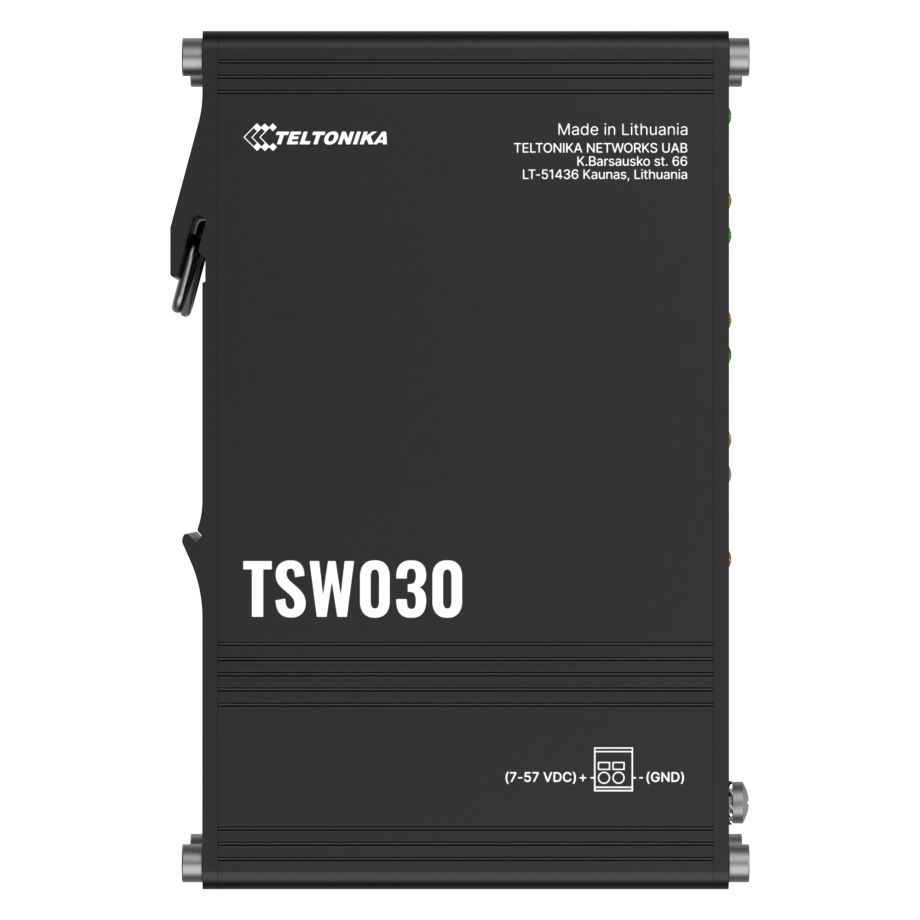

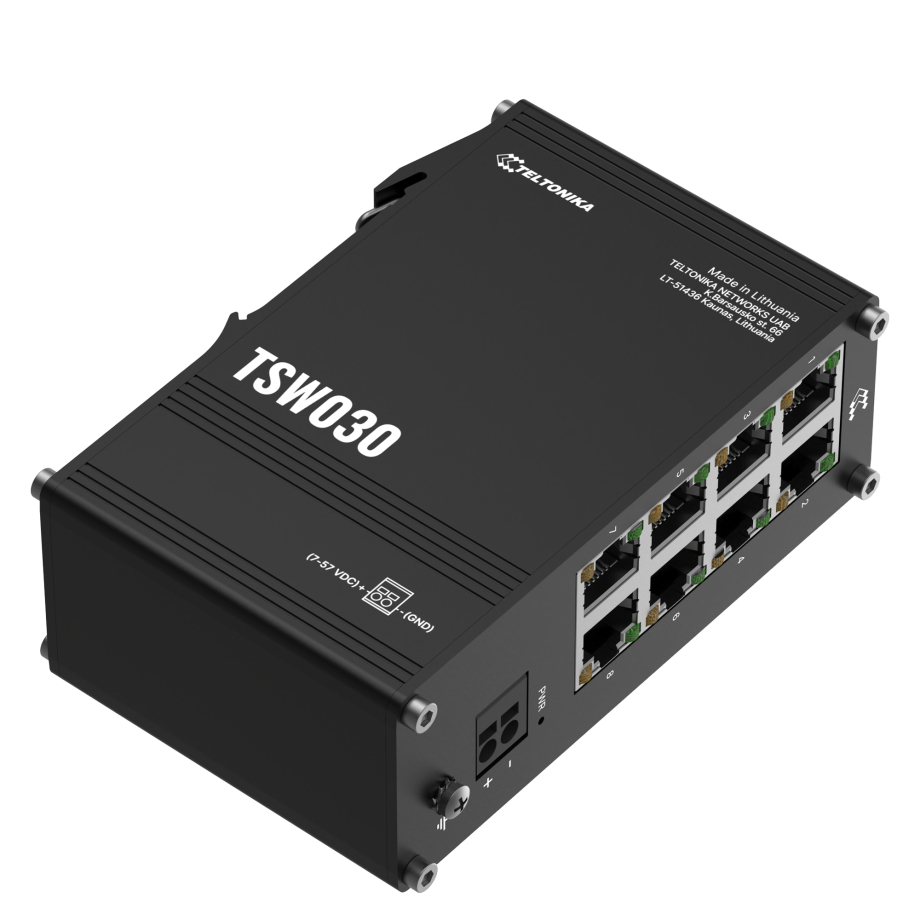

Teltonika TSW030 Ethernet Switch

The Teltonika TSW030 is an unmanaged industrial Ethernet switch that delivers reliable wired connectivity in a compact form factor. It comes with eight RJ45 ports supporting 10/100 Mbps speeds and auto MDI/MDIX function, eliminating the need for crossover cables. Built to IEEE 802.3 standards such as 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az, the switch ensures compatibility with a wide range of devices and applications. Its non-blocking bandwidth of 20 Gbps guarantees smooth traffic even under heavy load, while the packet buffer of 128 KB optimizes data handling. A MAC address table supporting up to 2,000 entries and jumbo frame support up to 9,216 bytes allow efficient network scaling. Designed for demanding environments, the TSW030 combines simplicity and stability, making it an excellent choice for manufacturing, automation, and energy systems where uninterrupted Ethernet connectivity is essential.

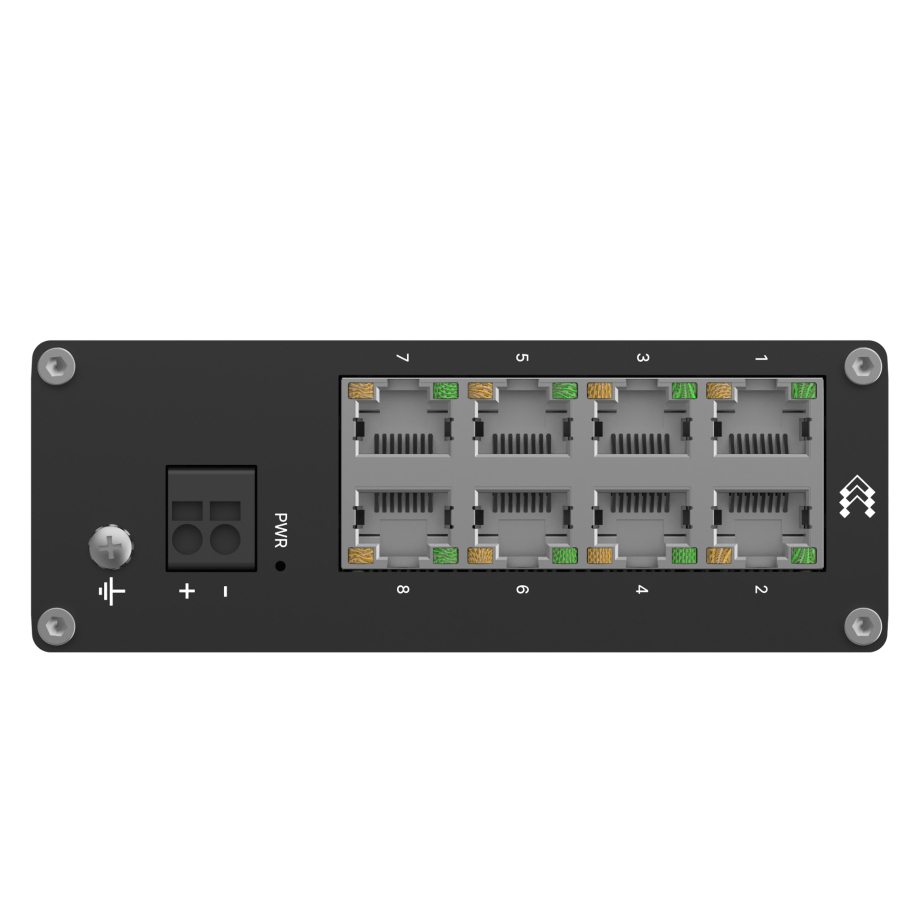

Engineered for versatile deployment, the Teltonika TSW030 features a two-pin industrial DC power socket with a wide input range from 7 to 57 V DC. This flexibility makes it suitable for different power infrastructures, while built-in protection mechanisms ensure durability. Overvoltage protection handles surges up to 60 V, reverse polarity protection prevents damage up to 80 V, and surge protection with breakdown voltages between 64.4 and 71.2 V ensures stable operation even in unstable environments. Despite industrial-grade reliability, the device is highly energy-efficient, consuming only 0.5 W when idle and up to 1.5 W under full load. A grounding screw enhances installation safety, while the switch also features a clear LED system with one power indicator and two LEDs per Ethernet port to provide immediate status visibility. This practical approach simplifies monitoring and makes the TSW030 a dependable solution for professional networking setups.

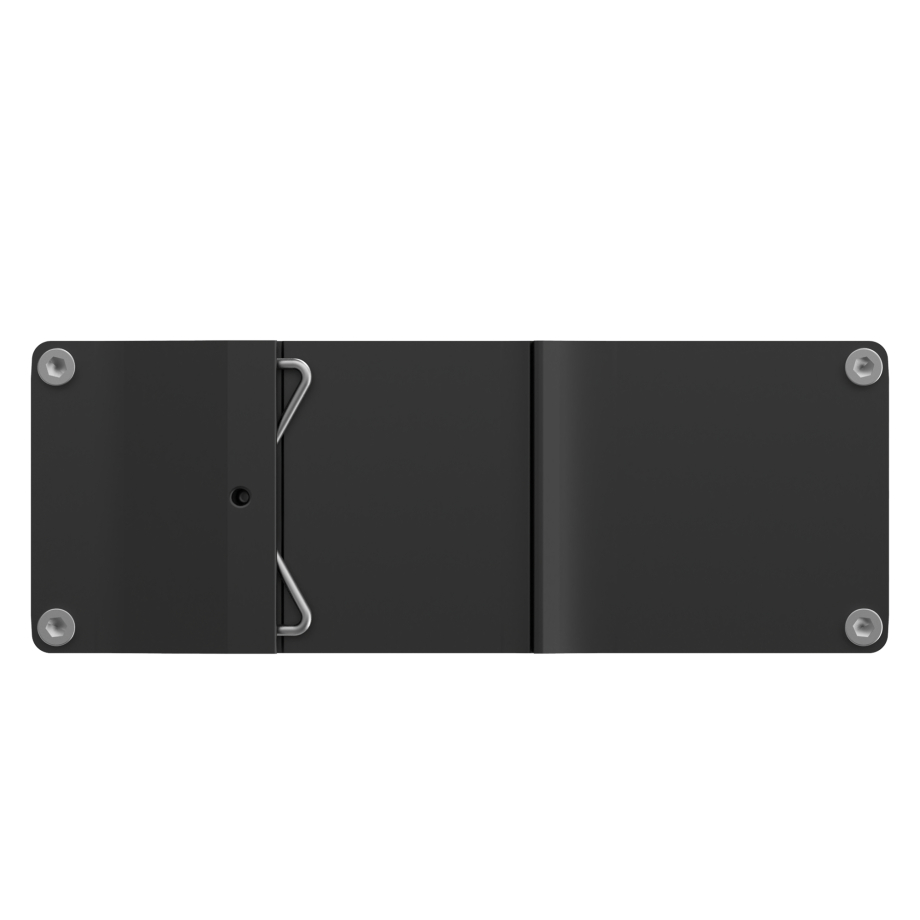

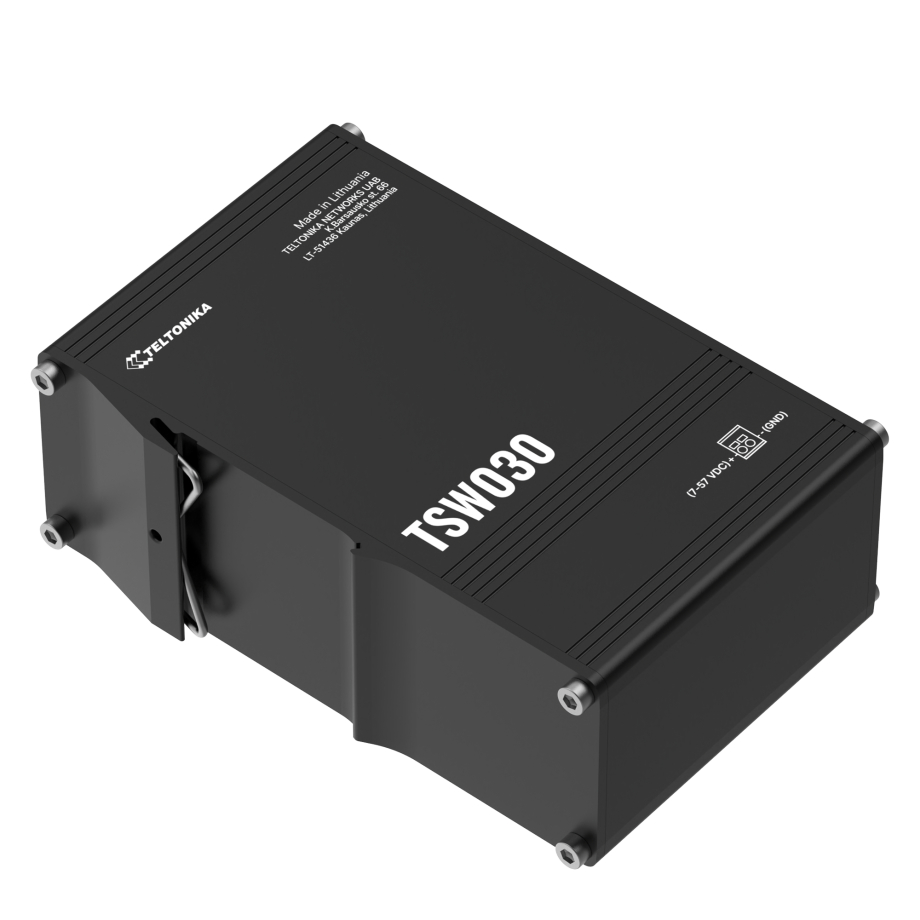

The TSW030 is built to withstand industrial challenges while remaining compact and practical. Housed in a durable anodized aluminum casing with an IP30 protection rating, it is safeguarded against dust and incidental contact. Measuring 113.1 × 41.2 × 74.6 mm and weighing only 256 g, it fits into restricted spaces without compromising durability. The switch is designed for tough environments, operating within a temperature range of –40 °C to +75 °C and in humidity levels between 5% and 95% non-condensing. The switch supports multiple mounting methods, including DIN-rail, wall, or flat surface installation. A DIN-rail mounting kit is included by default, while additional accessories are required for wall or flat surface mounting. Compliance with international certifications such as CE, UKCA, EAC, RCM, FCC, IC, CB, and IEC 62368-1 ensures reliability and safety across global markets. With its durable construction, the TSW030 delivers reliable, long-term Ethernet performance in demanding industrial and commercial settings.
