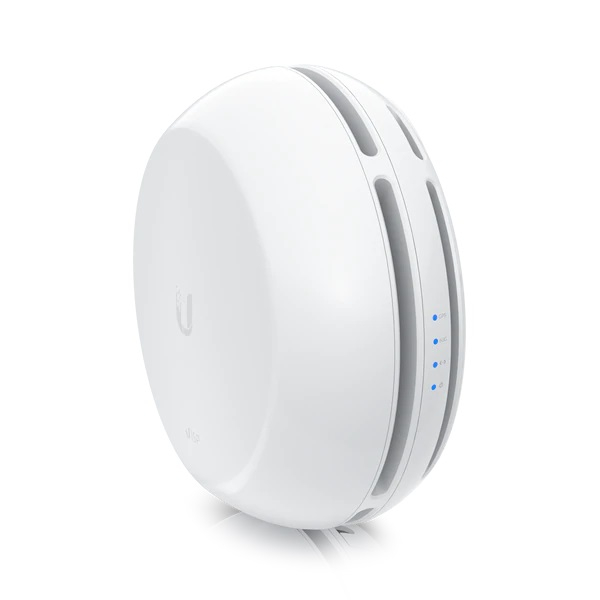

Ubiquiti airFiber 60 HD
This item has been discontinued
Available alternatives
Detailed description
The AirFiber 60 HD is a cutting-edge wireless communication solution developed by Ubiquiti Networks, a company renowned for its innovative and high-quality networking products. This device is part of Ubiquiti's AirFiber series, which is specially designed to deliver superior point-to-point (PtP) connectivity for high-capacity broadband networks. The AF60-HD stands out for its utilization of the 60 GHz frequency band, aiming to provide gigabit-level throughput over short to medium distances, making it an ideal solution for urban and suburban deployments where high-speed data transmission is critical.
This product should be purchased in pairs in order to form links.
Key Features:
- 2 km link range
- 6 Gbps max. throughput
- (1) GbE and (1) 10G SFP+ port
- Precision alignment mount
- Integrated GPS
The AirFiber 60 HD is engineered to meet the demanding requirements of modern network infrastructures, offering unparalleled performance, reliability, and ease of deployment. Its core functionality is to establish a robust wireless link capable of supporting extensive data throughput, which is essential for applications requiring high bandwidth, such as video streaming, VoIP, and large data transfers. The device leverages the latest in wireless technology to maximize spectral efficiency and throughput, while minimizing interference, even in densely populated areas.
One of the standout features of the AF60-HD is its high-definition (HD) technology, which enhances the device's capability to deliver high throughput rates consistently. This is achieved through advanced modulation techniques and Ubiquiti's proprietary airFiber technology, which together ensure optimal performance and signal integrity across the wireless link. The device supports full-duplex communication, allowing for simultaneous transmission and reception of data, thereby doubling the efficiency of the available bandwidth.
The AirFiber 60 HD also incorporates advanced security features to protect the wireless network from unauthorized access and potential threats. Encryption and secure management protocols ensure the confidentiality and integrity of the data transmitted over the wireless link, providing peace of mind for network operators and end-users alike. In addition, Bluetooth-powered setup via the UISP Mobile app is available. Thanks to UISP app you can centrally manage your networks and clients with ease. Simply organize your clients' plans, setup billing and invoicing, and grow your customer base. UISP application allows viewing network topology, advanced data analytics, quickly set up devices and manage them on the go with a powerful mobile app
Ease of installation and setup is another hallmark of the AirFiber 60 HD. The device comes with a comprehensive mounting kit, enabling straightforward attachment to poles, towers, or buildings. Additionally, the AF60-HD features an intuitive user interface, accessible via Ubiquiti's network management software, allowing for quick configuration, monitoring, and adjustment of the device's settings. This user-friendly approach reduces deployment time and simplifies the management of the wireless link.
The AF60-HD boasts a compact and weather-resistant design, making it suitable for outdoor deployment in various environments. Rated with IPX6 protection degree, its robust construction ensures durability and longevity, protecting the device against harsh weather conditions, including rain, wind, and extreme temperatures. This resilience is critical for maintaining continuous operation and ensuring network reliability, regardless of external factors.
Ubiquiti AirFiber 60 HD represents a significant advancement in wireless networking technology, offering gigabit-level throughput, superior reliability, and ease of deployment. Its use of the 60 GHz frequency band, combined with high-definition technology and robust design, makes it an excellent choice for high-capacity PtP connectivity in a variety of settings. Whether for connecting buildings within a campus, extending broadband services, or supporting backhaul for wireless networks, the AF60-HD delivers performance that meets the needs of today's demanding network environments.
Compare with similar products
| 60GHz Radio Rate | ||||
| 6.0Gbps | 1.8Gbps | 6.0Gbps | 5.4Gbps | |
| Wireless Antenna Frequency Range & Gain | ||||
| 57 - 66 (GHz) | 57 - 71 (GHz) | 57 - 66 (GHz), 5.15 - 5.875 (GHz) | 57 - 71 (GHz), 5.15 - 5.875 (GHz) | |
| Antenna range | ||||
| 2 km | 12 km | 4 km | 15 km | |
| Ethernet Ports | ||||
| 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | |
| SFP Ports | ||||
| 1 x 10G SFP+ | 1 x 10G SFP+ | 1 x 10G SFP+ | ||
| Chipset | ||||
| Quad-Core ARM® Cortex® A72 at 1.6 GHz | Quad-Core ARM® Cortex® A7 | Quad-Core ARM® Cortex® A72 1.6GHz | Quad-core ARM® Cortex®-A53 at 1.4 GHz | |
| RAM | ||||
| 2 GB | 256 MB | 2 GB | 1GB | |
| Max Power Consumption | ||||
| 29.31 W | 18 W | 31.2 W | 24 W | |
| 60GHz Radio Rate | 6.0Gbps | 1.8Gbps | 6.0Gbps | 5.4Gbps |
| Wireless Antenna Frequency Range & Gain | 57 - 66 (GHz) | 57 - 71 (GHz) | 57 - 66 (GHz), 5.15 - 5.875 (GHz) | 57 - 71 (GHz), 5.15 - 5.875 (GHz) |
| Antenna range | 2 km | 12 km | 4 km | 15 km |
| Ethernet Ports | 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps |
| SFP Ports | 1 x 10G SFP+ | 1 x 10G SFP+ | 1 x 10G SFP+ | |
| Chipset | Quad-Core ARM® Cortex® A72 at 1.6 GHz | Quad-Core ARM® Cortex® A7 | Quad-Core ARM® Cortex® A72 1.6GHz | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| RAM | 2 GB | 256 MB | 2 GB | 1GB |
| Max Power Consumption | 29.31 W | 18 W | 31.2 W | 24 W |
Technical Specs / Datasheet
Compatible products
Specifications
Wireless Network
Frequency
60GHz
60GHz Radio Rate
6.0Gbps
Antenna
Antenna Design
Reflector
Wireless Antenna Frequency Range & Gain
57 - 66 (GHz) (dBi)
Beamwidth
3 ° Vertical
Polarization
Vertical
Distance
Up to 2 km
Interfaces
RJ45 Ports
(1) 1 Gbps
SFP Ports
(1) 10G SFP+
Management
Bluetooth
System Specification
Chipset
Quad-Core ARM® Cortex® A72 at 1.6 GHz
RAM
2 GB
Power
Power Method
48V Passive PoE
Power Supply
External PoE Adapter
Max Power Consumption
29.31 W
PSU / POE adapter
48 V DC 0.65 A
Physical Parameters
Color
White
Material
Aluminium, UV Plastic
Ingress Protection Code
IPX6
Dimensions
Ø189 x 89 mm
Weight
2.95 kg
Operating Temperature
-40 °C to 55 °C
Environment
Outdoor
Mounting Method
Pole Mount
Package Contains
External Power Supply
Included
