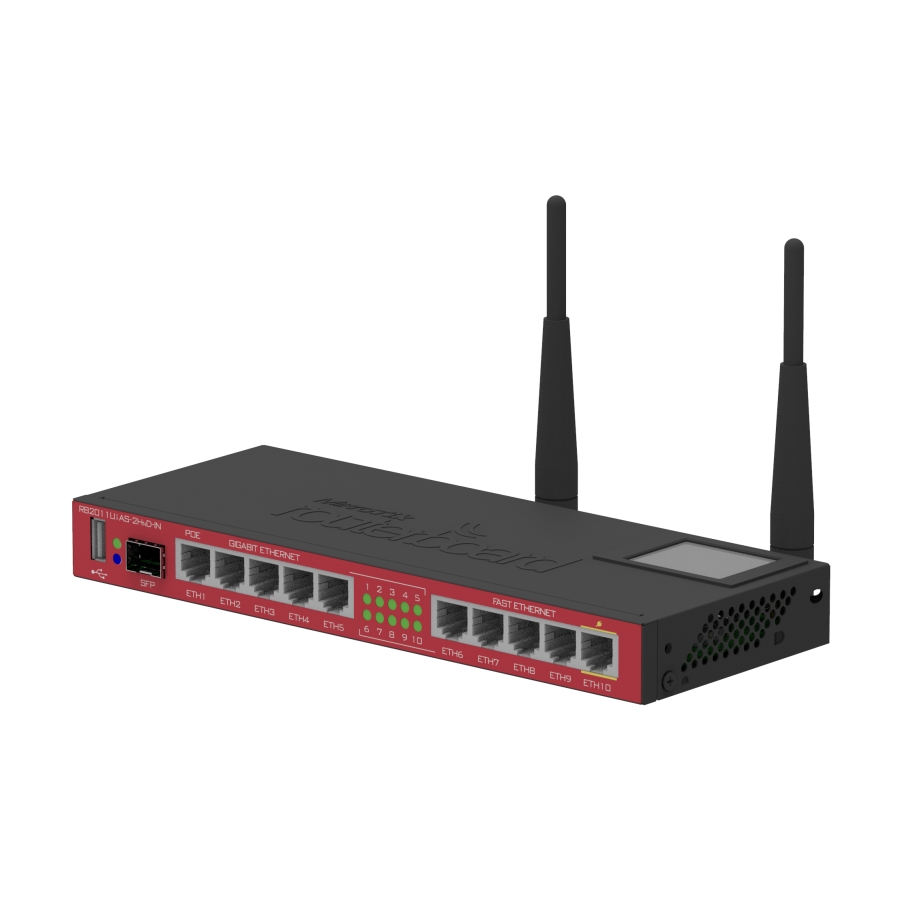

MikroTik RB2011UiAS-2HnD-IN
This item has been discontinued
We recommend to use the product presented below
MikroTik RB4011iGS+5HacQ2HnD-IN
RB4011iGS+5HacQ2HnD-IN
Available alternatives
Detailed description
The RB2011Ui is a Low Cost Multi Port Device Series
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UiAS-2HnD has most features and interfaces from all Mikrotik Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128 MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features a powerful dual chain 2.4Ghz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, USB port and RouterOS L5 license, as well as a desktop case with power supply, two 4dBi Omni antennas and an LCD panel.
Tested and recommended using with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included).
The RB2011Ui also has passive PoE output capability on the last port (ETH10), this means you can power another device just by connecting it over regular Ethernet cable
Technical Specs / Datasheet
Compatible products
Specifications
Wireless Network
Standards
802.11b/g/n
MIMO
2.4GHz 2x2
2.4GHz Radio Rate
300 Mbps
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.4 - 2.4 (GHz) 4 (dBi)
Interfaces
RJ45 Ports
(5) 100 Mbps, (5) 1 Gbps
Number of PoE Ports
1 pcs
PoE Out Standards
Passive PoE
SFP Ports
(1) 1G SFP
USB Ports
(1) USB-A 2.0
Communication Interface
RJ45
Management
Ethernet, Wi-Fi
System Specification
Chipset
AR9344
RAM
128 MB
Storage Memory
128 MB
Power
Power Method
AC/DC Adapter, 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
8 - 30 V DC
Max Power Consumption
11 W
PSU / POE adapter
24 V DC 1.2 A
Physical Parameters
Color
Red
Ingress Protection Code
IP20
Dimensions
230 x 90 x 25 mm
Weight
0.24 kg
Operating Temperature
-40 °C to 60 °C
Mounting Method
Tabletop
Package Contains
External Power Supply
Included
Software
MikroTik
RouterOS Level 5
