Hikvision DS-1280ZJ-DM46 Junction Box for Dome Cameras | Durable Aluminum Mount

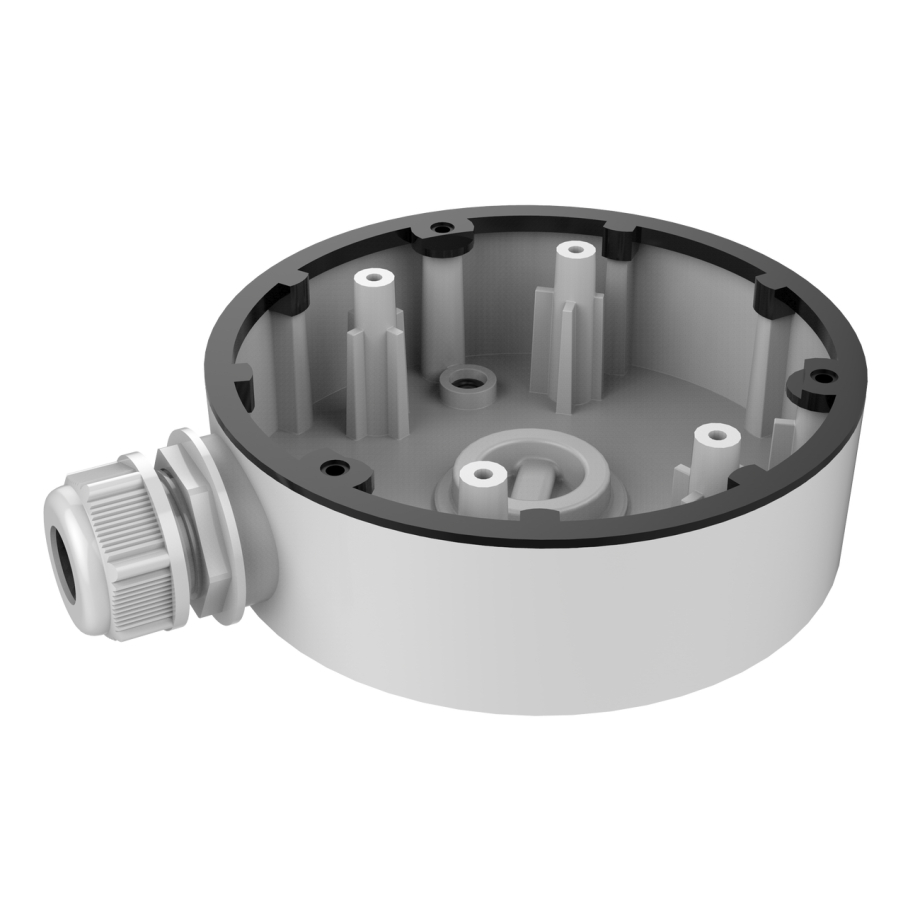

The Hikvision DS-1280ZJ-DM46 is a junction box intended for camera installations in both indoor and outdoor environments. Made from aluminum alloy with a surface spray treatment, it is finished in Hikvision White and provides a dedicated mounting base for the camera. The box supports two cable-routing options: cables can exit through the bottom or through the side, allowing the installation route to be selected according to how cabling approaches the mounting point. This makes cable entry an integrated part of the mounting arrangement rather than requiring a single fixed routing direction. For installations where physical dimensions need to be considered, the junction box measures Ø120 mm × 37.2 mm and weighs 250 g.

The DS-1280ZJ-DM46 must be installed on a flat surface, with the supporting wall capable of carrying at least three times the combined weight of the camera and junction box. Its maximum load capacity is 4.5 kg, so both the camera weight and the strength of the mounting surface need to be taken into account when preparing the installation. Outdoor use additionally requires waterproof rubber as part of the mounting arrangement. Together, the choice of bottom or side cable outlet, the defined mounting requirements, and suitability for indoor and outdoor conditions make the DS-1280ZJ-DM46 a purpose-built component for organizing the camera mounting point and cable path within one installation.
