Reyee Wi-Fi 6 Ceiling Access Point

RG-RAP2260(G) is an indoor Wi-Fi 6 access point designed for dual-band wireless networks in offices, hotels, education facilities, healthcare environments, financial institutions, businesses, and similar indoor deployments. It supports concurrent 2.4 GHz and 5 GHz operation with dual-stream dual-band radio, helping provide both broad everyday coverage and higher-speed access for modern wireless clients. With Wi-Fi 6, Wi-Fi 5, Wi-Fi 4, and earlier 802.11a/b/g support, the access point can serve mixed device environments while enabling newer clients to benefit from 802.11ax connectivity.

The RG-RAP2260(G) uses built-in omnidirectional antennas and 2×2 MIMO on both 2.4 GHz and 5 GHz. It provides up to 574 Mbps on 2.4 GHz and up to 1201 Mbps on 5 GHz, with a total throughput of 1.775 Gbps per access point. This makes it suitable for indoor networks where multiple users need stable wireless access for general connectivity, cloud applications, browsing, and everyday business use. The device supports up to 512 clients, with 100 recommended clients for practical planning, helping installers size deployments more realistically rather than relying only on the maximum client value.

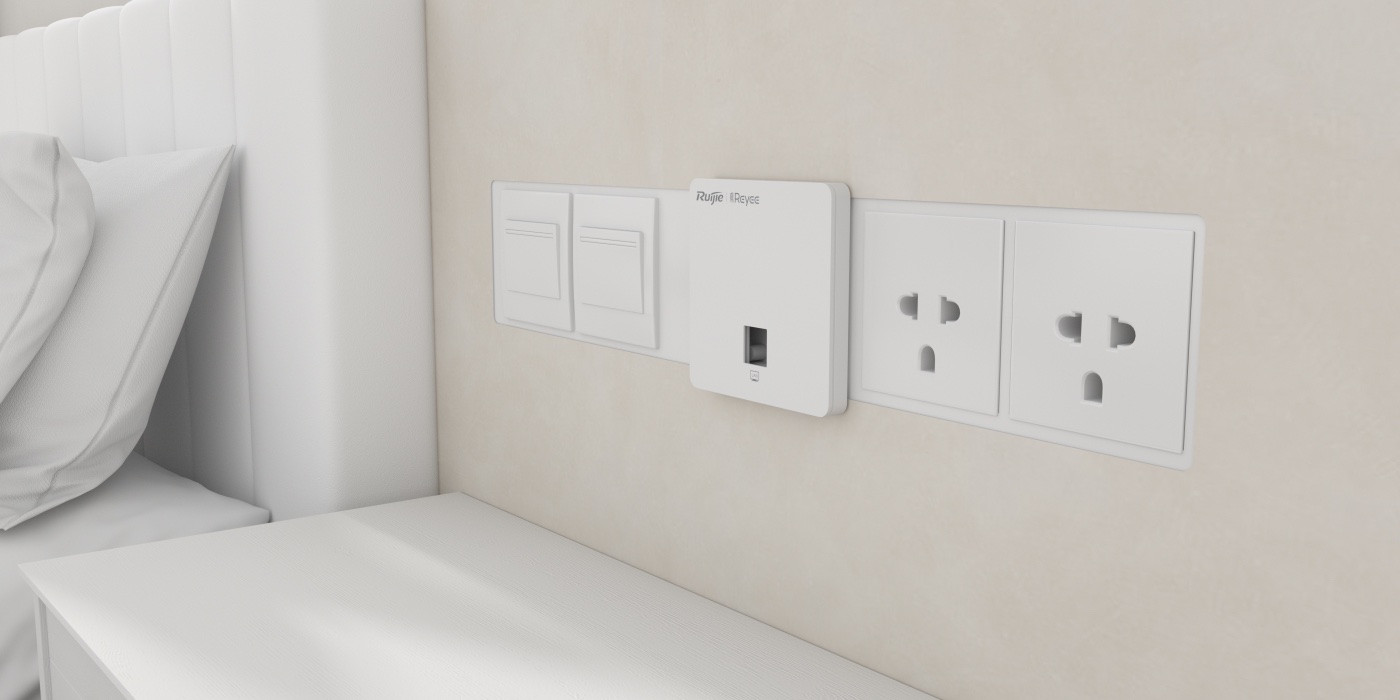

RG-RAP2260(G) supports both AP mode and routing mode, giving installers flexibility when designing small or distributed indoor networks. For wired connectivity, it includes two Gigabit Ethernet ports, with LAN1 supporting PoE. The device can also be powered by a local 12 V DC supply, while 802.3at PoE allows power and data to be delivered through the network cable when compatible PoE equipment is used. Its ceiling- and wall-mountable design makes it suitable for fixed indoor installation, and the compact 194 × 194 × 35 mm enclosure helps it fit cleanly into office, hospitality, and commercial spaces.

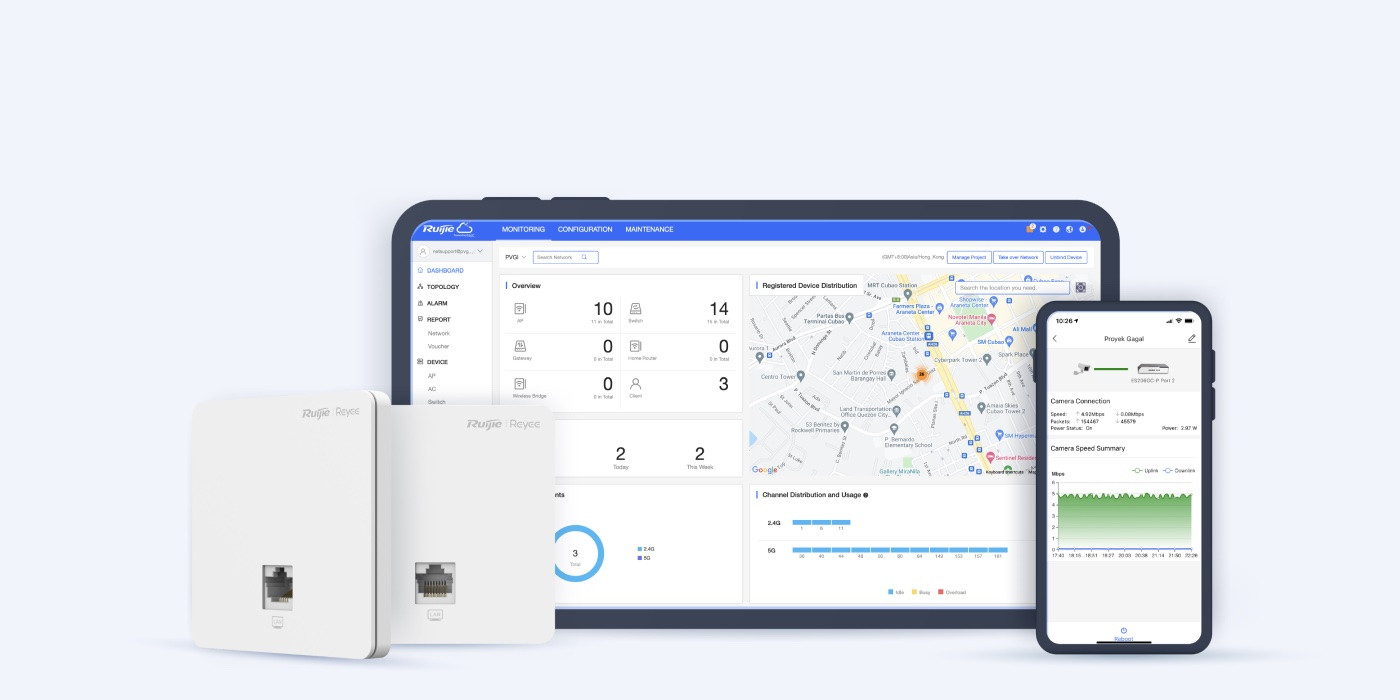

For deployment and administration, RG-RAP2260(G) supports Ruijie Cloud app management, local web management, and remote management through the Ruijie Cloud platform. It also supports unified networking, unified configuration, unified monitoring, and automatic RF adjustment via the platform, helping simplify setup and ongoing operation. Reyee Mesh makes it easier to add extra access points with less wiring, while SON technology enables fast Wi-Fi 6 network setup through the Ruijie Cloud app. Wireless functions include up to 8 SSIDs, SSID hiding, per-SSID authentication, encryption and VLAN attributes, SSID-based and radio-based STA limits, Layer 2 user isolation, and Layer 2 and Layer 3 roaming. Security functions include PSK authentication, static blacklist and whitelist, WPA, WPA2, and WPA-PSK data encryption.
