Reyee 5-Port Gigabit Unmanaged Desktop Switch

out of stock
?
17.93
out of stock
out of stock
?
17.93

plug

Expected arrival
?

arrival date unknown

Manufacturer part number

RG-ES05G

Warranty

?
36 months

EAN

6971693270039

Category

Available alternatives

Ubiquiti UISP Switch

Ubiquiti UISP Switch

130.09 €104.54 €
-20%
Ubiquiti UniFi Switch 48 500W

Ubiquiti UniFi Switch 48 500W

700.04 €641.60 €
-8%
Ubiquiti UniFi Switch 8 60W 5-pack

Ubiquiti UniFi Switch 8 60W 5-pack

490.58 €450.75 €
-8%
Milesight Industrial PoE Switch 200W

Milesight Industrial PoE Switch 200W

128.37 €109.33 €
-15%
Milesight Industrial PoE Switch 400W

Milesight Industrial PoE Switch 400W

181.94 €147.69 €
-19%

Detailed description

The perfect combination of quality & cost-effectiveness

RG-ES05G is a desktop switch tailored for small enterprises, small-scale surveillance and SOHO, which meets the network needs of small enterprise customers. The switch features easy configuration and compatibility with a variety of terminals such as network cameras, printers, PCs, etc., to offer fast deployment experience. RG-ES05G model is equipped with five Gigabit Ethernet Ports and provides 7.44 Mpps packet forwarding rate.
/images/catalogue/description/1800/screenshot20231206113713-657043435f606-1382x669.jpg

Exquisite Design and outstanding quality

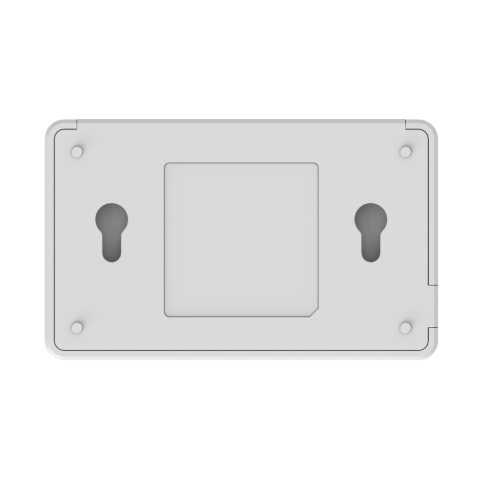

The matte-finish diamond pattern design with honeycomb heat dissipation holes at the bottom ensures effective heat dissipation. The embedded foot pads and hidden hanging hole design also provide ease of use for the users. The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission. A series of rigorous tests have been performed in the manufacturing process, including anti-drop test, anti-collision test, high-temperature resistance test and humidity resistance test, to provide worry-free products.
/images/catalogue/description/1800/screenshot20231206113613-6570433bb7a5d-1178x791.jpg

Plug and Play & Energy Saving

Self-adaptive feature is supported for the network ports. The configuration is not needed, so the device can operate instantly after plugging in. The energy saving feature enables the non-operating ports to automatically reduce power consumption, and the fanless design also enables noiseless operation. If the Ruijie Cloud management platform is available, you can add the switch to the topology manually or by scanning the QR code to conveniently output a complete topology.
/images/catalogue/description/1800/screenshot20231206113745-6570434817ad5-1179x701.jpg

Compare with similar products


Ethernet Ports
5 x 1 Gbps
5 x 100 Mbps
8 x 1 Gbps
8 x 100 Mbps
16 x 1 Gbps
24 x 1 Gbps
Switching capacity
10 Gbps
1 Gbps
16 Gbps
1.6 Gbps
32 Gbps
48 Gbps
Forwarding rate
7.44 Mpps
0.744 Mpps
11.904 Mpps
1.1904 Mpps
23.81 Mpps
35.71 Mpps
MAC address table
2000
1000
4000
1000
8000
8000
Max Power Consumption
3.5 W
2.5 W
6.5 W
3 W
11 W
16 W
Dimensions
144 x 85 x 23 mm
108 x 64 x 25 mm
144 x 85 x 23 mm
108 x 64 x 25 mm
280 x 126 x 44 mm
280 x 126 x 44 mm
Weight
0.20 kg
0.19 kg
0.35 kg
0.33 kg
1.75 kg
1.76 kg
Operating Temperature
0 °C to 40 °C
0 °C to 40 °C
0 °C to 40 °C
0 °C to 40 °C
0 °C to 45 °C
0 °C to 45 °C

Ethernet Ports 5 x 1 Gbps
5 x 100 Mbps
8 x 1 Gbps
8 x 100 Mbps
16 x 1 Gbps
24 x 1 Gbps
Switching capacity10 Gbps
1 Gbps
16 Gbps
1.6 Gbps
32 Gbps
48 Gbps
Forwarding rate7.44 Mpps
0.744 Mpps
11.904 Mpps
1.1904 Mpps
23.81 Mpps
35.71 Mpps
MAC address table2000
1000
4000
1000
8000
8000
Max Power Consumption 3.5 W
2.5 W
6.5 W
3 W
11 W
16 W
Dimensions 144 x 85 x 23 mm
108 x 64 x 25 mm
144 x 85 x 23 mm
108 x 64 x 25 mm
280 x 126 x 44 mm
280 x 126 x 44 mm
Weight 0.20 kg
0.19 kg
0.35 kg
0.33 kg
1.75 kg
1.76 kg
Operating Temperature 0 °C to 40 °C
0 °C to 40 °C
0 °C to 40 °C
0 °C to 40 °C
0 °C to 45 °C
0 °C to 45 °C
