Product name

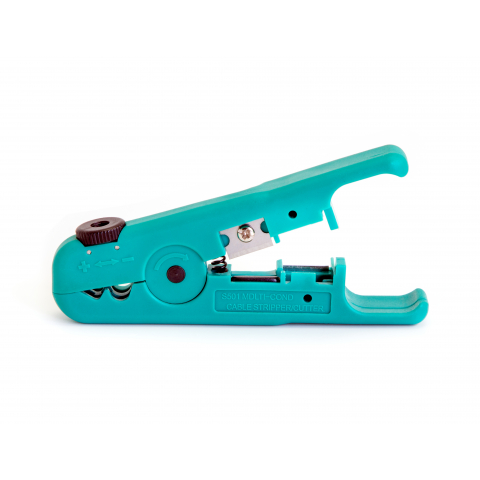

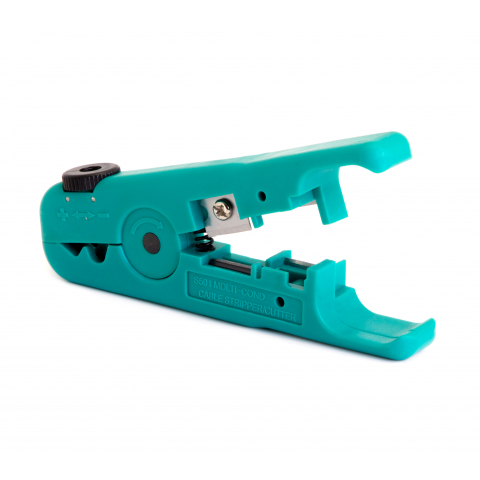

Multipurpose Wire Stripper
Warranty
?
12 months
Manufacturer part number
TOL-4228
EAN
0708747440324
Multipurpose Wire Stripper for Flat & Round Cables | Fast Insulation Removal
- Multipurpose wire stripper for electrical installation work, designed to remove insulation from wire ends or cut cables quickly and cleanly.
- Works with flat wires and round cables; suitable for stranded phone wire, intercom/alarm wire, speaker wire 18-22 AWG, and SPT1 electric wire.
- Handles a wide range of cable types, including UTP, STP, data communication wire, network cable, and multi-conductor cable with insulation OD 3.2 mm-9.5 mm.
- Also suitable for round cable with tough insulation 12-14-16 AWG or SPT-2 electric cable, plus automotive heavy-duty wire up to 8 AWG.
- Simple manual use: insert flat wire between the blades and squeeze, or rotate round cable 1-3 times counterclockwise for insulation removal.
3.85 €
In stock
?
3.85 €
In stock
?
Detailed description
The multipurpose wire stripper is used to remove insulation from wire ends or to cut cables during electrical installation works. This tool is suitable for flat wires and round cables.
Insert the flat wire between the stripper blades and squeeze handles. The cable must be kept perpendicular and then pulled from the tool. To remove the insulation from the round cable, you need to rotate 1-3 times at counterclockwise, then open the jaw and remove the outer insulation.
The tool is suitable for the following cables:
- Stranded phone wire.
- Intercom / Alarm wire / 2-Cond
- Speaker wire 18-22AWG or SPT1 Electric wire
- Round cable: Tough insulation 12-14-16 AWG cable or SPT-2 Electric cable
- Assorted solid modular wire: UTP, STP, Data Communication wire or Network cable
- Multi-conductor cable, insulation OD. 3.2 mm-9.5 mm
- Automotive heavy-duty wire max 8 AWG
Specifications
Physical Parameters
Color
Turquoise
