QuMax for Teltonika RUTM52

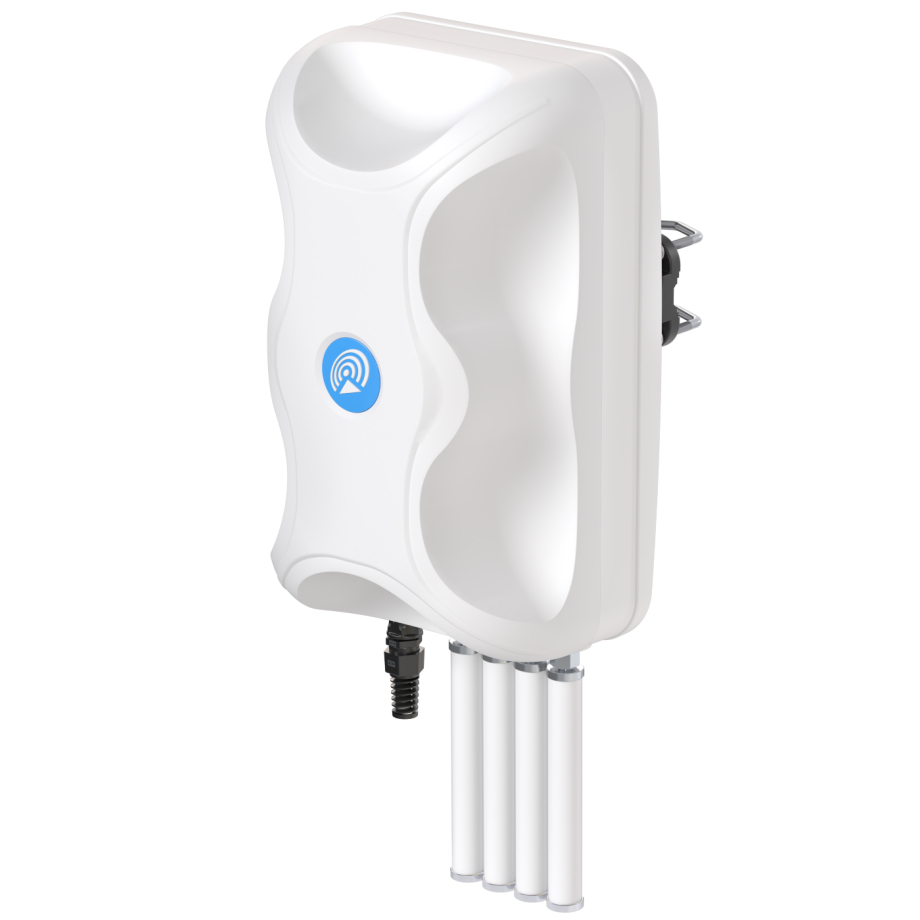

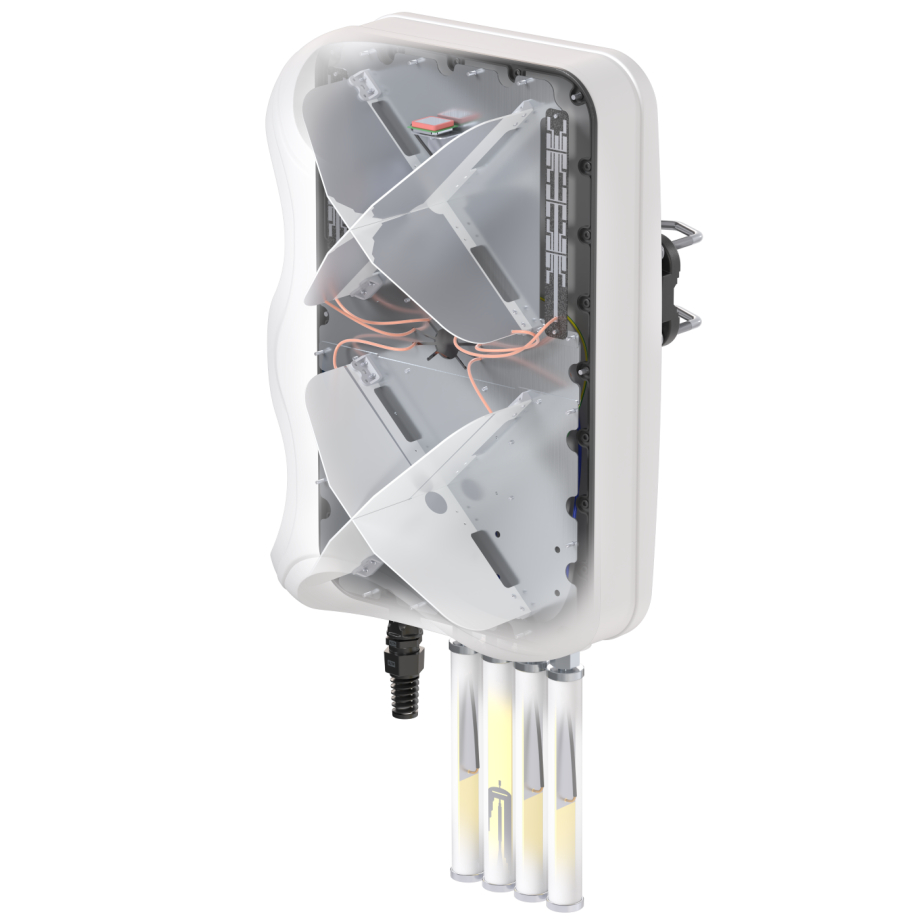

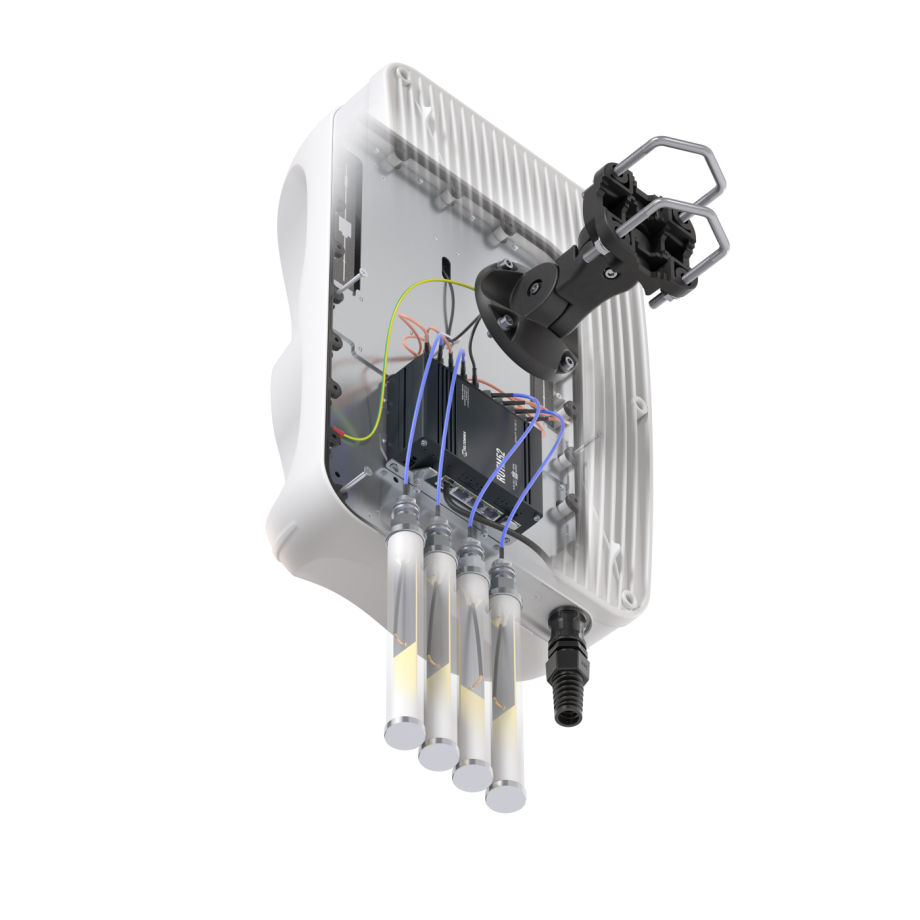

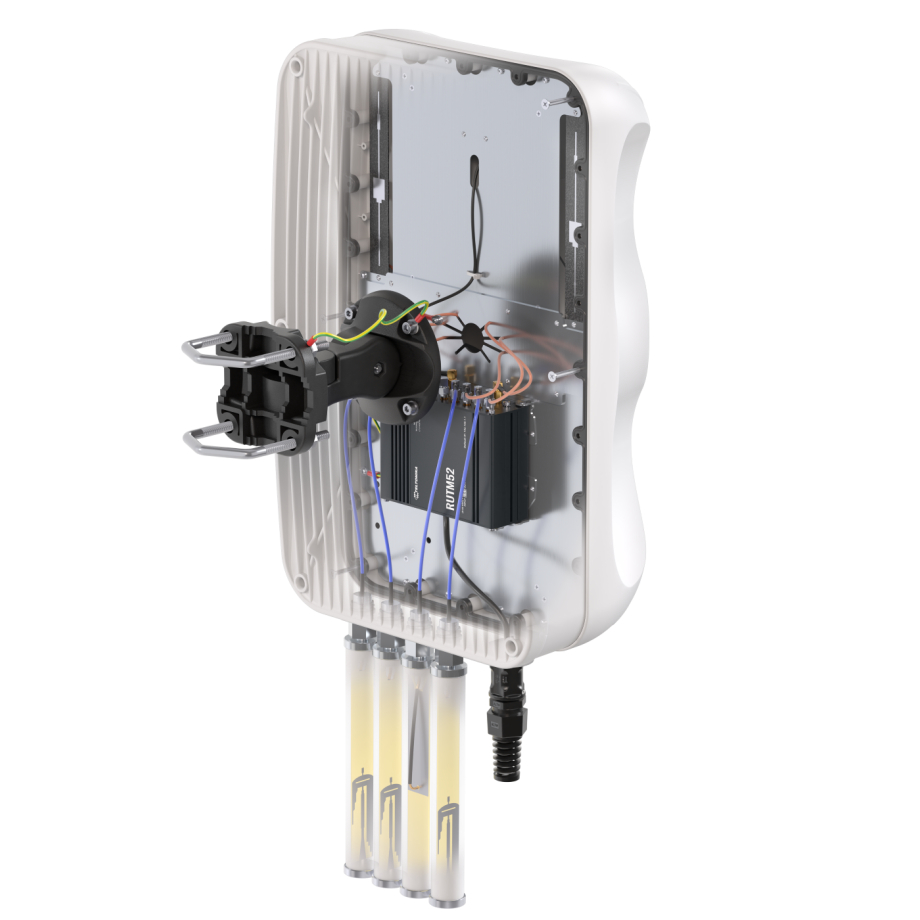

QuMax for Teltonika RUTM52 is an all-in-one outdoor antenna solution that combines antenna systems with a dedicated place to install the Teltonika RUTM52 inside the same housing. It integrates multi-band directional 5G/LTE antennas, an omni 5G/LTE antenna, a Wi-Fi 6E omni antenna, and GPS in a single enclosure. This design is intended to create a complete outdoor setup for wireless communication applications without separating the router from the antenna assembly. The product is designed for varied deployment environments, including public transportation, energy, mining IoT, urban installations, and rural locations. Directional 5G/LTE coverage helps focus reception toward a signal source, while the integrated omni antennas support broader surrounding coverage where an all-directional radiation pattern is useful.

Wi-Fi 6E support extends wireless capability across both 2.4 GHz and 5.0–7.125 GHz Wi-Fi ranges, allowing the enclosure to support modern Wi-Fi antenna requirements alongside mobile connectivity. The antenna system covers wide cellular frequency ranges from 617 MHz up to 6.0 GHz, with support for numerous LTE and 5G bands. Directional antenna gain reaches up to 7 dBi in the stated cellular ranges, while the Wi-Fi antenna reaches up to 7.5 dBi. This combination makes the unit suitable for installations that require cellular, Wi-Fi, and GPS antenna functions in one outdoor device.

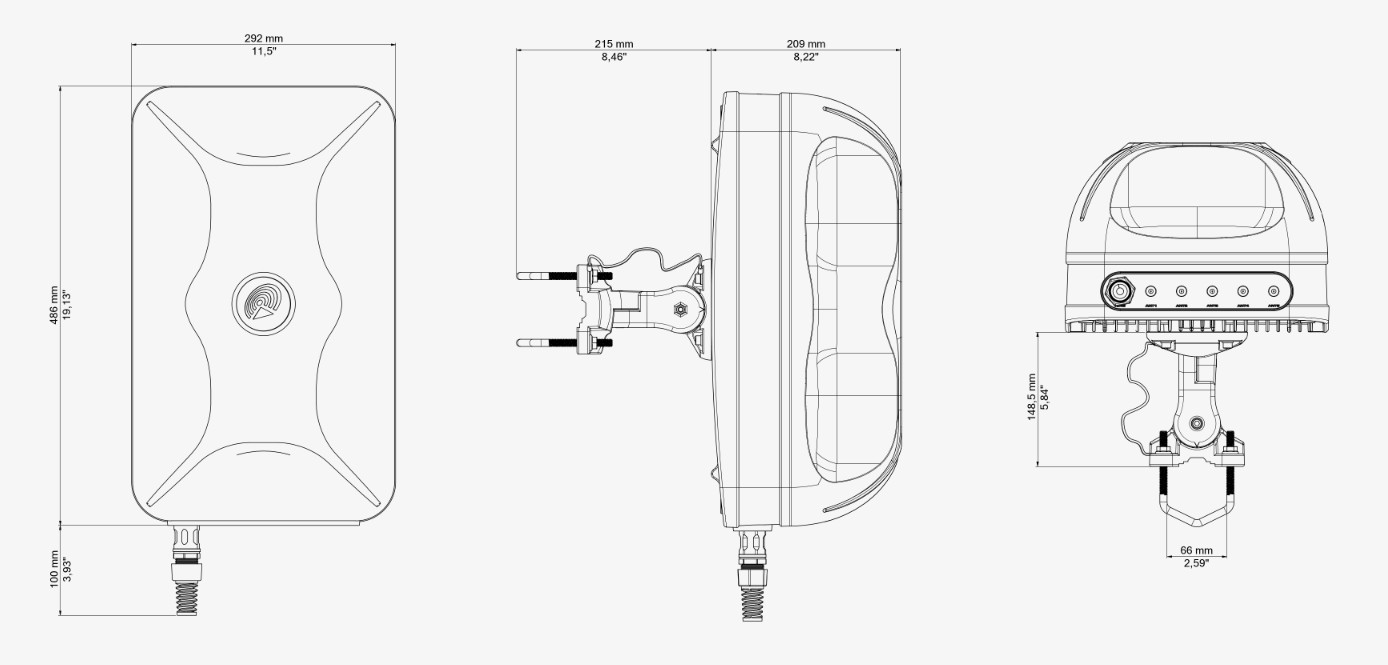

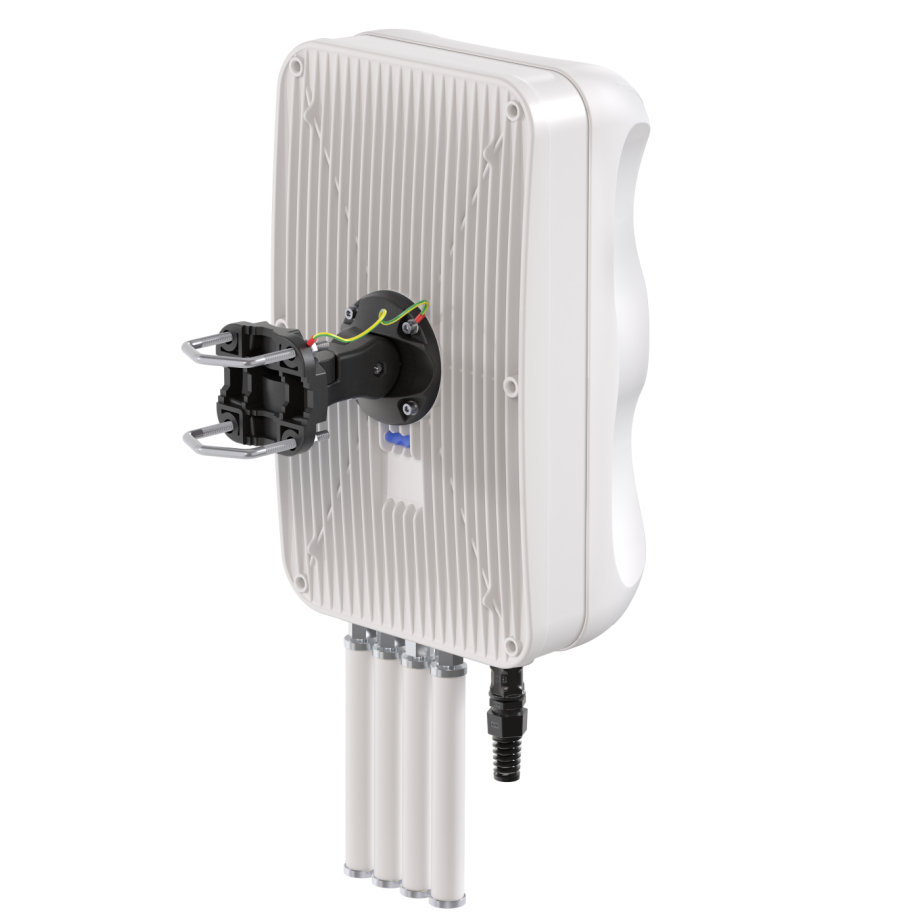

QuMax is built around an IP68-rated outdoor enclosure designed for use in difficult weather conditions. The housing uses materials including ABS, aluminum, PTFE, and fiberglass, combining environmental protection with a structure suitable for outdoor mounting. Its operating temperature range from -40 °C to 80 °C allows installation in locations exposed to both cold and high-temperature conditions, while the 486.0 x 292.2 x 105.6 mm enclosure provides space for the integrated antenna elements and the Teltonika RUTM52 installation area. The enclosure is designed for mast mounting and supports mast diameters from 25 to 66 mm, making it suitable for common outdoor installation points.

The specified tightening torque for the enclosure helps guide secure assembly during installation, while the RJ45 connector type supports the cabling approach used by the unit. Passive PoE support allows power and data connection planning to be simplified where this powering method is used. The antenna set is matched with the router installation concept, helping reduce the number of separate outdoor components. Directional cellular antennas use X polarization with a stated beamwidth of 80°/80° ±15°, while omni cellular and Wi-Fi antennas use vertical polarization with 360°/25° ±5° beamwidth. These antenna patterns allow the product to combine focused cellular reception with omnidirectional coverage functions inside one weather-resistant outdoor enclosure.
