4G 5G MIMO LTE 14 dBi Outdoor Panel Antenna 700–800 MHz

The 5G-LTE-700-8 is an outdoor directional panel antenna for 3G UMTS, 4G LTE, and low-band 5G NR networks. It is designed to improve mobile signal reception across the 700-950 MHz range, making it suitable for installations where compatible cellular equipment needs a focused connection to a distant or weak signal source. Its directional design concentrates reception and transmission within a defined area rather than spreading coverage evenly in all directions. This allows the antenna to be aimed toward the required network source and used as part of a fixed outdoor cellular setup. The supported frequency range also keeps the antenna focused on lower cellular bands instead of presenting it as a general-purpose antenna for every mobile frequency.

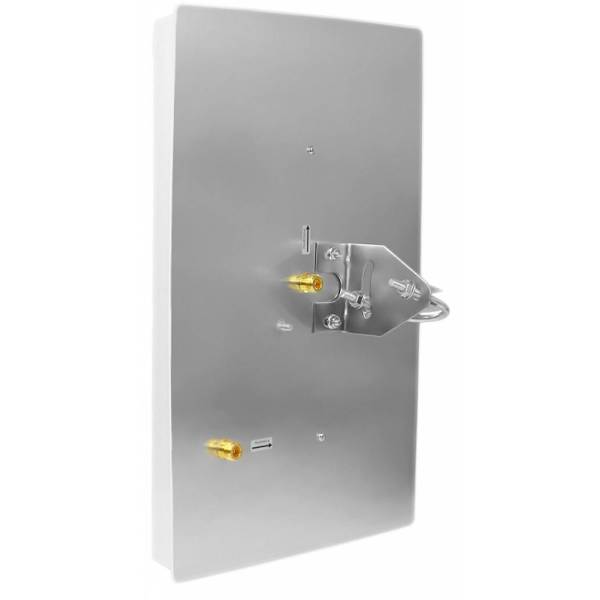

A 2x2 MIMO configuration supports two separate signal paths through two N-female connectors. When connected to compatible equipment, this arrangement enables simultaneous reception and transmission over supported mobile networks and is intended to provide stable data communication. The antenna offers 14 dBi gain, helping strengthen signals within its operating range, while the 30° horizontal and 25° vertical beamwidths define the area in which the antenna should be aligned. A VSWR below 1.7 and 50 Ohm impedance support integration with matching RF equipment, giving installers clear electrical parameters for selecting appropriate connected hardware and cabling. Together, these characteristics make precise alignment and connector compatibility central to achieving the intended performance in a fixed installation.

The antenna is intended for permanent outdoor installation on a mast or pole. Its 470 x 300 x 150 mm panel format provides a substantial directional surface while remaining practical for elevated mounting. Correct positioning is important because the defined beamwidth requires the antenna face to be aimed toward the intended signal source. Once aligned, the mast or pole mounting arrangement allows the antenna to remain fixed in position for consistent operation. The 1.6 kg weight should be considered when selecting the supporting structure and mounting location. These physical details are useful during site preparation because they affect the required clearance, mounting height, and the load that the chosen support must safely accommodate.

The housing is specified for operation from -30 to +75 °C, allowing deployment across a broad range of outdoor temperatures. It is also rated for a maximum wind speed of 200 km/h, an important consideration for exposed rooftops, towers, and open sites where wind loading can influence installation decisions. These environmental specifications help installers assess whether the intended location and support structure are appropriate before deployment. Product identification is provided by the 5G-LTE-700-8 code and EAN 0708747437607, simplifying matching, ordering, and stock control when the antenna is selected for a compatible cellular system. The combination of defined dimensions, weight, temperature range, and wind resistance provides practical information for planning placement before installation.
