Iskra 5G antenna, 698-3800 MHz, 7.5-10.5 dBi, cable 5m
in stock
?
69.97 €
69.97 €
Detailed description
Antenna set P-60 5G 7003800 MIMO is used for the reception of mobile operators' signals in MIMO technology (two antennas mounted into X polarity). The antenna set covers ultra-wide frequency range from LTE 700 to LTE 5G 3,8 GHz frequency bands. Set is the most suitable for connecting it to Wi-Fi router or MIMO modem. One set contain two antennas (one for upper and one for lower mounting position) with the same technical data.
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Yagi
Wireless Antenna Frequency Range & Gain
2.400 - 2.495 (GHz) 10 (dBi)
Mobile Antenna Frequency Range & Gain
0.698 - 0.862 (GHz) 10 (dBi), 1.710 - 1.880 (GHz) 10 (dBi), 2.50 - 2.70 (GHz) 10 (dBi), 3.30 - 3.80 (GHz) 8 (dBi)
Mobile Antenna Gain
10 dBi, 8 dBi
Beamwidth
44 ° Vertical, 52 ° Horizontal
Cable Length
5 m
VSWR
< 1.6
Impedance
50 Ω
F/B ratio
> 23 dB
Maximum Input Power
50 W
Connectors
RF Connectors

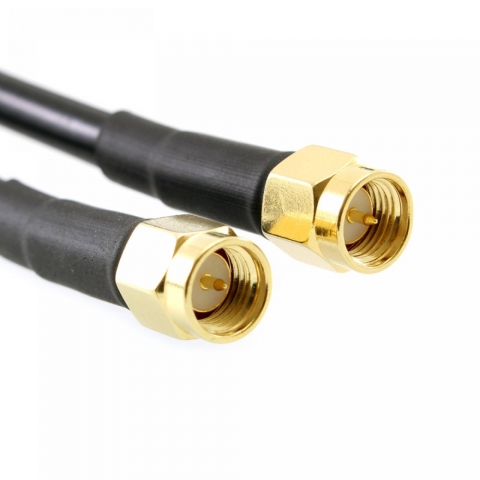

(2) SMA Male
Physical Parameters
Dimensions
L=1100 mm
Environment
Outdoor
Mounting Method
Pole Mount
