Mimosa N5-X20 Dish Antenna 20dBi, 2-pack
This item has been discontinued
We recommend to use the product presented below
This item has been discontinued
We recommend to use the product presented below
Available alternatives
Detailed description

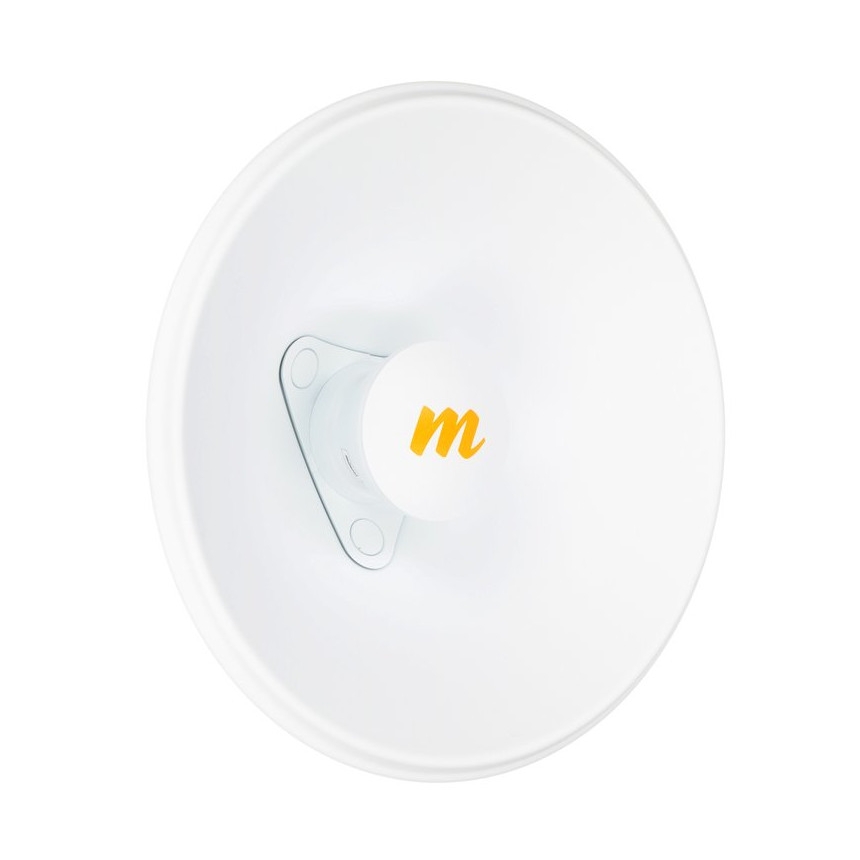

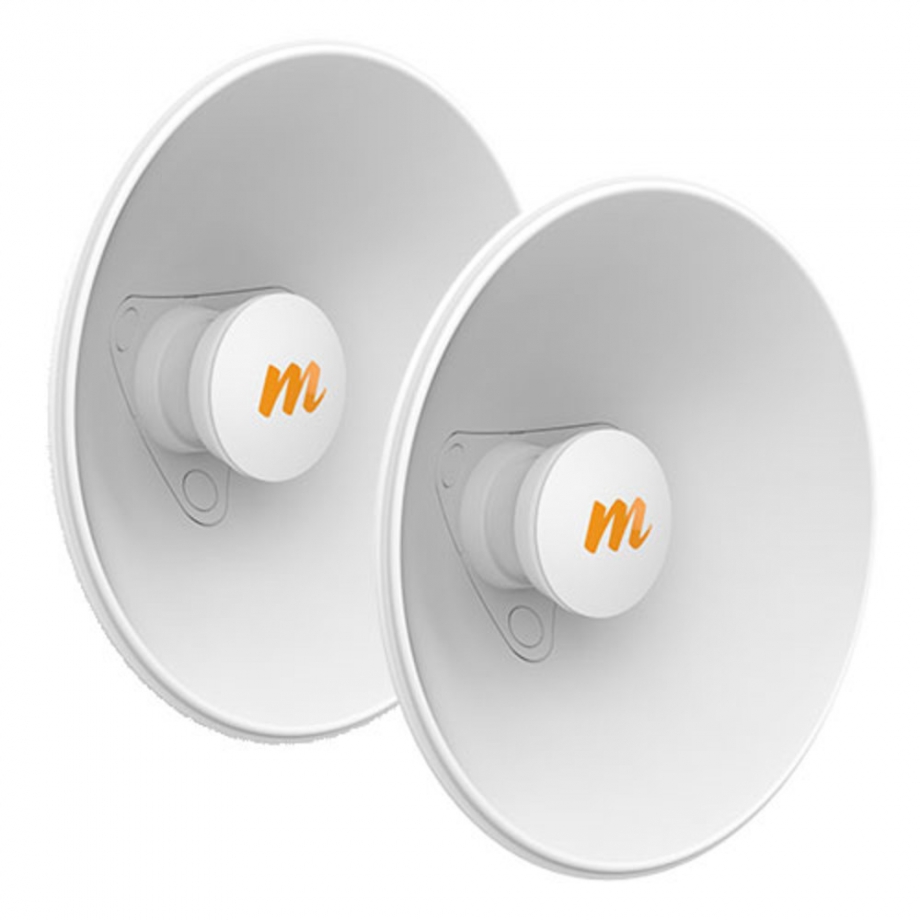

The custom-designed N5-X modular antenna is specifically optimized for C5x extended frequency support. Mimosa N5-X20 is a 20 dBi gain symmetrical horn antenna for use with Mimosa C5x access points operating in the 4900 - 6400 MHz frequency range. The kit contains two antennas.
Technical Specs / Datasheet
Specifications
Antenna
Antenna Design
Parabolic Dish
Wireless Antenna Frequency Range & Gain
4.9 - 6.4 (GHz) 20 (dBi)
Beamwidth
12 °
Polarization
Dual Slant
F/B ratio
> 35 dB
Connectors
RF Connectors
(1) Twist-on
Physical Parameters
Dimensions
Ø270 x 83 mm
Weight
0.77 kg
Environment
Outdoor
Rated Wind Velocity
200 km/h
Package Contains
Units
2 pcs
