MikroTik LHG XL 5 ax
MikroTik MTCNA Certificate
MikroTik Value Added Distributor
out of stock
?
83.44 €
83.44 €
MikroTik MTCNA Certificate
MikroTik Value Added Distributor
Available alternatives
Detailed description
Advanced Wireless Performance

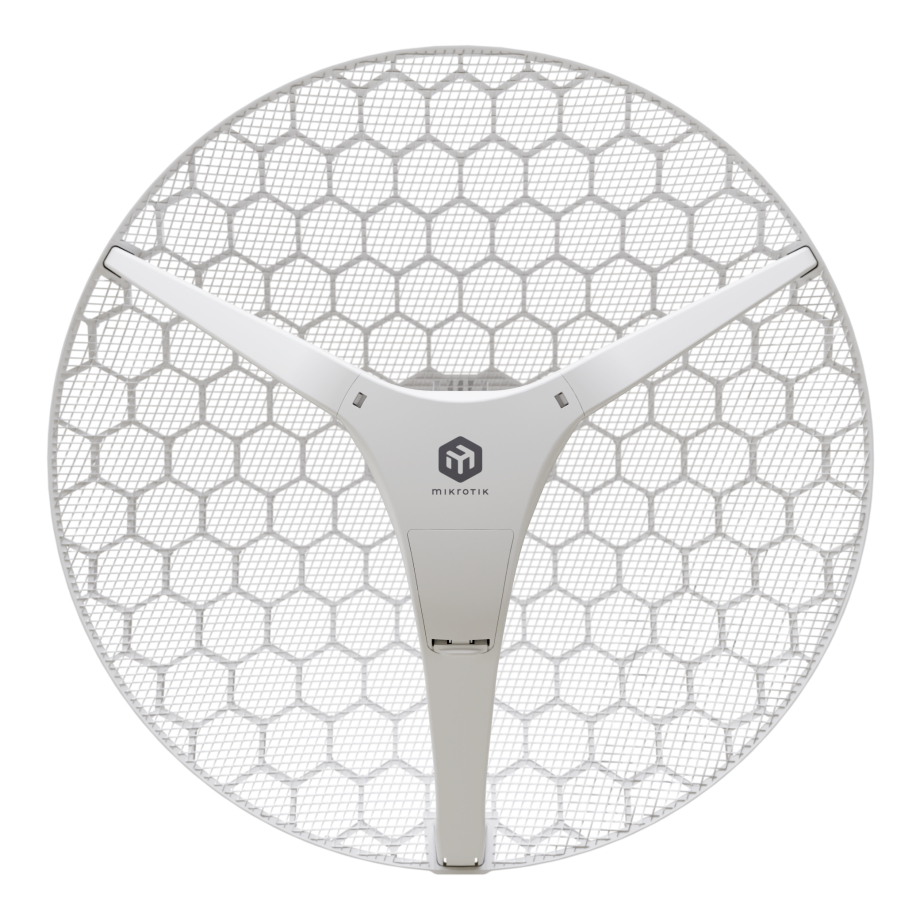

The MikroTik XL LHG 5 ax (LHG-5axD-XL) is a high-performance outdoor wireless device designed for long-distance PtP connections and as CPE (Customer Premises Equipment) in wireless ISP setups. Equipped with a powerful quad-core IPQ-6010 CPU clocked at 864 MHz and 256 MB RAM, the device runs RouterOS v7 with full support for advanced routing, firewall, and wireless configurations. Operating in the 5 GHz frequency band, it supports the latest Wi-Fi 6 (802.11ax) standard, providing superior speed, stability, and spectral efficiency compared to legacy standards. With its integrated 27 dBi high-gain dual-polarized antenna and a Gigabit Ethernet port, it delivers both exceptional throughput and extended coverage, even in noisy RF environments. Its robust enclosure and precision-designed grid ensure optimal alignment and stable links in harsh outdoor conditions.
Designed for Distance

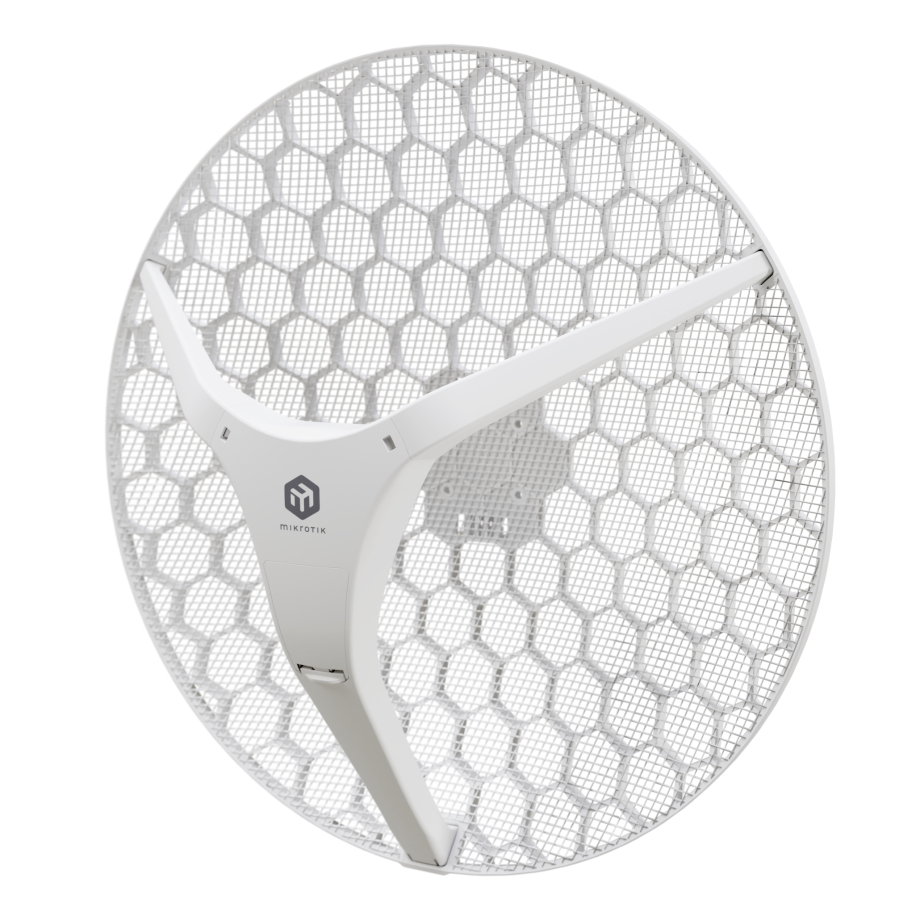

Engineered for reliable outdoor connectivity, the LHG XL 5 ax features a lightweight, grid-based antenna design optimized for long-range transmissions, making it ideal for rural broadband or inter-building links. The 27 dBi antenna gain and beam-forming efficiency help achieve link distances well beyond 15 kilometers, depending on environmental conditions. Its parabolic reflector ensures high directional focus and reduced interference, crucial for maintaining performance in crowded 5 GHz spectrums. The device operates on the 5 GHz band using 2x2 MIMO and OFDMA technologies, delivering speeds of up to 600 Mbps. Thanks to its lightweight, UV-resistant enclosure and rugged mounting system, it is highly reliable in harsh outdoor conditions, with operational temperature support from -40°C to +70°C. Power is delivered via 802.3af/at PoE-in for simplified installation and cabling.
Scalable and Secure
The LHG XL 5 ax offers excellent scalability for both ISP-grade networks and enterprise outdoor wireless applications. Advanced RouterOS v7 features—such as dynamic routing, firewall, VPN, bandwidth management, and real-time monitoring—allow for full control over network architecture. Wi-Fi 6 features like MU-MIMO and beamforming enable better performance in multi-user environments and reduce latency under load. The compact grid design ensures low wind resistance, while the included precision alignment hardware helps achieve optimal signal direction with ease. Compliant with international standards (CE, FCC), it ensures broad compatibility and legal use in various regions. Perfect for ISPs or industrial links, the LHG XL 5 ax offers reliable, high-value performance.
Technical Specs / Datasheet
Specifications
Wireless Network
Standards
802.11a/n/ac/ax
Antenna
Antenna Design
Reflector
Wireless Antenna Frequency Range & Gain
5.15 - 5.875 (GHz) 27 (dBi)
System Specification
Chipset
Dual-Core IPQ-5010 800 MHz
RAM
256 MB
Storage Memory
128 MB
Power
Power Method
AC/DC Adapter, 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
12 - 28 V DC
Max Power Consumption
5 W
Power Connector
DC Plug 2.1 x 5.5 mm
PSU / POE adapter
24 V DC 0.38 A
Physical Parameters
Dimensions
550 x 550 x 245 mm
Operating Temperature
-40 °C to 70 °C
Environment
Outdoor
Mounting Method
Pole Mount
Package Contains
External Power Supply
Included
