Junction Box A75

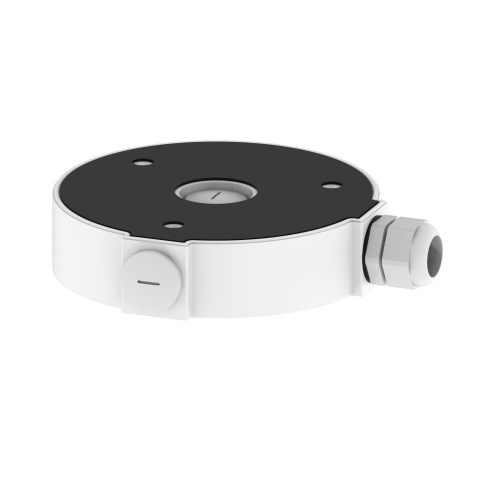

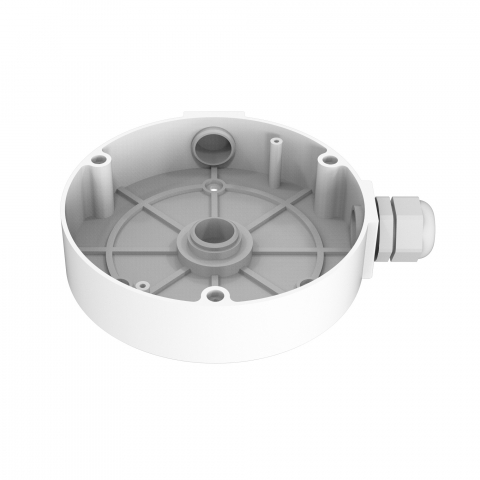

The Milesight MS-A75 is an aluminium-alloy junction box designed for compatible motorized dome and panoramic dome cameras. It provides a dedicated mounting base with internal space for concealing connectors, cable joints, and excess wiring behind the camera. The enclosure supports installation on walls or ceilings and allows cables to enter from the side or through the base. This flexibility helps installers adapt the cable route to the structure of the site and is useful when wiring cannot be fully recessed into the mounting surface.

By containing the connections, the MS-A75 reduces visible cabling and makes connection points less accessible to tampering or accidental contact. The white enclosure measures approximately Ø145 × 33.5 mm and weighs 200 g, maintaining a relatively low profile beneath the camera. Its circular form is suited to the housings of compatible dome and panoramic models, helping the complete installation retain a consistent appearance. The MS-A75 is a practical choice for surface-mounted camera installations, combining secure cable management, flexible cable entry, and a purpose-built mounting interface for supported Milesight surveillance cameras.
