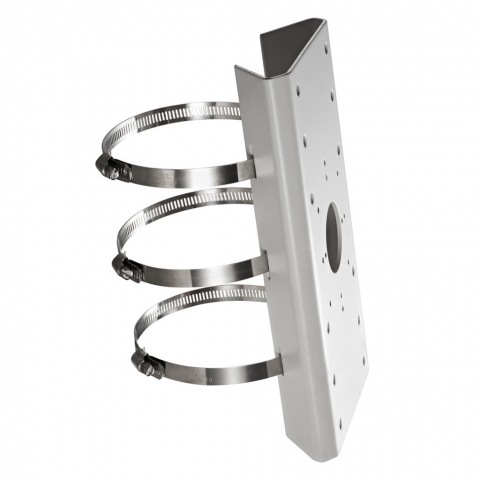

Hikvision DS-1275ZJ Vertical Pole Mount Bracket for Dome & Bullet Cameras

Hikvision DS-1275ZJ is a vertical pole mount bracket designed to provide a mounting base for compatible wall mount brackets on poles. Its clamp accommodates pole diameters from 67 to 127 mm, defining the range of poles on which the bracket can be installed. The mounting board is made from die-cast aluminum alloy, while the clasp is stainless steel. Installation is based on a straightforward clamping mechanism: the rotary knob is turned counterclockwise to open the clamp, the clamp is threaded through the mounting board, and the assembly is positioned around the pole before the knob is tightened clockwise. When the DS-1275ZJ is combined with a wall mount bracket, the position of the screw holes must be checked to ensure the parts align correctly.

The bracket is intended for installations where the supporting pole can carry the combined load of the camera and bracket. Hikvision specifies that the pole’s load capacity should exceed three times their combined weight, while the clamp itself has a load capacity of 10 kg. These requirements make the load limits an important consideration when selecting the installation point. The DS-1275ZJ is finished in Hik White and measures 127 × 46 × 250 mm, dimensions that help determine physical compatibility with the intended mounting arrangement. Together with its adjustable clamp diameter and compatibility with selected wall mount brackets, the DS-1275ZJ provides a dedicated solution for creating a vertical pole-mounted camera installation.
