Brand
Manufacturer part number
CRS106-1C-5S
Warranty
?
12 months
EAN
4752224000101

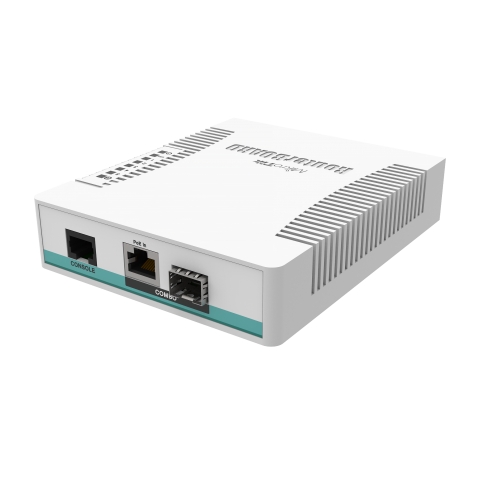

MikroTik CRS106-1C-5S
MikroTik MTCNA Certificate
MikroTik Value Added Distributor
in stock
?
42.01 €
42.01 €
MikroTik MTCNA Certificate
MikroTik Value Added Distributor
Detailed description
Versatile and Efficient
Discover enhanced network efficiency with the MikroTik CRS106-1C-5S. Designed to elevate connectivity, this intelligent desktop smart switch offers a compact solution that effectively blends versatility with high-performance capabilities. Equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages, the CRS106-1C-5S offers a flexible range of connectivity options. This configuration enables different devices and applications to easily join your network, ensuring smooth data flow and effective traffic control.
Built For Practicality
With a 400MHz CPU and 128MB of RAM, the CRS106-1C-5S is designed to manage data-intensive tasks with ease. The smart switch runs RouterOS with an L5 license, providing a robust foundation for advanced networking capabilities. Its capability to support 11-30V power adds to its adaptability across different power sources. The CRS106-1C-5S features a practical design, housed in a compact desktop case. An external AC/DC adapter is included for a convenient and dependable power supply.
Compare with similar products
| Ethernet Ports | |||
| 1 x SFP/ETH Combo 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps | |
| SFP Ports | |||
| 5 x 1.25 Gbps | 4 x 10 Gbps | 8 x 10 Gbps | |
| RAM | |||
| 128 MB | 512 MB | 512 MB | |
| Storage Memory | |||
| 16 MB | 16 MB | 16 MB | |
| Chipset | |||
| QCA8511, 1 core, 400 MHz | 98DX3236, 1 core, 800 MHz | 98DX8208, 2 core, 800 MHz | |
| Max Power Consumption | |||
| 11 W | 12 W | 17 W | |
| Form Factor | |||
| Desktop | Desktop | Rack-mounted 19", Desktop | |
| Mounting Method | |||
| Wall Mount, Tabletop | Tabletop | RackMount, Tabletop | |
| Ethernet Ports | 1 x SFP/ETH Combo 1 Gbps | 1 x 1 Gbps | 1 x 1 Gbps |
| SFP Ports | 5 x 1.25 Gbps | 4 x 10 Gbps | 8 x 10 Gbps |
| RAM | 128 MB | 512 MB | 512 MB |
| Storage Memory | 16 MB | 16 MB | 16 MB |
| Chipset | QCA8511, 1 core, 400 MHz | 98DX3236, 1 core, 800 MHz | 98DX8208, 2 core, 800 MHz |
| Max Power Consumption | 11 W | 12 W | 17 W |
| Form Factor | Desktop | Desktop | Rack-mounted 19", Desktop |
| Mounting Method | Wall Mount, Tabletop | Tabletop | RackMount, Tabletop |
Compatible products
Specifications
Interfaces
PoE Out Standards
w/o PoE
SFP Ports
(5) 1G SFP, (1) 1G SFP/ETH Combo
Communication Interface
RJ45
Management
Ethernet
System Specification
Chipset
QCA8511, 1 core, 400 MHz
RAM
128 MB
Storage Memory
16 MB
Power
Power Method
AC/DC Adapter, 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
11 - 30 V DC
Max Power Consumption
11 W
Power Connector
DC Plug 2.1 x 5.5 mm
PSU / POE adapter
24 V DC 0.8 A
Physical Parameters
Ingress Protection Code
IP20
Dimensions
137 x 114 x 29 mm
Operating Temperature
-20 °C to 70 °C
Environment
Indoor
Mounting Method
Wall Mount, Tabletop
Form Factor
Desktop
Package Contains
External Power Supply
Included
Software
MikroTik
RouterOS Level 5
