MikroTik hAP be lite

The hAP be lite is a compact Wi-Fi 7 router and access point built for networks that need modern wireless performance together with RouterOS flexibility. It supports both 2.4 GHz and 5 GHz wireless operation, combining a dual-chain 2.4 GHz radio with a triple-chain 5 GHz radio that uses two spatial streams. This dual-band design helps distribute wireless connectivity across frequency bands, while Wi-Fi 7 Multi-Link Operation provides BE3600-class wireless performance for everyday devices such as laptops, phones, and tablets. The 2.4 GHz radio supports 802.11b/g/n/ax/be with a maximum data rate of 688 Mbps and 4.4 dBi antenna gain.

The 5 GHz radio supports 802.11a/n/ac/ax/be with a maximum data rate of 2882 Mbps and 7 dBi antenna gain. These wireless specifications make the device suitable for environments where multiple devices share the same airspace and need responsive connections. The MT7991 wireless interface model is used for the radio subsystem. By combining Wi-Fi 7 protocol support, dual-band operation, and compact hardware, the hAP be lite provides a practical wireless platform for small installations where space, speed, and configuration flexibility are all important.

The hAP be lite runs RouterOS v7 with License level 4, giving users access to a broad set of network configuration tools beyond basic wireless connectivity. RouterOS supports functions such as VLAN configuration, VPN setup, traffic shaping, advanced firewall rules, scripting, and detailed customization of the network environment. This makes the device useful for users who need precise control over routing, segmentation, security behavior, and automation in a compact router format. Centralized management is also supported through the updated CAPsMAN system, which allows multiple MikroTik access points to be managed from a single interface.

Hardware resources are built around a dual-core AN7563PT ARM CPU running at 950 MHz, supported by 512 MB of DDR3 RAM and 128 MB of NAND storage. This processing platform is intended to support advanced networking tasks and heavy traffic within the product’s stated capabilities. The same AN7563PT model is also used as the switch chip. Together, the operating system, processing hardware, memory, and centralized management support define the device as more than a simple access point, giving it the control depth expected from a RouterOS-based MikroTik platform.

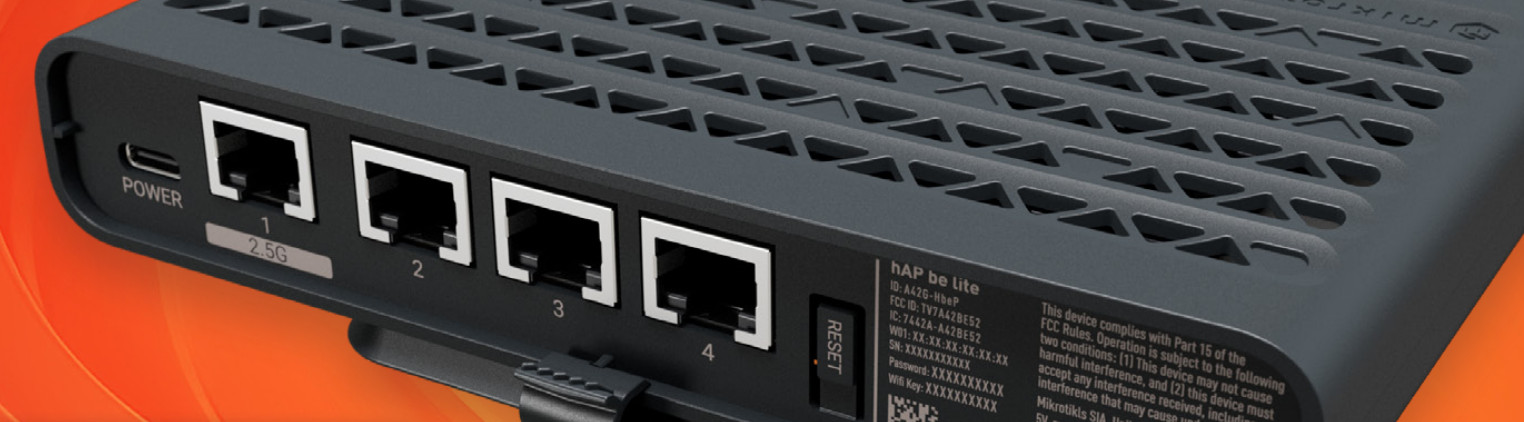

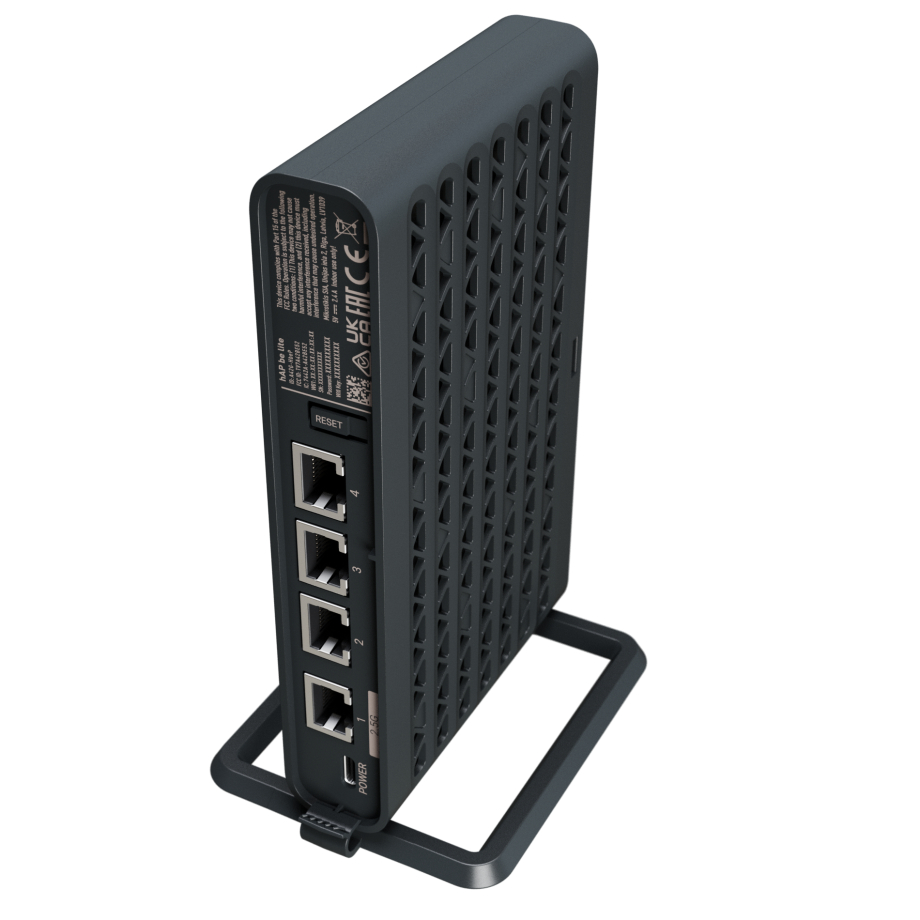

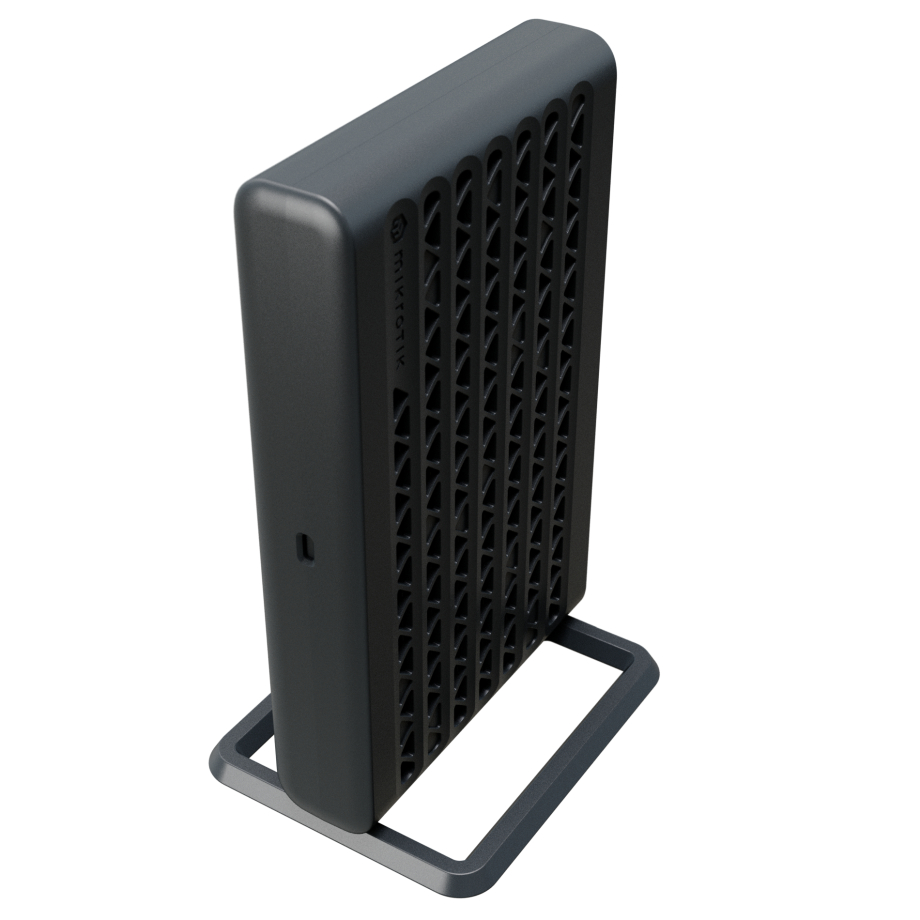

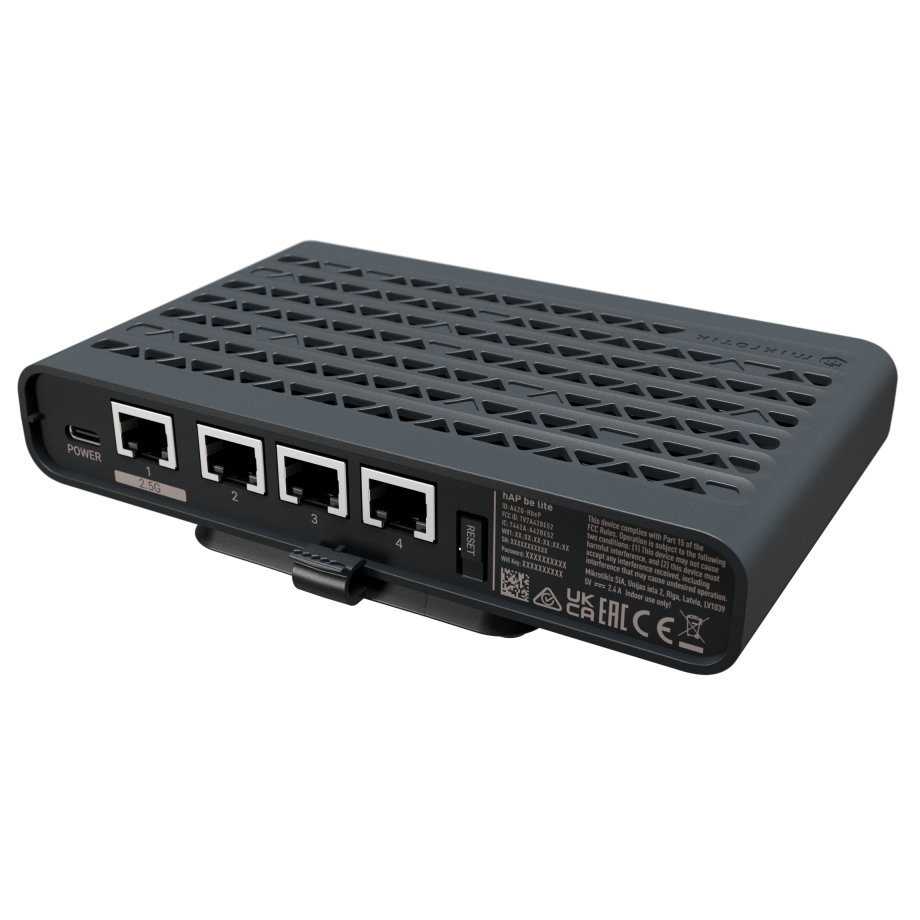

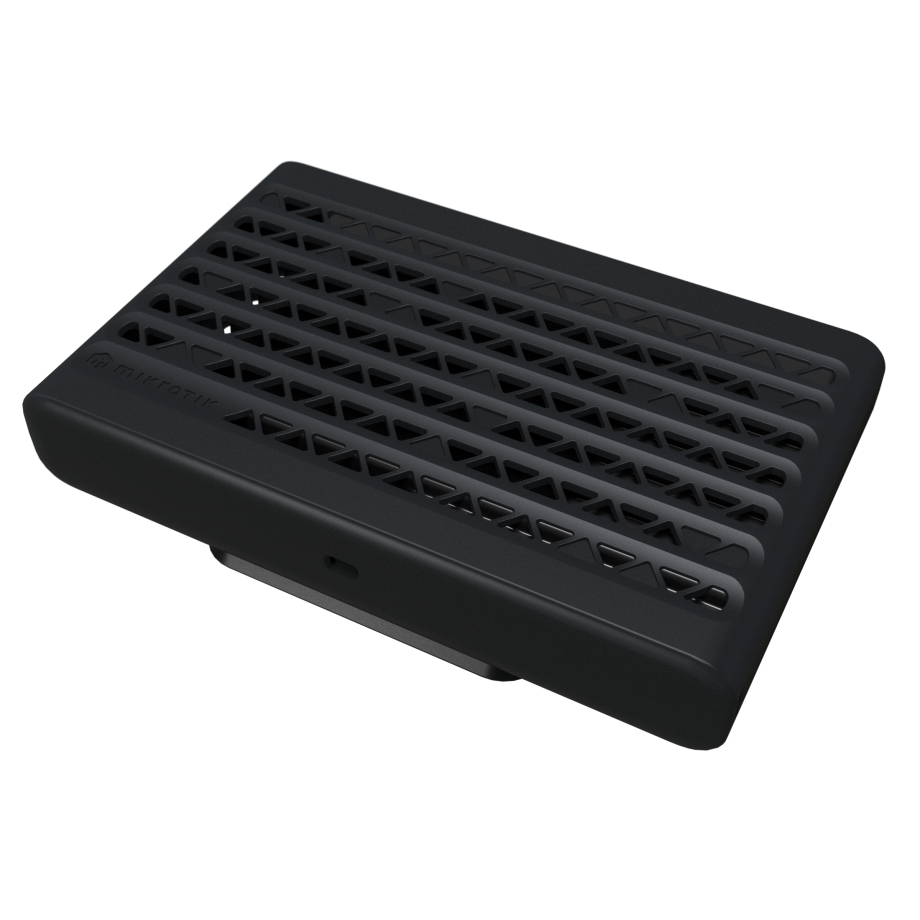

Wired connectivity on the hAP be lite is arranged around three 1G Ethernet ports and one 2.5G Ethernet port, providing options for standard local wired connections and a faster port for high-speed uplinks, workstations, NAS devices, or other demanding wired use. Power is supplied through USB-C with a 5 V DC input, and the included power adapter is rated at 5 V and 2.4 A. Maximum power consumption is 12 W, supporting the device’s role as a low-power compact router and access point. The enclosure is designed for flexible placement with a base plate, measuring 162 x 79 x 104 mm when positioned vertically and 32 x 157 x 105 mm when positioned horizontally.

This allows the unit to be placed in different orientations depending on available space. The operating temperature range extends from -40°C to +50°C, defining the environmental limits for use. The product code is A42G-HbeP. By combining USB-C powering, low power consumption, multiple Ethernet port speeds, and a compact form factor, the hAP be lite is designed for installations where physical space and practical placement are as important as wireless and wired network capability.
