Ubiquiti Wave AP

Ubiquiti Elite Distributor
in stock
?
458.61
in stock
in stock
?
458.61

plug

Manufacturer part number

Wave-AP

Warranty

?
12 months

EAN

0810010078742
Ubiquiti Elite Distributor

Detailed description

/images/catalogue/description/1650/image201-6543988f253bf-1960x700.jpg
The Ubiquiti Wave-AP, with the model part number WAVE-AP, is a high-performance 60 GHz PtMP (Point-to-Multipoint) access point designed for outdoor use. It operates on a 60 GHz frequency band and supports a maximum throughput of 5.4 Gbps, which effectively operates at 2.7 Gbps duplex. This device can support up to 24 client stations and offers a range of up to 8 km when connected to a Wave Pro or Wave Long-Range, and up to 5 km when connected to a Wave Nano​.
Features:
  • 5 GHz backup radio
  • 30° sector coverage
  • Link range: up to 5 km with Wave Pico
  • Link range: up to 5 km with Wave Nano
  • Link range: up to 8 km with Wave Pro
  • Link range: up to 8 km with Wave Long Range
  • Bridge mode support
  • Integrated GPS antenna
  • Link planning support via ISP Design Center
/images/catalogue/description/1650/image202-654398937fa13-1400x1634.jpg
The Wave-AP is equipped with a 5 GHz backup radio to ensure uninterrupted connectivity and also includes a Bluetooth radio for simplified setup via the UISP Mobile app. The access point features two WAN ports: one 10G SFP+ and one 2.5GbE, which facilitate high-speed data connections​.

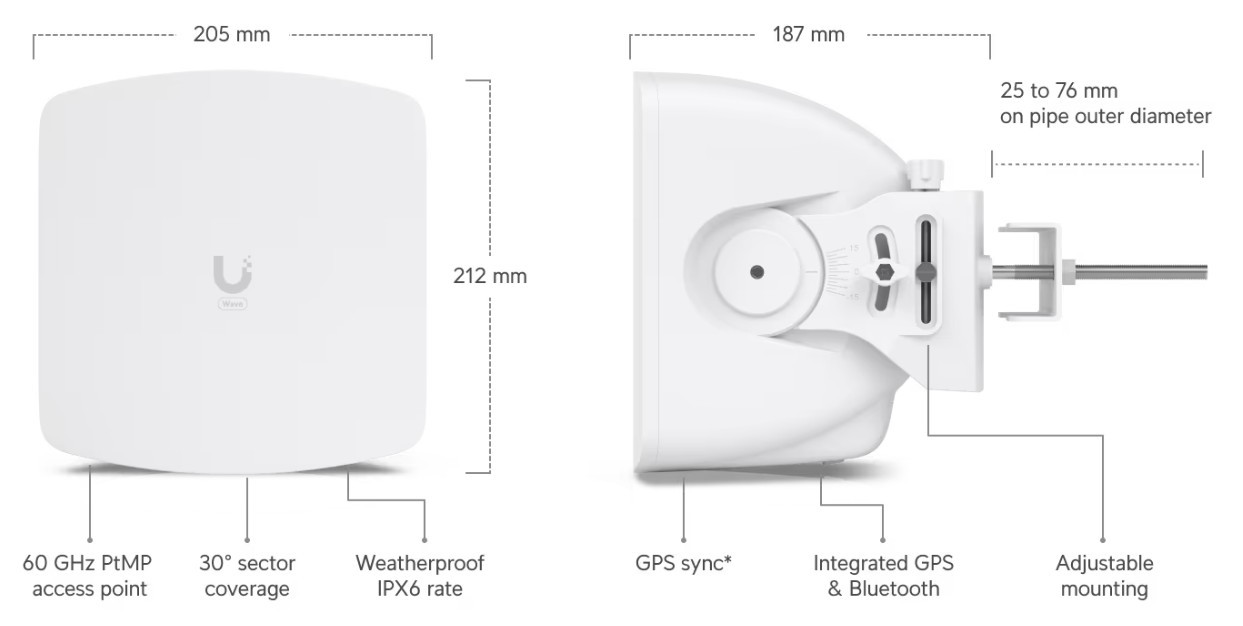

From a hardware perspective, the Wave-AP is housed in a robust aluminum alloy and UV-stabilized polycarbonate enclosure, which ensures durability and longevity in outdoor environments. It includes a quad-core ARM Cortex-A53 processor running at 1.4 GHz, coupled with 512 MB of DDR3L memory. Its physical dimensions are 212 x 205 x 187 mm, and it weighs 2.3 kg. The device is designed to handle wind loadings of 98 N at 200 km/h and is rated IPX6 for weatherproofing​.
The 30° sector coverage of the Ubiquiti Wave-AP refers to its highly directional beamwidth, which is critical for maintaining a focused and efficient transmission of the 60 GHz signal. This narrow beamwidth helps in minimizing interference and increasing signal integrity, particularly useful in crowded spectrum environments or when deploying multiple devices in close proximity. It allows for precise targeting of the signal towards specific areas or paths, enhancing the overall performance and reach of the network. This characteristic is especially beneficial in environments requiring high-capacity, point-to-multipoint configurations, ensuring that each client device receives a strong, direct signal, which is vital for maintaining high throughput over longer distances.
Additionally, the integrated GPS feature of the Wave-AP provides several advantages for network management and deployment. It allows for accurate geolocation of the access points within the network, which is instrumental in planning and optimizing the wireless coverage, especially in complex terrains and large-scale deployments. GPS data can also assist in network synchronization, particularly in time-sensitive applications where coordinating data packets' transmission across various devices is critical. This synchronization can help in reducing latency and improving the overall efficiency of the network. Furthermore, the GPS functionality can be used for real-time tracking and management of the devices, facilitating easier maintenance and troubleshooting.
/images/catalogue/description/1650/uispsoftware2021-63be9ab901643-332x240.jpg
Furthermore, the Wave-AP is equipped with advanced software tools and features. It supports PtMP access mode and is compatible with Ubiquiti's UISP version 1.5.7 and later. It includes practical network management tools such as antenna alignment, discovery utility, ping, traceroute, and a speed test. Moreover. Bluetooth-powered setup via the UISP Mobile app is available. Thanks to UISP app you can centrally manage your networks and clients with ease. Simply organize your clients' plans, setup billing and invoicing, and grow your customer base. UISP application allows viewing network topology, advanced data analytics, quickly set up devices and manage them on the go with a powerful mobile app.

Application scenarios

The Ubiquiti Wave-AP, with its robust outdoor capabilities and high-speed throughput, is ideally suited for creating expansive outdoor Wi-Fi networks in large venues like stadiums, parks, and university campuses. By leveraging its high-performance 60 GHz band and secondary 5 GHz radio, the Wave-AP can deliver consistent, high-speed internet access across large open areas, ensuring that visitors and staff remain connected regardless of their precise location within the venue. This connectivity is critical during large events where real-time communication and data transmission are necessary for operations and user experience, such as streaming live videos, accessing vendor services online, and navigating through apps designed for large venue logistics.
Additionally, the Wave-AP's rugged design and long-range connectivity capabilities make it an excellent choice for deploying wireless networks across industrial complexes and agricultural operations. In environments like these, reliable communication is essential for the coordination of machinery and workforce, monitoring of operational processes, and collection of data from remote sensors. The integrated GPS and high-gain antennas enhance the precision and reliability of connections, facilitating not just basic communication but also enabling advanced applications like real-time surveillance, automated logistics, and precision agriculture, where consistent data flow from field sensors to central servers is crucial for operational efficiency.

Compare with similar products


Wireless Standard
802.11ax (WiFi 6)
802.11ax (WiFi 6)
60GHz Radio Rate
5.4Gbps
5 Gbps
Wireless Antenna Frequency Range & Gain
57 - 71 (GHz) 24 (dBi), 5.15 - 5.875 (GHz) 12 (dBi)
57 - 71 (GHz) 20 (dBi), 5.15 - 5.875 (GHz) 13.5 (dBi)
Ethernet Ports
1 x 2.5 Gbps
1 x 2.5 Gbps
SFP Ports
1 x 10G SFP+
Chipset
Quad ARM® Cortex®-A53 cores at 1.4 GHz
Quad-core ARM® Cortex ® -A53 at 1.4 GHz
RAM
512 MB
512 MB
Max Power Consumption
24 W
24 W
Weight
2.3 kg
1.3 kg

Wireless Standard 802.11ax (WiFi 6)
802.11ax (WiFi 6)
60GHz Radio Rate 5.4Gbps
5 Gbps
Wireless Antenna Frequency Range & Gain 57 - 71 (GHz) 24 (dBi), 5.15 - 5.875 (GHz) 12 (dBi)
57 - 71 (GHz) 20 (dBi), 5.15 - 5.875 (GHz) 13.5 (dBi)
Ethernet Ports 1 x 2.5 Gbps
1 x 2.5 Gbps
SFP Ports1 x 10G SFP+
Chipset Quad ARM® Cortex®-A53 cores at 1.4 GHz
Quad-core ARM® Cortex ® -A53 at 1.4 GHz
RAM512 MB
512 MB
Max Power Consumption24 W
24 W
Weight2.3 kg
1.3 kg
