Manufacturer part number
ES-24-250W
Warranty
?
12 months
EAN
0810354022241

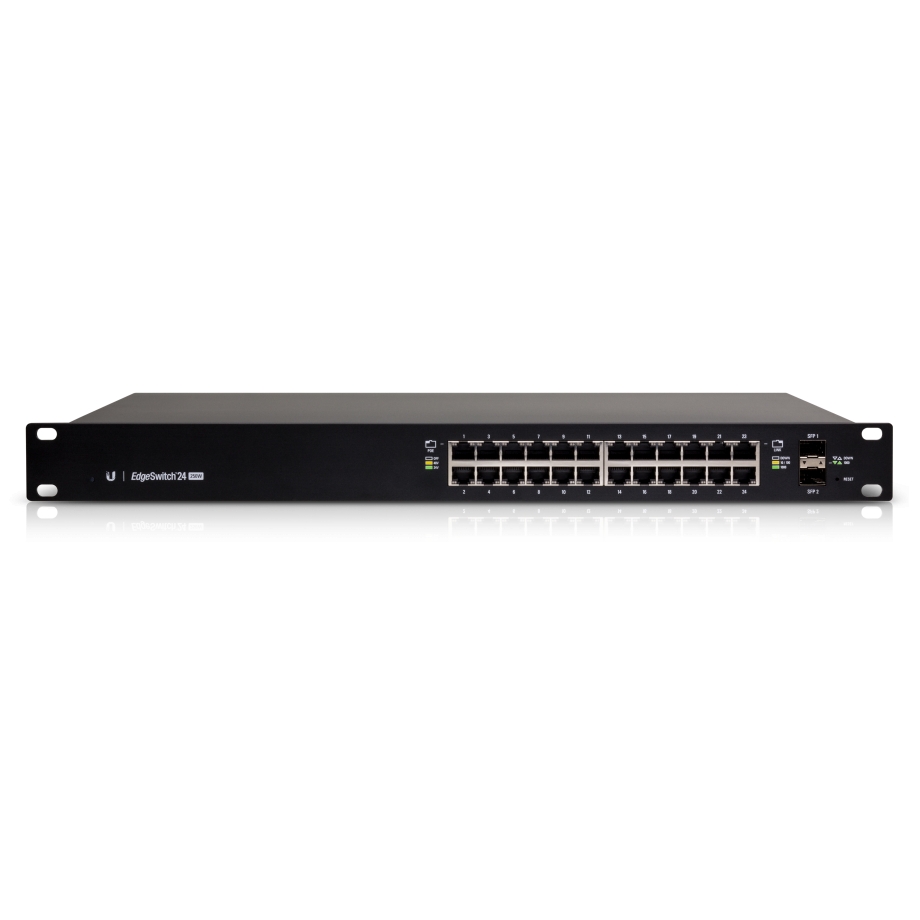

Ubiquiti EdgeSwitch 24 250W
Ubiquiti Elite Distributor
out of stock
?
328.96 €
328.96 €
Ubiquiti Elite Distributor
Detailed description
Powerful Enterprise Switch Models
The EdgeSwitch 24-250W is one of the highest performing switch series. Its hardware can provide up to 26 Gbps of throughput, and the incoming packets can be processed at up to 38.69 Mpps. All this positively affects the quality of switching, and also minimizes the risk of delays or packet loss during peak network loads.
The network interface of the model under consideration includes 24 Gigabit Ethernet ports, as well as two slots for SFP-modules. It is worth noting that each of the Ethernet ports can be powered according to 802.3af/at or Passive PoE 24V standards. Each of the connectors is equipped with basic LED indication, which allows you to quickly assess the state of the interface and timely notice malfunctions in its operation, thereby contributing to the rapid elimination of problems.
Enterprise-Class Features
The EdgeSwitch® supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Convenient PoE+ Support
The EdgeSwitch® features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Compare with similar products
| Ethernet Ports | ||||
| 24 x 1 Gbps | 8 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps | |
| PoE Out Ports | ||||
| 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 1 x Passive PoE | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | |
| SFP Ports | ||||
| 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP | |
| USB Ports | ||||
| Management | ||||
| Ethernet | Ethernet | Ethernet | Ethernet | |
| Max Power Consumption | ||||
| 250 W | 8 W | 500 W | 150 W | |
| Operating Temperature | ||||
| -5 °C to 40 °C | -10 °C to 50 °C | -5 °C to 40 °C | -25 °C to 45 °C | |
| Dimensions | ||||
| 485 x 43.7 x 285.4 mm | 207 x 31.1 x 90 mm | 485 x 43.7 x 374.6 mm | 204 x 43 x 235 mm | |
| Weight | ||||
| 4.7 kg | 0.5 kg | 6.1 kg | 1.8 kg | |
| Mounting Method | ||||
| Rack-mounted 19" | Tabletop | Rack-mounted 19" | Tabletop | |
| Form Factor | ||||
| RackMount | Desktop | RackMount | Desktop | |
| Ethernet Ports | 24 x 1 Gbps | 8 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps |
| PoE Out Ports | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 1 x Passive PoE | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) |
| SFP Ports | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP |
| USB Ports | ||||
| Management | Ethernet | Ethernet | Ethernet | Ethernet |
| Max Power Consumption | 250 W | 8 W | 500 W | 150 W |
| Operating Temperature | -5 °C to 40 °C | -10 °C to 50 °C | -5 °C to 40 °C | -25 °C to 45 °C |
| Dimensions | 485 x 43.7 x 285.4 mm | 207 x 31.1 x 90 mm | 485 x 43.7 x 374.6 mm | 204 x 43 x 235 mm |
| Weight | 4.7 kg | 0.5 kg | 6.1 kg | 1.8 kg |
| Mounting Method | Rack-mounted 19" | Tabletop | Rack-mounted 19" | Tabletop |
| Form Factor | RackMount | Desktop | RackMount | Desktop |
Technical Specs / Datasheet
Compatible products
Specifications
Interfaces
RJ45 Ports
Number of PoE Ports
24 pcs
PoE Out Standards
Passive PoE, 802.3af (PoE), 802.3at (PoE+)
SFP Ports
(2) 1G SFP
Communication Interface
RJ45
Management
Ethernet
Power
Power Method
AC/DC Adapter
Power Supply
Internal PSU
Supported Input Voltage
100 - 240 V AC
Max Power Consumption
250 W
Physical Parameters
Number of Rack Units
1U
Color
Black
Dimensions
485 x 43.7 x 285.4 mm
Weight
4.7 kg
Operating Temperature
-5 °C to 40 °C
Environment
Indoor
Mounting Method
RackMount
Form Factor
Rack-mounted 19"
